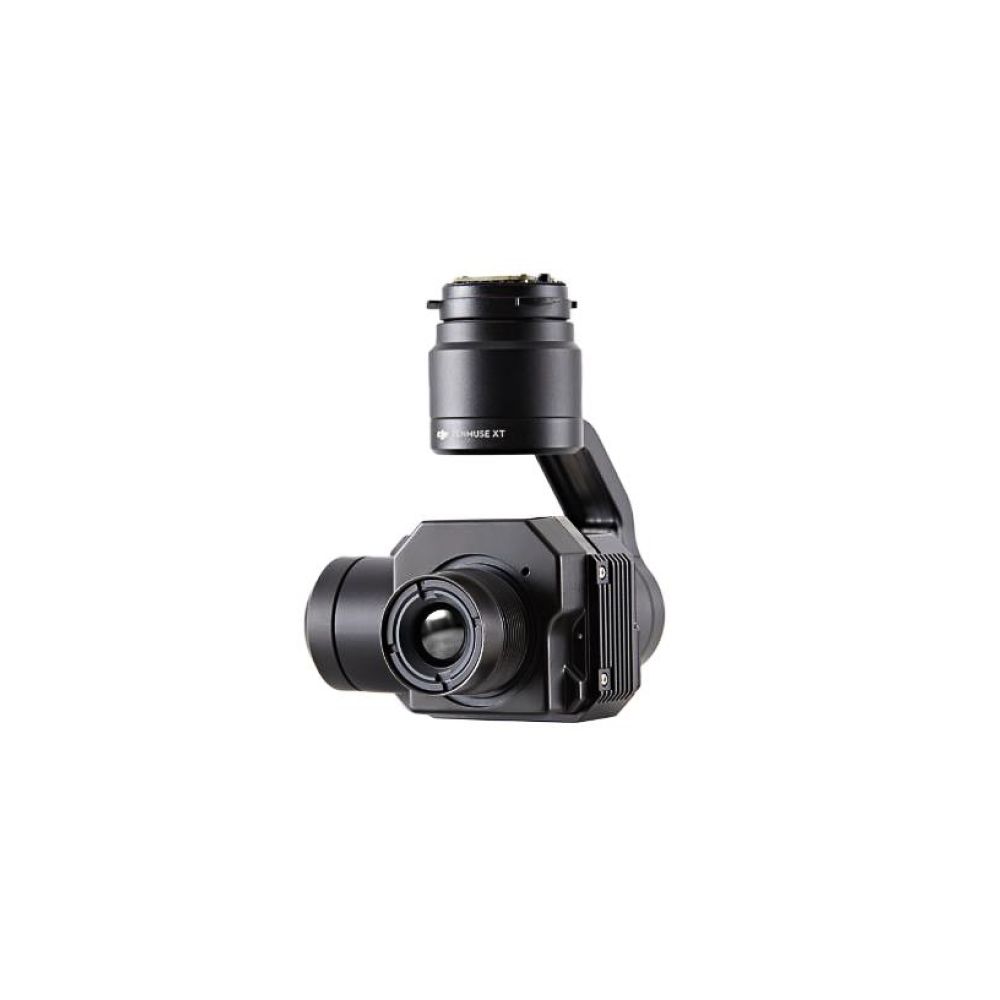

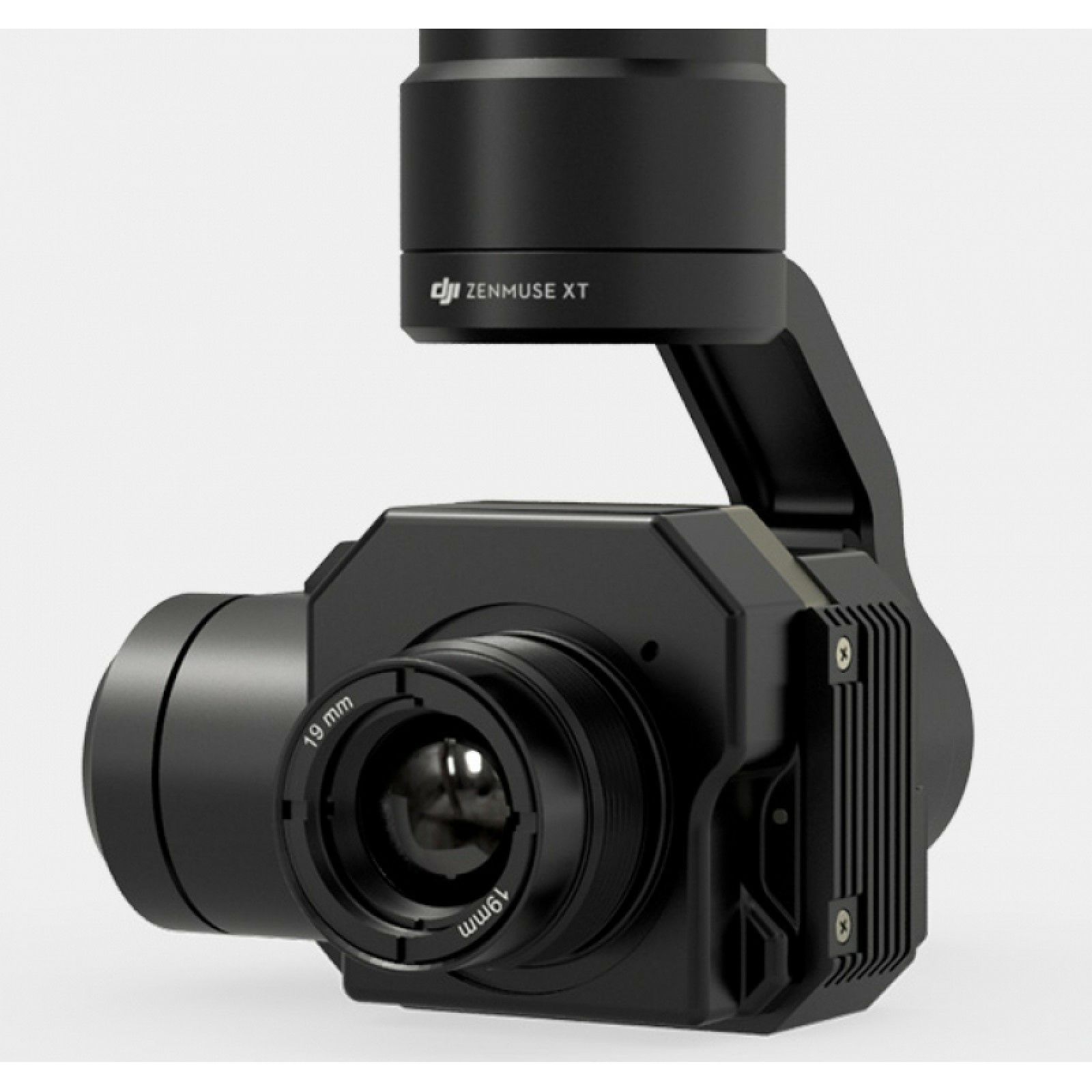

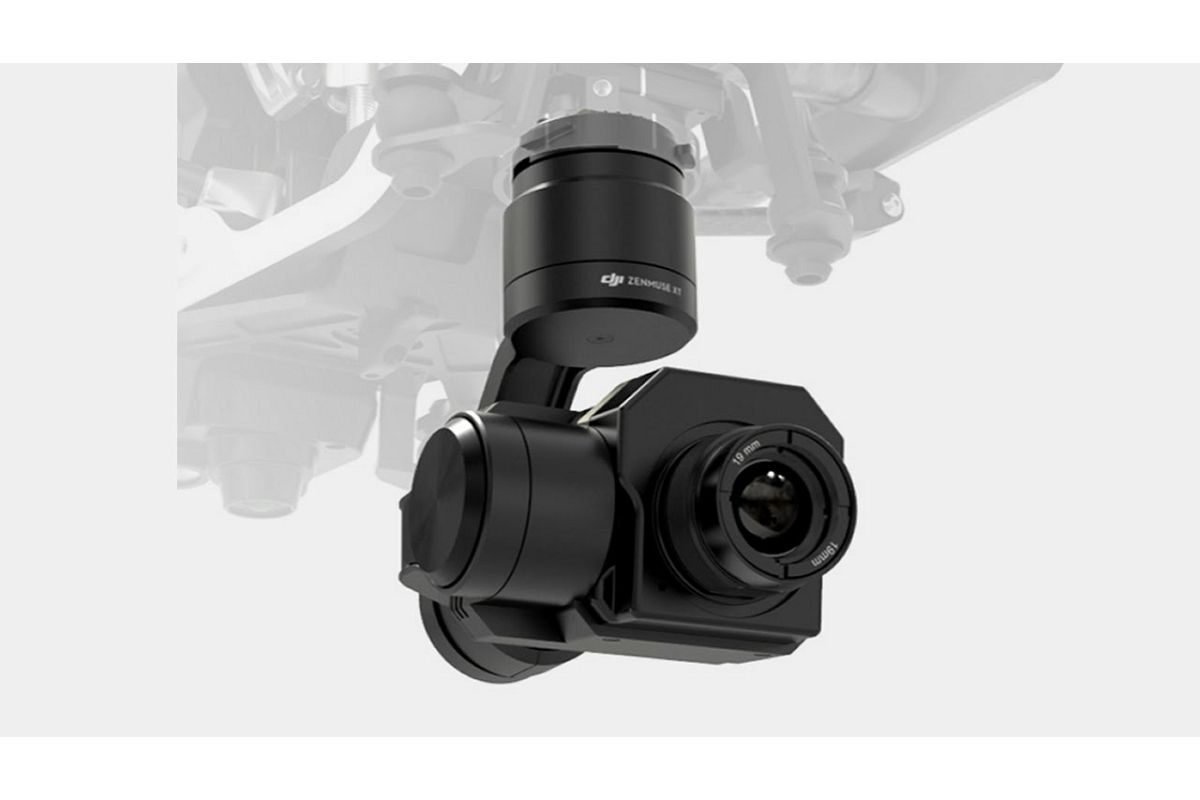

DJI Zenmuse XT Thermal Camera ZXTB19SR 336x256 9Hz (Slow frame) Lens 19mm objektiv termovizijska kamera (radiometry temperature measurement model)

Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT. By combining DJI’s unrivaled expertise in gimbal technology and image transmission with the industry leading thermal imaging technology of FLIR, the Zenmuse XT is the ultimate solution for rapid and reliable aerial thermal imaging. Capture faster, with pinpoint precision, over large areas, then save them for analysis and reporting.
High quality drone-mounted thermal cameras like the XT will enable a wide array of public safety activities from wildfire management to search and rescue efforts. It is Drones Made Easy’s goal to provide the best support available to these users by developing application specific software solutions to common problems.
A DJI XT thermal camera system or bundle from Drones Made Easy will have access to a public safety optimized version of our Map Pilot for iOS app. By applying our flight planning, live controls and offline operation capabilities to public safety sector we can enable first responders in ways they have only previously dreamt of.
As with a lot of highly advanced technologies that have descended from military use there are access limitations. Due to the underlying technology that the new XT camera uses, its use and sale are subject to increased security and government review through ITAR restrictions. Drones Made Easy requires all purchasers to fill out an online form that will be followed up by a phone interview to determine the legal authorization required to purchase ITAR controlled equipment. This verification of authorization will be filed with the US Government and placed in an end user screening database.
Despite the tight controls that are placed on these devices, if you have a legitimate application and are authorized to do so these devices can be purchased by the public. With our extensive background in dealing with thermal IR imagery, Drones Made Easy is hands-down the most knowledgable DJI XT vendor available to help enable your application.

SPECIFIKACIJE:

Model Zenmuse XT
Dimensions 103 mm x 74 mm x 102 mm
Weight 270 g
CAMERA
Thermal Imager Uncooled VOx Microbolometer
FPA/Digital Video Display Formats
640 × 512
336 × 256
Analog Video Display Formats 720 × 480 (NTSC); 720 × 576 (PAL)
Pixel Pitch 17 µm
Spectral Band 7.5 - 13.5 µm
Full Frame Rates
640 × 512:30 Hz (NTSC) 25 Hz (PAL)
336 × 256:30/60 Hz (NTSC) 25/50 Hz (PAL)
Exportable Frame Rates 7.5 Hz NTSC; 8.3 Hz PAL
Sensitivity (NEdT) <50 mK at f/1.0
Scene Range (High Gain)
640 × 512:-13° to 275°F (-25° to 135°C)
336 × 256:-13° to 212°F (-25° to 100°C)
Scene Range (Low Gain) -40° to 1022°F (-40° to 550°C)
Spot Meter Temperatures measured in central 4×4
File Storage Micro SD Card
Photo Format JPEG, TIFF
Video Format MP4
ENVIRONMENTAL

Operating Temperature Range 14° to 104°F (-10° to 40 ?)
Non-Operating Temperature Range -22° to 158°F (-30° to 70 ?)
Temperature Shock 5 ?/min
Humidity 5% to 95%
GIMBAL

Angular Vibration Range ±0.03°
Mount Detachable
Controllable Range Tilt:+35° to -90°; Pan:±320°; Roll:±15°
Mechanical Range Tilt:+45° to -135° Pan:±320° Roll:±45°
Max Controllable Speed 120°/s
IMAGE PROCESSING & DISPLAY CONTROLS

NTSC/PAL (field switchable) yes
Image Optimization yes
Digital Detail Enhancement yes
Polarity Control (black hot/white hot) yes
Color & Monochrome Palettes (LUTs) yes
Digital Zoom
640 × 512:
2x, 4x, 8x
336 × 256:
2x, 4x
