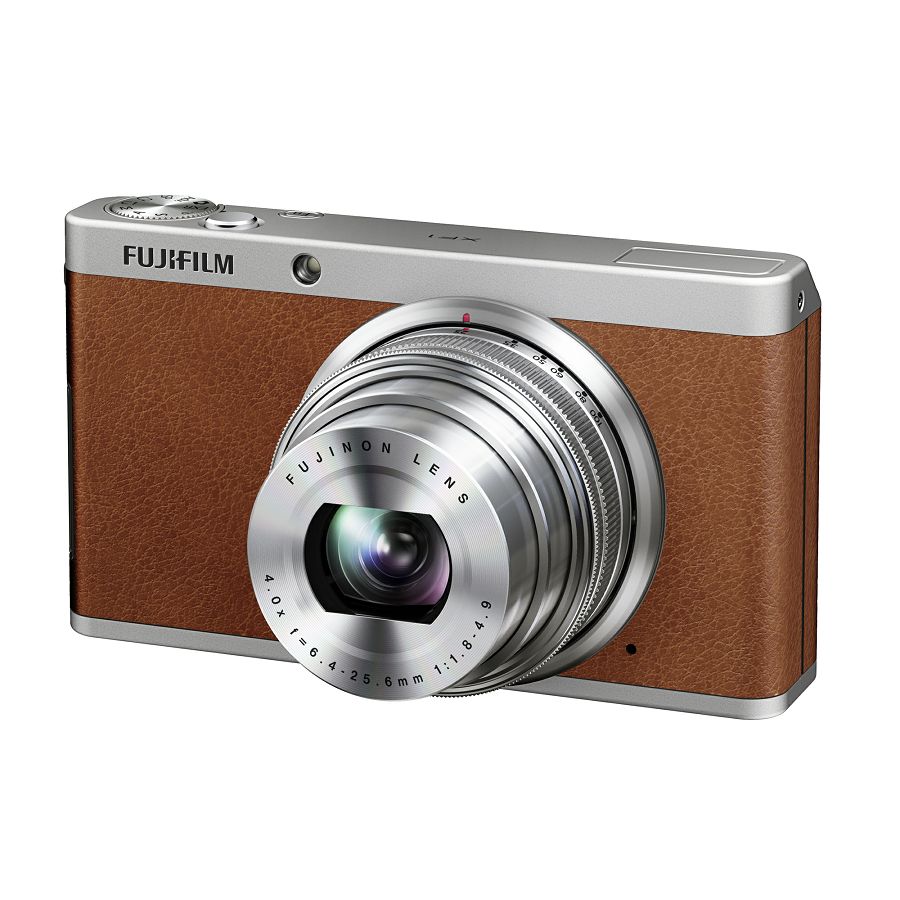

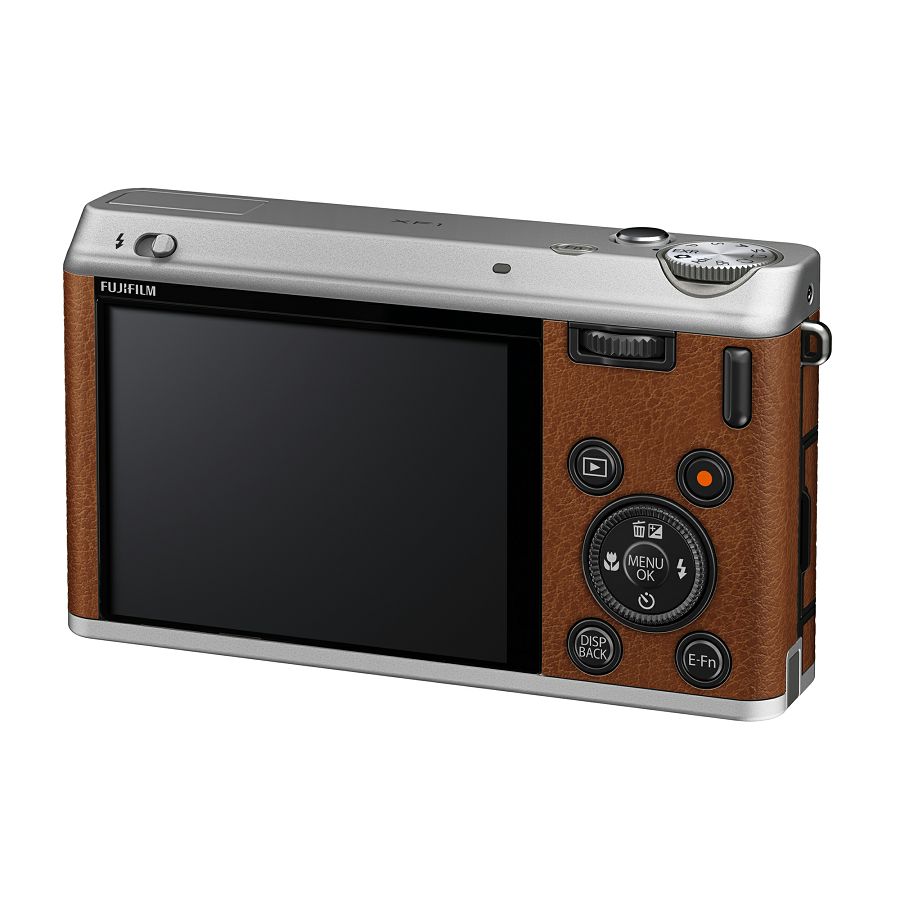

FUJI FINEPIX XF1 (CMOS)

A touch of the zoom ring lets you select any of three camera configurations. In portable mode, the lens retracts fully inside the body, minimizing camera size. In standby mode, the lens partially extends but remains closed. Then, with one more touch of the ring, activate the camera into shooting mode. The harmony of aluminum and leather creates a unique impression of luxury. In addition to its distinctive looks, the XF1 is also light-weight, durable, and a pleasure to hold. The bright f/1.8 lens lets you capture quality pictures not normally possible with a compact camera. Noise is kept to a minimum without boosting sensitivity, while camera shake and subject motion are prevented due to high shutter speeds. And thanks to the large aperture, you can also create attractive "bokeh" blurred background effects. Featuring state-of-the-art technologies including aspherical elements and high refractive index glass, the XF1's lens boasts a fast f/1.8 maximum aperture and a slim profile that would be virtually impossible with conventional lens designs. Another important feature is Optical Image Stabilization, which shifts one group of four elements to minimize camera shake without compromising resolution around the edges of the image, a common problem with conventional stabilization systems.

Model Name FUJIFILM XF1
Number of effective pixels*1 12.0 million pixels
Image sensor 2/3-inch EXR CMOS with primary color filter
Storage media
Internal memory (approx. 25 MB)
SD / SDHC / SDXC(UHS-I) memory card*2
File format
still image
JPEG (Exif Ver 2.3)*3, RAW (RAF format), RAW + JPEG
(Design rule for Camera File system compliant / DPOF-compatible)
movie
H.264 (MOV) with Stereo sound
Number of recorded pixels L : (4:3) 4000 x 3000 / (3:2) 4000 x 2664 / (16:9) 4000 x 2248 / (1:1) 2992 x 2992
M : (4:3) 2816 x 2112 / (3:2) 2816 x 1864 / (16:9) 2816 x 1584 / (1:1) 2112 x 2112
S : (4:3) 2048 x 1536 / (3:2) 2048 x 1360 / (16:9) 1920 x 1080 / (1:1) 1536 x 1536


360° Vertical 11520 x 1624 Horizontal 11520 x 1080
180° Vertical 5760 x 1624 Horizontal 5760 x 1080
120° Vertical 3840 x 1624 Horizontal 3840 x 1080
Lens
name
Fujinon 4 x optical zoom lens
focal length
f=6.4 - 25.6 mm, equivalent to 25 - 100 mm on a 35 mm format.
full-aperture
F1.8 (Wide) - F4.9 (Telephoto)
constitution
6 groups 7 lenses (4 aspherical glass molded lenses included)
Digital zoom Intelligent digital zoom approx. 2x (up to 8 x when combined with optical zoom)
Aperture F1.8-F11(Wide)
F4.9-F11(Telephoto) 1/3EV step (controlled 6-blade aperture diaphragm)
Focus distance
(from lens surface)
Normal
Wide : Approx. 50 cm / 1.6 ft. to infinity
Telephoto : Approx. 80 cm / 2.6 ft. to infinity
Macro
Wide : Approx. 3 cm - 3.0 m / 1.1 in. - 9.8 ft.
Telephoto : Approx. 50 cm - 3.0 m / 1.6 ft. - 9.8 ft.
Sensitivity Auto / Equivalent to ISO 100 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000* / 5000* / 6400* / 12800* (Standard Output Sensitivity)
* ISO4000 / 5000 / 6400 : M mode or lower, ISO12800 : S mode
Exposure control TTL 256-zones metering, Multi / Spot / Average
Exposure mode Programmed AE, Aperture Priority AE, Shutter Priority AE, Manual
Shooting modes
SP
Natural Light, Natural Light & Flash, Portrait, Portrait Enhancer, Landscape, Sport, Night, Night (Tripod), Fireworks, Sunset, Snow, Beach, Party, Flower, Text, Underwater
MODE DIAL
EXR, AUTO, P, S, A, M, C1, C2, Movie, SP, Adv.
Image stabilizer Lens shift type
Exporsure compensation -2.0EV - +2.0EV 1/3EV step
Shutter speed (Auto mode) 1/4 sec. to 1/2000* sec., (All other modes) 30 sec. to 1/2000* sec.
* 1/2000 sec. at small aperture, 1/1000 sec. at full aperture
Continuous shooting
TOP
Super High : approx. 10 fps (Size M, S)
High : approx. 7 fps (Size L, M, S)
Middle : approx. 5 fps (Size L, M, S)
Low : approx. 3 fps (Size L, M, S)
*SD memory card with a class 4 write speed (4 MB/sec.) or better is recommended.
*The frame rate varies depending on the shooting conditions or numbers of frames in continuous shooting.
others
Best Frame capture :
Super High : approx. 10 fps 8 / 16 frames (Size M, S)
High : approx. 7 fps 8 frames (Size L, M, S) / 16 frames (Size M, S)
Middle : approx. 5 fps 8 frames (Size L, M, S) / 16 frames (Size M, S)
Low : approx. 3 fps 8 frames (Size L, M, S) / 16 frames (Size M, S)
Auto bracketing AE Bracketing : ±1/3EV, ±2/3EV, ±1EV
Film Simulation Bracketing : PROVIA / STANDARD, Velvia / VIVID, ASTIA / SOFT
Dynamic Range Bracketing : 100%, 200%, 400%
ISO Sensitivity Bracketing : ±1/3EV, ±2/3EV, ±1EV
Focus
mode
Single AF / Continuous AF,
Manual AF (One-push AF mode included)
type
TTL contrast AF, AF assist illuminator available
AF frame selection
Multi AF, Area AF, Tracking AF
White balance Automatic scene recognition
Preset : Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Underwater, Custom, Color temperature selection
Self-timer 10 sec. / 2 sec. delay
Flash Auto flash (super intelligent flash)
Effective range : (ISO AUTO (800))
Wide : Approx. 50 cm - 7.4 m / 1.6 ft. - 24.2 ft.
Telephoto : Approx. 80 cm - 2.7 m / 2.6 ft. - 8.8 ft.
Flash modes Red-eye removal OFF : Auto, Forced Flash, Suppressed Flash, Slow Synchro.
Red-eye removal ON : Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro.
Hot shoe -
Viewfinder -
LCD monitor 3.0-inch, approx. 460,000 dots, color LCD monitor, approx. 100% coverage
Movie recording 1920 x 1080 pixels / 1280 x 720 pixels / 640 x 480 pixels (30 frames / sec.) with stereo sound
Optical zoom (manual) can be used.
Photography functions EXR mode (EXR Auto / Resolution priority / High ISO & Low noise priority / Dynamic range priority), Face recognition, Face Detection, Auto red-eye removal, Film simulation, Framing guideline, Frame No. memory, Histogram display, Best frame capture, Advanced mode (Advanced filter, Motion panorama360, Pro focus, Pro low light, Multiple exposure, Individual shutter 3D), High Speed Movie (70 / 120 / 200 frames/sec.), Electronic level, Advanced Anti Blur, Date stamp, Recording movie in the EXR Auto mode:Automatic Scene Selection. (Auto, Macro, Landscape, Night, Portrait, Portrait+Night, Backlight Portrait), E-fn (extended function) BUTTON CUSTOM SETTING
Playback functions Face Detection, Auto red-eye removal, Multi-frame playback (with micro thumbnail), Protect, Crop, Resize, Slide show, Image rotate, Voice memo, Histogram display, Exposure warning, Photobook assist, Image search, Favorites, Mark for upload, Panorama, Erase selected frames, RAW conversing
Other functions PictBridge, Exif Print, 35 Languages, Time difference, Silent mode
Terminal
Video output
NTSC / PAL selectable with Monaural sound
Digital interface
USB 2.0 High-Speed
HDMI output
HDMI Mini connector
Power supply NP-50A Li-ion battery (included)
CP-50 with AC power adapter AC-5VX (sold separately)
Dimensions 107.9(W) x 61.5(H) x 33.0(D) mm / 4.2(W) x 2.4(H) x 1.2(D) in.
Weight Approx. 225 g / 7.9 oz. (including battery and memory card)
Approx. 204 g / 7.1 oz. (excluding battery and memory card)
Operating Temperature 0°C - 40°C
Operating Humidity 10% - 80% (no condensation)
Guide to the number of available frames for battery operation approx. 300 frames CIPA standard
Accessories included Li-ion battery NP-50A
Battery charger BC-50B
Hand strap
Lens cap
USB cable
CD-ROM (Viewer software, RAW File Converter etc.*4 )
Owner's manual
Optional accessories Li-ion battery NP-50
Battery charger BC-45W
A / V cable AV-C1
Soft case SC-XF
DC coupler CP-50
AC power adapter AC-5VX
