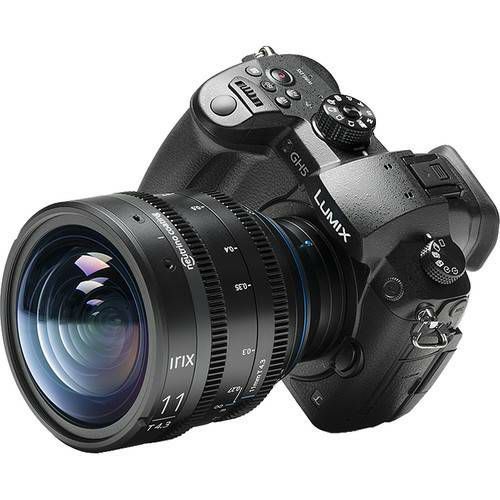

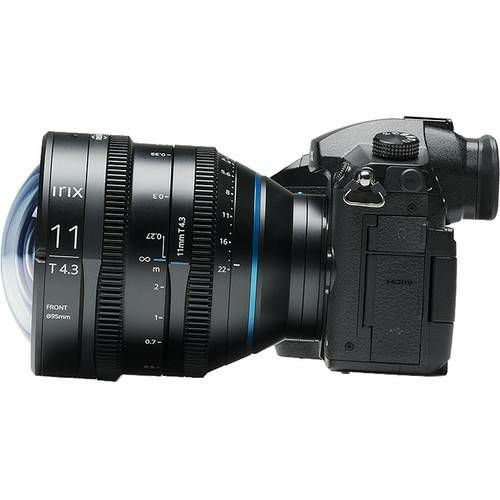

Irix Cine 11mm T4.3 Metric širokokutni objektiv za Canon EF

ZNAČAJKE:

Designed for up to 8K cine-style image capture and covering up to full-frame size sensors, the Canon EF-mount 11mm T4.3 Cine Lens from IRIX incorporates multiple internal and external design features. This 11mm lens will produce a classic wide-angle look or up to a 123° viewing angle in the 2.39:1 widescreen format, depending on your camera's sensor. External features include a 95mm front diameter, 0.8 MOD gears, luminous focus marks in meters, and a detachable 1/4"-20 support foot.

Internally, nine blades produce smooth, rounded bokeh and four seals protect against inclement weather and dust. To help eliminate aberrations and distortion, the IRIX 11mm T4.3 Cine Lens is constructed with 16 optical elements in 10 groups including four HR (high refractive index) and two ED (extra-low dispersion) elements. A Multi-Start Thread focusing mechanism delivers quiet, precise focusing even in wet or humid conditions or in extreme temperatures. This lens has 180° of focus and 75° of iris rotation, an 86mm front filter thread, and it includes a lens hood in addition to front and rear caps.

Features
Canon EF lens mount
43.3mm image circle covers up to full-frame format sensors
9-blade iris for smooth, rounded bokeh
Cine-style 0.8 MOD geared focus and aperture rings
HR and ED elements help reduce or eliminate spherical aberration
Industry-standard 95mm front diameter
Luminous markings in meters

SPECIFIKACIJE:

Focal Length: 11mm
Lens Mount: Canon EF
Format: Full Frame
Image Circle: 43.3 mm
Maximum T-Stop: T4.3
Minimum T-Stop: T22
Horizontal Angle of View
Super35: 99.3°
APS-C (1.5x): 93.8°
APS-C (1.6x): 90.6°
MFT: 78.6°
Minimum Focus Distance
From : 10.63" / 0.27 m
Optical Design: 16 Elements in 10 Groups
Iris Blades: 9
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter: 95 mm
Focus Scales: Metric
Focus Rotation: 180°
Iris Rotation: 75°
Electronic Communication: No
Lens Support: Lens Support Foot with 1/4"-20 Mounting Thread
Length: 4.13" / 105 mm

UKLJUČUJE:

IRIX 11mm T4.3 Cine Lens (Canon EF, Meters)
Magnetic Lens Hood
Front Cap
Rear Cap
Support Foot (1/4"-20)
