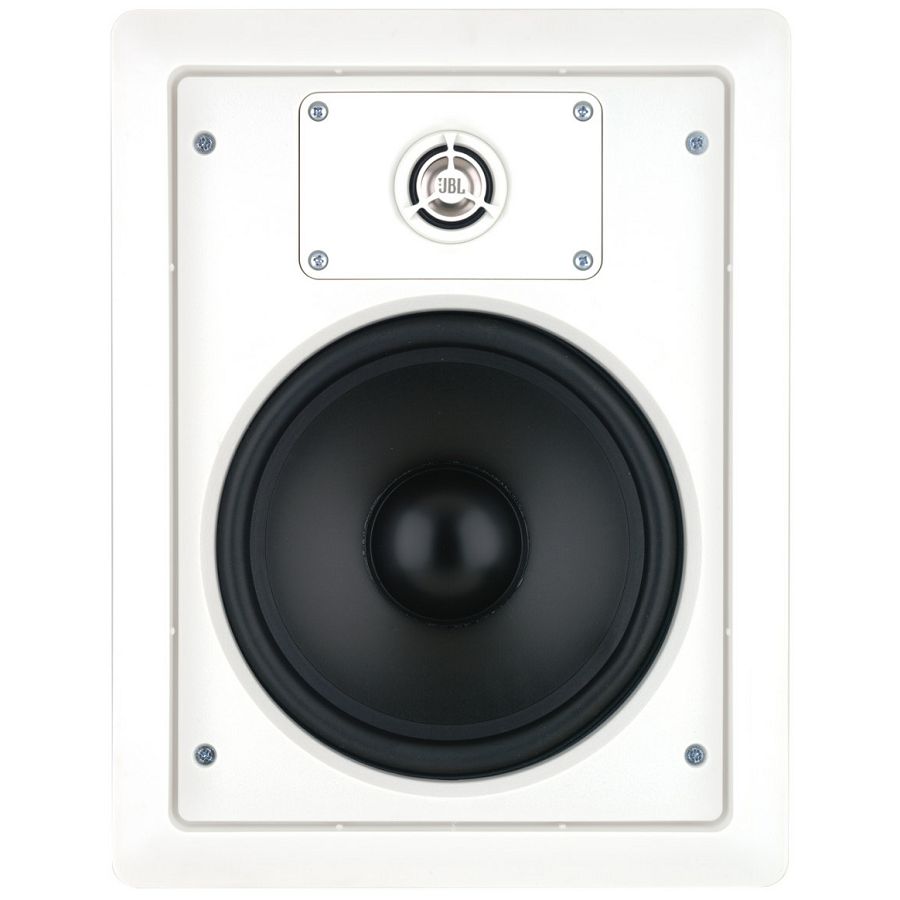

JBL Dvostazni zvučnik ugradni JBL-CONTROL 128W

The JBL Control 128W is a 2-way in-wall speaker with a 120-watt program power handling capacity and a discreet, high-tech appearance, designed for enhanced music reproduction applications in a variety of venues ranging from boardrooms to bistros.

The Control 128W is equipped with an aimable 1" titanium dome tweeter and a potent 8" aluminum cone woofer, and features an extended frequency reproduction, waveguide technology, and a high- and low-pass filter-driven crossover network, along with paintable enclosure baffles and grille for matching the locale decor.

In-wall 2-way installation speaker with paintable baffles and grille and extended frequency reproduction
Foreground music solution with discreet, minimized visual impact for boardroom, reception areas, restaurants, airports and retail applications
120-watt program, 240-watt peak power handling performance
8" durable polymer-coated aluminum cone woofer with LF reproduction to 30Hz
1" titanium dome tweeter on low-diffraction swivel mount with built-in proprietary EOS(TM) waveguide technology for low distortion, smooth HF reproduction
Aimable tweeter with -10° positioning adjustment
High-slope 2nd order crossover network with high- and low-pass filtering to tweeter and woofer
Fits in wallspace of conventional stud-wall existing or new construction facilities
Optional custom rough-in frame for new construction installations

Active or Passive Passive
Frequency Response 30 Hz - 20 kHz, -10dB
Power Capacity 120 Watts, program
240 Watts, peak
Maximum Sound Pressure Level (SPL) Not Specified by Manufacturer
Nominal Sensitivity 90dB SPL, 1W @ 1m
Impedance 8 Ohms
Crossover 2nd order(low-pass to woofer)
2nd order(high-pass to tweeter)
Shielded No
Low Frequency Driver 8" polymer-coated aluminum cone, butyl rubber surround
High Frequency Driver 1" Titanium Dome with cloth suspension on low-diffraction swivel-mount
Enclosure Material Plastic with paintable baffles and Grille
Input Connections Screw-down Euroblock connector
Environmental Not Applicable, Indoor only
Dimensions 13.1 x 10.1 x 4.3" (334 x 257 x 110mm)
4.0" (102mm) front of wall to back of speaker
Weight 5.5 lb (2.6 kg)
Specialties In-wall Installation Speaker
Extended Frequency Reproduction
ABS Paintable Baffles and Grille
Packaging Info
Package Weight 13.6 lb
Box Dimensions (LxWxH) 16.0 x 13.0 x 10.0"
