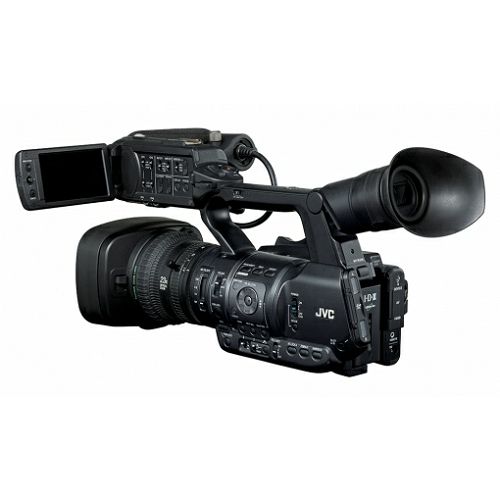

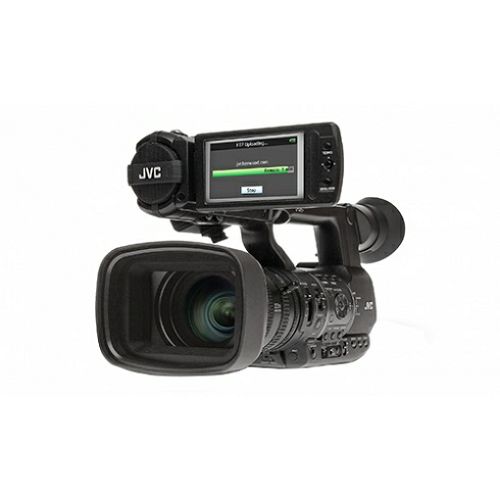

JVC GY-HM650E FullHD WiFi camcorder kamera

ZNAČAJKE:

Built-in Wi-Fi and FTP connectivity
Dual Codec: Simultaneously record HD + SD or HD + 1HD (for Web delivery)
1/3-inch 12-bit CMOS sensors (1920x1080 x 3)
F12 sensitivity
23x Fujinon Auto focus zoom lens with manual functions
Professional switch layout and comprehensive video settings
Wide media format compatibility:
.MXF with rich Metadata (optimized for asset management)
.MOV (Final Cut Pro)
.MP4 (XDCAM EX™)
AVCHD
Includes battery x1, AC adapter x1, AV cable x1

Features from v.3.05 firmware

1080p 50Mbps recording in Extreme-High Quality (XHQ) mode, i.e., virtually lossless H.264 recordings with high bit rates of 50Mbps.
Enhanced Auto Focus System with selection of focus area.
Advanced Streaming Functions including ZIXI data transfer technology and additional bit rates in various resolutions (GY-HM650 only).

Features from firmware update v.2.0:

Background FTP transmission
Once file transmission via FTP has started, you can continue your recording session. The progress of the FTP transmission (time remaining and status in case of an interruption) is displayed on the LCD throughout the recording. The following secure protocols are supported by FTP: FTP/FTPS/FTPES/SFTP?

Clip Trimming
Would you like to select a particular scene of your recordings? Just switch to the playback mode and crop the file to the desired image or scene. Since the camcorder creates a new cropped file, your original file will remain the same. Sending only the content you need allows you to benefit from shorter FTP transmission times and save data transfer cost.

Live streaming
The dual encoder makes it possible to record on the main SD card and run a live video stream over the network at the same time. Just set up a network connection via wired adapter (USB Ethernet adapter), LAN or WIFI, and, depending on your country, by means of GSM*

*A USB GSM dongle will be required. Please contact us or visit our website for hardware and providers support.

Current streaming formats
1920x1080/60i/50i with 5 or 2.5 Mbps
1280x720 /30p/25p with 3 or 1.5 Mbps
720x480/576i with 0.8 Mbps
Audio AAC in HD with 128kbps and SD with 64kbps

AVCHD mode
As of this latest firmware update, your multi-format camcorder supports two additional HD formats:
1440x1080 with 9 Mbps, called LP mode
1440x1080 with 5 Mbps, called EP mode
More flexibility and functionality when it comes to recording.

Backup recording
The above mentioned new format can also be used along with backup recording.

Recording in two different HD formats
Thanks to the added AVCHD codec and the integrated dual encoder, you can now record your images in two different HD formats at the same time.

Additional Proxy Video Web Format
We added an 1 HD (960x540 pixel) 30p/25p/24p 3Mbps MOV/H.264 format to the functional scope. Experience web-format imaging at a whole new standard of high quality.

SD recording quality
A number of improvements to the encoder provides for optimal SD recording quality.

Metadata
While the recent updates included the option to add Metadata via the remote features, users are now also able to apply a control function for that data that can be called up directly on the status display, so that you always know, which of the metadata is currently being in use. Moreover, thanks to a number of “clear metadata” features, you will now be enabled to start a whole new recording session, without first having to call up said data. Metadata can also be added offline via Metadata editing tools, which are available as download from our website and suitable for both, MAC and PC. Create or edit the metadata directly on your PC, save it on your FTP server, and have it imported to your camcorder via the FTP Metadata Import.

Expanded Focus
This new feature enables you to zoom in on the image at the touch of a button, so that you can apply the focus in a much easier and precise way.

Favorites Menu
Calling up your favorites list has never been easier and simpler: All it takes, is a long push on the menu button and your favorites list´s going to show up right away.

Knee Point settings
2.5 % steps ranging from 85% to 100% allow you to widen the scope of fine adjustments when it comes to the knee point settings.

White peak
The functional scope of the white peak set up has been expanded to 103%.

Overexposure warning
We also added a new function to the LCD or view finder: Provided you´d like to reduce the light factor, just apply the ND filter, as this setting enables you to add an alert function in the form of a blinking “F” whenever the value exceeds the capacity which is limited to F8. This is particularly important when it comes to your vision, as your iris gets smaller and thus may lead to a “washing out” of the image area.

More flexibility thanks to new REC-button assignment
Since some of you missed a white balance button next to the front REC-button, we changed the REC-button assignment, thus it's possible to use the button for both functions, REC and White Balance.

GPS information
GPS information can be shown as a thumbnail in the display status menu.

More remote and control features via network
The remote and control functions come up with a number of more features, which are usually only listed in the specifications of high-grade studio RCUs. From adjustments to the lens and gain factor over white balance through to paint options, there´s are lots of new functions to explore. The web-based built-in controller even allows you to manage your network settings. Just imagine, you could run a live stream and, at the same time, control your camcorder from any place thanks to a return internet connection.

Camcorder menu is finally available in multi-languages
English, French, German, Italian, Spanish and Russian languages are available!

SPECIFIKACIJE:

Image sensor: Three 1/3" 2.2M pixels progressive scan CMOS
Internal synchronization
Optical image stabilizer
Lens: Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion:29 to 667mm)
Filter diameter: 72mm
Shutter speed: 1/4 to 1/10000
Gain: -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC
ND filter: 1/4, 1/16, 1/64
3.5” 920K pixels, 16:9 LCD display
0.45” 1.22M pixels, 16:9 viewfinder
2x SDHC/SDXC memory card slots for Class 6/10
Video codec: MPEG2 Long GOP(HD), AVCHD, H.264(SD)
File format: MOV(HD/SD:H.264), MP4(XDCAM EX), MTS(AVCHD), MXF(GY-HM650 only)
Recording modes:-
MPEG-2 Long GOP
HQ mode: 1920 x 1080 / 59.94i, 50i, 29.97p, 25p, 23.98p
SP mode: 1440 x 1080 / 59.94i, 50i
1280 x 720 / 59.94p, 29.97p, 23.98p AVCHD
HQ mode: 1920 x 1080 / 59.94i, 50i
SP mode: 1920 x1080 / 50i SD (H.264)
1440x1080 with 9 Mbps, called LP mode
1440x1080 with 5 Mbps, called EP mode
720 x 576/50i (European models only) Proxy (H.264)
LP/LV mode: 480 x 270/25p
Audio recording: LPCM 2ch, 48kHz/16-bit(MPEG-2 Long GOP/H.264), AC3 (AVCHD)
Video output: AV output (f3.5mm mini jack x1) SDI output (BNC x1) HDMI output x1
Audio input: XLR x2 (MIC,+48V/LINE), f3.5mm mini jack x1
Audio output: AV output (f3.5mm mini jack x1)
Headphone: f3.5mm mini jack x1
Time code link input/output: RCA x1
Remote: f2.5mm mini jack x1
Operating temperature: 0°C to 40°C (32°F to 104°F )
Storage temperature: -20°C to 50°C (-4°F to 122°F )
Operating humidity: 35% to 80%
Storage humidity: Under 85%
Power: DC 12V (AC adaptor), DC 7.2V (Battery)
Power consumption: Approx. 12W (with VF and LCD monitor)
Dimensions: 178(W) x 198(H) x 416(D)mm
Weight: Approx. 2.4kg
