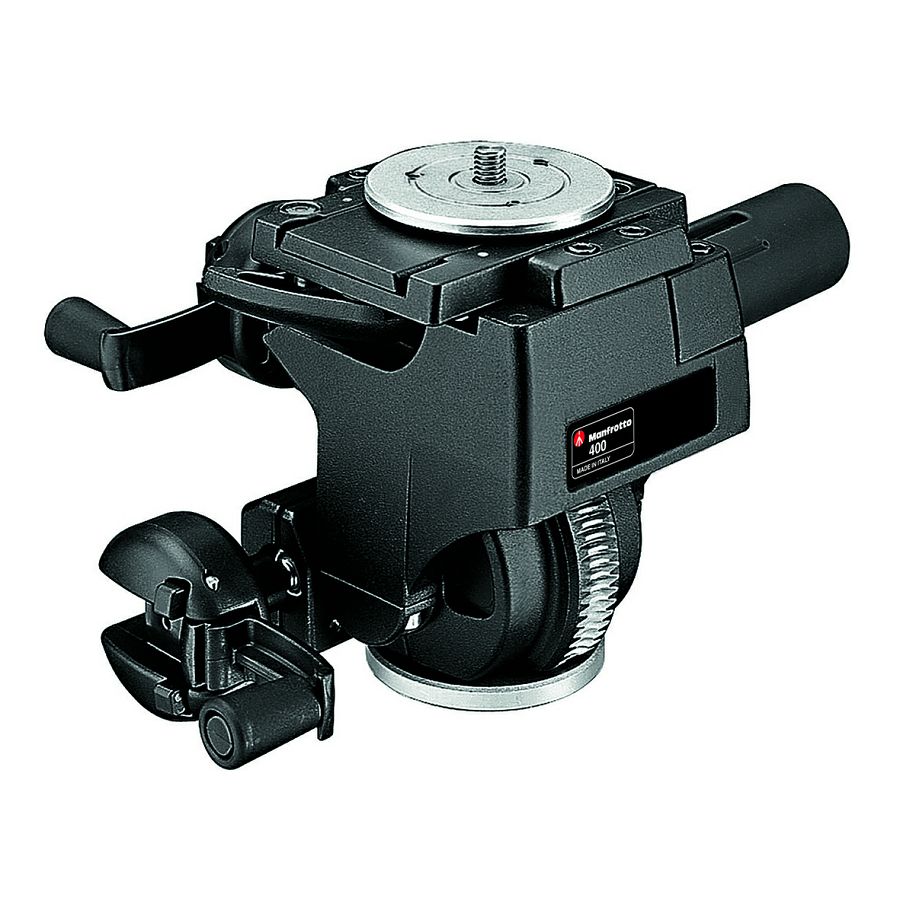

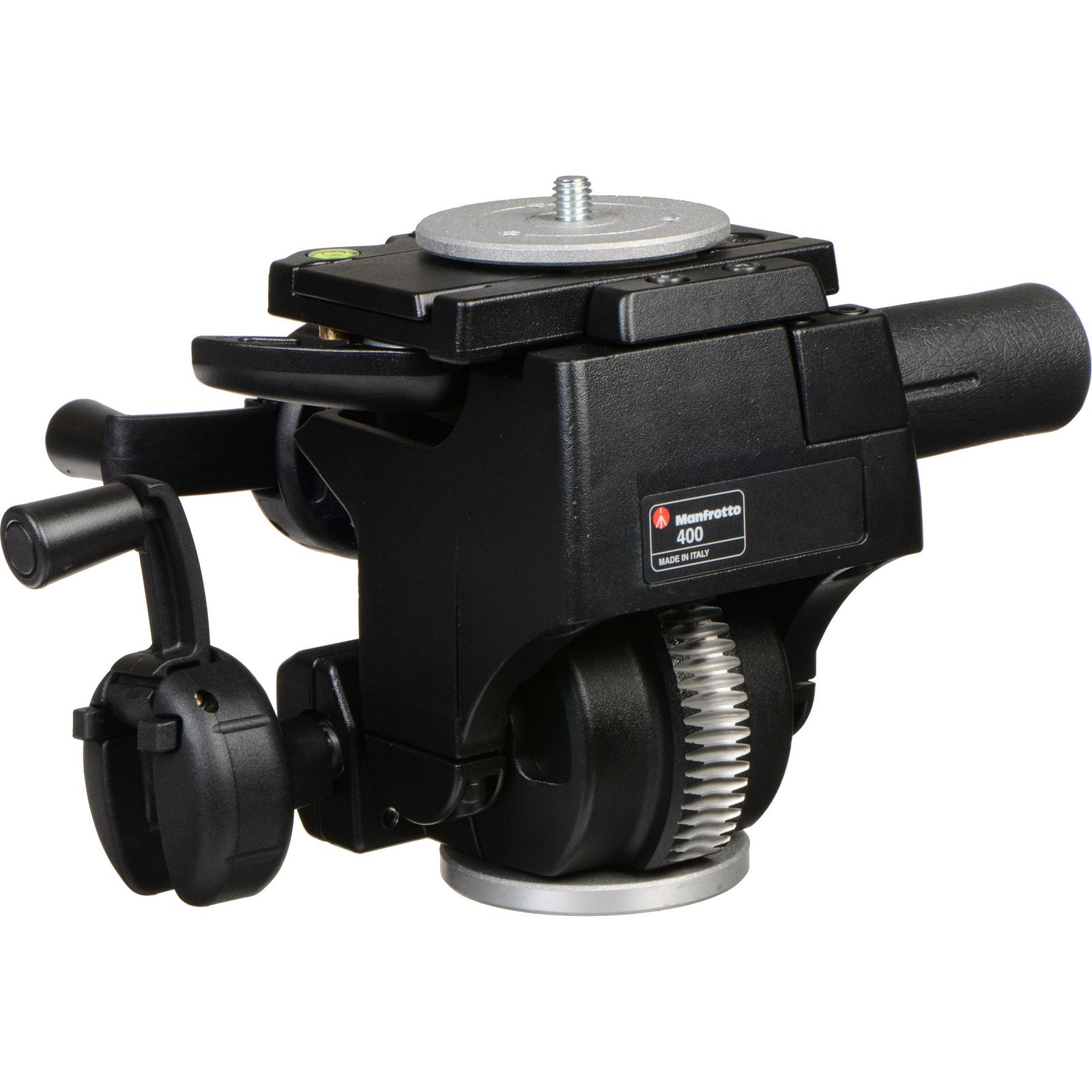

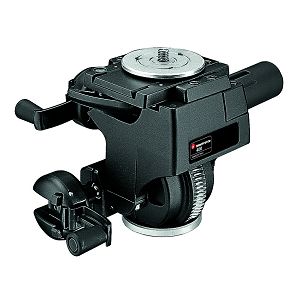

Manfrotto 400 3-Way Geared Pan-and-Tilt Head

ZNAČAJKE:

Load Capacity: 22.1 lb
3 Independent Movements
Incremental, Geared Movements
90° Forwards & 30° Backwards Tilt
Provides 7.5° of Tilt, Left or Right
360° Rotation, Built-In Bubble Level
Crank Handles for 90°/30°/360° Movements
8.6° Tilt/Rotation per Full Handle Turn
13, 23 & 42mm Tall Quick Release Plates
1/4"-20 Mount, 3/8"-16 Mount

This 400 3-Way Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 22.1 pounds and can be attached to studio stands, tripods, or other support systems that feature a 3/8"-16 screw mount. The head provides 360° of rotation, 90° of forwards and 30° of backwards tilt, as well as 7.5° of left or right tilt. Each of these three movements function independently of each other and have individual control knobs that utilize incremental geared adjustments, which help to ensure that any device mounted to this 400 3-Way Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

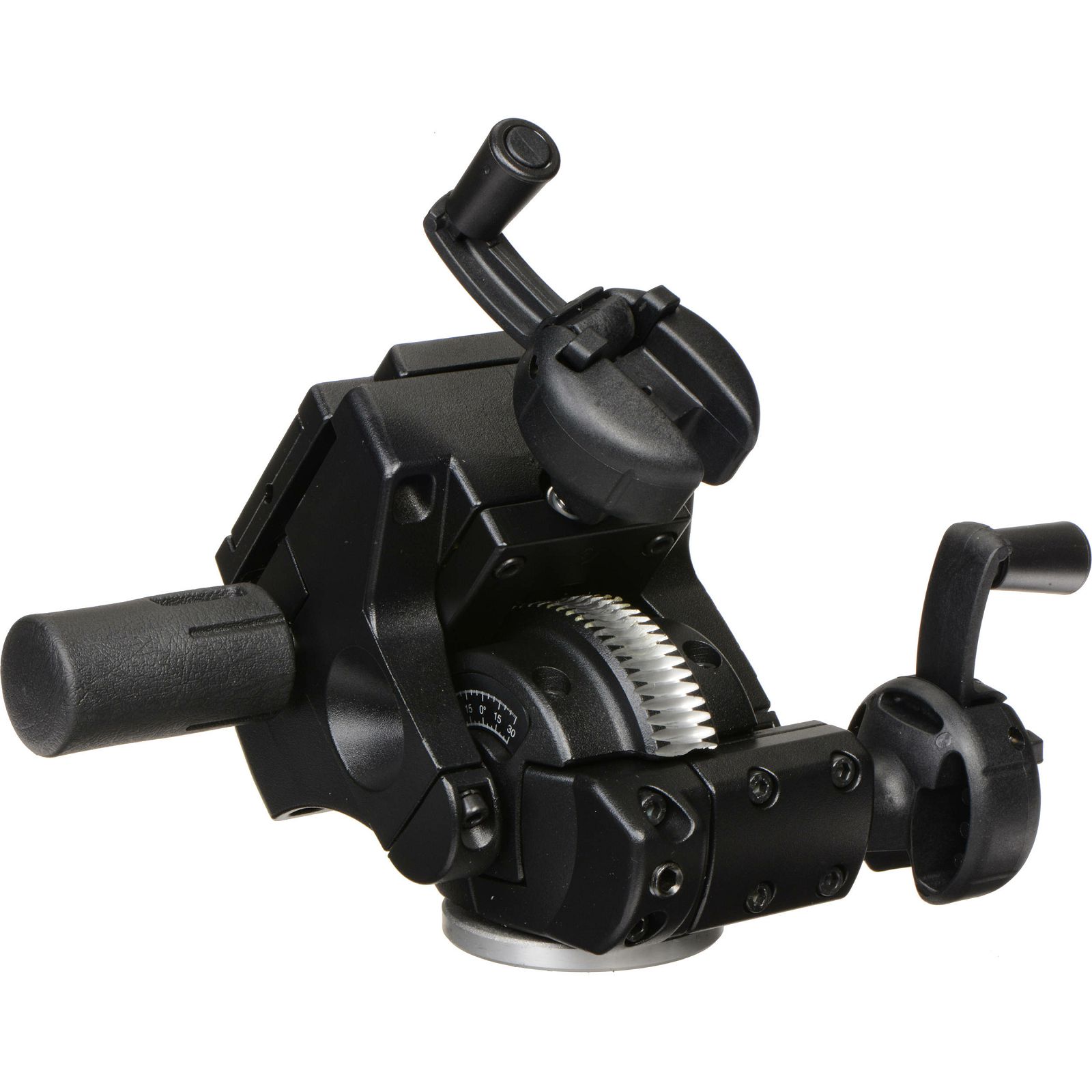

The knob for the 400 3-Way Geared Pan-and-Tilt Head's forwards and backwards tilt is located along its rear, while the knob that controls rotation rests along the head's base. When fully turned, either of those knobs applies 8.6° of adjustment. Both knobs also feature a folding crank handle for enhanced control and reduce needed space during storage or transport.

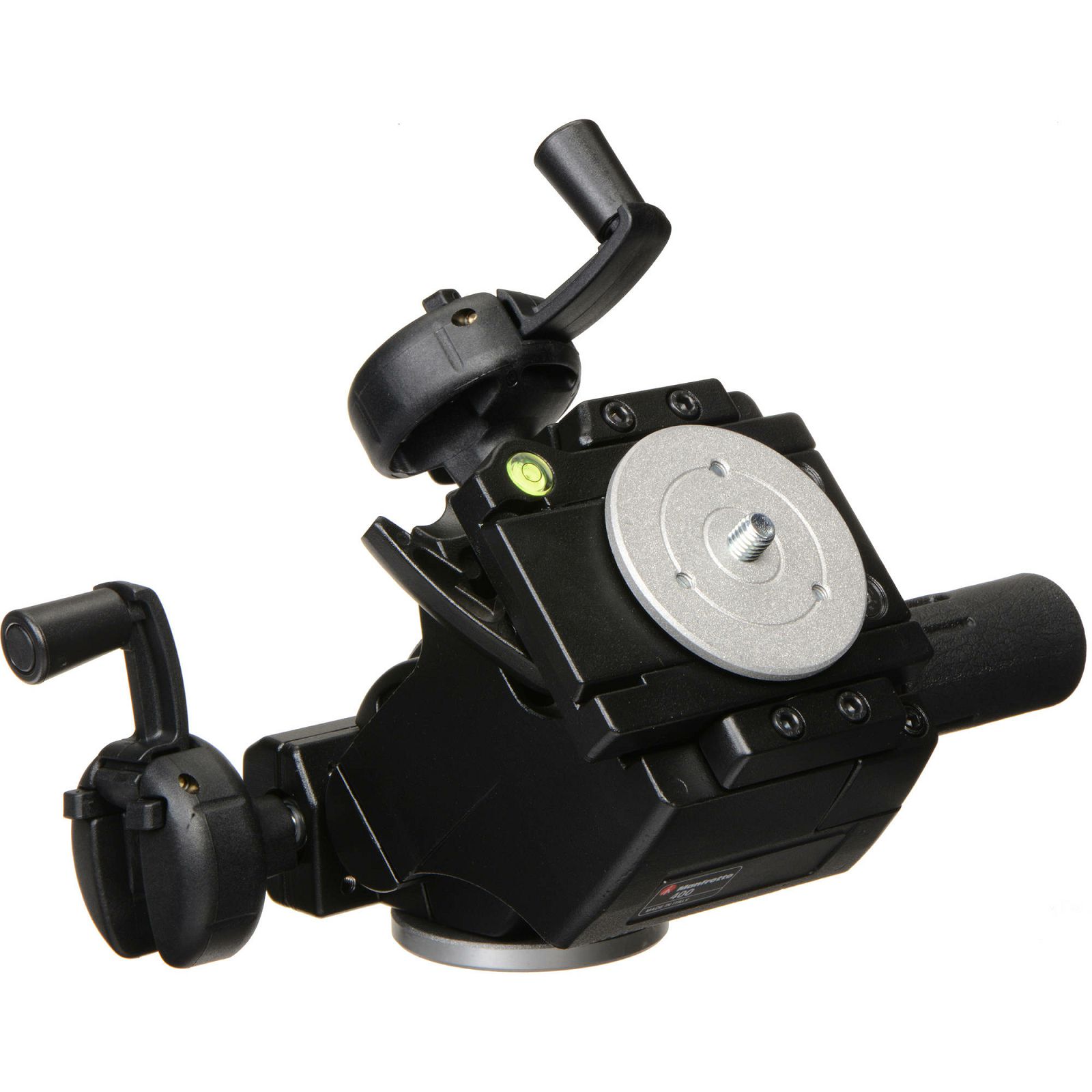

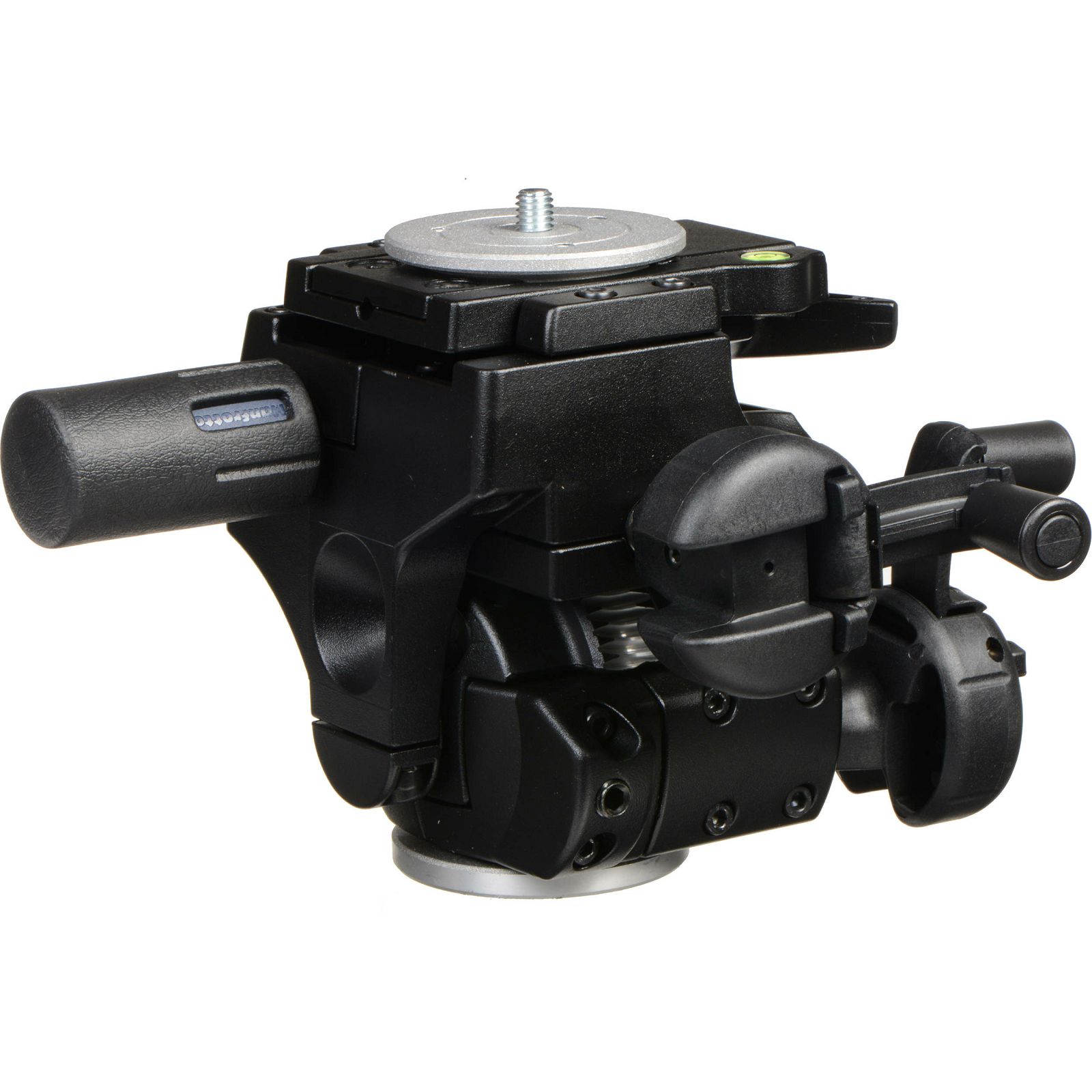

Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 screw mount can be connected to one of three included quick release plates. An integrated, quick release cam lock enables a quick release plate's removal from the top of the head by pulling the lock's spring-loaded lever, which also allows the plate to be instantly reattached. The quick release plates measure 13, 23, or 42mm tall and are designed to be selected based on the minimum height needed for the attached camera or accessory not to interfere with the ability to move the rear control knob while its crank handle is deployed. Opposite the knob at the 400 3-Way Geared Pan-and-Tilt Head's base and along its cam lock is an easy-to-grip rubberized knob that when turned, applies a left or right tilt directly to the attached quick release plate and the device placed on it.

To promote fast and repeatable device positioning, this 400 3-Way Geared Pan-and-Tilt Head also includes a dedicated angle scale for forwards and backwards tilt movements that is designed for easy visibility.

22.1-pound load capacity
Compatible with tripods or support systems that feature a 3/8"-16 screw mount
Can be rotated 360°, tilted 90° forwards or 30° backwards, and provides up to 7.5° of tilt, left or right
Rotation, forwards and backwards tilt, as well as left and right tilt each function independently of each other and have individual control knobs that utilize incremental geared adjustments
Both control knobs for forwards and backwards tilt, as well as rotation, apply 8.6° of adjustment when fully turned
Control knobs for forwards and backwards tilt, as well as rotation, feature a folding crank handle for enhanced control and reduce needed space during storage or transport
Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to one of three included quick release plates
Integrated quick release cam lock enables a quick release plate's removal from and reattachment to the top of the head

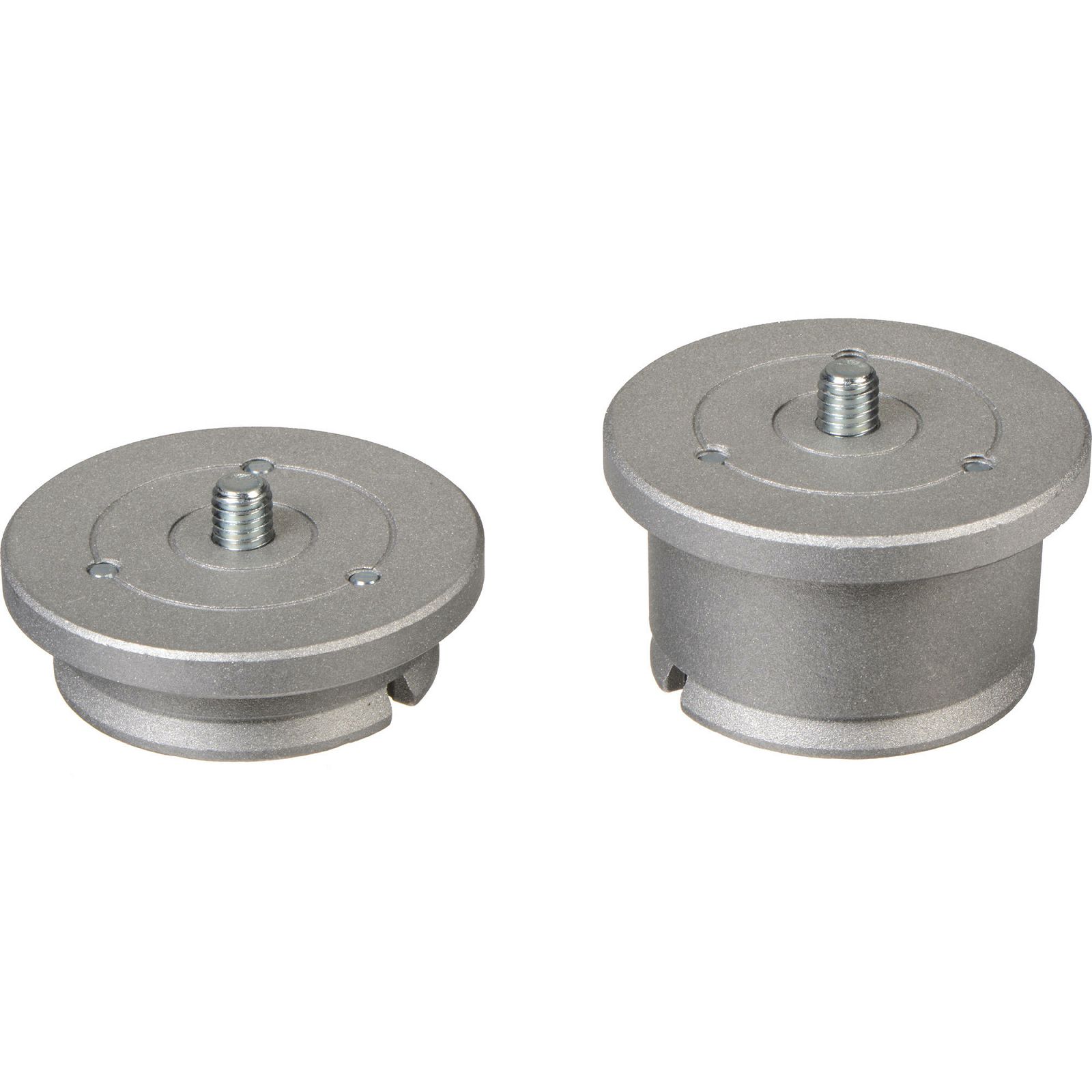

Quick release plates measure 13, 23, or 42mm tall and are designed to be selected based on the minimum height needed for the attached camera or accessory not to interfere with the ability to move the forwards and backwards tilt control knob while its crank handle is deployed
Rubberized, easy-to-grip knob for left or right tilt applies movement directly to quick release plate
Dedicated angle scale for forwards and backwards tilt movements is positioned for easy visibility, which helps promote fast and repeatable device positioning
Built-in bubble level
Durable, aluminum-alloy construction

SPECIFIKACIJE:

Manfrotto 400 Specs
General
Head Type Geared Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male, 3/8"-16 Male
Load Capacity 22.1 lb / 10.02 kg
Number of Bubble Levels 1
Friction Control No
Independent Pan Lock Yes
Material Aluminum
Pan & Tilt Range
Lateral Tilt -8° to +8°
Vertical Tilt -30° to +90°
Panning Range 360°
Physical
Base Diameter 2.91" / 7.39 cm
Dimensions H: 6.3" / H: 16.0 cm
Weight 6.6 lb / 3.0 kg

UKLJUČUJE:

Manfrotto 400 3-Way Geared Pan-and-Tilt Head
