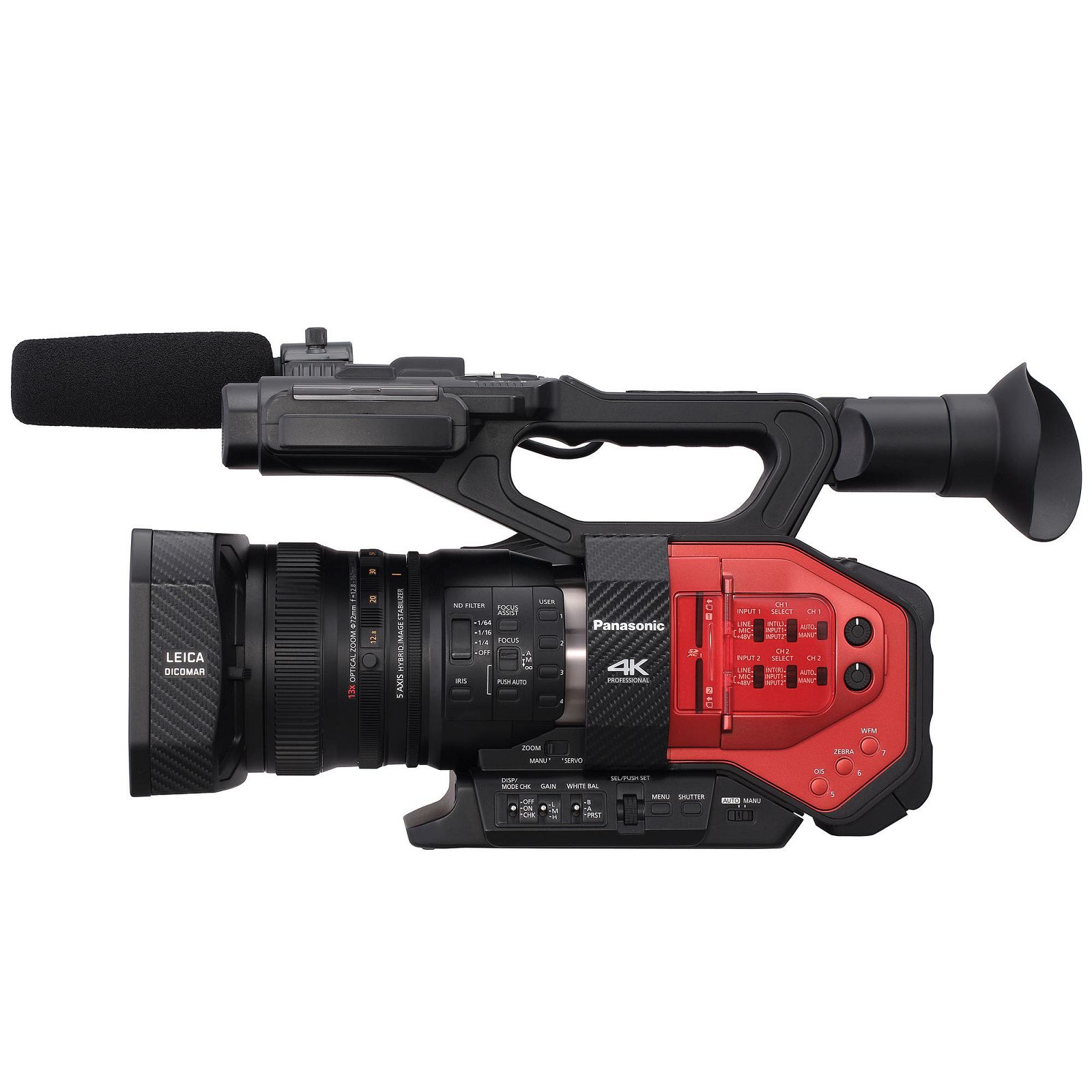

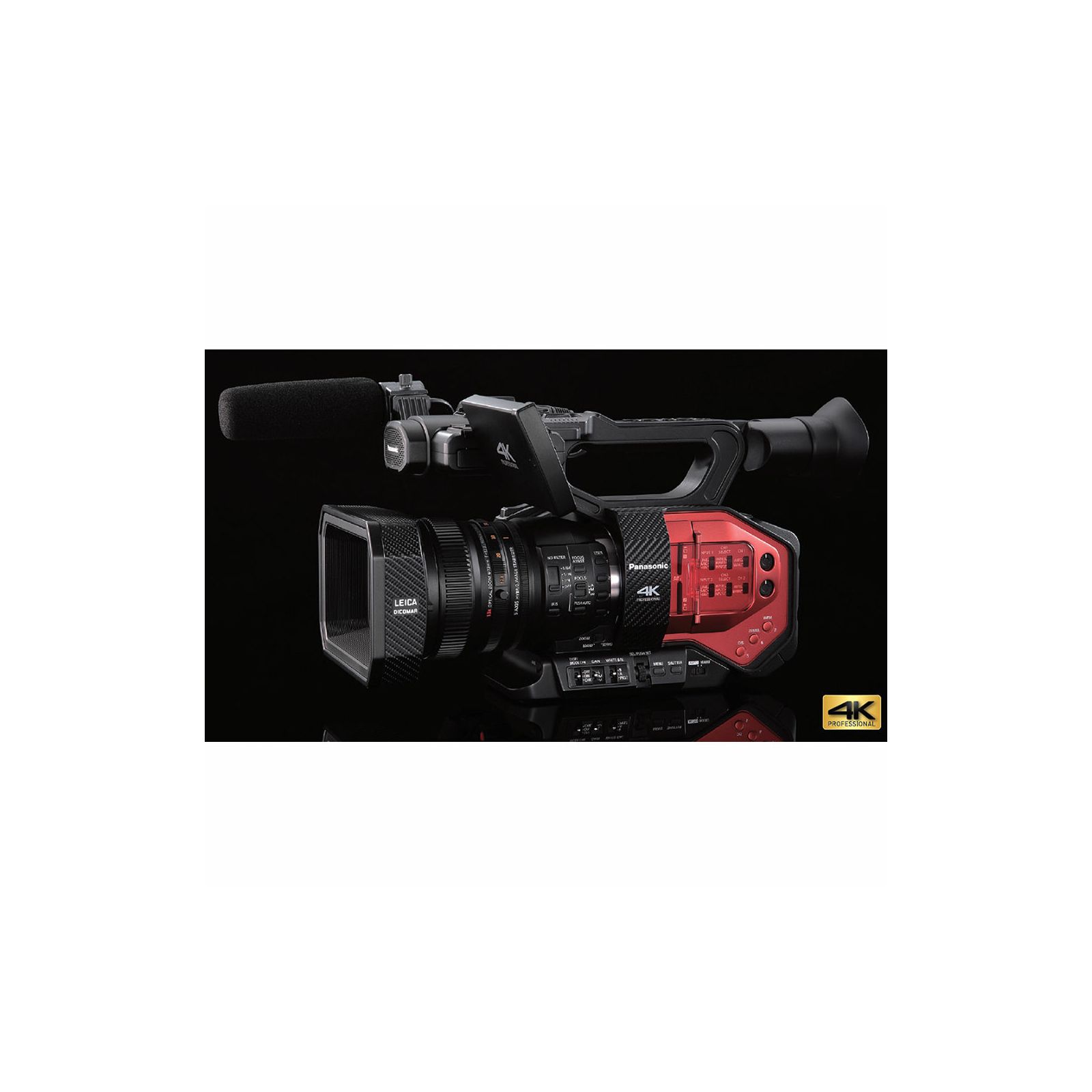

Panasonic AG-DVX200 4K kamera Handheld Camcorder with Four Thirds Sensor and Integrated Zoom Lens

Product Highlights

Single 4/3 MOS Sensor with 12 Stops DR
DCI 4K 24P, UHD 4K Up to 60p
Variable Frame Rate Up to 120 FPS in FHD
MP4 / MOV Recording in 4K
Integrated Leica 13x f/2.8 - f/4.5 Lens
3 x Individual Lens Control Rings
2 x SD Cards Slots (U3 Compatible)
HDMI 2.0, 3G-SDI Output

Panasonic's AG-DVX200 4K Handheld Camcorder with Four-Thirds Sensor and Integrated Zoom Lens brings professional features and familiar camcorder ergonomics to the Four Thirds sensor format. It features a single MOS sensor with 4K resolution that captures up to 12 stops of dynamic range with Panasonic's V-Log L gamma curve. The camcorder supports DCI 4K production at 24 fps, UHD 4K at up to 60 fps, and HD at up to 120 fps, providing you with a camcorder that is at home in a variety of production environments.

Recording 4K to MP4 or MOV and offering AVCHD recording of 1920 x 1080 HD video, your footage can be easily integrated into most modern postproduction workflows. The integrated 13x Leica zoom lens features three lens rings that give you manual control over focus, zoom, and iris. The camera records to SD cards and requires U3 speed class cards to record 4K video. The camcorder features timecode in / out, a 3G-SDI output for HD video, and an HDMI connector that provides 4K output.

The integrated LEICA DICOMAR lens features a 13x zoom range, which when shooting DCI 4K is equivalent to a 29.5 to 384.9mm lens on a 35mm camera. The lens has individual lens control rings built into the lens for focus, zoom, and iris as well as a power zoom rocker.

Including a five-axis Hybrid Image Stabilizer and 4 x correction-area Image Stabilizer that produces clear images without blurring, and a micro-drive focus unit that improves focus speed, tracking and capture performance, facilitating 4K focusing and shallow focus shooting.

The V-Log L gamma curve allows you to capture 12 stops of dynamic range. Capturing in V-Log L will produce a flatter looking image that provides more lattitude for post color correction. The V-Log assist function allows you to adjust the look of your video on the output to a more normal looking image without affecting the recorded footage.

The dual SD card slots allow you to record in relay, backup, and simultaneous modes. Relay allows you to swap a full card out for an empty card so you can record virtually endlessly. The backup mode allows you to record continuously on one card, while you start and stop recording on the other card. Simultaneous record duplicates your recording on both cards, and dual doced recording allows you to record using a different codec to each card, so you can record 4K on one card and HD on the other. Please note that dual codec recording is not available when recording 4KDCI or UHD 60p

Note: Recording 4K video requires a U3 class card.

Sensor 1 x 4/3-type MOS
Effective Pixels 4K: 1335 MP
UHD (29.97p): 1289 MP
UHD (59.94p): 871 MP
FHC: 1549 MP
Resolution 4K
DCI: 4096 x 2160
UHD: 3840 x 2160

HD
1920 x 1080
Dynamic Range 12 stops
Frame Rates DCI 4K: 24p
UHD 4K: 60p / 50p / 30p / 25p / 24p
1920 x 1080: 60p / 50p / 30p / 25p / 24p
Shutter Speed 59.94 Hz
60i/60p mode: 1/60, 1/100 , 1/120, 1/180, 1/250, 1/350, 1/500 sec, 1/750 sec, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
30p mode: 1/30, 1/50 sec, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
24p mode: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec

50 Hz
50i/50p mode: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
25p mode: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000=, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000
Slow Shutter Speed 59.94 Hz
60i/60p mode: 1/2, 1/4, 1/8, 1/15, 1/30
30p mode: 1/2, 1/4, 1/8, 1/15 sec 24p mode: 1/2 , 1/3, 1/6, 1/12 sec

50 Hz
50i/50p mode: 1/2, 1/3, 1/6, 1/12, 1/25
25p mode: 1/2, 1/3, 1/6, 1/12 sec
Synchro Scan Shutter 59.94 Hz
60i/60p mode: 1/60.0 to 1/249.8 sec
30p mode: 1/30.0 to 1/249.8 sec
24p mode: 1/24.0 to 1/249.6 sec

50 Hz
50i/50p mode: 1/50.0 to 1/250.0 sec
25p mode: 1/25.0 to 1/250.0 sec
Shutter Opening Angle 5.0 to 360° in 0.5 deg steps (displayed in shutter angle)
VFR Recording Frame Rate 59.94 Hz
60p mode: 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 (frames per second)
30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 (frames per second)
24p mode: 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 (frames per second)

50 Hz
50p mode: 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 (frames per second)
25p mode: 2, 12, 21, 23, 25, 27
Minimum Subject Illumination High Sens mode: 0.2 lx (F2.8, gain 18 dB, [1/2S] manual slow shutter)
Lens
Focal Length 12.8 to 167mm
Zoom Zoom Range
13 x optical zoom
20x iZoom (in FHD Only)

35mm Equivalent
DCI 4K: 29.5 to 384.9mm
UHD 4K/30: 30.6 to 397.8mm
UHD 4K/60: 37.2 to 483.6
FHD: 28 to 364mm
ND Filters 1/4
1/16
1/64
Memory Card Slot 2 x SD (UHS speed class 3 compatible)
Inputs Timecode: In / out
Audio: 2 x 3-pin XLR
Outputs 1 x 3G-SDI
1 x HDMI (supports HDMI 2.0)
Filter Attachment 72 mm
Packaging Info
Package Weight 12.7 lb
Box Dimensions (LxWxH) 19.1 x 14.8 x 11.2"
