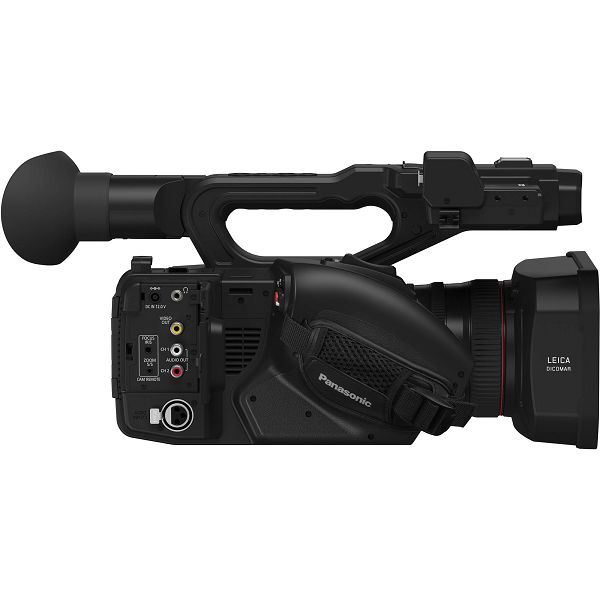

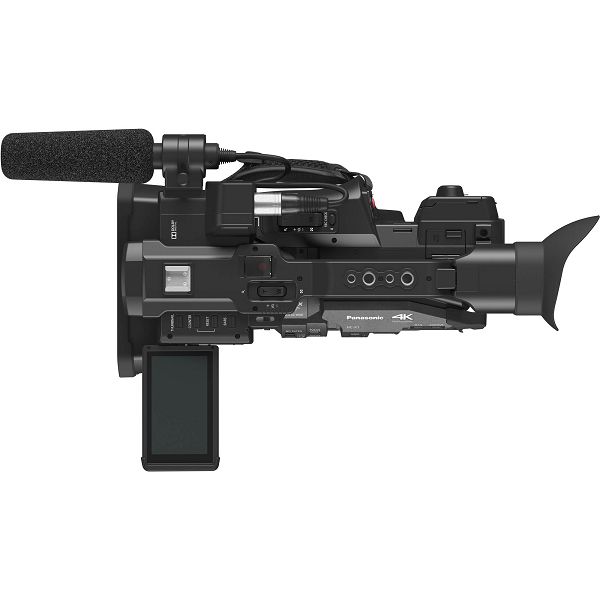

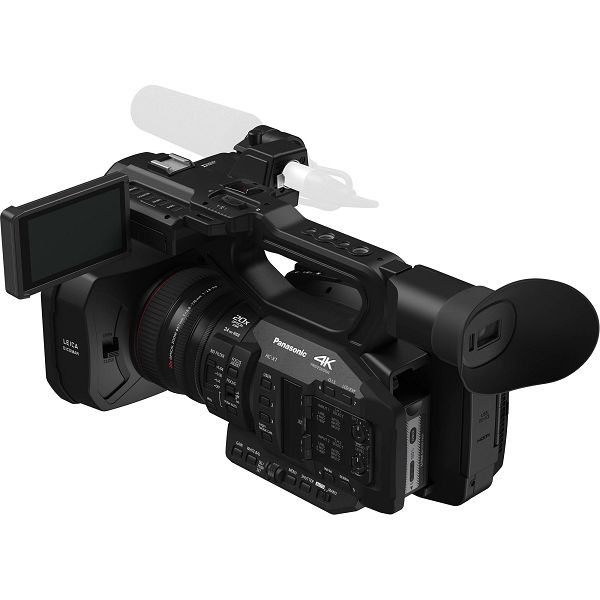

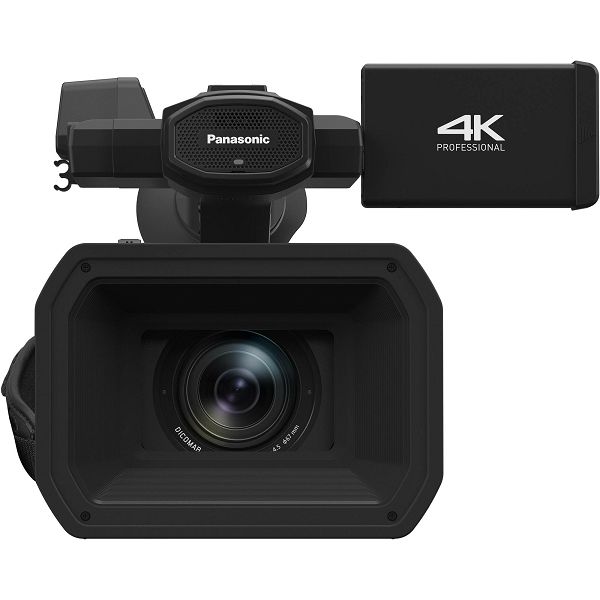

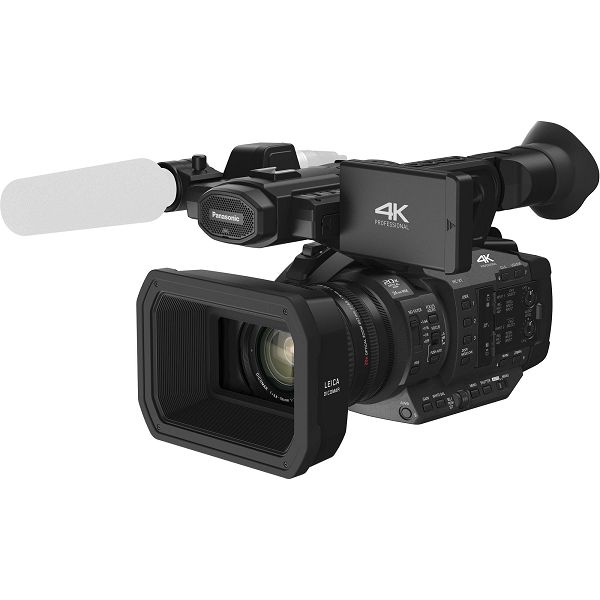

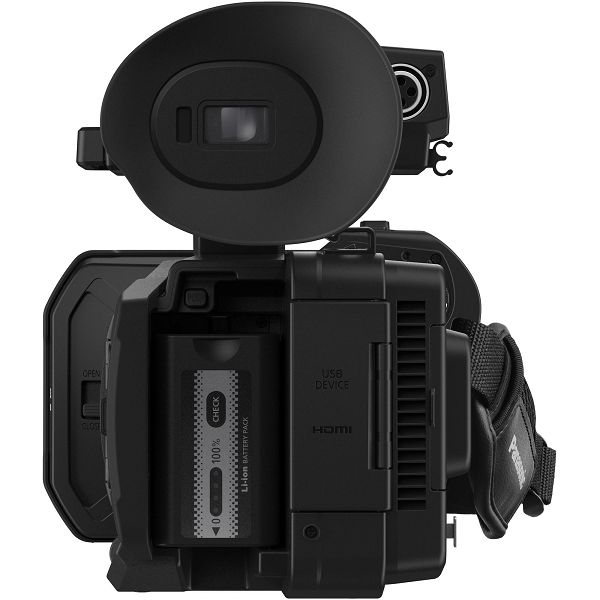

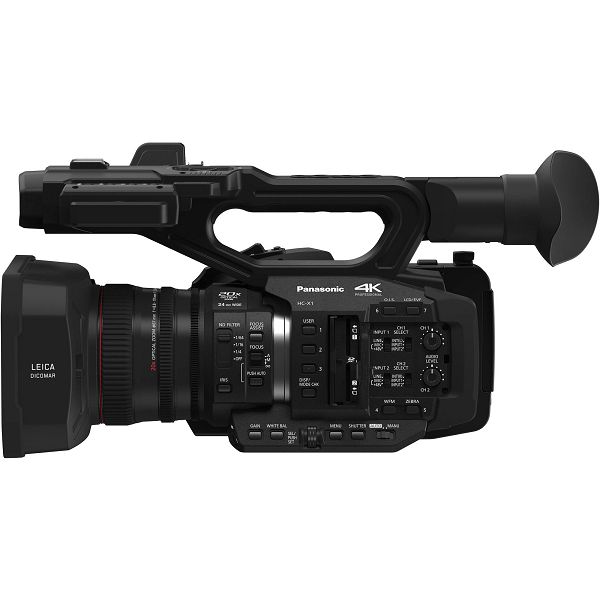

Panasonic HC-X1 4K Ultra HD Professional Camcorder profesionalna kamera (HC-X1E)

ZNAČAJKE:

1"-Type MOS Sensor
DCI 4K Recording at 24p
UHD 4K Recording up to 60p
MP4, MOV, and AVCHD Formats
Dual SDHC/SDXC Memory Card Slots
HDMI and A/V Outputs
24-480 20x Zoom Lens
f/2.8 Maximum Aperture
Built-In ND Filters
Advanced O.I.S. and Hybrid O.I.S.



Bring your video productions into the world of 4K with the Panasonic HC-X1 4K Ultra HD Professional Camcorder. Featuring a large 1"-type 4K sensor, the HC-X1 is capable of recording video in DCI (4096x2160) as well as UHD (3840x2160) 4K resolutions. Whether producing event or ENG-style videos, or even a short film, the 20x optical zoom power of the lens starts from a wide 24mm equivalent FOV for shooting in tight spots or grabbing impressive establishing shots, and extends all the way out to 480mm equivalent FOV for getting in tight on far-away subjects. At longer focal lengths, the 1"-type sensor facilitates background blur reminiscent of larger professional cinema cameras, enabling dramatic compositions without sacrificing versatility found in a compact, handheld form-factor.
While 4K video formats may seem daunting, the HC-X1 manages to record them onto convenient SD cards (U3 rated or faster cards are required for video bit-rates above 100 Mbps) which are both small and robust. 2 card slots are provided for increased flexibility. You can record to both cards simultaneously, either for backing up or recording high and low bit-rate files, or enable relay recording to capture a single file that spans multiple cards for longer recording times.
Ergonomically, the HC-X1 features a familiar handheld camcorder body with plenty of customizable control buttons for quickly accessing essential functions. When handheld, the sharp OLED EVF is within easy reach. Alternatively, a 3.5 in touchscreen is offered for monitoring and menu control. Waveforms and scopes can be displayed to aid in exposure control. Atop the handgrip sits a large zoom rocker for precise zoom control. Lens functions can also be controlled manually using the three lens rings, one for focus, one for zoom, and one for iris. A battery for powering the HC-X1 is included, along with a charger, and a power supply for fixed-position operating.
High-Resolution Video Recording
The HC-X1 4K camcorder supports DCI 4K at 24p and UHD up to 60p. 1080p and 720p HD resolutions are also supported up to 60p in addition to super slow-motion.
Advanced O.I.S.
With an expanded correction area, Advanced O.I.S. effectively reduces vibrations from hand-shake jitters all the way up to unstable shooting situations.
5-Axis Hybrid O.I.S.
In HD shooting modes, activate the 5-Axis Hybrid O.I.S. for further stabilization. Combining the optical stabilization with electronic stabilization, detection and correction of vibration along 5 axes (pan, tilt, roll, horizontal, and vertical) becomes possible.
4K 1"-Type MOS Sensor
Balancing flexibility and creative depth-of-field control, the 4K 1"-Type MOS Sensor is ideal for run-and-gun filmmaking as well as ENG-style productions.
4-Drive Lens System
The HC-X1 comes complete with a 4-Drive Lens System that simultaneously and independently drives 4 element groups inside the lens. Lens size and drive range for each of the 4 groups can be efficiently suppressed to optimize image quality and zoom power.
Leica Dicomar 4K Lens
Designed specifically for the HC-X1, this lens maintains sharp images throughout its 20x optical zoom range. The 24mm wide-angle setting on the lens (25.4mm equivalent in 16:9 aspect-ratio modes) offers a quick solution for shooting in tight spaces without requiring a bulky adapter that might affect image quality.
20x Optical Zoom
The optical 20X zoom lens covers the range from 24mm wide-angle to 480mm telephoto (35mm film equivalent at 4K 24p). And the lens can quickly cover the entire zoom range, so you won't miss your shots.
Intelligent AF
Precise autofocus performance is achieved by moving the Micro Drive Focus Unit minutely and quickly. AF can customize by adjusting AF Speed, AF Sensitivity and AF Area to best accommodate the subject type or application.
VFR/HD Super-Slow Motion
VFR (variable frame rate) recording can be set in up to 10 steps from 2 to 60 fps. Furthermore, a super slow-motion effect can be achieved through high-speed recording in HD resolutions at 120 fps.
Choice of File Format and Bit-Rate
Customize the recording to your specific workflow by choosing from the available file formats, MOV, MP4, or AVCHD (only available in HD and SD resolutions), and bit-rates ranging from 5 Mbps all the way to 200 Mbps.
Multi-Format Recording
Using the 2 SD card slots simultaneously, you can record in a different format to each card. For example, one card can hold the master 4K file while the second card holds a lower bit-rate HD proxy file for easy editing.
Relay Recording
With SD cards in both slots, relay recording enables you to achieve theoretically unlimited recording times, perfect for event videography or other unpredictable situations. When one card fills up, the recording will continue on the second card without interruption. After one card becomes full and the recording has switched to the second card, simply replace the full card with an empty one and the recording will continue further.
8 Gamma Curves
HD: Gamma setting suitable for HD video
SD: Increased gain in darker areas more than HD
FILMLIKE 1: Reproduces more highlight areas compared to HD
FILMLIKE 2: Reproduces more highlight areas compared to FILMLIKE 1
FILMLIKE 3: Reproduces more highlight areas compared to FILMLIKE 2
CINE-LIKE D: Gamma setting designed to create cinema-like images
CINE-LIKE V: Gamma setting designed to create cinema-like images with enhanced contrast
STILL-LIKE: Gamma setting to simulate images captured with still cameras
16-Axis Independent Color Correction
This function provides an independent effect to each of the 16 color phases of video images. It enables granular color matching of multiple cameras under the same lighting conditions as well as creative image rendering.
Other Professional Features
Lens Control Rings - Individual rings for focus, zoom, and iris are available for precise control of lens functions
XLR Audio Inputs - Plug in your professional microphones for high quality audio recording. Audio is recorded in either LPCM or Dolby Digital, depending on the video codec.
High-Resolution OLED EVF - With approximately 1,769,000 dots, the EVF provides a sharp image for focusing and judging exposure
Slide-Out Touch-Panel LCD Screen - At 3.5" in size, the panel can be retracted into the body for stowage, rotated 270° for optimal viewing, and is touch-sensitive for quick menu navigation.
Other Features and Functions -
ND Filters
-3 to 24 dB gain range
Auto, preset, and custom white-balance controls
4K-capable HDMI output
Analog video output
Wireless Remote Control
Using a separately available Wi-Fi adapter, and the free AG ROP iOS app, you can use your iPad to change camera settings, adjust picture quality, start or stop recording, and control the lens. Proxy clips recorded at 8 Mbps can be previewed directly on the iPad as well.
Note: App is compatible with iOS versions 7.1, 8.1, and 9

SPECIFIKACIJE:

Camera
Sensor 1x 1"-type MOS Sensor
Effective Pixels DCI 4K: 9.46 MP
UHD/HD: 8.79 MP
Optics
Focal Length 8.8 - 176 mm
35mm Equivalent Focal Length 24-480mm @ DCI 4K resolution
25.4-508mm @ UHD/HD resolution
Maximum Aperture f/2.8-4.5
Zoom Optical: 20x
Intelligent: 30x
Digital: 2x, 5x, 10x
Filter Thread 67 mm
Built-In ND Filters Clear, 1/4, 1/16, 1/64
Recording
System NTSC/PAL
Recording Media SDHC/SDXC
Video Format DCI 4K:
MP4/MOV:
4096 x 2160p / 24 fps (100 Mbps)

UHD:
MP4/MOV
3840 x 2160p / 59.94 fps (150 Mbps)
3840 x 2160p / 50 fps (150 Mbps)
3840 x 2160p / 59.94 fps (100 Mbps)
3840 x 2160p / 29.97 fps (100 Mbps)
3840 x 2160p / 25 fps (100 Mbps)
3840 x 2160p / 23.98 fps (100 Mbps)

HD:
MP4/MOV
1920 x 1080p / 59.94 fps (200 Mbps)
1920 x 1080p / 59.94 fps (100 Mbps)
1920 x 1080p / 59.94 fps (50 Mbps)
1920 x 1080p / 29.97 fps (200 Mbps)
1920 x 1080p / 29.97 fps (50 Mbps)
1920 x 1080p / 23.98 fps (200 Mbps)
1920 x 1080p / 23.98 fps (50 Mbps)

AVCHD
1920 x 1080p / 59.94 fps (25 Mbps)
1920 x 1080p / 50 fps (25 Mbps)
1920 x 1080p / 23.98 fps (21 Mbps)
1920 x 1080i / 59.94 fps (21 Mbps)
1920 x 1080i / 59.94 fps (17 Mbps)
1440 x 1080i / 59.94 fps (5 Mbps)
1440 x 1080i / 50 fps (5 Mbps)
1280 x 720p / 59.94 fps (8 Mbps)

SD:
AVCHD
NTSC (9 Mbps)
PAL (9 Mbps)
Aspect Ratio 16:9 / 1.78:1
17:9 / 1.9:1
Still Image Resolution JPEG: 8.8 Megapixel, 4096 x 2160 (17:9)
JPEG: 8.3 Megapixel, 3840 x 2160 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
JPEG: 0.9 Megapixel, 1280 x 720 (16:9)
Audio Channels 2
Audio Format AAC
Dolby Digital 2-ch
LPCM
Display
Size 3.5" / 8.9 cm
Type Touchscreen
Pixel Count 1,152,000
Rotation 270°
Viewfinder
Type 0.39" / 9.9 mm
1,769,000 dots
Features
Image Stabilization Optical
Electronic (not available in DCI 4K/UHD resolutions)
Minimum Illumination 0.2 lux at f/2.8, 18dB gain, 1/2 second shutter speed, HIGH SENS mode
White Balance Modes Auto
ATW LOCK
3000K
5500K
Variable 2000K-15000K
Ach Fixed
Bch Fixed
Accessory Shoe 1 x Cold Shoe
Input/Output Connectors
Inputs 2 x XLR microphone
1 x 1/8" (3.5 mm) Stereo Mini camera remote
1 x LANC Terminal 2.5 mm super mini jack camera remote
Outputs 1 x A/V
1 x HDMI A (Full Size)
1 x USB 3.0 Type A (Host)
1 x USB Micro-B USB 3.0
1 x Speaker
Microphone Input Yes
Headphone Jack Yes
Power Input 11.4-12.6 VDC EIAJ Type4
General
Power Supply Battery: 7.2 VDC
AC Adapter: 12 VDC
Power Consumption LCD Operation: 19.7 W
Dimensions 6.8 x 7.7 x 13.6" / 17.3 x 19.5 x 34.6 cm
Weight 4.4 lb / 2 kg (without battery or SD card)

UKLJUČUJE:

Panasonic HC-X1 4K Ultra HD Professional Camcorder
Power Supply
Power Cable
Battery
Battery Charger
Microphone Holder
Eye Cup
Lens Hood
