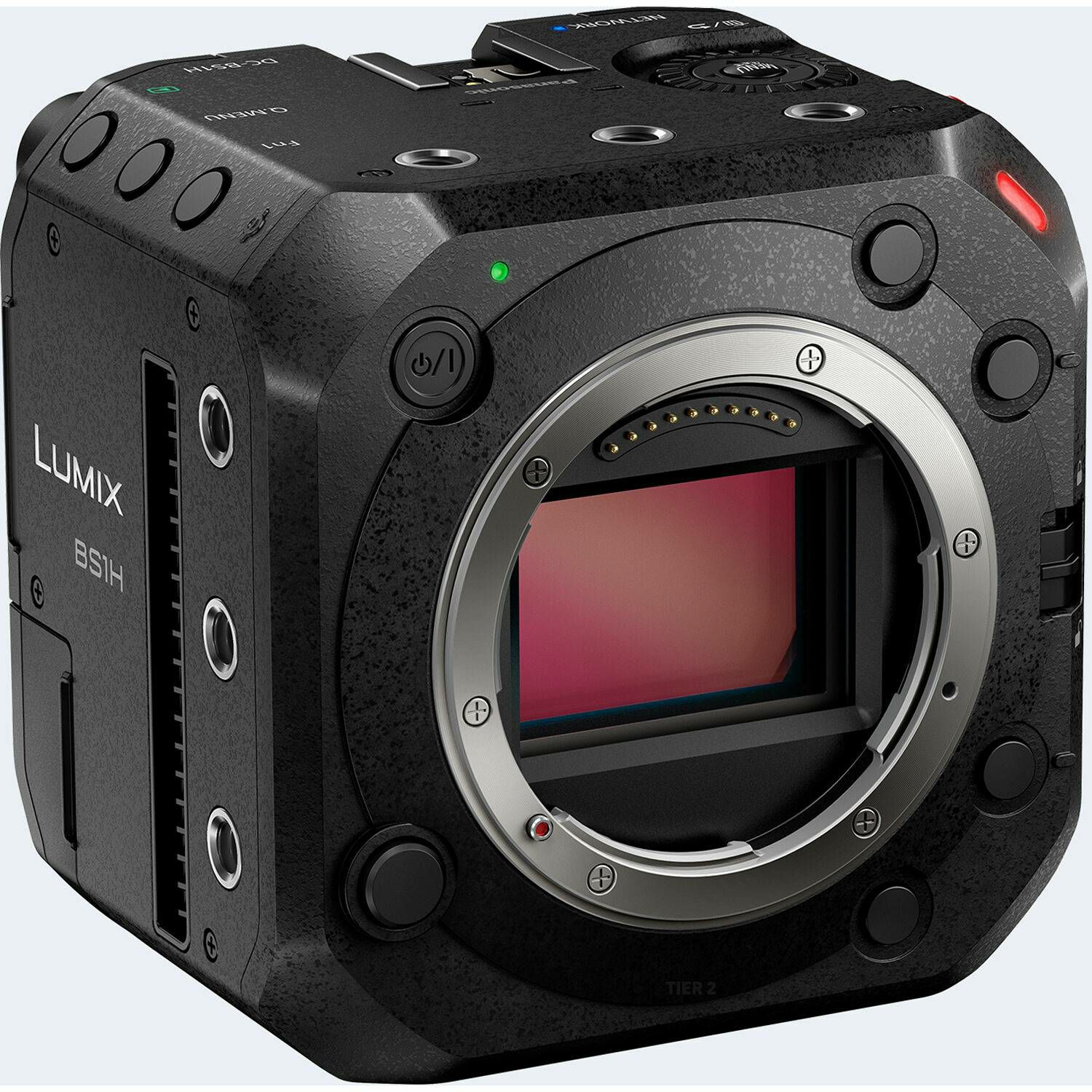

Panasonic Lumix BS1H Body (DC-BS1HE)

ZNAČAJKE:

Compact and suitable for cine drones, remote setups, and expandable for cine work as well as multi-camera broadcast work, the Panasonic Lumix BS1H Box Cinema Camera is a modular digital cinema camera with a small form-factor that bellies its full-frame sensor. It features a 24.2MP sensor, a Leica L lens mount, and a wide 14+-stop dynamic range to accommodate extreme lighting changes when recording in V-Log. It records video with resolutions up to 5.9K as well as C4K (4096 x 2160) and UHD4K, and it incorporates VariCam Look workflows.

The camera features dual-native ISO using its Venus Engine, anamorphic support, advanced AF (autofocus), numerous remote and power options, and supports HLG (Hybrid Log-Gamma) color for vivid imagery to aid professional color grading. There are many features packed into this tiny camera that make it the go-to production camera in any mobile and multi-camera production environment.

The BS1H provides multiple ways to record your footage to high data rate files in the ALL-Intra, LongGOP, MOV, and MP4 recording formats with H.264 and H.265/HEVC codecs. The camera supports unlimited recording time and allows you to record 10-bit 4:2:2 video using the camera's dual SD card slots. It can output up to 4K via the HDMI 2.0 output, or you can output up to 1080p resolution via SDI. The camera allows you to output via HDMI and SDI simultaneously, so you can use one signal for monitoring and the other for recording. It also supports recording at variable frame rates for high-quality, slow-motion video. Custom 3D LUTs can be uploaded into the camera, using the SD card slots.

The BS1H is also an ideal camera for multi-camera environments, not only because it's highly mobile, but it includes timecode and genlock BNC ports, so you can sync it with other cameras to make syncing in postproduction easy. Its RJ45 Gigabit LAN port allows you to sync with other networked BS1H cameras, manage the camera settings and functions, and even perform direct IP streaming with a future firmware update. Wi-Fi and Bluetooth functionality are also integrated for monitoring, configuration, and control via a smartphone or tablet, using the LUMIX Sync app. Another function integrated into the BS1H is a USB 3.1 Gen 1 Type-C input to control the camera with the LUMIX Tether app, which allows you to capture still images and control up to 12 BS1H cameras. Audio features include high-grade 48 kHz/24-bit LPCM format, an integrated stereo microphone, a 3.5mm mic/line-level input, and a 3.5mm headphone output. The optional DMW-XLR1 XLR adapter can be utilized, using the camera's integrated hot shoe, allowing you to record with professional microphones.

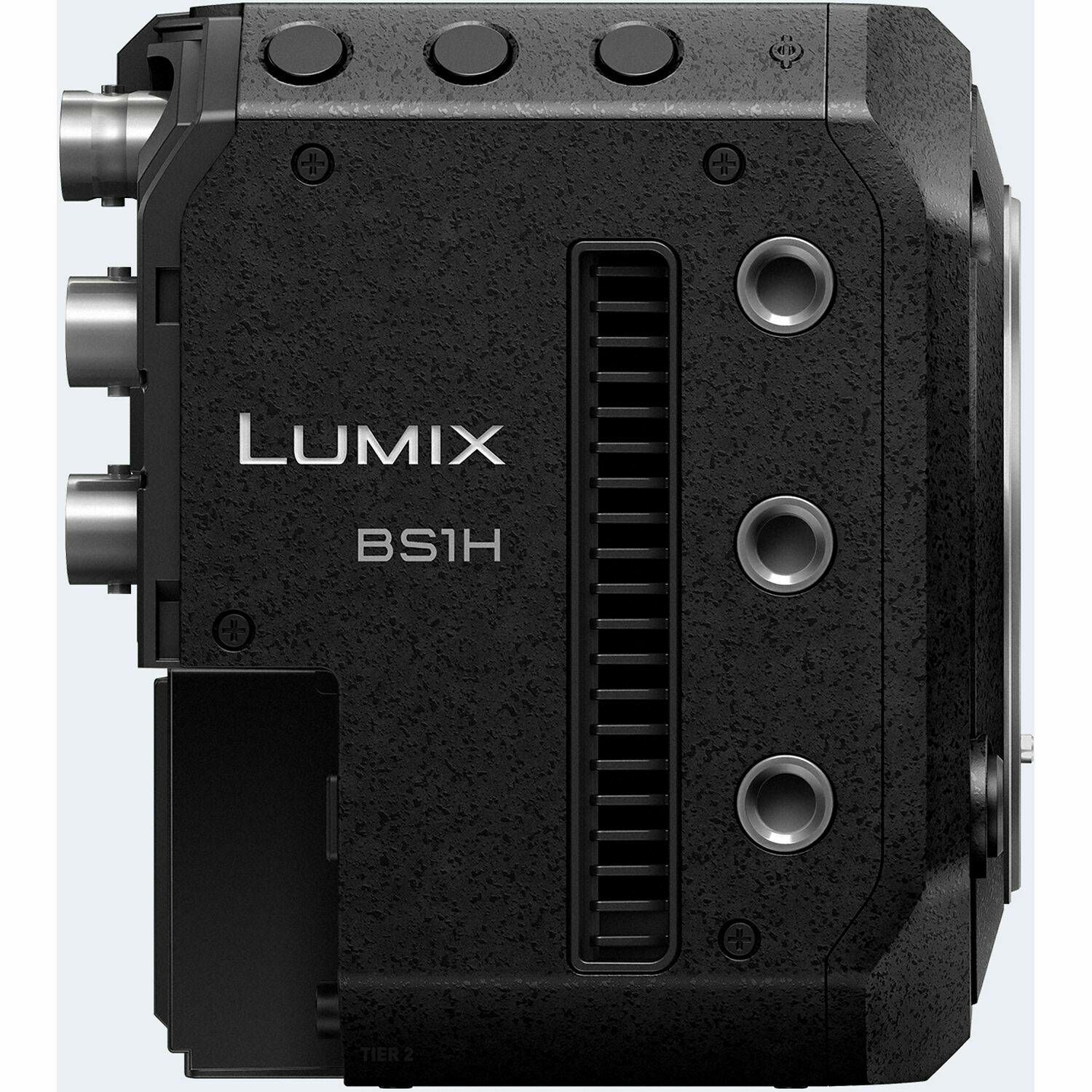

Its compact body measures less than 4" square and weighs only 1.3 lb, so it can be used on gimbals or drones for high-quality, stabilized footage. Its internal fan keeps the camera cool during long shoots, and its aluminum and magnesium housing provides protection and adds to the cooling factor. It also features 9 x accessory mounting threads for mounting onto a plate, cage, or tripod mount. There are four user-programmable function buttons around the housing as well as tally lights on the front and rear. You can power the BS1H using the included power adapter, with a separately available high-capacity VBR-type battery using its integrated mount, or by using PoE+ (Power-over-Ethernet) via the LAN port with compatible PoE equipment.
Sensor and Processing Engine
24.2 MP sensor with low-pass filter
Dual native ISO 100-51200 and 50 to 204,800
10-bit C4K/4K 59.94/50 video (35mm)
4:2:2 10-bit internal recording
VFR C4K/4K, 2 to 60 fps, FHD 2-180 fps
V-Log
14+ stops of dynamic range with V-Log and V-Gamut
Compatible with the "Cinema VariCam Look"
Supports LUT files
LUT-applied images viewable on SDI and HDMI outputs
Resolution
Supports 6K, 5.9K, 5.4K, C4K, and 4K in full-frame mode
Supports C4K, 4K, Anamorphic 4K (4:3 aspect ratio), and FHD in S35mm mode
Recording and Output

The camera records internally at 4:2:2 10-Bit/8-bit as well as 4:2:0 10-bit/8-bit to dual UHS II SD card slots that support cards with speed ratings up to V90
The camera outputs Blackmagic RAW or ProRes RAW via the HDMI port for external monitoring and/or recording
You can simultaneously output RAW over HDMI and video over SDI
You can record internally, while simultaneously output FHD over SDI and up to 4K over HDMI
Using the LUMIX Tether app version 1.1 or higher or LUMIX sync, you can record internally, output over both HDMI and SDI, and output via wired LAN or Wi-Fi

Ethernet Compatible
The camera features an Ethernet port that allows you to remotely control up to 12 x BS1H cameras. You can power the camera via PoE+ protocol over a network that supports PoE+, and you can also stream directly from the camera using the RTP/TRSP protocols. The camera supports streaming UHD 4K and FHD as well as 1280 x 720p.
Supports Genlock and Timecode
The BS1H supports Genlock as well as Timecode in/out, providing synchronization of cameras for live sports or later postproduction.
Bluetooth and Wi-Fi
The camera supports both Bluetooth and Wi-Fi.
Functions
Frame Indicator (red outline surrounds frame indicating the camera is recording)
Frame Marker
Vertical Position Information
Streaming Blue Frame Indicator
Aspect Ratio masks
Face/Eye recognition for focus tracking
Low Light AF supports images with exposure levels down to -6EV

SPECIFIKACIJE:

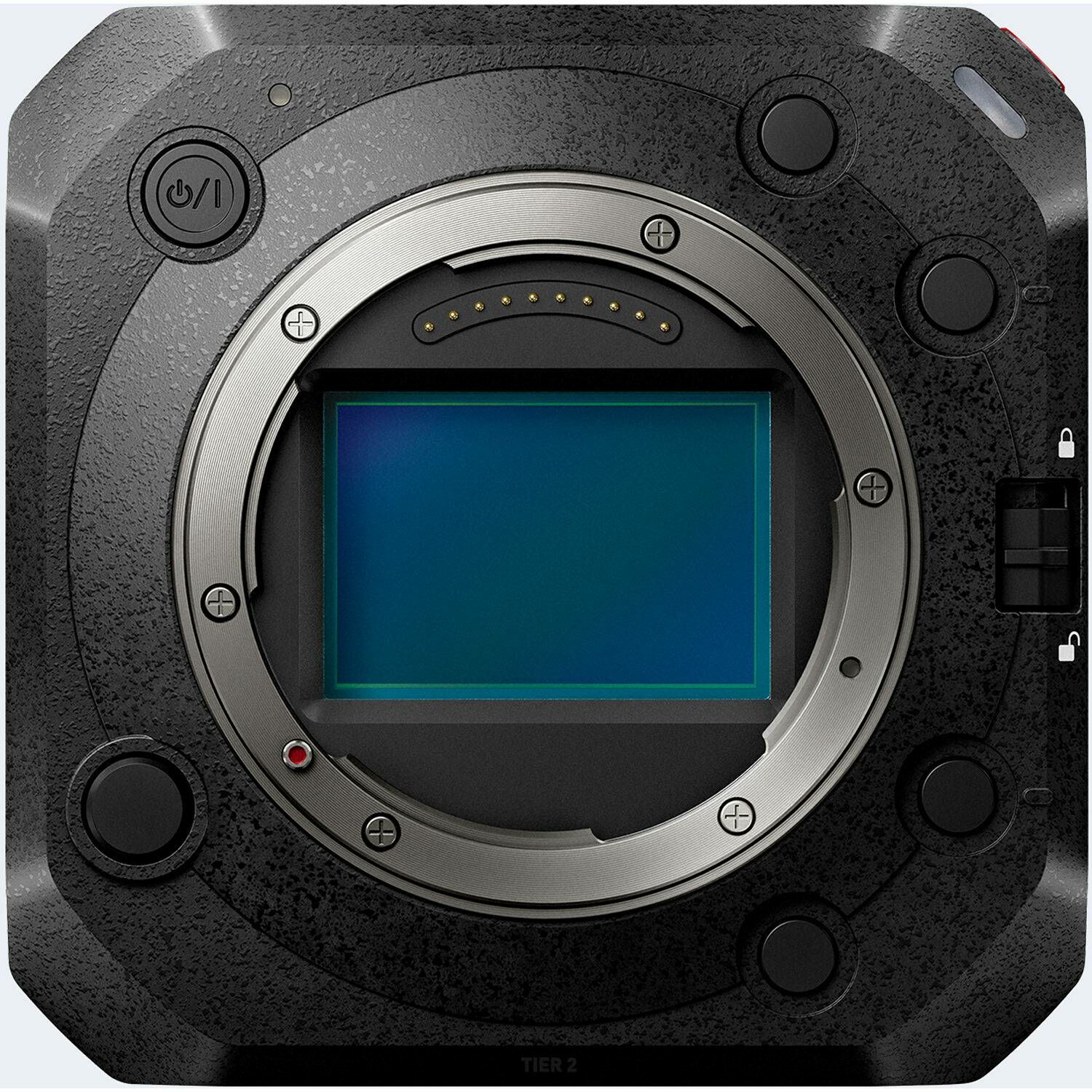

Lens Mount Leica L
Interchangeable Lens Mount None
Lens Communication Yes
Sensor Resolution Effective: 24.2 Megapixel
Sensor Type 35.6 x 23.8 mm (Full-Frame) CMOS
Sensor Windowing 6K (5952 x 3968) in 3:2
5K (5888 x 3312) in 16:9
5K (5376 x 3584) in 3:2
4K (4096 x 2160) in 17:9
4K (3840 x 2160) in 16:9
1080p (1920 x 1080) in 16:9
Built-In ND Filter None
ISO Sensitivity 100 to 51,200 (Native)
80 to 204,800 (Expanded)
Shutter Type Rolling Shutter
Shutter Speed 1/16000 to 1/2 sec
Advertised Dynamic Range 14 Stops
White Balance 2500 to 10,000K
Internal Recording
Recording Modes H.265/H.265 Long GOP/MOV 4:2:2 10-Bit:
4096 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
3328 x 2496p at 23.98/24/25/29.97 fps (150 to 400 Mb/s)
1920 x 1080p at 23.98/29.97/59.94 fps (100 to 200 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 100 MB/s)
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
5952 x 3968p at 23.98/24/25 fps (200 Mb/s)
5376 x 3584p at 25/29.97 fps (200 Mb/s)
5888 x 3312p at 23.98/25/29.97 fps (200 Mb/s)
4096 x 2160p at 23.98/24/29.97/48/50/59.94 fps (200 Mb/s)
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
1920 x 1080p at 100/119.88 fps (150 Mb/s)
1920 x 1080p at 47.95/48 fps (100 Mb/s)
Variable Frame Rates DCI 4K: 2 to 60 fps
1080p: 2 to 180 fps
Gamma Curve Panasonic V-Gamut, Panasonic V-Log
Audio Recording MOV: 24-Bit 48 kHz LPCM Audio
MOV: 24-Bit 96 kHz LPCM Audio
MP4: 24-Bit 48 kHz LPCM Audio
MP4: 24-Bit 96 kHz LPCM Audio
Still Image Support None
External Recording
Video Output 4:2:2 10-Bit via HDMI:
4096 x 2160p at 24/25/30/50/60 fps
3840 x 2160p at 24/25/30/50/60 fps
3240 x 2160p at 24/25/30/50/60 fps
2880 x 2160p at 24/25/30/50/60 fps
1920 x 1080p at 24/25/30/50/60 fps
4:2:2 8-Bit via HDMI:
4096 x 2160p at 24/25/30/50/60 fps
3840 x 2160p at 24/25/30/50/60 fps
3240 x 2160p at 24/25/30/50/60 fps
2880 x 2160p at 24/25/30/50/60 fps
1920 x 2160p at 24/25/30/50/60 fps
4:2:2 10-Bit via SDI/BNC:
1920 x 1080p at 24/25/30/50/60 fps
1920 x 1012p at 24/25/30/50/60 fps
1620 x 1080p at 24/25/30/50/60 fps
1440 x 1080p at 24/25/30/50/60 fps
4:2:2 8-Bit via SDI/BNC:
1920 x 1080p at 24/25/30/50/60 fps
1920 x 1012p at 24/25/30/50/60 fps
1620 x 1080p at 24/25/30/50/60 fps
1440 x 1080p at 24/25/30/50/60 fps
Raw Output HDMI In Full Frame Mode:
5888 x 3312 12-Bit at 23.98/25/29.97 fps
HDMI In Super35 Mode:
4128 x 2176 12-Bit at 23.98/25/29.97/50/59.94 fps
3536 x 2656 12-Bit at 23.98/25/29.97/50 fps
IP Streaming RTP, RTSP: 1280 x 2160 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 50.00 Mb/s)
Interface
Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input on Camera Body
1 x 1/8" / 3.5 mm Stereo Headphone Output on Camera Body
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input
1 x BNC Timecode Data Input/Output
1 x BNC Genlock Data Input/Output
1 x RJ45 LAN Control, Monitor, Video Input/Output
1 x 2.5 mm LANC Control Input
Wireless Interfaces 2.4 GHz Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Bluetooth Video Output, Control
EVF Optional, Not Included
Power
Battery Type Panasonic AG-VBR Series
Power Connectors 1 x Weipu SF610/S2 (12 VDC) Input
PoE Support PoE+ 802.3at
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Operating Humidity 10 to 80%
Physical
Tripod Mounting Thread 2 x 3/8"-16 Female (Bottom)
Material of Construction Aluminum
Accessory Mount 9 x 3/8"-16 Female
1 x Hot Shoe Mount
Dimensions 3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
Weight 1.3 lb / 585 g

UKLJUČUJE:

Panasonic Lumix BS1H Box Cinema Camera
AC Power Adapter
AC Cable
Cable Lock Band
Body Cap
Hot Shoe Cover
Audio Terminal Cover
DC In Terminal Cover
BNC Terminal Cover
HDMI Terminal Cover
Remote Terminal Cover
