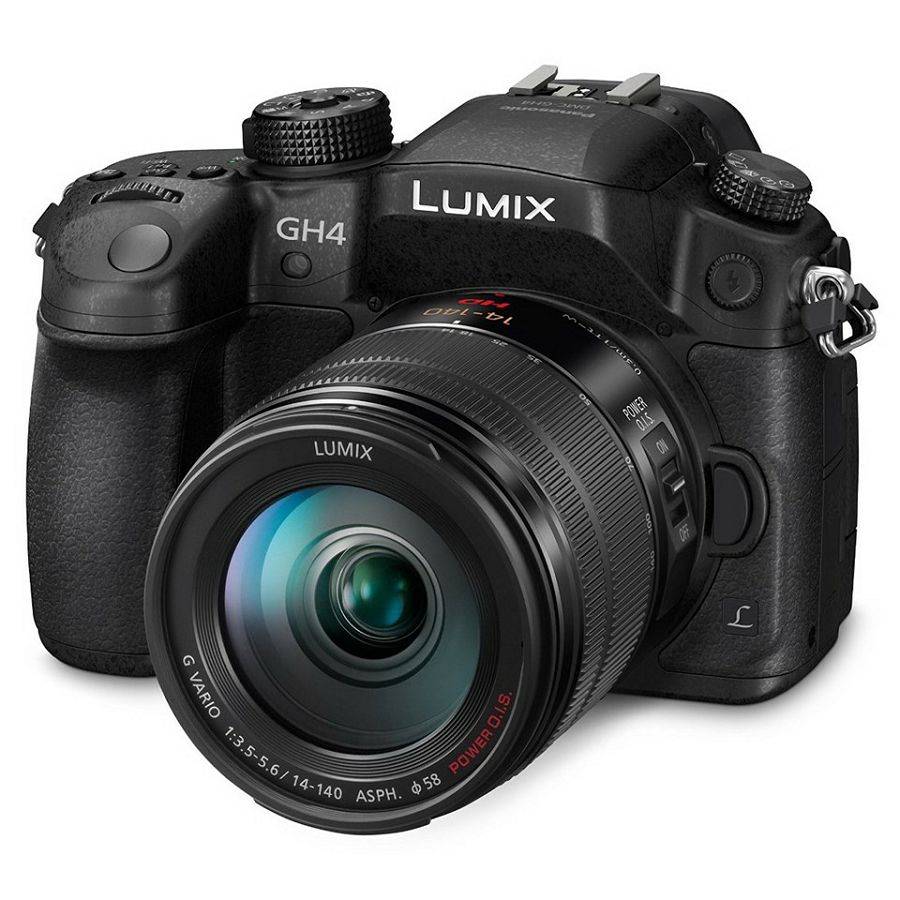

Panasonic Lumix GH4 14-140mm F3.5-5.6 ASPH. Power O.I.S. Black digitalni fotoaparat 4K video DMC-GH4HEG-K Mirrorless Micro Four Thirds Digital Camera

PRODUCT HIGHLIGHTS

16.05 MP Digital Live MOS Sensor
DCI 4K 4096x2160 at 24p
UHD 4K 3840x2160 at 30p/24p
Full HD up to 60p
3.0" 1,036k-Dot OLED Touchscreen Monitor
2,359K-Dot OLED Live View Finder
Support for 59.94p, 23.98p, 50p, & 24p
4:2:2 8-Bit or 10-Bit HDMI Output
High-Speed 49-Point Autofocus
Magnesium Alloy, Weather-Sealed Body



The Panasonic Lumix DMC-GH4 Mirrorless Micro Four Thirds Digital Camera is a true hybrid camera designed for both professional photo and video use. It features a 16.05-megapixel Digital Live MOS sensor and a 4-CPU Venus Engine, capable of capturing high-resolution JPEG and RAW stills, as well as UHD 4K 3840x2160 30p/24p and cinematic DCI 4K 4096x2160 video at 24p. Like its predecessor, the GH4 features a weather-sealed magnesium alloy body, while offering increased resolution on both the OLED monitor and electronic viewfinder. It also features built-in Wi-Fi with NFC technology, in-camera creative controls, and a high-speed 49-point autofocus in both photo and video mode.

The GH4 delivers video quality surpassing many professional video cameras. Video can be recorded in a variety of formats, from efficient AVCHD and AVCHD Progressive, to 200 Mbps All-Intra and 100 Mbps IPB MOV and MP4 formats. And because the GH4 is a global camera, the system frequency can be switched between 59.94 Hz (23.98 Hz) and 50 Hz, yielding a variety of recording options including 23.98p, 25p, 29.97p, 50p, and 59.94p. The system can also be switched to 24 Hz to capture true 24p in HD and 4K resolutions.

Video and photos are recorded to SD/SDHC/SDXC memory cards. For high bit-rate 100 Mbps and 200 Mbps formats, SDHC/SDXC UHS-I Speed Class 3 (U3) cards are supported and recommended. Video recorded to SD cards is 4:2:0 8-bit. Real-time 4:2:2 8-bit and 4:2:2 10-bit video can also be sent to an external monitor or recorder with an optional micro HDMI cable. Additional video features include focus peaking, time code support, and cine-like gamma options. For unique expressions, VBR (Variable Frame Rate), time lapse, and stop motion animation videos can be recording internally without the need for additional post-production processing. The GH4 comes with a rechargeable lithium-ion battery pack, battery charger with AC cable, body cap, hot shoe cover, USB cable, shoulder strap, and DVD with supplied software.

16.05 Megapixel Digital Live MOS Sensor and Venus Engine
The 16.05-megapixel Digital Live MOS sensor delivers high-quality images with high sensitivity and quick response times. The increased signal speed readout helps to suppress the effects of rolling shutter. In conjunction with the quad-core Venus Engine image processor, you'll enjoy dramatically improved sensitivity (maximum ISO 25600), gradation performance, resolution, and color reproduction.

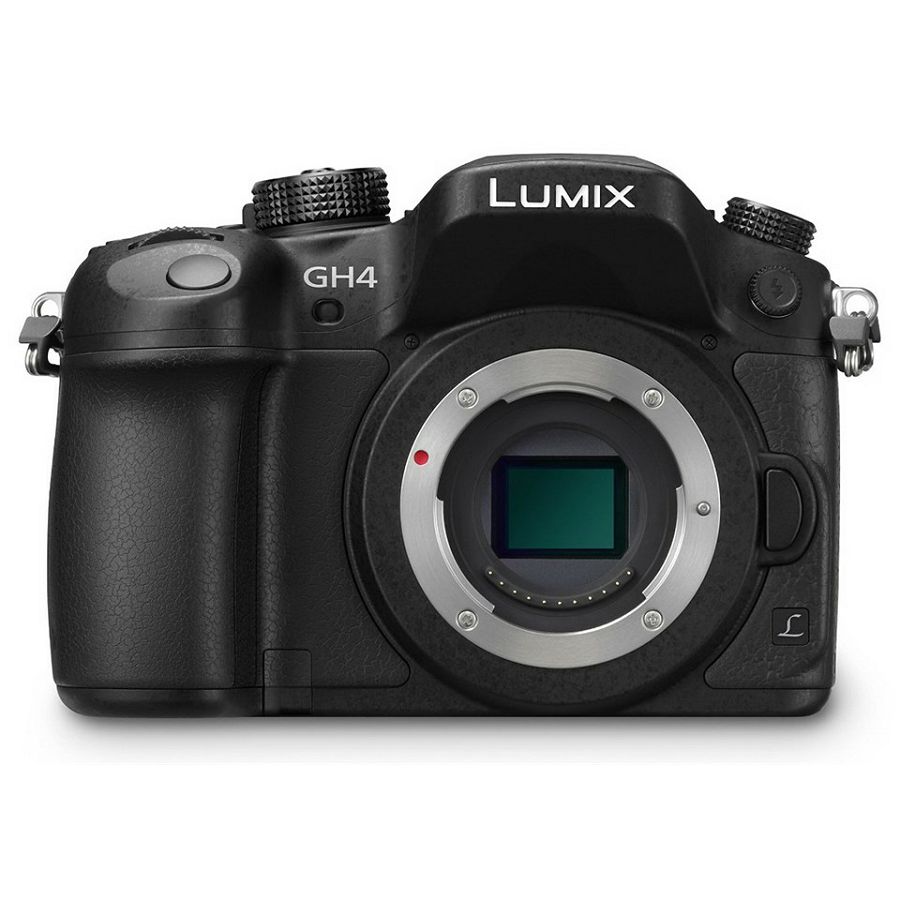

Micro Four Thirds System and Lens Mount
The DMC-GH4's 4/3" type sensor is large enough for shallow depth of field and yet small enough to take advantage of lighter, more compact lenses than a larger format camera would require. Plus, the short flange focal distance of the Micro Four Thirds Lens Mount makes it possible to add optional adapters (sold separately) to use a wide range of lenses, including PL-mount cinema lenses.

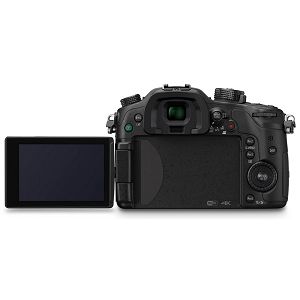

Dual OLED Displays - Monitor and Live View Finder
High-speed, organic LED displays are used for both the Live View Finder and the rear monitor. The 3.0" monitor features a 1,036K-dot resolution and a touchscreen interface for intuitive control, while the LVF features a 2,359K-dot resolution. These displays feature 100% coverage and a 10,000:1 contrast ratio. An Eye Sensor automatically switches between the Live View-Finder and the rear monitor, for easy shooting with both.
Magnesium Alloy, Weather Sealed Body
The DMC-GH4 features a magnesium alloy full die cast front and rear frame. A splash and dustproof design is achieved by tightly sealing the joints and control components. To further meet the demands of professional use, the shutter is rated for approximately 200,000 releases.
Wi-Fi with NFC Technology
The DMC-GH4 integrates Wi-Fi connectivity with NFC, letting you use the Panasonic Image App for remote photo and video shooting with compatible smartphones or tablets. The app also lets you embed location data to an image after shooting. If your mobile device isn't NFC compatible, you can still connect to the camera by scanning a QR code displayed on the GH4's monitor.
49-Area AF / Custom Multi AF
The newly developed AF system features 49 points, giving you more flexibility when composing shots. The Custom Multi mode extends that flexibility even more with the ability to freely select what blocks to focus out of the 49 possible focusing areas.
High-Speed Autofocus
The high-precision Contrast AF integrates DFD (Depth from Defocus) technology to achieve AF speeds of approximately 0.07 sec in AFS mode. This enables the camera to shoot bursts of 12 fps in AFS mode.
Silent Mode
The Silent mode switches the shutter from mechanical to electronic and turns off sounds, while suppressing the AD assist lamp and flash with just a single setting. This is useful when capturing photos in situations where noise and light from the camera would be a distraction to performers or people around you.
In-Camera RAW Data Development
Shoot RAW photos and process the images in-camera to create JPEG images, instead of relying on post-processing. You can adjust the color space setting (sRGB / AdobeRGB), white balance, noise reduction, sharpness, and hue. Lumix's Photo Style, Intelligent D-Range Control, and Intelligent Resolution can also be applied.
Picture Profiles
Choose from a range of Photo Styles and Creative Control modes. Photo Styles for stills or video include Standard, Vivid, Natural, Monochrome, Scenery, Portrait, and Custom. Contrast, sharpness, noise reduction, saturation, and hue parameters can be adjusted for each mode and even set into the camera's memory.
Professional 4K Video Recording
The DMC-GH4 brings the GH-line into the 4K age by offering both 16:9 UHD 4K 3840x2160 video at 23.98p, 24p or 29.97p, and 17:9 DCI (Digital Cinema Initiatives) 4K 4096x2160 videos at 24p. 4K resolutions can be recorded as MOV or MP4 files in high bitrate 100 Mbps IPB codec. When recording at 100 Mbps, you will need an SDHC/SDXC memory card capable of handling the transfer speed.

Please note: For better quality, 4K recording modes use a 1:1 pixel map of the sensor. This yields a slight crop of the sensor, resulting in approximately a full-frame crop factor of approximately 2.3x when shooting DCI 4K resolution.
Selectable System Frequency
The DMC-GH4 is a true global camera, with system frequency switchable from 59.94 Hz (23.98 Hz) and 50 Hz. You can also select 24 Hz frequency for true 24 fps cinematic video.
VFR (Variable Frame Rate)
The VFR mode enables Full HD video recording with slow/fast motion, depending on the video format and system frequency selected.

59.94 Hz
MOV/FHD/100 Mbps/29.97p, MP4(LPCM)/FHD/100 Mbps/29.97p:
2 fps, 15 fps, 26 fps, 28 fps, 30 fps, 32 fps, 34 fps, 45 fps, 60 fps, 75 fps, 90 fps, 96 fps
MOV/FHD/100 Mbps/23.98p, MP4(LPCM)/FHD/100 Mbps/23.98p:
2 fps, 12 fps, 20 fps, 22 fps, 24 fps, 26 fps, 28 fps, 36 fps, 48 fps, 60 fps, 72 fps, 84 fps, 96 fps
AVCHD/FHD/24 Mbps/29.97p:
2 fps, 15 fps, 26 fps, 28 fps, 30 fps, 32 fps, 34 fps, 45 fps, 60 fps
AVCHD/FHD/24 Mbps/23.98p:
2 fps, 12 fps, 20 fps, 22 fps, 24 fps, 26 fps, 28 fps, 36 fps, 48 fps, 60 fps

50 Hz
MOV/FHD/100 Mbps/25.00p, MP4(LPCM)/FHD/100 Mbps/25.00p:
2 fps, 12 fps, 21 fps, 23 fps, 25 fps, 27 fps, 30 fps, 37 fps, 50 fps, 62 fps, 75 fps, 96 fps
AVCHD/FHD/24 Mbps/25.00p:
2 fps, 12 fps, 21 fps, 23 fps, 25 fps, 27 fps, 30 fps, 37 fps, 50 fps

24 Hz
MOV/FHD/100 Mbps/24.00p, MP4(LPCM)/FHD/100 Mbps/24.00p:
2 fps, 12 fps, 20 fps, 22 fps, 24 fps, 26 fps, 28 fps, 36 fps, 48 fps, 60 fps, 72 fps, 84 fps, 96 fps
Versatile Video Recording Formats
Choose the video format that is right for each project. The DMC-GH4 is capable of ultra high bitrate video recording at 200 Mbps (All-Intra) or 100 Mbps (IPB). Available formats include MOV, MP4, AVCHD Progressive, and AVCHD at a variety of frame rates. In MP4 / MOV, high quality LPCM (Linear Pulse Code Modulation) sound can be recorded. All internally recorded video codecs use 4:2:0 color sampling and an 8-bit color depth.
Real-Time 4:2:2 Output with HDMI
Send 4:2:2 8-bit or 4:2:2 10-bit video in real-time to external monitors or recorders via the micro HDMI output. An optional micro HDMI cable is required. When outputting a 4:2:2 10-bit signal over HDMI, video cannot be recorded on the SDHX/SDXC memory card in the camera.
Focus Peaking
For easy focusing, the GH4 incorporates a Focus Peaking function that shows the peak of focus in MF and AF+MF modes. Users can see the peaking of focus while monitoring the subject in live view. It can be set to HIGH / LOW / OFF and the color can also be changed to blue, white or orange according to the color of the shooting scene during live view. Focus peaking is also available while remote photo/video shooting with smartphone or tablet via Wi-Fi.
Luminance Level Adjustment
In addition to the standard luminance level of 16-235 and 16-255, the DMC-GH4 also offers 0-255.
Additional Video Features
Time code - SMPTE-compliant time code for synching multiple devices
Color bars - benchmark for fixing color or brightness
1 KHz test tone - benchmark for fixing sound or volume
Center marker - guide mark for video composition
Synchro scan - suppress flicker on monitors or from fluorescent lights
Cine-like gamma - "CINELIKE D" and "CINELIKE V" produce a cinema-like tones
Master Pedestal - adjust brightness balance ±15 steps based on the color black
Zebra Pattern - display lines on over-exposed areas
Professional 4K Video Interface Unit (Optional)
For professional video workflows, the optional DMW-YAGH Interface Unit is available. The Interface Unit attaches to the bottom of the camera and provides 2 XLR input terminals, for line or condenser microphones, with independent volume controls and an audio level display monitor. It also has two 3G-SDI capable BNC connectors and two HD-SDI capable BNC connectors for quad-link SDI 4K video in 4:2:2 10-bit, dual-link 4:2:2 10-bit 1080p up to 60 fps, or four simultaneous 1080p streams up to 30 fps - all with timecode. Power is supplied to the unit by a 12VDC 4-pin XLR input.



Please note: When using 4:2:2 10-bit output, simultaneous video recording on an SDHC/SDXC memory card in the DMC-GH4 is not possible.
Interface
The DMC-GH4 comes with a variety of connection terminals including 1/8" microphone and headphone jacks. The camera also features a micro HDMI port, AV output, flash sync terminal, and a 2.5mm remote controller jack.
Supports UHS-I Class 3 Speed SD Cards
The DMC-GH4 uses a variety of advanced recording media, including SDXC, SDHC, and SD Memory Cards. The fastest of these cards is the UHS-I Class 3 (U3), which is recommended when using high bit rate video recording modes over 100 Mbps.
High-Speed Burst Shooting
The DMC-GH4 allows for high-speed burst shooting at 12 fps in single autofocus mode using the mechanical shutter, for up to approximately 40 RAW or 100 JPEG images, and 7.5 fps in continuous AF mode. This lets you capture fast moving subjects in clear focus. When using the electronic shutter, you can shoot in bursts up to 40 fps.
Highlight / Shadow Control
Highlight and shadow can be separately adjusted with the front or rear dial. Three patterns of settings can be customized in addition to three preset patterns.

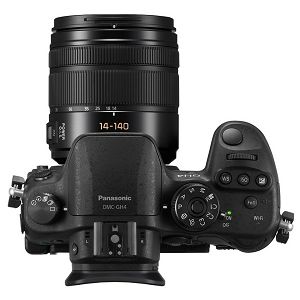

Button Layout
For intuitive control, exposure compensation, ISO sensitivity, and white balance controls are positioned around the shutter button to make operation fast and easy while looking at the viewfinder. A programmable function button is also available.
Additional Features
In-camera time lapse and stop motion animation
1/8000 second maximum shutter speed
1/250 second shutter speed sync for built-in and external flash
Face / Eye Detection AF
Magnification of 1-Area focus point
Language support: English and Spanish.

SPECIFIKACIJE:

Imaging
Lens Mount Micro Four Thirds
Camera Format Micro Four Thirds (2x Crop Factor)
Pixels Actual: 17.2 Megapixel
Effective: 16.05 Megapixel
Max Resolution 4608 x 3456
Sensor Type / Size MOS, 17.3 x 13.0 mm
File Formats Still Images: JPEG, MPO, RAW
Movies: MOV, MP4, MPEG-4 AVCHD
Audio: AAC, Dolby Digital 2ch, Linear PCM
Dust Reduction System Yes
Memory Card Type SD
SDHC
SDXC
AV Recording
Video Recording Yes, NTSC/PAL
Video Format High Definition
MOV
4096 x 2160p / 24 fps (100 Mbps)
3840 x 2160p / 23.98 fps (100 Mbps)
3840 x 2160p / 24 fps (100 Mbps)
3840 x 2160p / 25 fps (100 Mbps)
3840 x 2160p / 29.97 fps (100 Mbps)
1920 x 1080p / 23.98 fps (200 Mbps)
1920 x 1080p / 24 fps (200 Mbps)
1920 x 1080p / 25 fps (200 Mbps)
1920 x 1080p / 29.97 fps (200 Mbps)
1920 x 1080p / 50 fps (200 Mbps)
1920 x 1080p / 59.94 fps (200 Mbps)
High Definition
MP4
4096 x 2160p / 24 fps (100 Mbps)
3840 x 2160p / 23.98 fps (100 Mbps)
3840 x 2160p / 24 fps (100 Mbps)
3840 x 2160p / 25 fps (100 Mbps)
3840 x 2160p / 29.97 fps (100 Mbps)
1920 x 1080p / 23.98 fps (200 Mbps)
1920 x 1080p / 24 fps (200 Mbps)
1920 x 1080p / 25 fps (200 Mbps)
1920 x 1080p / 29.97 fps (200 Mbps)
1920 x 1080p / 50 fps (200 Mbps)
1920 x 1080p / 59.94 fps (200 Mbps)
1920 x 1080p / 25 fps (20 Mbps)
1920 x 1080p / 29.97 fps (20 Mbps)
1920 x 1080p / 50 fps (28 Mbps)
1920 x 1080p / 59.94 fps (28 Mbps)
1280 x 720p / 25 fps (10 Mbps)
1280 x 720p / 29.97 fps (10 Mbps)
Standard Definition
MP4
640 x 480p / 25 fps (4 Mbps)
640 x 480p / 29.97 fps (4 Mbps)
High Definition
AVCHD
1920 x 1080p / 23.98 fps (24 Mbps)
1920 x 1080p / 50 fps (28 Mbps)
1920 x 1080p / 59.94 fps (28 Mbps)
1920 x 1080i / 50 fps (24 Mbps)
1920 x 1080i / 50 fps (17 Mbps)
1920 x 1080i / 59.94 fps (24 Mbps)
1920 x 1080i / 59.94 fps (17 Mbps)
Aspect Ratio 4:3, 16:9
Video Clip Length Up to 220 Min
Audio Recording With Video, Stereo
Focus Control
Focus Type Auto & Manual
Focus Mode Continuous-servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S)
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Pixel Count 2,359,000
Viewfinder Eye Point 21.0 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 1.34x
Diopter Adjustment - 4.0 to +4.0 m
Display Screen 3" Touchscreen Swivel OLED (1,036,000)
Screen Coverage 100%
Exposure Control
ISO Sensitivity 200-25600 (Extended Mode: 100-25600)
Shutter 60 - 1/8000
60 minute in Bulb Mode
1/24 - 1/16000 in Movie Mode
Remote Control DMW-RSL1 (Optional)
Metering Method Center-weighted average metering, Multiple, Spot metering
Exposure Modes Modes: Aperture Priority, Manual, Program, Shutter Priority
Metering Range: EV 0.0 - EV 18.0
White Balance Modes Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set
Burst Rate Up to 40 fps
Flash
Flash Modes Auto
Auto/Red-eye Reduction
Forced On
Forced On/Red-eye Reduction
Off
Slow Sync
Slow Sync/Red-eye Reduction
Built-in Flash Yes
Max Sync Speed 1 / 250 seconds
Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe
Performance
Self Timer 10 seconds, 2 seconds
Number of Shots: 1-3
Interval Recording Yes
Connectivity 1/8" Headphone, 1/8" Microphone, AV Output, HDMI D (Micro), USB 2.0, Wired Remote Port
Wi-Fi Capable Yes
Software System Requirements Windows: XP, Vista, 7, 8
Mac: OS X 10.5 or later
Power
Battery 1x Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1860 mAh
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 80%
Physical
Dimensions (WxHxD) 5.2 x 3.7 x 3.3" / 132.9 x 93.4 x 83.9 mm
Weight 19.75 oz / 560 g with SD card and Battery
Packaging Info
Package Weight 2.8 lb
Box Dimensions (LxWxH) 7.7 x 5.7 x 5.7"

Panasonic Lumix G DMC-GH4HEG

Zadivljujuće fotografije, inspirativni 4K videozapisi
Zahvaljujući novom senzoru Live MOS i procesoru Venus Engine, GH4 donosi manju razinu šumova, bolju razlučivost i poboljšan prikaz boja. Inovativnom DFD tehnologijom ubrzan je sustav Contrast AF. Kao prvi* DSLM fotoaparat s mogućnošću 4K videozapisa, ispunjava sve zahtjeve profesionalaca.

- 16,05 megapiksela: Digitalni MOS senzor za snimanje uživo sa 16,05 megapiksela
- 4K2K: Snimanje videozapisa
- OLED s 2 359 000 točaka: Tražilo uživo


SPECIFIKACIJE


TIP:
Tip: DSLM fotoaparat
Mediji za snimanje: SD memorijska kartica, SDHC memorijska kartica, SDXC memorijska kartica (kompatibilno sa SDHC/SDXC memorijskim karticama u skladu sa standardom UHS-I)
Veličina senzora: 17.3 x 13.0 mm (za razmjer slike 4:3)
Nosač objektiva: Navoj za standard Mikro 4/3

Veličina senzora:
Tip: Live MOS senzor
Ukupni broj piksela: 17,20 megapiksela
Efektivni pikseli fotoaparata: 16,05 megapiksela
Filter boje: Pirmarni filter boje
Sustav uklanjanja prašine: Supersonični filter

Sustav za snimanje:
Format datoteke:
Fotografija: JPEG (DCF, Exif 2.3), RAW, MPO (s 3D objektivom u standardu Micro Four Thirds)
Snimanje videozapisa: MOV (audioformat LPCM), MP4 (audioformat LPCM / AAC 2 kanala), AVCHD (audioformat: Dolby Digital 2 kanala)
Frekvencija sustava: 59,94 Hz, 50,00 Hz, 24,00 Hz
Razmjer slike: 4:3, 3:2, 16:9, 1:1
Kvaliteta slike: RAW, RAW+Fine, RAW+Standard, Fine, Standard/MPO+Fine / MPO+Standard (s 3D objektivom u standardu Micro Four Thirds)
Opseg boja: sRGB, AdobeRGB

Veličina datoteke (pikseli):
Fotografija: [4:3] 4608x3456(L) / 3264x2448(M) / 2336x1752(S) / 1824x1368 (s 3D objektivom u standardu Micro Four Thirds)/[3:2] 4608x3072(L) / 3264x2176(M) / 2336x1560(S) / 1824x1216 (s 3D objektivom u standardu Micro Four Thirds)/[16:9] 4608x2592(L) / 3840x2160(M) / 1920x1080(S) / 1824x1024 (s 3D objektivom u standardu Micro Four Thirds)/[1:1] 3456x3456(L) / 2448x2448(M) / 1744x1744(S) / 1712x1712 (s 3D objektivom u standardu Micro Four Thirds)
Snimanje videozapisa (MOV*: 59,94 Hz): [4K] 3840x2160:29,97p, 100 Mb/s (IPB) (LPCM)/[4K] 3840x2160:23,98p, 100 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:59,94p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:29,97p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:23,98p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)
Snimanje videozapisa (MOV*: 50,00 Hz): [4K] 3840x2160:25,00p, 100 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:50,00p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:25,00p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)
Snimanje videozapisa (MOV*: 24,00 Hz): [C4K] 4096x2160:24,00p, 100 Mb/s (IPB) (LPCM)/[4K] 3840x2160:24,00p, 100 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:24,00p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)
Snimanje videozapisa (MP4*: 59,94 Hz): [4K] 3840x2160:29,97p, 100 Mb/s (IPB) (LPCM) / 100 Mb/s (IPB) (AAC)/[4K] 3840x2160:23,98p, 100 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:59,94p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:29,97p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:23,98p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:59,94p, 28 Mb/s (IPB) (AAC)/[Full HD] 1920x1080:29,97p, 20 Mb/s (IPB) (AAC)/[HD] 1280x720:29,97p, 10 Mb/s (IPB) (AAC)/[VGA] 640x480:29,97p, 4 Mb/s (IPB) (AAC)
Snimanje videozapisa (MP4*:50,00 Hz): [4K] 3840x2160:25,00p, 100 Mb/s (IPB) (LPCM) / 100 Mb/s (IPB) (AAC)/[Full HD] 1920x1080:50,00p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:25,00p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:50,00p, 28 Mb/s (IPB) (AAC)/[Full HD] 1920x1080:25,00p, 20 Mb/s (IPB) (AAC)/[HD] 1280x720:25,00p, 10 Mb/s (IPB) (AAC)/[VGA] 640x480:25,00p, 4 Mb/s (IPB) (AAC)
Snimanje videozapisa (MP4*: 24,00 Hz): [C4K] 4096x2160:24,00p, 100 Mb/s (IPB) (LPCM)/[4K] 3840x2160:24,00p, 100 Mb/s (IPB) (LPCM)/[Full HD] 1920x1080:24,00p, 200 Mb/s (ALL-Intra) (LPCM) / 100 Mb/s (IPB) (LPCM) / 50 Mb/s (IPB) (LPCM)
Snimanje videozapisa (AVCHD Progressive*: 59,94 Hz): [Full HD] 1920x1080:59,94p, 28 Mb/s (IPB) (Dolby)
Snimanje videozapisa (AVCHD Progressive*: 50,00 Hz): [Full HD] 1920x1080:50,00p, 28 Mb/s (IPB) (Dolby)
Snimanje videozapisa (AVCHD*: 59,94 Hz): [Full HD] 1920x1080:59,94i, 24 Mb/s (IPB) (Dolby) (izlaz je senzora 29,97 slika u sekundi)/[Full HD] 1920x1080:59,94i, 17 Mb/s (IPB) (Dolby) (izlaz je senzora 59,94 slika u sekundi)/[Full HD] 1920x1080:23,98p, 24 Mb/s (IPB) (Dolby)
Snimanje videozapisa (AVCHD*:50,00 Hz): [Full HD] 1920x1080:50,00i, 24 Mb/s (IPB) (Dolby) (izlaz je senzora 25,00 slika u sekundi)/[Full HD] 1920x1080:50,00i, 17 Mb/s (IPB) (Dolby) (izlaz je senzora 50,00 slika u sekundi)
Neprekinuto vrijeme snimanja (videozapisi): AVCHD: Približno 220 min s H-HS12035/AVCHD: Približno 220 min s H-FS14140
Stvarno vrijeme snimanja (videozapisi): AVCHD: Približno 110 min s H-HS12035/AVCHD: Približno 110 min s H-FS14140

Wi-Fi FUNKCIJA:
Wi-Fi: IEEE 802.11b/g/n, 2412 MHz – 2462 MHz (11 kanala), Wi-Fi / WPA / WPA2, infrastrukturni način rada
NFC: ISO/IEC 18092, NFC-F (pasivni način rada)
Povezivanje putem QR koda: Da

TRAŽILO:
Tip: OLED tražilo s pregledom uživo, 2 359 000 točaka)
Polje pregleda: Približno 100 %
Uvećanje: Približno 1,34x / 0,67x (ekvivalentno vrijednosti na fotoaparatima s 35-milimetarskim filmom) s objektivom od 50 mm u beskonačnosti; -1,0 m-1
Točka oka: Približno 21 mm od leće okulara
Podešavanje dioptera: -4,0 - +4,0 (dpt)
Senzor za oči: Da
Prilagođavanje senzora za oči: Visoko / nisko

FOKUS:
Tip: Sustav za automatsko izoštravanje sa podešavanjem kontrasta
Tehnologija DFD: Da
Fokusa: AFS (pojedinačni) / AFF (fleksibilni) / AFC (kontinuirani) / MF
AF način: Prepoznavanje lica/očiju / praćenje / fokus na 49 područja / prilagođeno višestruko / fokus na jedno područje / precizno određivanje/(čitava je površina osjetljiva na dodir)
Omjer otkrivanja AF: EV -4 - 18 (odgovara ISO100)
Pomoćna lampa za AF: Da
AF zaključavanje: Da (tipka AF/AE LOCK)
Drugo: AF za jednu snimku, AF zatvarača, otvaranje pritiskom tipke do pola, brzi AF, neprekinuti AF (tijekom snimanja videozapisa), AF senzora za oči, AF+MF, pomoć MF-a, dodirna pomoć MF-a, fokusiranje jasnih objekata, dodirna funkcija za AF/AE, AF dodirne podloge, dodirni zatvarač

KONTROLA EKSPOZICIJE:
Sustav mjerenja svjetlosti: 1728-zonski sustav senzora s više uzoraka
Način mjerenja svjetlosti: Višestruki / centrirano / točka
Omjer mjerenja: EV0-18 (objektiv F2,0, odgovara ISO100)
Način ekspozicije: Programirano automatsko, prioritet otvora blende AE, prioritet zatvarača AE, ručno
ISO osjetljivost (standardna izlazna osjetljivost): Automatski / pametni ISO / 100 (prošireni) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (promjenljivo u stupanj od 1/3 EV)/(do ISO6400 u načinu za snimanje videozapisa) (automatski ISO u načinu rada M)
Kompenzacija osvjetljenja: Stupanj od 1/3 EV ±5EV (±3EV u načinu za snimanje videozapisa)
AE zaključavanje: Da (tipka AF/AE LOCK)
AE ograđivanje: 3, 5, 7 slika za stupnjeve od 1/3, 2/3 ili 1 EV, maksimalno ±3 EV, jednostruko/uzastopno

WHITE BALANCE:
White balance: Automatski / danje svjetlo / oblačno / u sjeni / rasvjeta sa žarnom niti / bljeskalica / bijela 1, 2, 3, 4 / postavka temperature boje
Podešavanje ravnoteže bjeline: Plava/žuta nijansa, ljubičasta/zelena nijansa
Postavka temperature boje: 2500-1.0000K u 100K
Ograđivanje ravnoteže bjeline: 3 ekspozicije, plava/žuta ili ljubičasta/zelena

SUSTAV ZATVARAČA:
Tip: Zatvarač na visini žarišta
Brzina zatvarača: Fotografija: Bulb (ručno podesiva duljina ekspozicije) maksimalno 60 minuta, 1/8000 – 60/Snimanje videozapisa: 59,94 Hz: 1/16.000 – 1/30, 50,00 Hz; 1/16.000 – 1/25, 24,00 Hz; 1/16.000 – 1/24, (24,00 Hz; 1/16.000 – 1/24 (prilikom korištenja sinkroniziranog skeniranja)
Radni vijek zatvarača: Približno 200.000 snimaka
Samookidač: 10 s, 3 snimke / 2 s / 10 s
Daljinski upravljač: Daljinski upravljač s funkcijom bulb DMW-RSL1 (dodatno)

RAFALNO SNIMANJE:
Brzina rafalnog snimanja: Mehanički zatvarač: H: 12,0 slika u sekundi (s AFS-om), 7 slika u sekundi (s AFC-om), M: 7 slika u sekundi (s pregledom uživo), L: 2,0 slike u sekundi (s pregledom uživo)/Elektronički zatvarač: SH: 40,0 slika u sekundi, H: 12,0 slika u sekundi, M: 7 slika u sekundi (s pregledom uživo), L: 2,0 slike u sekundi (s pregledom uživo)
Broj zapisivih slika: Približno 40 slika (kada postoje RAW datoteke s određenom brzinom)/Približno 100 slika (kada RAW datoteke ne postoje)/Približno 120 slika (prilikom korištenja elektroničkog zatvarača)/(ovisno o veličini memorijske kartice, snazi baterije, veličine slike i kompresiji)

BLJESKALICA:
Vrsta ugrađene bljeskalice: TTL ugrađena bljeskalica, ekvivalentno GN12 (ISO100 ·m) / ekvivalentno GN17 (ISO200 ·m) ugrađena skočna (referenca)/Kut osvjetljenja: 24 mm (ekvivalentno vrijednosti na fotoaparatima s 35-milimetarskim filmom)
Način bljeskalice: Automatski*, automatski/uklanjanje efekta crvenih očiju*, uvijek uključeno, uvijek uključeno/uklanjanje efekta crvenih očiju, spora sinkronizacija, spora sinkronizacija/uklanjanje efekta crvenih očiju, uvijek isključeno * samo za iA, iA+.
Brzina sinkronizacije: Manje od 1/250 s
Podešavanje izlazne snage bljeskalice: Stupanj 1/3 EV ±3 EV
Sinkronizacija bljeskalice: Sinkronizacija na 1. / 2. zavesu
Sinkronizacija za prigušivanje bljeskalice i kompenzaciju ekspozicije: Da
Nastavak za sinkronizaciju bljeskalice: Da

FUNKCIJSKA TIPKA:
Fn1, Fn2, Fn3, Fn4, Fn5, Fn6, Fn7, Fn8, Fn9, Fn10: Wi-Fi / Q.MENU / pretpregled / postavljanje automatske ekspozicije jednim pritiskom / automatska ekspozicija osjetljiva na dodir / mjerač razine / postavljanje područja fokusa / upravljanje zumom /oblik RAW + JPG za jednu snimku / mjerenje točke za jednu snimku / zaključavanje tipke pokazivača / stil fotografije / format / veličina slike / kvaliteta / AFS/AFF / način mjerenja / brzina uzastopnog snimanja / automatsko uzastopno snimanje / automatski okidač / osvijetljena i zasjenjena područja / i.dinamičnost / i.razlučivost / HDR / elektronički zatvarač / način bljeskalice / prilagodba bljeskalice, / dodatna telekonverzija / digitalni zum / stabilizator / postavke za snimanje videozapisa / promjenjiva brzina izmjena slika / način slike / sinkronizirano skeniranje / prikaz vremenskog koda / postavljanje usmjerenja mikrofona / stupci u boji / tihi način rada / fokusiranje jasnih objekata / histogram / linije usmjerenosti / uzorak zebre / područje snimanja / zaslon s prioritetom za videozapise / postupni zum / brzina zuma / način AF/MF, vraćanje na zadane postavke

MONITOR:
Tip: OLED zaslon sa statičnim dodirnim upravljanjem
Veličina monitora: Zaslon od 3,0 inča s mogućnošću slobodnog zakretanja / format 3:2 / široki kut gledanja
Pikseli: Približno 1 036 000 točaka
Polje pregleda: Približno 100 %
Podešavanje monitora: Svjetlina (7 stupnjeva), kontrast i zasićenost (7 stupnjeva), crveno-zeleno (11 stupnjeva), plavo-žuto (11 stupnjeva)

KREATIVNA KONTROLA:
Fotografija: Izražajno / retro / starinsko / svijetli tonovi / tamni tonovi / sepija / monokromatski efekt / dinamički monokromatski efekt / grubi monokromatski efekt / svilenkasti monokromatski efekt / impresivni umjetnički efekt / visoki dinamički raspon / presijecanje / efekt igračke / fotoaparat igračka / zadržavanje srebrnih tonova / efekt minijature / meko fokusiranje / maštovito / filtar za snimanje zvijezda / jedna točka boje / Sunčeva svjetlost
Snimanje videozapisa: Izražajno / retro / starinsko / svijetli tonovi / tamni tonovi / sepija / monokromatski efekt / dinamički monokromatski efekt / impresivni umjetnički efekt / visoki dinamički raspon / presijecanje / efekt igračke / fotoaparat igračka / zadržavanje srebrnih tonova / efekt minijature / maštovito / jedna točka boje

LIVE VIEW:
Digitalni zum: 2x, 4x
Dodatna tele konverzija: Fotografija: maksimalno 2x (format postavljen na 4:3. Nema učinka pri snimanju s veličinom L. Omjer uvećanja ovisi o snimljenim pikselima i formatu.)/Snimanje videozapisa: 2,4x (FHD), 3,6x (HD), 4,8x (VGA)
Druge funkcije: Mjerač razine, histogram u stvarnom vremenu, linije usmjerenosti (3 uzorka), središnji marker, prikaz istaknutih obilježja (fotografija/videozapis), zebrin uzorak (fotografija/videozapis)

FUNKCIJA OTKRIVANJA SMJERA:
Funkcija otkrivanja smjera: Da

FOTOGRAFSKI STIL:
Snimanje fotografija i videozapisa: Standardno / blistavo / prirodno / monokromatski efekt / krajolik / portret / prilagođeno

NAČIN KREATIVNOG VIDEOZAPISA:
Način ekspozicije: Program automatske ekspozicije / prioritet otvora blende / prioritet zatvarača / ručna ekspozicija
Promjenjiva brzina izmjena slika:
59,94 Hz: MOV/FHD/100 Mb/s/29,97p, MP4(LPCM)/FHD/100 Mb/s/29,97p:/2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, 96 slika u sekundi/MOV/FHD/100 Mb/s/23,98p, MP4(LPCM)/FHD/100 Mb/s/23,98p:/2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96 slika u sekundi/AVCHD/FHD/24 Mb/s/29,97p: 2, 15, 26, 28, 30, 32, 34, 45, 60 slika u sekundi/AVCHD/FHD/24 Mb/s/23,98p: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 slika u sekundi
50,00 Hz: MOV/FHD/100 Mb/s/25,00p, MP4(LPCM)/FHD/100 Mb/s/25,00p: 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 96 slika u sekundi/AVCHD/FHD/24 Mb/s/25,00p: 2, 12, 21, 23, 25, 27, 30, 37, 50 slika u sekundi
24,00 Hz: MOV/FHD/100 Mb/s/24,00p, MP4(LPCM)/FHD/100 Mb/s/24,00p:/2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96 slika u sekundi

REPRODUKCIJA:
Reprodukcije: normalna reprodukcija, prikaz 30 minijatura, prikaz 12 minijatura, prikaz kalendara, zumirana reprodukcija (16x maks.), dijaprojekcija (sve / samo fotografije / samo videozapisi / 3D / odabir kategorije / omiljeno, trajanje i efekti se mogu odabrati), način reprodukcije (normalno / fotografija / videozapis / 3D reprodukcija / kategorija / omiljeno), bilježenje lokacije, obrada RAW datoteka, brisanje nepotrebnih dijelova, uređivanje naslova, tekstna oznaka, podjela videozapisa, videozapis snimljen u intervalima, zaustavljanje snimanja, promjena veličine, obrezivanje, zakretanje, prikaz zakretanja, favoriti, postavke za DPOF ispis, zaštita, uređivanje prepoznavanja lica, sortiranje fotografija, potvrda brisanja

FUNKCIJA ZA SNIMANJE VIDEOZAPISA:
SS/Gain način rada: Trajanje zatvarača/ISO / kut/ISO / trajanje zatvarača/dB
Doživljaj kao u kinu: Doživljaj kao u kinu D / doživljaj kao u kinu V
Razina glavnog temelja: 31 razina
Sinkronizirano skeniranje: Da
Vremenski kod: Brojanje: može se odabrati snimanje i pokretanje te slobodno pokretanje, način vremenskog koda: može se odabrati postavka ispuštanje slike i bez ispuštanja slike (kada je odabrana frekvencija sustava [59,94 Hz]).

ZAŠTITA SNIMKE/BRISANJE:
Zaštita: Pojedinačno / više snimki zajedno ili prekid
Brisanje: Pojedinačno/niz snimki/svi zapisi/izvuzev omiljenih

TISKANJE:
Izravno tiskanje: Kompatibilno s funkcijom PictBridge

SUČELJE:
USB: USB 2.0 High Speed Multi
HDMI**:
Reprodukcija: miniHDMI TypeD / VIERA Link, Audio: Stereo/59,94 Hz: Automatsko / 4K / 1080p / 1080i / 720p / 480p/50,00 Hz: Automatsko / 4K / 1080p / 1080i / 720p / 576p/24,00 Hz: automatsko / C4K / 4K / 1080p/(4:2:2 10-bitno ili 4:2:2 8-bitno mogu se odabrati.)
Na čitavom zaslonu: 4:2:2 8-bitno / 4:2:2 10-bitno (kada je odabran način 4:2:2 10-bitno, nije moguće snimati videozapise ni fotografije na SD memorijsku karticu u fotoaparatu.)/prikaz informacija uključeno/isključeno (može se odabrati)/Automatsko pretvaranje u nižu razlučivost (samo za 4K › 1080p)
Audio video izlaz: Mono
Udaljeni ulaz: ?2,5 mm za daljinski upravljač
Vanjski ulaz za mikrofon: ?3,5 mm za vanjski mikrofon
Izlaz za slušalice: ?3,5 mm za slušalice
Mikrofon: Stereo, smanjivanje šuma vjetra: isključeno / nisko / standardno / visoko / automatsko.
Zvučnik: Mono

JEZIK:
Jezici zaslona: japanski, engleski, francuski, njemački, španjolski, talijanski, poljski, češki, mađarski, nizozemski, turski, portugalski, finski, danski, švedski, grčki

NAPAJANJE:
Baterija: Litij-ionska baterija (7,2 V, 1860 mAh) (priložena)/Punjač baterije
životni vijek baterije(CIPA standard): Približno 500 slika uz H-HS12035/Približno 500 slika uz H-FS14140

DIMENZIJE / MASA:
Dimenzije (Š x V x D): 132,9 x 93,4 x 83,9 mm / 5,23 x 3,68 x 3,30 inča (isključujući izbočine)
Težina: Približno 560 g / 19,75 unci (SD kartica, baterija, tijelo)/Približno 480 g / 16,93 unce (samo tijelo)/Približno 865 g / 30,51 uncu (priložena SD kartica, baterija, objektiv H-HS12035)/Približno 825 g / 29,10 unci (priložena SD kartica, baterija, objektiv H-FS14140)

RADNO OKRUŽENJE:
Radna temperatura: 0? - 40?
Radna vlažnost: 10% do 80%

STANDARDNA OPREMA:
Programska oprema: PHOTOfunSTUDIO 9.5 AE (Windows XP / Vista / 7 / 8)/SILKYPIX® Developer Studio 4.1 SE (Windows XP / Vista / 7 / 8, Mac OS X v10.5 / v10.6 / v10.7 / v10.8)/LoiLoScope (probna verzija) (Windows XP / Vista / 7 / 8)
Standardna oprema: Punjač baterija (priložen kabel za izmjeničnu struju), baterija, poklopac za tijelo, navlaka za priključak za dodatnu opremu, USB kabel, remen za nošenje na ramenu, DVD/Poklopac za objektiv*, štitnik objektiva *, stražnji poklopac objektiva* *priloženi u kompletima DMC-GH4A i DMC-GH4H.

DODATNI PRIBOR:
Vanjska bljeskalica (dodatno): DMW-FL580L (dodatno), bežični kanal: 1/2/3/4 kanala
Jedinica sučelja (dodatno): DMW-YAGH (dodatno)***
Prilagodnik izmjeničnog napona (dodatno): DMW-AC10 (dodatno)
Vanjski mikrofon (dodatno): DMW-MS2 (dodatno), može se odabrati stereo/automatski prema objektivu/usmjereno/superusmjereno/ručno)
Vrpca za bateriju (dodatno): DMW-BGGH3 (dodatno)

IZMJENJIVI OBJEKTIV-1:
Ime objektiva: LUMIX G VARIO 14-140mm / F3.5-5.6 ASPH. / POWER O.I.S.
Konstrukcija objektiva: 14 elemenata u 12 grupa (3 asferična objektiva, 2 ED objektiv)
Nano Surface Coating: -
Montiranje: Navoj za standard Mikro 4/3
Optički stabilizator slike: Da (POWER O.I.S.)
Žarišna duljina: f=14 –140 mm (na fotoaparatima od 35 mm ekvivalentno vrijednosti 28 –280 mm)
Tip otvora: Membrana, 7 lopatica/kružna iris
Raspon blende: F3,5(širokokutni) - F5,6(TELE)
Minimalni otvor: F22
Najmanja udaljenost fokusiranja: 0,30 m/0,98 stopa (pri žarišnoj duljini 14 – 21 mm) / 0,50 m/1,64 stopa (pri žarišnoj duljini 22 – 140 mm)
Maksimalno uvećanje: Približno 0,25x / 0,50x (ekvivalentno fotoaparatu od 35 mm)
Diagonalni kut pregleda: od 75°(širokokutni) do 8,8°(teleobjektiv)
