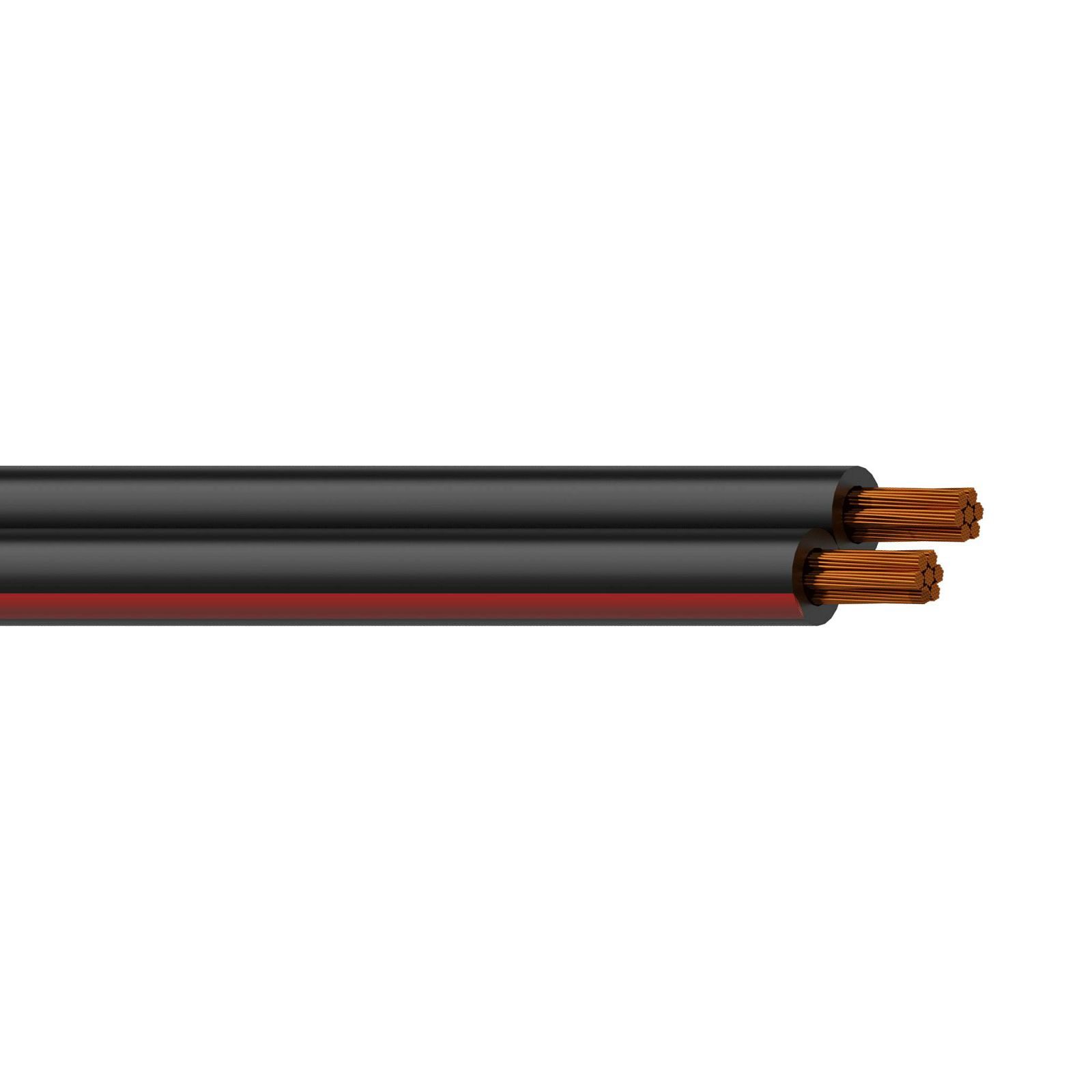

Procab RZ25 2x2.5mm2 zvučnički kabel - 100 metara (RZ25/1)

ZNAČAJKE:

13 AWG thin and dense stranded conductors
Parallel & separable wires
Color coded polarity identification

The RZ series cables are parallel designed loudspeaker cables with a maximum flexibility and strength. They are mostly used for indoor applications. Each conductor is fitted with a highly flexible PVC jacket. The two parallel conductors are in black colour and one of the two has a thin red line to identify the polarity. The RZ series cables are “all-round” loudspeaker cables suited for all kinds of applications on loudspeaker level.

SPECIFIKACIJE:

Physical characteristics
Type of cable: 2-core loudspeaker cable

Inner conductor
Material: BC 30 x 7 x 0.12 mm (O) (OFC)
Section: 2.5 mm2
Number of conductors: 2
American Wire Gauge: 13 AWG

Outer jacket
Material: Flexible PVC 4 x 8 mm (O)
Colours: Black with red molded line

Mechanical characteristics
Temperature range: Fixed installation - 40 °C till + 80 °C, Mobile installation - 25 °C till + 70 °C
Bending radius: Fixed installation 8 x outer diameter, Mobile installation 10 x outer diameter

Electrical characteristics
Capacitance: Cond/Cond 118 pF / m @ 1 kHz
Lead resistance: 0.9 ohm / 100 m
Cable Crosstalk: Min. 74 dB / 100 m

Stranded copper
The inner conductor is the heart of the cable and defines the flexibility and conductivity of a cable. Several different materials and alloys are used to create these conductors, each with their specific applications and advantages.
A stranded copper wire is more flexible and easier to install than a solid wire with the same cross section. Stranding improves wire life in applications where flexibility is needed. A particular cross-section of a stranded conductor gives it essentially the same resistance characteristics as a single-strand conductor, but with added flexibility.

UKLJUČUJE:

Procab RZ25 2x2.5mm2 zvučnički kabel - 100 metara
