PTZOptics PT20X-NDI-ZCAM (PTZ-20X-NDI-ZCAM)

ZNAČAJKE:

1/2.7" CMOS Sensor
Built-In 20x Optical Zoom Lens
4.42 to 88.5mm Focal Length
3.36 to 60.7° Angle of View
Simultaneous SDI and IP/NDI Output
1080p60 Output over SDI, 1080p30 via IP
720p120 and 480p240 HFR IP Output
PoE Support
RTSP/RTMP IP Using H.264, H.265, MJPEG
?55 dB SNR & 2D/3D DNR

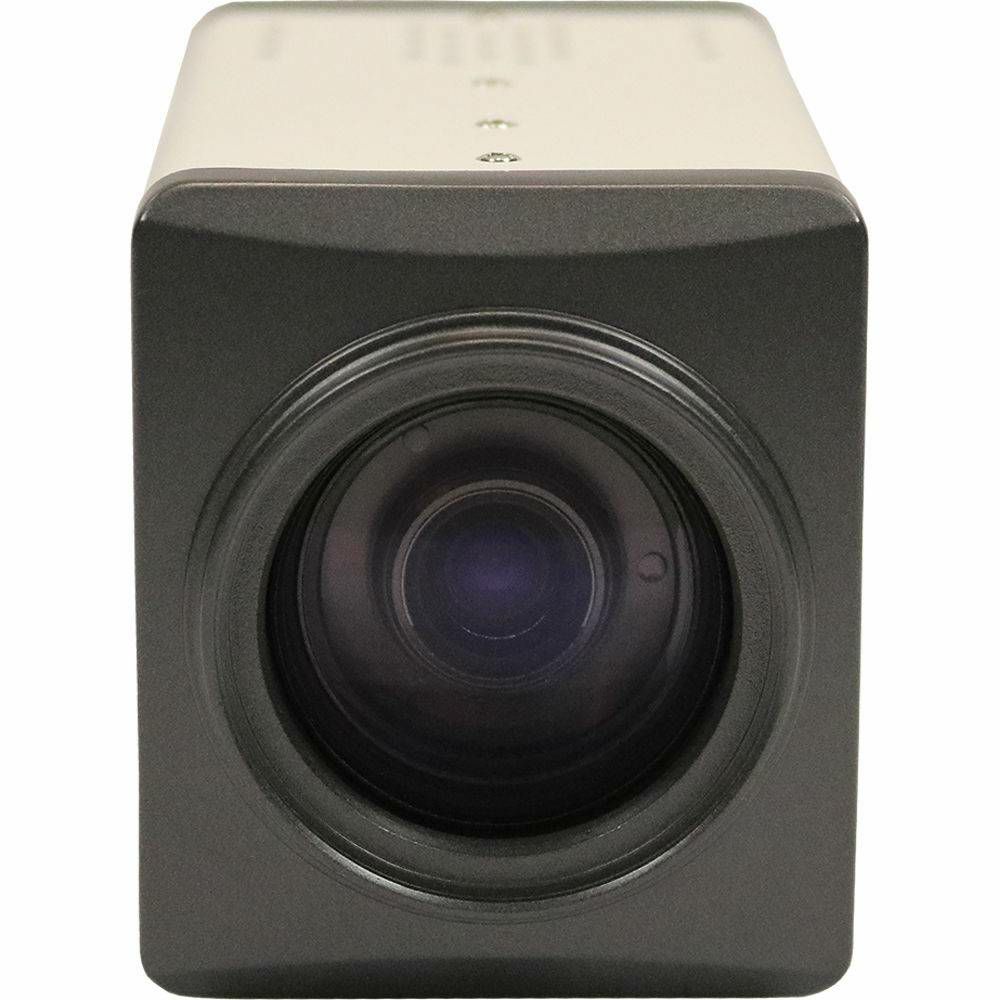

The 20x NDI|HX ZCAM 3G-SDI Box Camera from PTZOptics is designed to capture static shots of a specific area of your environment. It can be used in meeting rooms and conferencing applications as well as combined with PTZ cameras to provide more angle options in your setup. The camera features a built-in 20x optical zoom lens, which has a focal length of 4.42 wide to 88.5mm telephoto. The long zoom range allows getting tight shots from a distance, while at its widest, the lens captures an angle of view of 60.7°.

The camera offers up to 1080p60 output over 3G-SDI or up to 1080p30 over IP (NDI|HX or RTSP/RTMP). Streaming resolutions also include 720p120 and 480p240 high frame rate output. SDI and IP can be output simultaneously. The camera can be powered using an included power adapter or conveniently over Power-over-Ethernet. The same cable used for IP video and connectivity can also be used for PoE.

SPECIFIKACIJE:

Sensor 1/2.7" CMOS
Effective Pixels 2.07 MP
Resolution 1080p60/50/30/25, 1080i60/50, 720p60/50
IP/NDI|HX is Limited to 1080p30
Scanning Mode Progressive
Lens Built-In
4.42 - 88.5mm
f1.8 - 2.8
Optical Zoom 20x
Digital Zoom 16x
Minimum Illumination 0.05 Lux at f/1.8, AGC On
Shutter 1/30 - 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation Yes
Digital Noise Reduction 2D/3D DNR
Video S/N Ratio ?55 dB
Horizontal Angle of View 3.36 to 60.7°
Vertical Angle of View 1.89 to 34.1°
H & V Flip Yes
Image Freeze Yes
PoE Yes, 802.3af
Face Detection No
Number of Presets 255
Preset Accuracy 0.1°
Video Codecs H.264, H.265, MJPEG
Video Streams First / Second Stream
Streaming Resolution First Stream:
1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360

Second Stream:
1280 x 720, 1024 x 576, 720 x 480, 720 x 408, 640 x 360, 480 x 270, 320 x 240, 320 x 180
Streaming Bit Rate 128 to 8192 Kb/s
Variable Rate, Fixed Rate
Streaming Frame Rates 50 Hz: 1 - 50 fps
60 Hz: 1 - 60 fps
720p120
480p240
Streaming Audio Standard AAC
Streaming Audio Rate 96/128/256K
Supported Protocols TCP/IP, HTTP, RTSP, RTMP, Multicast, DHCP, ONVIF

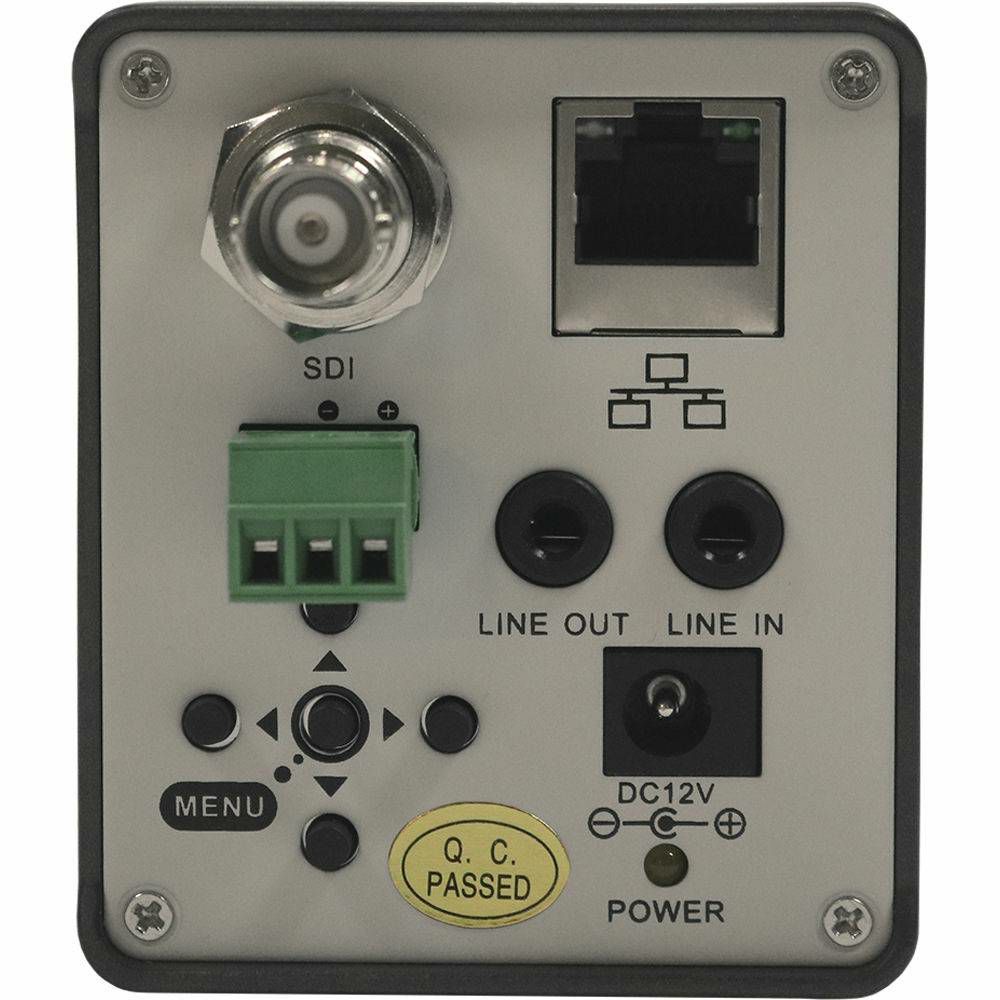

Video Output 1 x 3G-SDI on BNC, 800 mV p-p, 75 Ohms, SMPTE 424M
Network Interface 1 x RJ45: 10/100/1000M Adaptive Ethernet Port
Audio Input 1 x 3.5 mm Audio Line In
Communication Interface 1 x RS-485 2-Pin Phoenix
Max Distance: 3937' / 1200 m
Protocol: VISCA/Pelco-D/Pelco-P
Power Input JEITA Type 12 VDC
Input Voltage 12 VDC
Current Consumption 1 A (Max)
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Power Consumption 12 W (Max)
MTBF >30000 Hours
Mount Type 1/4"-20 Female
Dimensions 6.7 x 5.6 x 6.5" / 17 x 14.2 x 16.4 cm
Weight 3.3 lb / 1.35 Kg

UKLJUČUJE:

PTZOptics 20x NDI|HX ZCAM 3G-SDI Box Camera
AC Power Adapter
