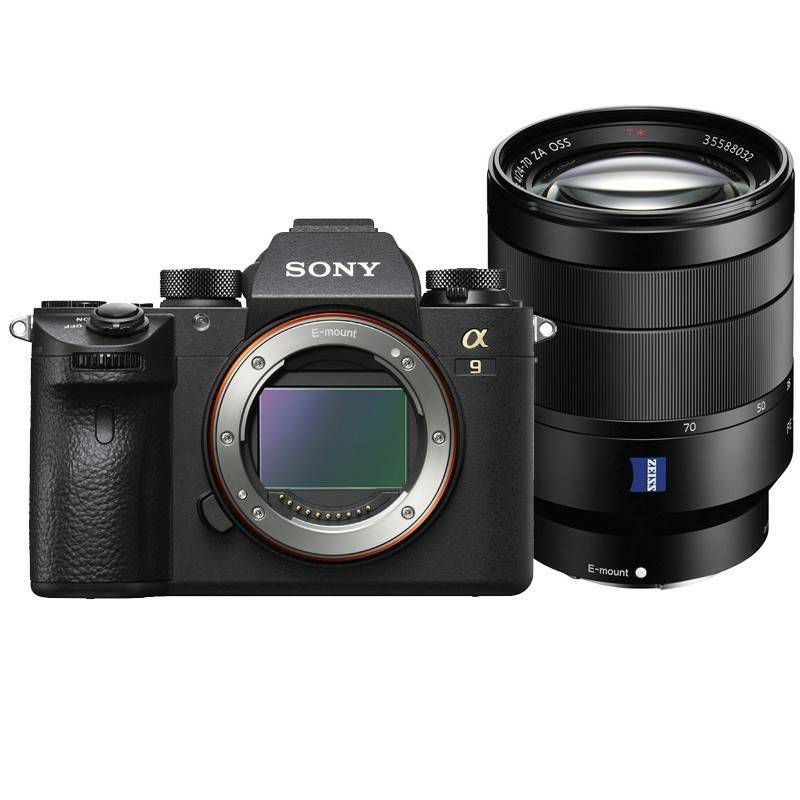

Sony Alpha a9 + FE 24-70 f/4 ZA OSS Mirrorless bezzrcalni Digitalni fotoaparat s objektivom Vario-Tessar 24-70mm (ILCE-9 + SEL-2470Z)
24.2MP Full-Frame Stacked CMOS Sensor
BIONZ X Image Processor & Front-End LSI
693-Point AF System & 20 fps Shooting
Blackout-Free Quad-VGA 3.7m-Dot OLED EVF
Internal UHD 4K Video Recording
5-Axis SteadyShot INSIDE Stabilization
3.0" 1.44m-Dot Tilting Touchscreen LCD
ISO 204,800, Silent Electronic Shutter
Built-In Wi-Fi/Bluetooth, Dual SD Slots
Integrated LAN and PC Sync Terminals
Bringing the speed Sony mirrorless shooters have been waiting for, the Alpha a9 Mirrorless Digital Camera takes impressive multimedia capabilities and ups the processing capabilities for ultra-fast continuous shooting. Making use of a 24.2MP full-frame Exmor RS stacked CMOS sensor and BIONZ X image processor, the a9 is capable of shooting at up to 20 fps, recording UHD 4K video internally, and shooting with an expanded sensitivity range to ISO 204,800. Balancing the quickness of the processor is a well-matched 693-point phase-detection autofocus system that covers 93% of the image area for accurate and quick subject tracking in a variety of lighting conditions. Additionally, complementing both the imaging and focusing assets, the a9 also sports 5-axis SteadyShot INSIDE image stabilization to minimize the appearance of camera shake when shooting handheld.
Matching its professional imaging capabilities is a well-rounded physical construction that is fully weather-sealed for use in trying environmental conditions. For clear, uncompromised viewing, a quad-VGA OLED Tru-Finder is featured with an impressive 3.686m-dot resolution and 120 fps refresh rate for clear, bright, and smooth eye-level viewing. Alternatively, a 3.0" 1.44m-dot tilting touchscreen LCD is also available to benefit working from high and low angles. Dual SD memory card slots, a customizable menu system, and a variety of physical control dials further round out the camera's intuitive design, and built-in Wi-Fi and Bluetooth enables wireless image sharing and remote camera control from linked mobile devices.
24.2MP Full-Frame Exmor RS Stacked CMOS Sensor
Poised for speed, the a9 features a first-for-full-frame 24.2MP Exmor RS stacked CMOS that affords impressively quick readout speeds to benefit up to 20 fps continuous shooting and UHD 4K video recording. The sensor's back-illuminated design also affords high sensitivity to an extended ISO 204,800 with reduced noise for clean image quality in a variety of lighting conditions. Additionally, uncompressed raw files can be recorded in 14-bit for greater color fidelity and post-production flexibility.
BIONZ X Image Processor
Working in conjunction with the stacked CMOS sensor is an apt BIONZ X image processor that ensures quick processing speeds to keep up with fast-paced shooting applications. Continuous shooting up to 20 fps is supported for up to 362 consecutive JPEGs, or 241 raw frames, along with a top electronic shutter speed of 1/32,000 for freezing fast-moving subjects or working in bright lighting conditions. Benefitting the fast recording capabilities is an equally quick AF/AE metering system that functions at 60 times per second to continuously evaluate the scene in order to lock onto and track moving subjects. Additionally, due to the use of an electronic shutter, totally blackout-free monitoring is possible with the electronic viewfinder for more accurate compositions of moving subjects.
693-Point Phase-Detection AF
Covering 93% of the image area, a focal-plane phase-detection autofocus system incorporates 693 points along with 25 contrast-detection areas for quick and precise focusing in in a variety of lighting conditions with sensitivity down to -3 EV. The density of focusing points from this hybrid AF system also enables High-density Tracking AF Technology, which is adept at tracking moving subjects in a variety of lighting conditions. The use of phase-detection points also enables the use of A-mount lenses via the optional LA-EA3 or LA-EA1 lens mount adapters with full continuous AF/AE tracking compatibility.
The apt focus system also lends itself to a variety of focusing functions for refined accuracy, including Lock-on AF, which maintains focus on moving subjects throughout the use of a configurable frame that is set over the desired moving subject, and Expand Flexible Spot, which employs neighboring focus points to retain focus on moving subjects even if the originally selected point loses focus. Additionally, Eye AF can be used to base focus on recognized subjects' eyes for portraits and is available in both AF-S and AF-C modes. Autofocus can also be used in conjunction with the Focus Magnifier function for critical focus when homing in on minute subject details.
In addition to autofocus, the a9 also features a Peaking MF function to benefit manual focus control by highlighting sharp edges of contrast for a more objective means of acquiring sharp focus.
5-Axis SteadyShot INSIDE Image Stabilization
Packed into the robust a9 is a 5-stop effective 5-axis SteadyShot INSIDE image stabilization system that compensates for five different types of camera shake encountered during handheld shooting of stills and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake.
For long focal lengths, the system will correct for pitch and yaw adjustments. Macro and high-magnification imagery, on the other hand, will benefit from the inclusion of horizontal and vertical shift compensation. All shooting styles will get usage out of the roll compensation. All 5 axes of stabilization will function at all times, even when used with third-party lenses and adapters or lenses with built-in optical stabilization.
UHD 4K Video Recording in XAVC S Format
Internal recording of UHD 4K movies is possible in multiple frame rates up to 30 fps and, based on the Super35mm recording area and effective 20MP (6000 x 3376) resolution, 2.4x oversampling renders greater detail and full pixel readout is possible, that is void of pixel binning, for higher quality imagery with reduced moiré and aliasing. Full HD 1080p recording is also supported in frame rates up to 120 fps, and both resolutions utilize the 100 Mbps XAVC S format contained within an MP4 wrapper with 4:2:0 sampling. The high-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate set to either 30p or 24p. In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.
4K video recording also avails the ability to produce 8MP stills during playback by taking a frame grab from a movie and storing it as a separate file.
Slow & Quick Motion
Take more control over your video capture capabilities with a variety of new frame rates available in an S&Q mode. This will allow shooters to capture Full HD video at one of either steps between 1-120 fps. These settings will allow you to slow down action as well as speed up a slow-moving scene. This setting is also NTSC/PAL switchable.
Enhanced Zebra Function
An enhanced Zebra function is ideally suited to aid in monitoring exposure values in high-contrast scenes. Video signal level targets can be set from 0 to 109, and specific ranges can be set to make exposure level adjustments easier.
Time Code and User Bit Settings
A time code can be used to record hours, minutes, seconds, frames on image data for more precise editing while the User Bit function can record date, time, and scene number to aid in editing together footage from multiple cameras.
Quad-VGA OLED Tru-Finder features a 3.686m-dot resolution and a 0.78x magnification for bright and clear viewing. The EVF also sports a Zeiss T* anti-reflective coating to reduce reflections and a high 120 fps refresh rate can be used to reduce lag for a smoother viewing experience. Additionally, a fluorine coating has been applied to the outermost viewfinder element to benefit cleaning.

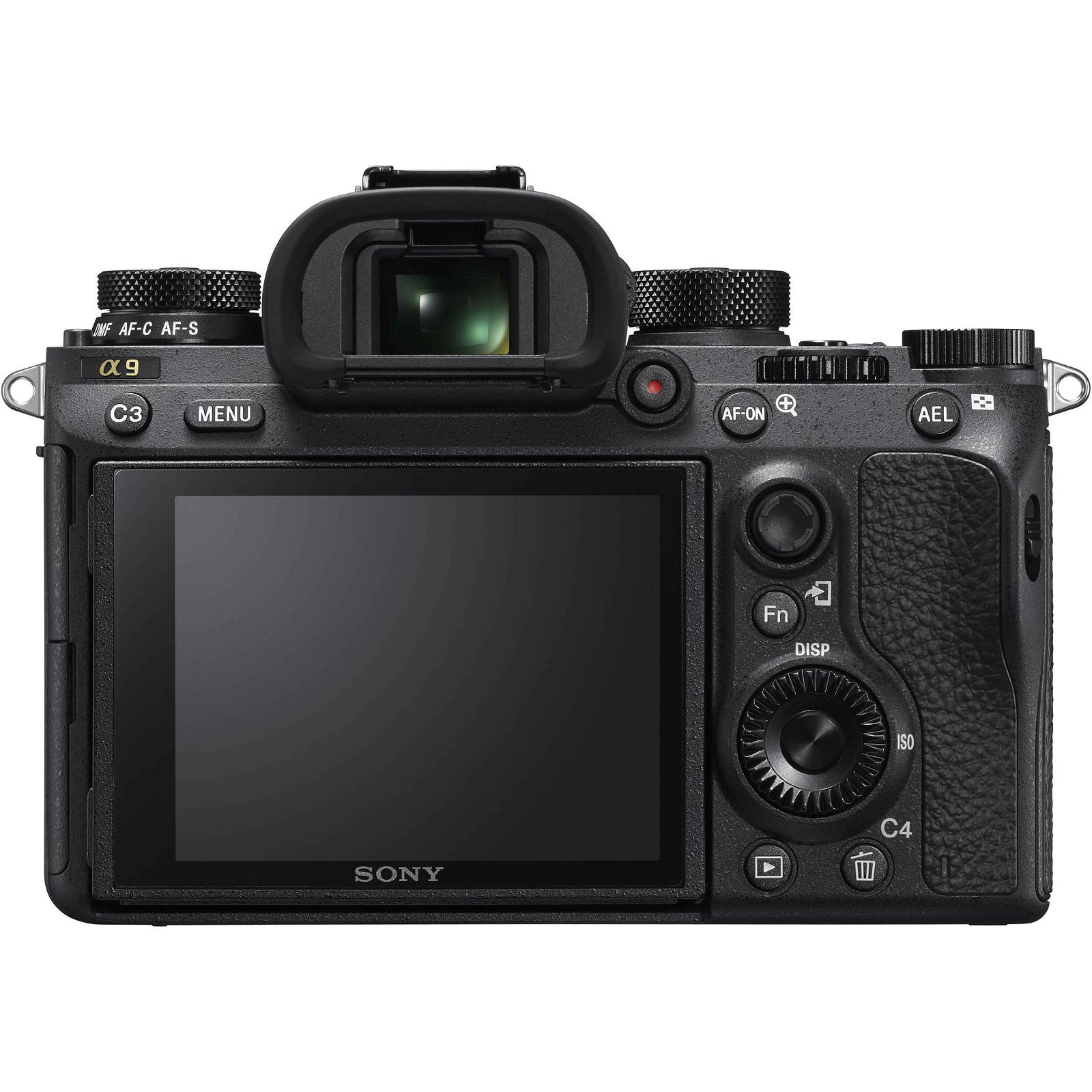

Rear 3.0" 1.44m-dot tilting touchscreen LCD is available for live view shooting and menu navigation. The touchscreen enables Touch Focus for intuitive adjustment of your focus point, and the tilting design benefits working from both high and low angles.
Dual SD card slots provide a more flexible means for storing files. The lower card slot supports UHS-II type cards, and the slots can be configured to do an in-camera backup, segregated raw/JPEG recording, or overflow saving.
My Menu function can be used to customize your menu items for easy, direct access with up to 72 options to be set and ordered.

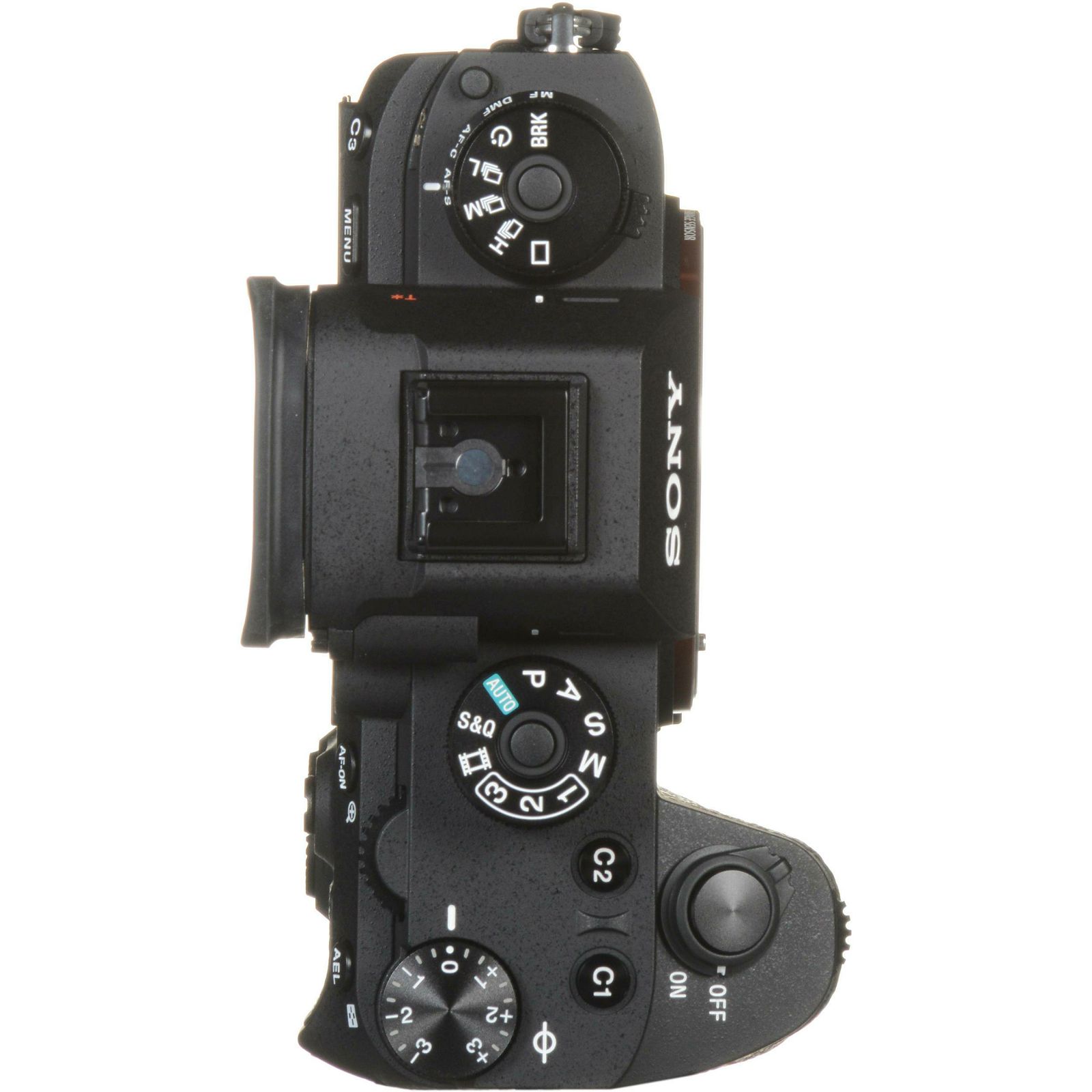

Stacked drive mode and focus mode dials, a dedicated AF-ON button, and a rear multi-selector all afford greater efficiency when switching focus modes, points, or exposure settings.

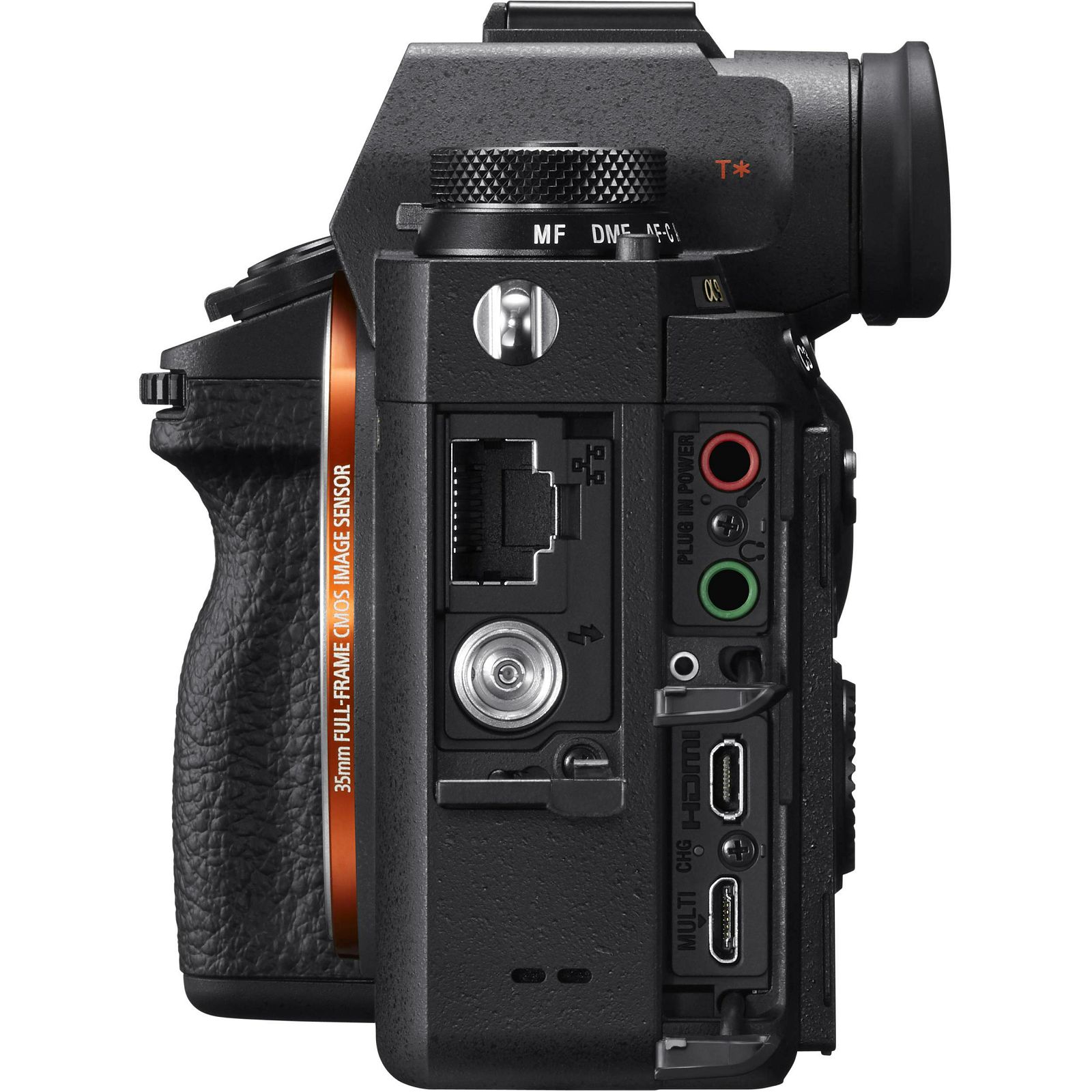

Integrated LAN terminal enables making wired FTP transfers for notably fast transfer speeds. Also, the first three characters of the file name can be customized for easier organization during post-production.
Built-in Wi-Fi enables the a9 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
Bluetooth connectivity allows for location data acquisition.
Magnesium-alloy body design is both lightweight and durable, and also weather-sealed for use in trying environmental conditions.
Integrated PC sync terminal for wired flash sync with strobe packs or wireless radio remotes.
Sony 24-70mm f/4.0
E-Mount Lens/Full-Frame Format
Aperture Range: f/4 to f/22
One ED and Five Aspherical Elements
Zeiss T* Anti-Reflective Coating
Linear Autofocus Motor; Internal Focus
Optical SteadyShot Image Stabilization
Dust and Moisture-Resistant Construction
Seven-Blade Circular Diaphragm
Walk around all day with the Vario-Tessar T* FE 24-70mm f/4 ZA OSS Lens from Sony, a compact full-frame option that covers wide-angle to short telephoto perspectives for working with a variety of different shooting styles and subjects. A constant f/4 aperture makes operation smooth and consistent throughout the zoom range. The lens further benefits from the use of one extra-low dispersion element and five aspherical elements to combat aberrations as well as a Zeiss T* anti-reflective coating to keep flare and ghosting to an absolute minimum. The lens is fast to focus as well due to the linear autofocus motor and an internal focus design. Additionally, the dust- and moisture-resistant lens is equipped with Optical SteadyShot image stabilization to reduce the effects of camera shake, and it has a seven-blade circular diaphragm for smooth bokeh.
Based on the Zeiss Tessar optical concept, this lens uses a design with 12 elements in ten groups that helps ensure a smaller overall lens size along with reduced flaring, distortion, and chromatic aberrations.
Covering wide-angle to short telephoto perspectives, this compact 24-70mm can quickly become a go-to lens for Sony's full-frame E-mount cameras. It can also be used on APS-C format cameras where it will provide a 36-105mm equivalent zoom range.
A constant f/4 maximum aperture offers consistent performance throughout the zoom range and also lends greater control over focus position for shallow depth of field techniques.
Zeiss T* anti-reflective coatings have been applied to each lens surface to help minimize reflections in order to provide greater image clarity, contrast, and color fidelity.
One extra-low dispersion glass element is featured in the lens design to help reduce chromatic aberrations and color fringing for improved clarity and color neutrality.
Five aspherical elements are incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur.
A linear autofocus motor and internal focus design provide quick and precise autofocus performance and enables accurate and silent focusing while recording videos.
Dust- and moisture-sealed design better permits working in inclement conditions and rubberized control rings benefit handling in colder temperatures.
Rounded seven-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
Lens Mount Sony E-Mount
Camera Format Full-Frame
Pixels Actual: 28.3 Megapixel
Effective: 24.2 Megapixel
Max Resolution 24 MP: 6000 x 4000
Aspect Ratio 3:2, 16:9
Sensor Type / Size CMOS, 35.6 x 23.8 mm
File Formats Still Images: JPEG, RAW
Movies: AVCHD Ver. 2.0, MP4, MPEG-4 AVC/H.264, XAVC S
Audio: AAC LC, AC3, Dolby Digital 2ch, Linear PCM
Bit Depth 14-Bit
Dust Reduction System Yes
Memory Card Type SD
Memory Stick Duo
Image Stabilization Sensor-Shift, 5-Way
Video Recording Yes, NTSC/PAL
Video Format 3840 x 2160p at 24, 25, 30 fps (100 Mb/s XAVC S)
3840 x 2160p at 24, 25, 30 fps (60 Mb/s XAVC S)
1920 x 1080p at 100, 120 fps (100 Mb/s XAVC S)
1920 x 1080p at 100, 120 fps (60 Mb/s XAVC S)
1920 x 1080p at 24, 25, 30, 50, 60 fps (50 Mb/s XAVC S)
1920 x 1080p at 50, 60 fps (28 Mb/s AVCHD)
1920 x 1080i at 50, 60 fps (24 Mb/s AVCHD)
1920 x 1080i at 50, 60 fps (17 Mb/s AVCHD)
1920 x 1080p at 24, 25 fps (24 Mb/s AVCHD)
1920 x 1080p at 24, 25 fps (17 Mb/s AVCHD)
1920 x 1080p at 50, 60 fps (28 Mb/s MP4)
1920 x 1080p at 25, 30 fps (16 Mb/s MP4)
1280 x 720p at 25, 30 fps (6 Mb/s MP4)
Aspect Ratio 16:9
Video Clip Length Not Specified by Manufacturer
Audio Recording Built-In Mic: With Video (Stereo)
Optional External Mic: With Video
Focus Type Auto & Manual
Focus Mode Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-servo AF (S)
Autofocus Points Phase Detection: 693
Contrast Detection: 25
Viewfinder Type Electronic
Viewfinder Size 0.5"
Viewfinder Pixel Count 3,686,400
Viewfinder Eye Point 23.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.78x
Diopter Adjustment -4 to +3 m
Display Screen 3" Rear Touchscreen Tilting LCD (1,440,000)
Screen Coverage 100%
ISO Sensitivity Auto, 100-51200 (Extended Mode: 50-204800)
Shutter Type: Mechanical
Speed: 30 - 1/8000 Second , Bulb Mode
Speed: 30 - 1/32000 Second in Bulb Mode
Metering Method Center-Weighted Average Metering, Multi-Zone Metering, Spot Metering, Highlight Weighted
Exposure Modes Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
Metering Range: EV -3.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps)
White Balance Modes Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
Buffer/Continuous Shooting Up to 20 fps at 24.2 MP for up to 362 Frames in JPEG Format
Up to 20 fps at 24.2 MP for up to 241 Frames in Raw Format
Up to 10 fps at 24.2 MP
Up to 5 fps at 24.2 MP
Up to 2.5 fps at 24.2 MP
Built-in Flash No
Max Sync Speed 1 / 250 Second
Flash Compensation -3 EV to +3 EV (in 1/3 or 1/2 EV steps)
Dedicated Flash System P-TTL
External Flash Connection Hot Shoe, PC Terminal
Self Timer 10 Seconds, 5 Seconds, 2 Seconds
Connectivity 1/8" Headphone, 1/8" Microphone, HDMI D (Micro), Micro-USB, X-Sync Socket
Wi-Fi Capable Yes
Battery 1 x NP-FZ100 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 2280 mAh
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Dimensions (W x H x D) 5.0 x 3.8 x 2.5" / 126.9 x 95.6 x 63.0 mm
Weight 1.481 lb / 673 g
Package Weight 3.65 lb
Box Dimensions (LxWxH) 9.6 x 6.2 x 5.7"
Sony 24-70mm f/4.0
Focal Length 24 - 70mm
Aperture Maximum: f/4
Camera Mount Type Sony E
Format Compatibility 35mm Film / Full-Frame Digital Sensor
Angle of View 84.1° - 34.3°
Minimum Focus Distance 1.31' (40 cm)
Maximum Reproduction Ratio 1:5
Elements/Groups 12 / 10
Diaphragm Blades 7, Rounded
Image Stabilization Yes
Tripod Collar No
Filter Thread Front: 67 mm
Dimensions (DxL) Approx. 2.87 x 3.72" (73 x 94.5 mm)
Weight 15.03 oz (426 g)
Package Weight 1.5 lb
Box Dimensions (LxWxH) 8.1 x 4.3 x 4.3"
Sony Alpha a9 Mirrorless Digital Camera
Sony Vario-Tessar T* FE 24-70mm f/4 ZA OSS Lens
BC-QZ1 Battery Charger
