Sony mikrofon ECM-VG1 Shotgun Electret condenser microphone

Product Highlights

Specially Developed Furry Windscreen
Low-Cut Filter
Lightweight Metal Construction
40V to 52V Phantom Power
Ideal for Camera & Boompole Operation

Outstanding Sound Quality
The ECM-VG1 delivers exceptionally smooth and natural sound reproduction. It has a flat-and-wide frequency response (40 Hz to 20 kHz), excellent sensitivity of -33 dB (0 dB=1 V/Pa), and a low inherent noise level of less than 18 dB SPL.
Compact and Extremely Lightweight Design with Metal Body
Designed as an extremely lightweight shotgun microphone, the ECM-VG1 maintains good balance even when mounted on compact camcorders.
Built-in Low-cut Filter
The built-in two-position (M, V) low-cut switch provides a simple method of reducing the effects of unwanted ambient noise.
External DC (40 to 52 V) Operation
The ECM-VG1 provides an electronically balanced output operation on 48 V standard external power.
Innovative Windscreen
The ECM-VG1 is supplied with an innovative windscreen that has an internal frame to rigidly fix the windscreen, creating a space between the microphone and the outside part of the windscreen that helps suppress strong wind noise. It also protects the ECM-VG1 from contact noise in harsh operational environments such as outdoor shooting.

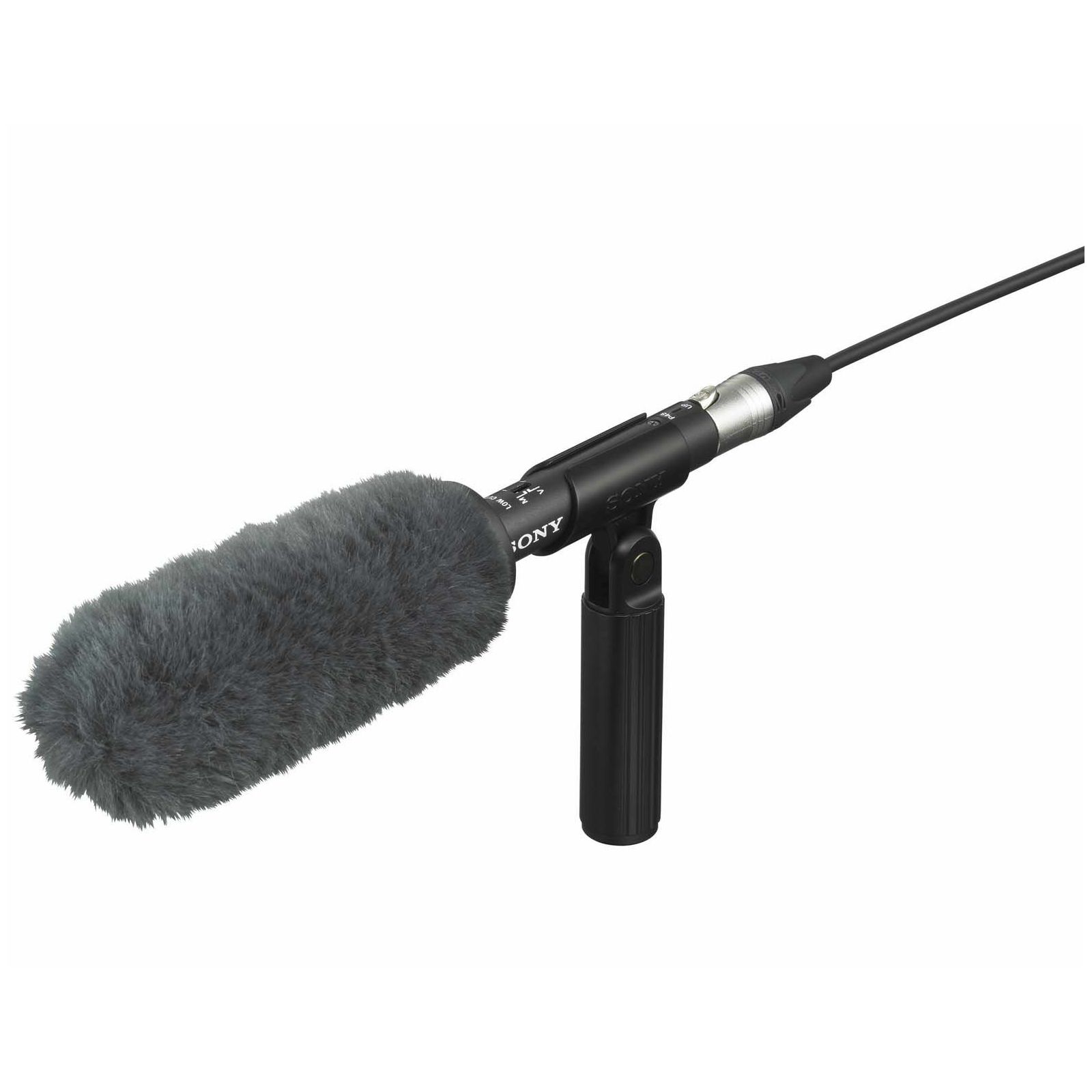

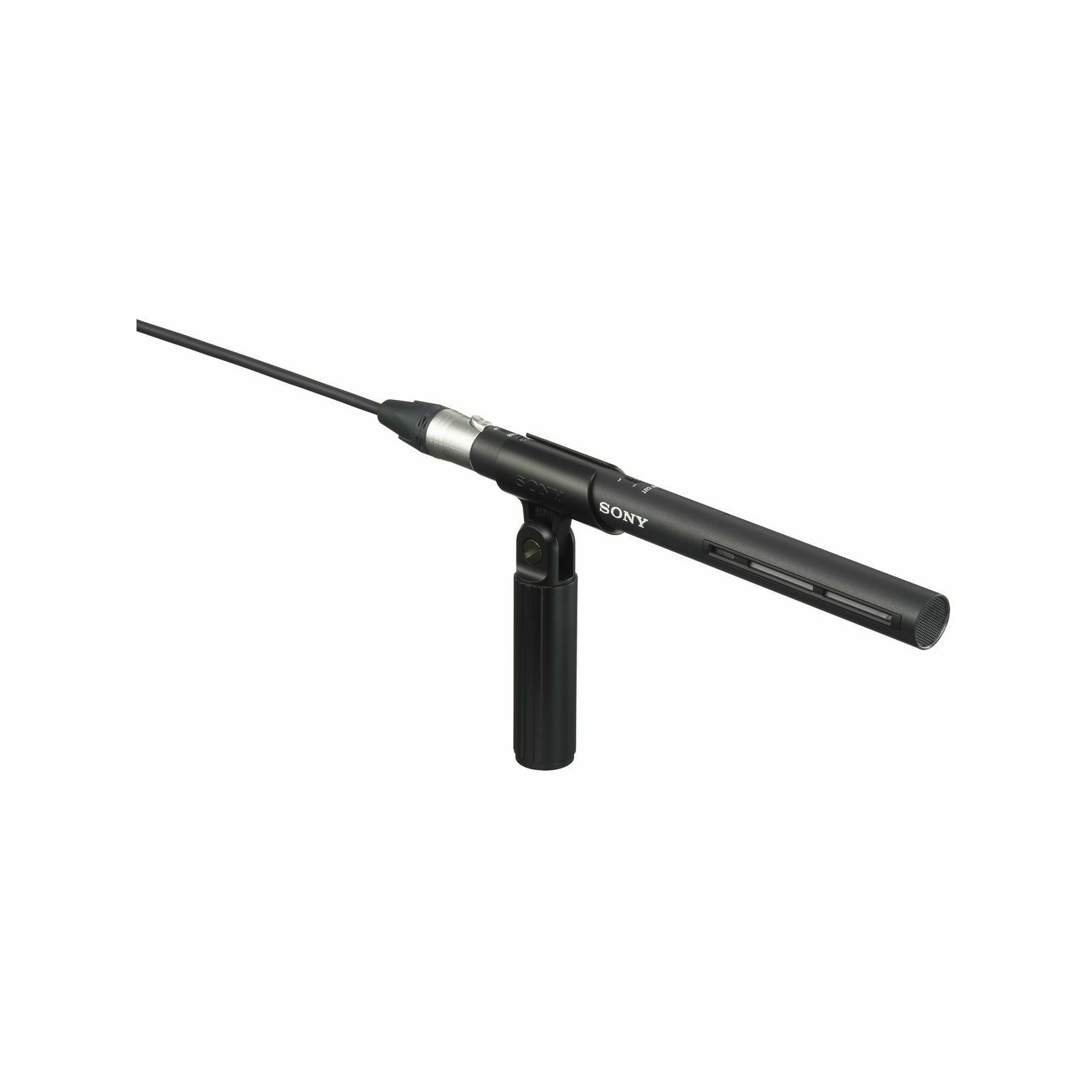

The Sony ECM-VG1 Electret Condenser Shotgun Microphone is a rugged, all-metal short shotgun microphone with a supercardioid polar pattern, making it a well suited choice for camcorder-mounted and boom pole operation alike. The included windscreen has been designed to maximize wind-noise rejection.

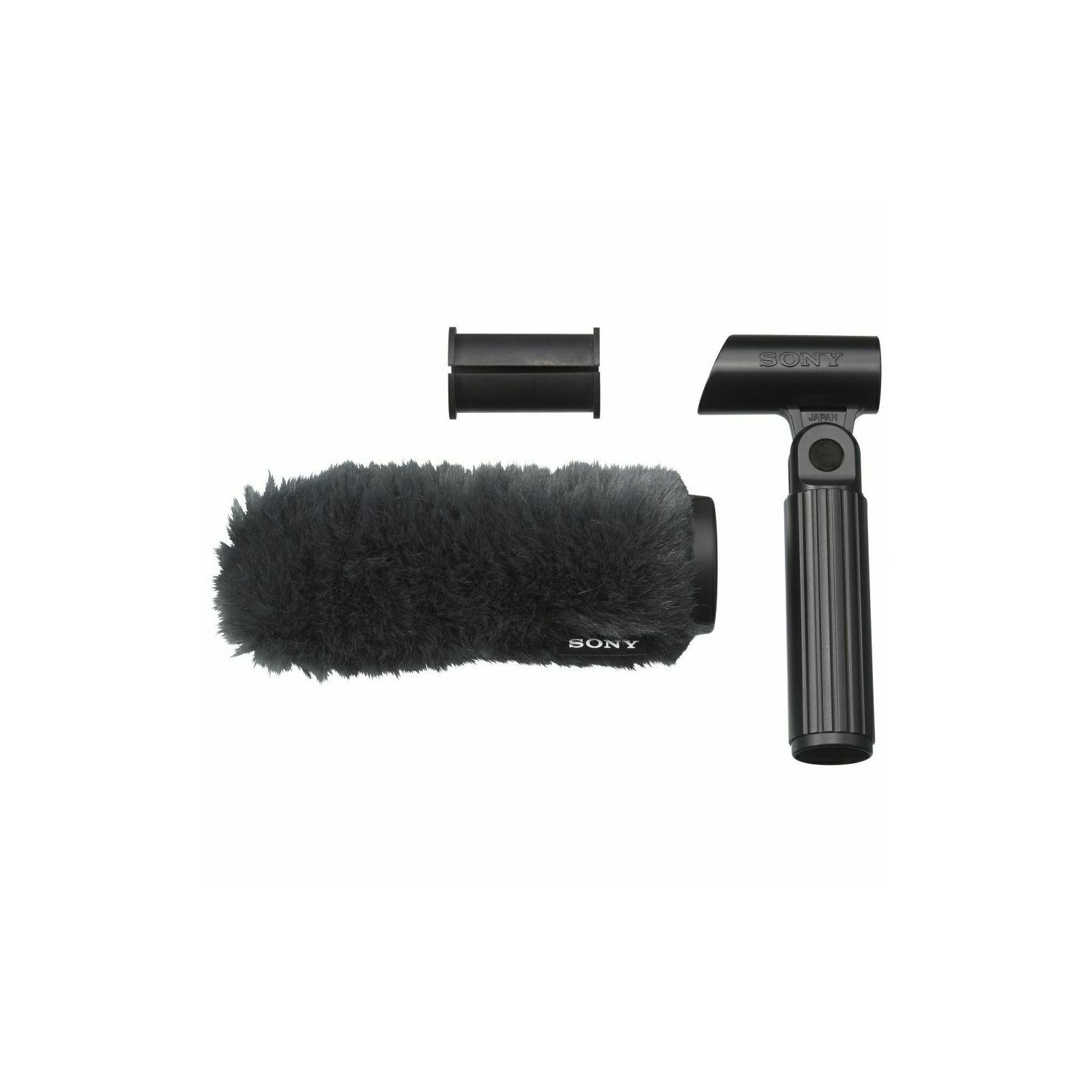

The windscreen's rigid construction creates space between the microphone and outer part of the windscreen, minimizing the transfer of energy from the windscreen to the microphone itself. Also included are a microphone boom mount, spacer, 2 stand adaptors and a short XLR cable. A low-cut roll off switch further minimizes low-frequency noise due to wind noise, mechanical noise and proximity effect. The ECM-VG1 requires external 40 to 52V phantom power, and is terminated with an XLR output connector.

Specially designed windscreen creates space between the microphone and outer layer of the windscreen, resulting in maximum wind noise suppression
Supercardioid polar pattern effectively minimizes off-axis noise

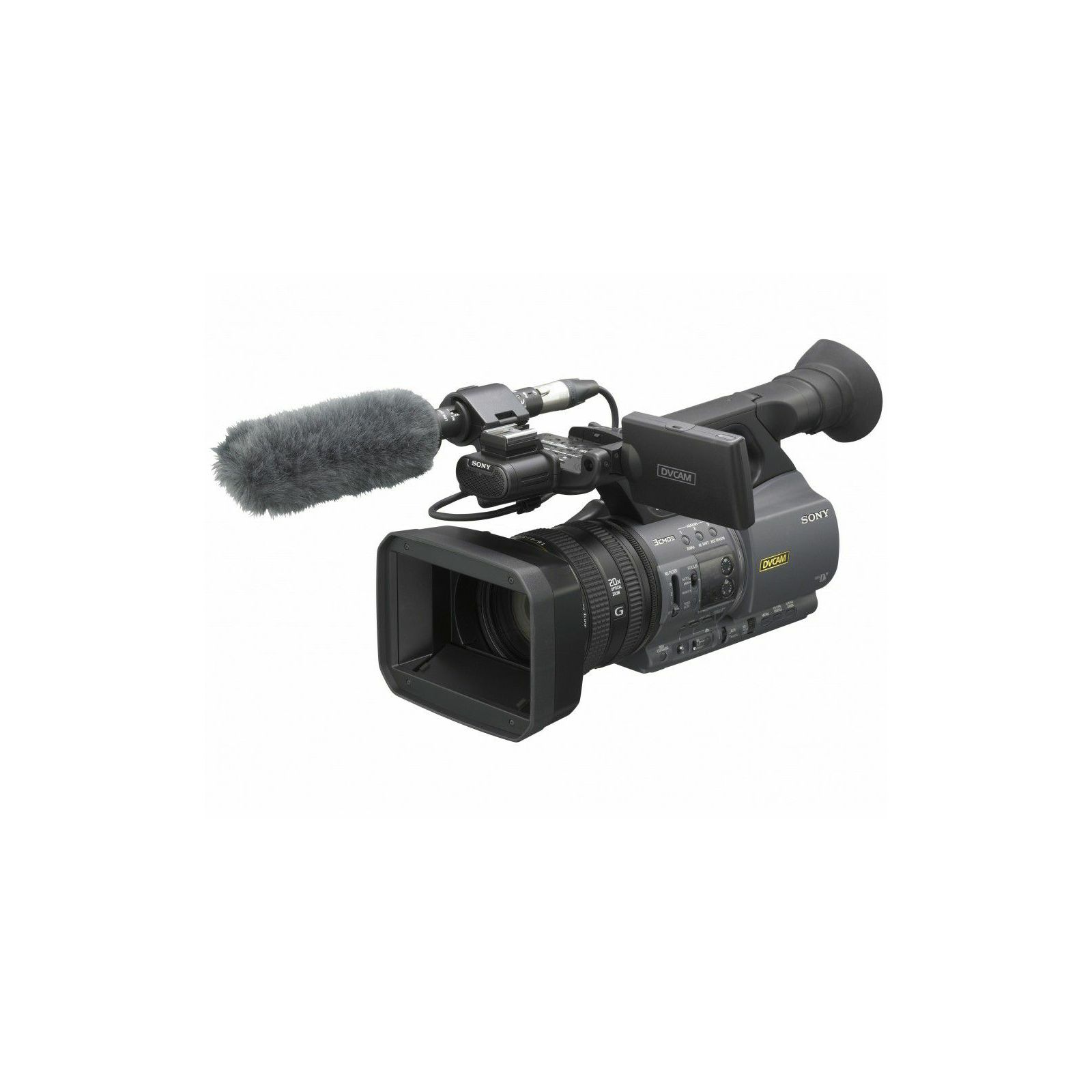

Ideal for camera and boom mounted applications
Includes a threaded microphone mount for easy boom attachment
Low-cut roll off filter eliminates low-frequency noise

SPECIFIKACIJA:

Audio:

Capsule Type Mono Electret Condenser
Frequency Response 40 Hz to 20 kHz
Directivity Uni-directional (super-cardioid)
Sensitivity *[1] -33 dB ±3 dB
Output Impedance *[2] 60?±20%, Balanced
Dynamic Range 107 dB or more
Signal-to-Noise Ratio *[3] 76 dB or more
Inherent Noise *[4] 18 dB SPL or less
Induction Noise From External Magnetic Field *[5] 0 dB SPL
Wind Noise *[6] 45 dB SPL or less (with windscreen)
Maximum Input Sound Pressure Level *[7] 125 dB SPL

Connector XLR-3-12C (male)
Mic Cable XLR 3-pin Cable Required (Not Supplied)
Power Requirements
External, DC 40 V to 52 V
Dimensions *[8]
?20 x 210 mm
?13/16 x 8 3/8 inches
Mass
Approx. 66 g
Approx. 2.3 oz
Supplied Accessories
Windscreen (1)
Stand adaptor (2)
Operating instructions (1)
Mic spacer (1)
Mic holder (1)

Note
*[1] 0 dB = 1 V/Pa, at 1 kHz
*[2] Output impedance at 1 kHz
*[3] A-weighted, 1 kHz, 1 Pa.
*[4] 0dB SPL = 20? Pa.
*[5] dB SPL/1E-7 T, 0 dB SPL = 20? Pa.
*[6] Wind noise at 2m/s (0 dB SPL = 20?Pa.)
*[7] 0 dB SPL = 20? Pa.
*[8] The values for dimensions are approximate.
