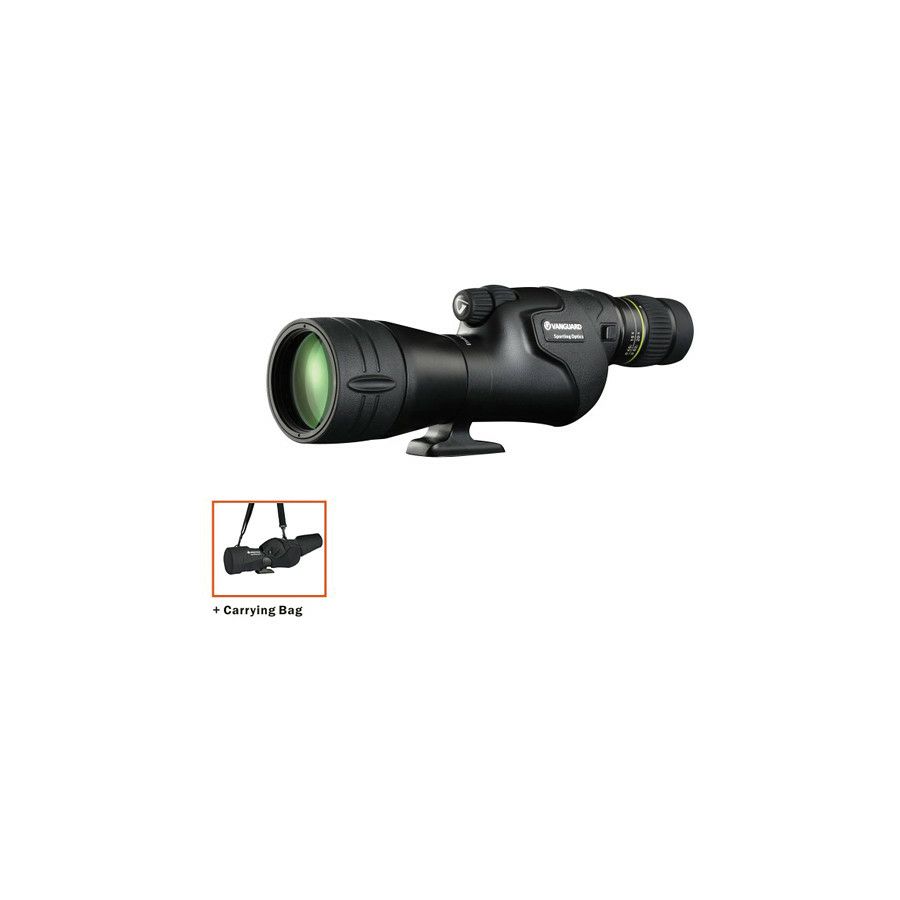

Vanguard Endeavor 65S

The straight view Endeavor HD 15-45x65 Spotting Scope from Vanguard combines a nitrogen-filled magnesium housing and a fully multicoated optical path to create a well-equipped zoom optic for intermediate to long-range observation. Vanguard gave the Endeavor HD series an extra-low dispersion (ED) lens system and phase-corrected BaK4 prisms, which maximize light transmission and produce color faithful images that are rich with contrast.

This version of the Endeavor HD spotting scope includes a 15-45x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.7-1.3° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.

In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine and coarse focus adjustments. The tripod mounting foot has a standard 1/4" socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use.

Optical Performance
15-45x magnification, 65mm objective
Extra-low dispersion glass elements, BaK4 prisms
Fully multicoated optics
2.7-1.3° angle of view
14.7 ft close focus distance (at 15x)
Use and Handling
Straight view eyepiece is in-line with the objective lens
Separate coarse / fine focus controls
Interchangeable eyepiece mount
Tripod mounting foot
Construction Details
Nitrogen-filled fogproof / waterproof housing
Magnesium body with textured rubber armor
Built-in sunshield

Magnification 15.0 - 45.0x
Objective Lens Diameter 65 mm
Angle of View 2.7-1.3°
Field of View 144 - 69 ft (43.8 - 21 m) at 1000 yards
Minimum Focus Distance 14.7 ft (15x); 18 ft (45x)
Eye Relief 19 - 20 mm
Dimensions 13.6 x 7.1" (34.5 x 18 cm)
Weight 49.4 oz (1.4 kg)
