ZNAČAJKE:
4K Ultra HD Full Support with 4K / 60p, HDCP2.2, HDR Video and BT.2020 pass-through
This AV receiver completely supports with latest HDMI® standards. Thanks to transmission of 4K video at 60 frames per second pass-through, you can fully enjoy the high definition video quality of 4K without degradation. It also adheres to the HDCP2.2 copyright protection standard for 4K video transmission. It also supports HDR (High Dynamic Range) Video which provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image. Furthermore it supports the wider colour gamut of BT.2020 pass-through. This AV receiver is also compatible with 3D, Audio Return Channel and CEC for easy operation.
Discrete Amp Configuration for High Sound Quality
This AV receiver was designed with a strong focus on achieving exceptionally high sound clarity. It employs a discrete amp configuration and a low jitter PLL circuit, which contribute to its excellent audio performance.
AV Setup Guide App Makes System Setup Easier
AV Setup Guide is an app that makes it much easier to perform receiver setup, and also assists you with cable connections between the AV receiver and source devices. It guides you through various settings such as speaker connections, TV and source device connections and power amp assignment. System illustrations and actual AV receiver images help you understand how to make the connections between devices, for much quicker system setup. It is available in multiple languages. Designed for iOS and Android tablet.
SCENE for One-Touch Start
Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
CINEMA DSP
Yamaha’s exclusive CINEMA DSP technology provides natural and expansive sound imaging.
Virtual CINEMA FRONT Provides Virtual 5-channel Surround Sound with High Quality and Resolution
Even when it is impossible to install surround speakers behind the listening position, Virtual CINEMA DSP reproduces virtual 5-channel surround sound filled with realism, with only two front speakers. With Virtual CINEMA FRONT, you will enjoy virtual 5-channel surround sound with higher quality and resolution by installing surround speakers at the front. You get more flexibility to arrange your speakers inside the room, along with easy enjoyment of high quality surround sound.
Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers
Yamaha’ s exclusive low-range enhancement technology delivers richer bass than you expect from the speaker size while maintaining good localisation and sound balance even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system, not only the front speakers, but also enhancing the bass from the subwoofer. You'll enjoy video and music with sound that has exceptional power and presence.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
Subwoofer Trim for Improved Sound Imaging
The Subwoofer Trim control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is “pushed” toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilising the front stage while providing a well-balanced enhanced bass sound.
ECO mode Lowers Power Consumption by 20%*
Yamaha’s new ECO mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.
*Compared to power consumption when ECO mode is off (Yamaha measurement).
Selectable Auto Power Standby
Auto Power Standby lets you save energy by selecting to turn off the power after 20 minutes, 2, 4, 8 or 12 hours.
SPECIFIKACIJE:
AV Receiver
Amplifier Section
Channel
Rated Output Power (1kHz, 1ch driven)
Rated Output Power (20Hz-20kHz, 2ch driven)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)
Dynamic Power per Channel (8/6/4/2 ohms)
Surround Sound Processing
CINEMA DSP
DSP Programs
Dialog Level Adjustment
SILENT CINEMA / Virtual CINEMA DSP
Dolby Digital Plus
Dolby Digital
Audio Features
Compressed Music Enhancer
Adaptive DRC (Dynamic Range Control)
Initial Volume & Maximum Volume Setting
Audio Delay
192kHz/24-bit DACs for all channels
Video Features
4K Ultra HD Pass-through and upscaling
HDMI 3D passthrough
HDMI Audio Return Channel
HDMI upscaling
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync

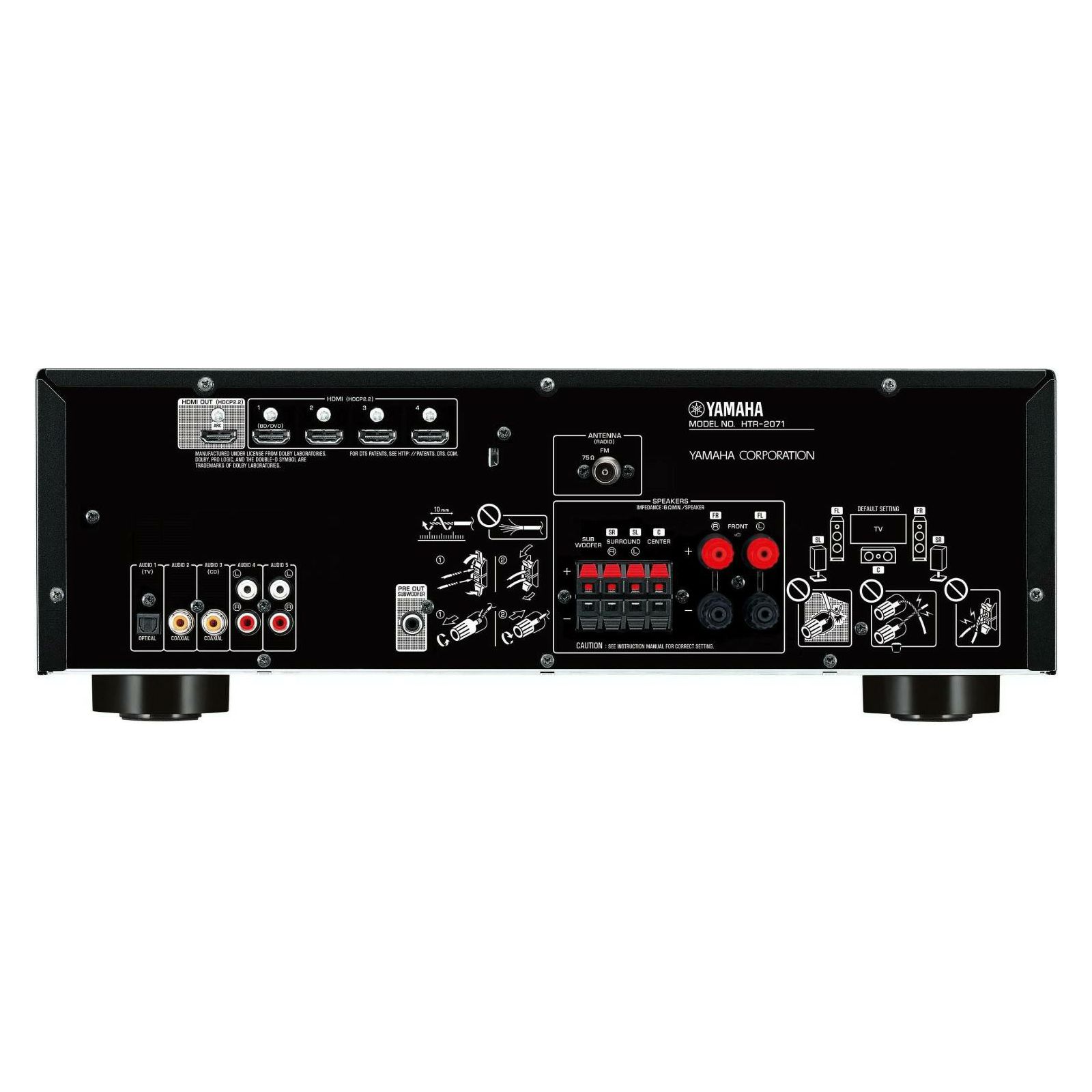

Connectivity
HDMI Input/Output
HDMI CEC
Digital Audio Input/Output: Optical
Digital Audio Input/Output: Coaxial
Analog Audio Input/Output
Preout
Headphone Output
Tuner Section
FM/AM Tuner
User Interface
On-screen display
SCENE
Remote Control Unit
General
Standby Power Consumption (IR only)
Auto Power Standby
ECO mode
Dimensions (W x H x D)
Weight
HTR-2071
HTR-2071
AV Receiver
Amplifier Section Channel 5.1
Rated Output Power (1kHz, 1ch driven) 100 W (6 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 70 W (6 ohms, 0.09% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 135 W (6 ohms, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) - / 110 / 130 / 150 W
Surround Sound Processing CINEMA DSP Yes
DSP Programs 17
Dialog Level Adjustment Yes
SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
Dolby Digital Plus Yes
Dolby Digital Yes
Audio Features Compressed Music Enhancer Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features 4K Ultra HD Pass-through and upscaling Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (HDMI® to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity HDMI Input/Output 4 / 1 (HDCP2.2, HDR and BT.2020 compatible)
HDMI CEC Yes
Digital Audio Input/Output: Optical 1 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 2 / 0
Preout SW
Headphone Output 1
Tuner Section FM/AM Tuner Yes (FM only)
User Interface On-screen display Yes (colour OSD)
SCENE SCENE (4 sets)
Remote Control Unit Yes
General Standby Power Consumption (IR only) ?0.3W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 435 x 151 x 315 mm; 17-1/8” x 6” x 12-3/8”
Weight 7.4 kg; 16.3 lbs.
UKLJUČUJE:

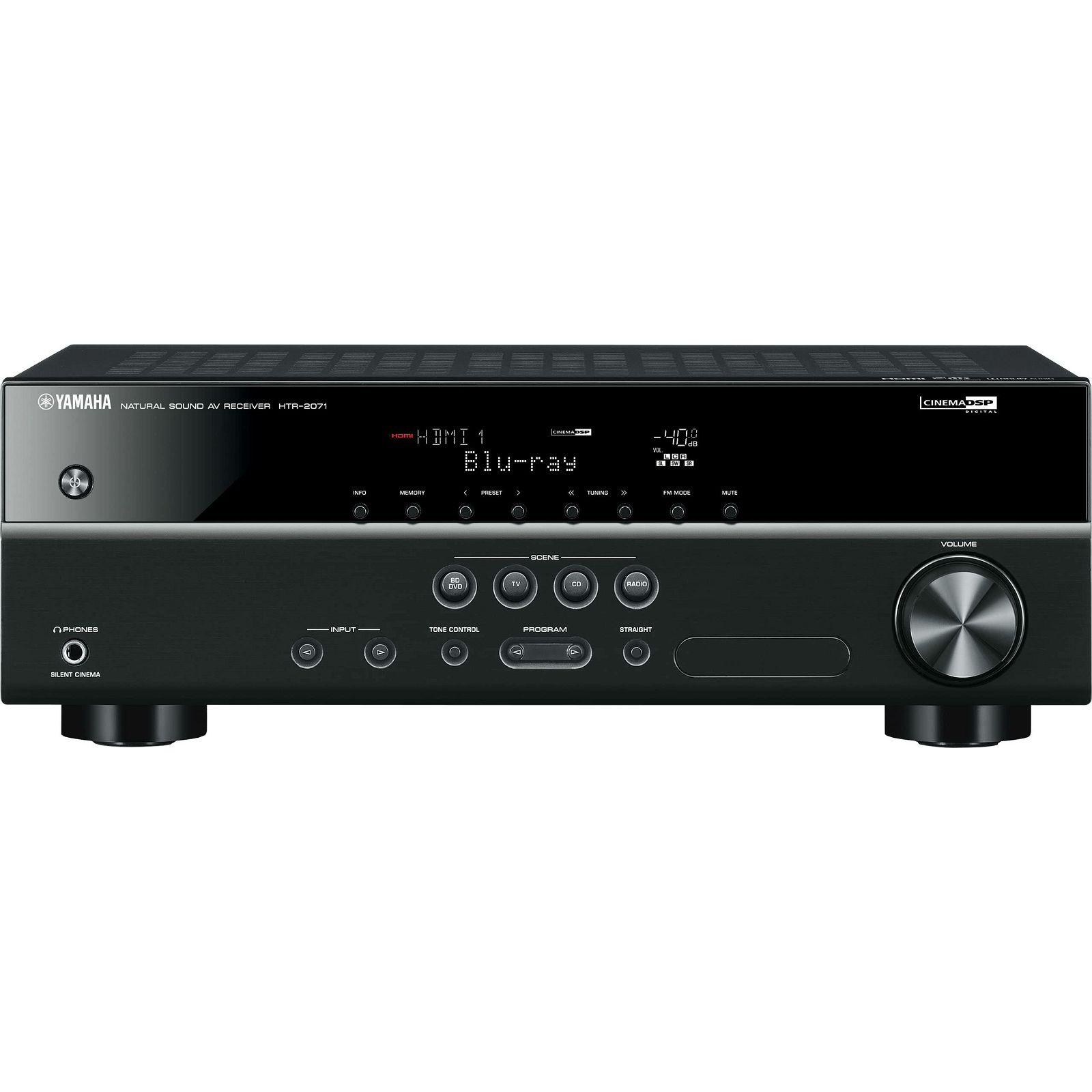

Yamaha HTR-2071
