Yuneec Q500 4K Typhoon Quadcopter 3-axis Gimbal Camera dron sa 3-osnim stabilizatorom i kamerom za snimanje iz zraka (YUNQ4KEU)

ZNAČAJKE:

Personal Ground Station with built-in touchscreen
Integrated 3-axis precision gimbal camera
4K/30fps ultra high definition video
1080p/120fps slow motion video
User controlled video resolution, white balance and light exposure
12 megapixel photos with No-Distortion Lens
Handheld SteadyGrip for capturing video footage



CGO3 4K 3-axis Gimbal Camera
With ultra-high definition (UHD) resolution, four times higher than HD, the camera delivers high-quality images with the ability to caputre slow motion 1080p 120fps and 12 megapixel photos. Caputure life in 4K with incredible detail and unparalleled realism.

Watch Me and Follow Me
Getting smooth professional footage flying manually is never been as easy as using Watch Me mode. Set up the Typhoon's position and automatically get amazing footage of your actions on the go.
Create amazing selfie videos, dronie effects or just set up the Typhoon to follow you anywhere you go.

Professional stable shots on the go
The SteadyGrip handheld device ensures ground shots are as smooth as those taken from the air. The CGO3 mobile APP allows SteadyGrip user to caputure images, shoot videos and control the CGO3 gimbal camera.

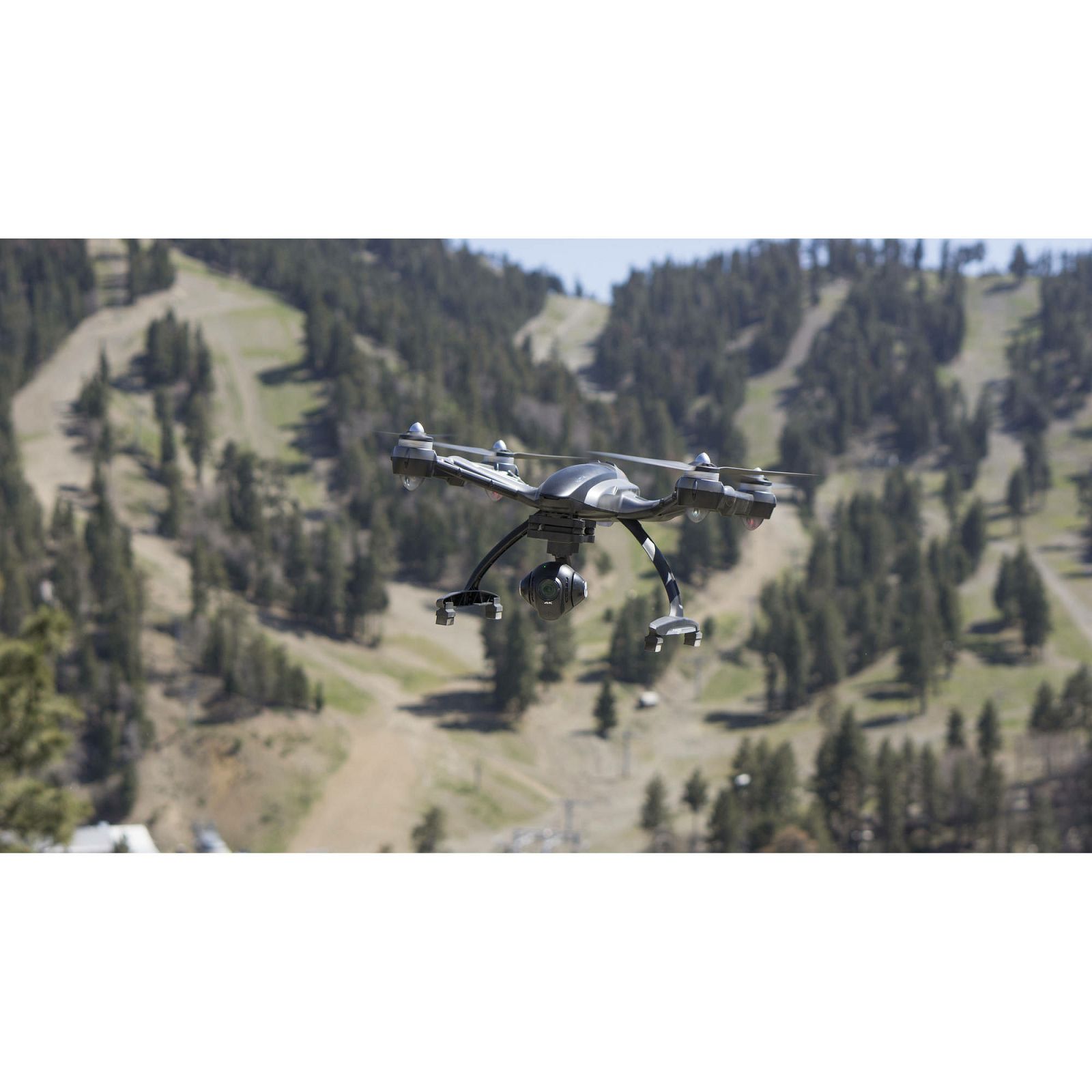

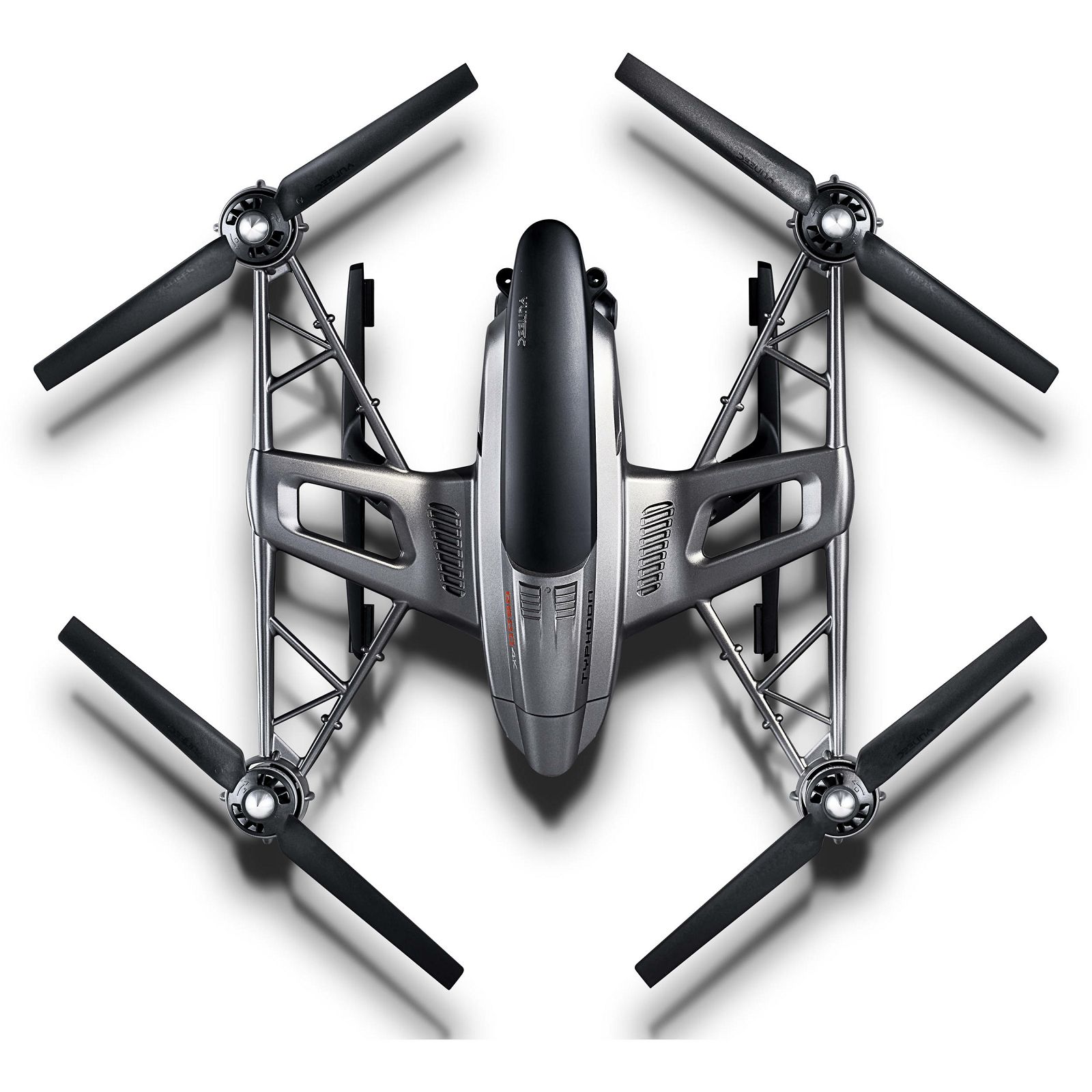

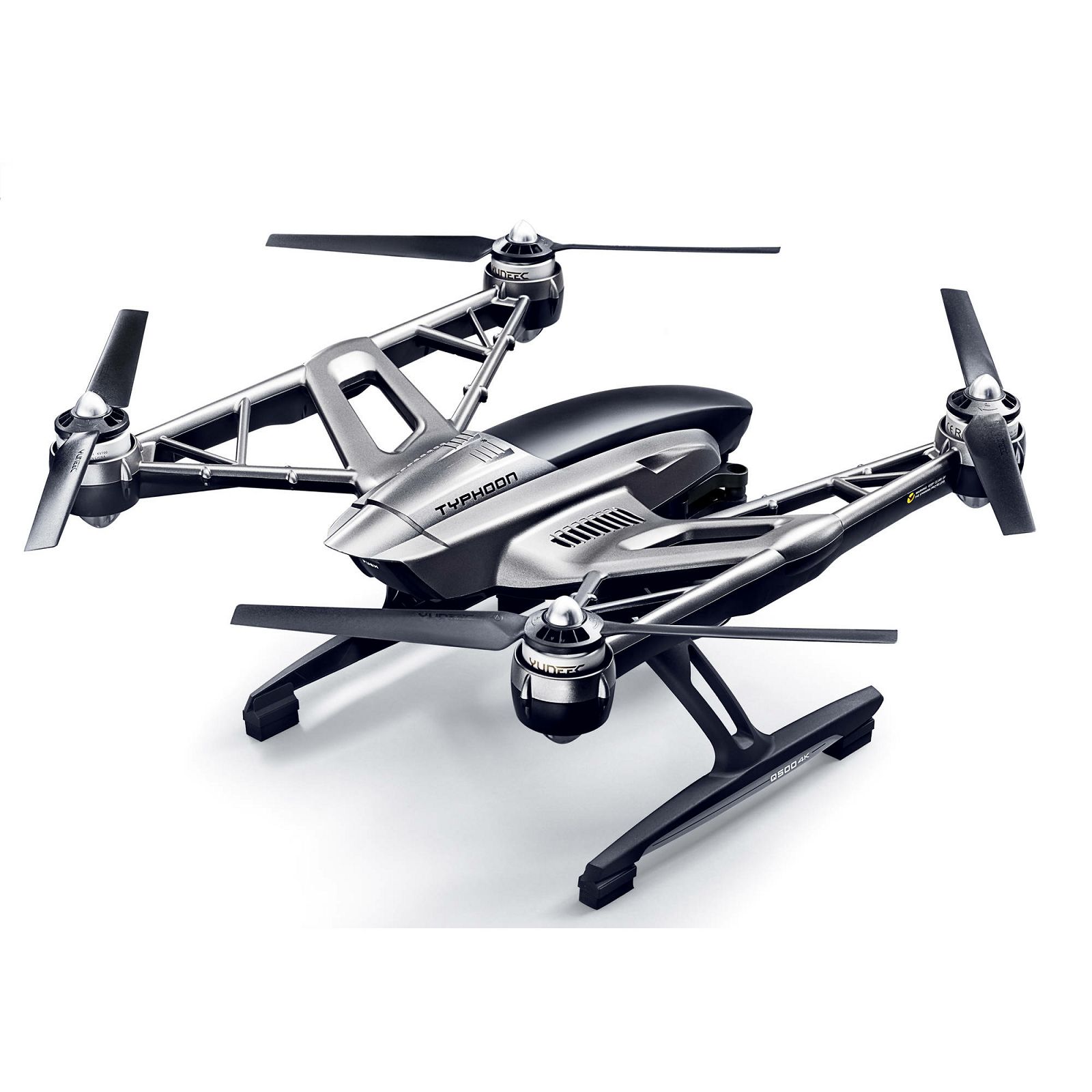

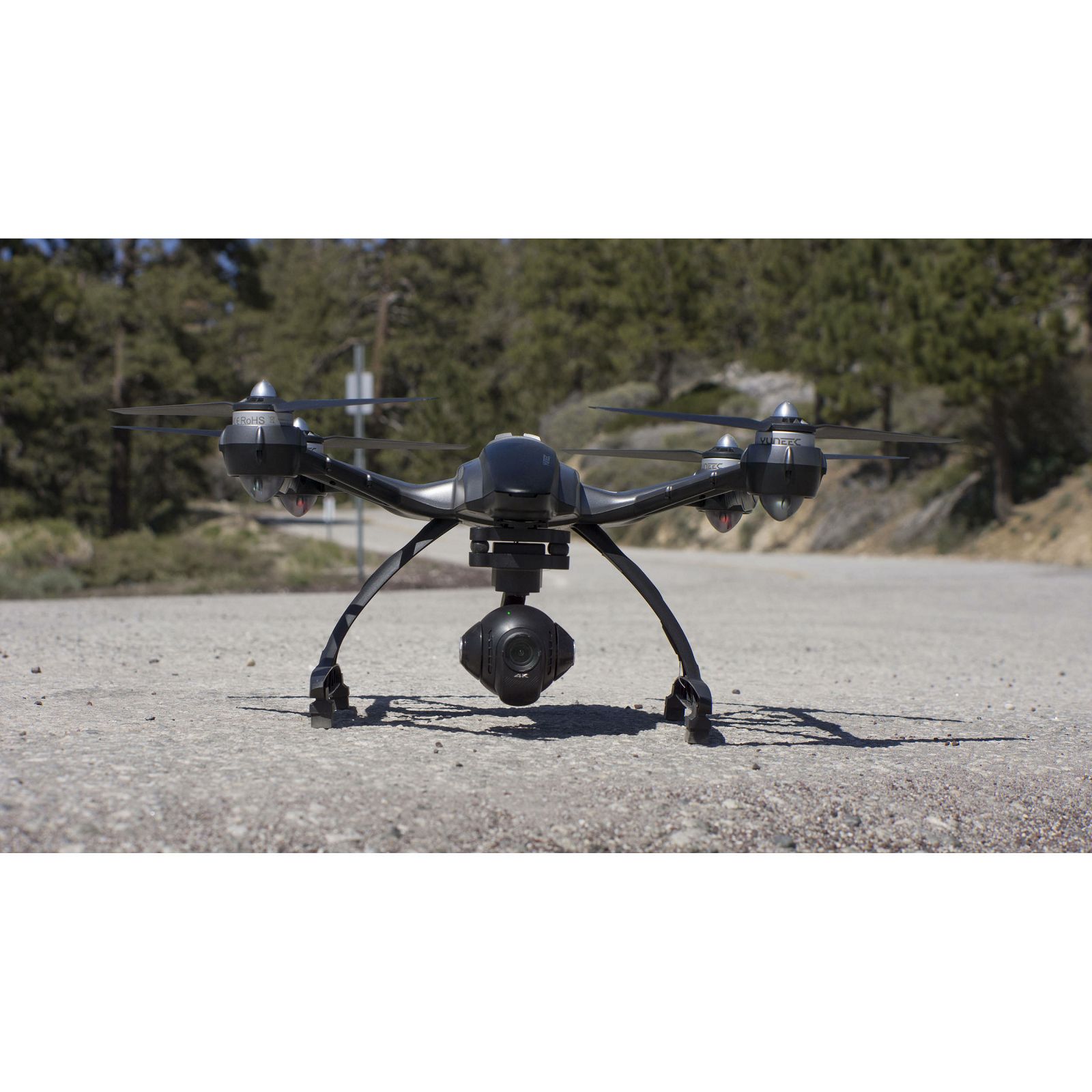

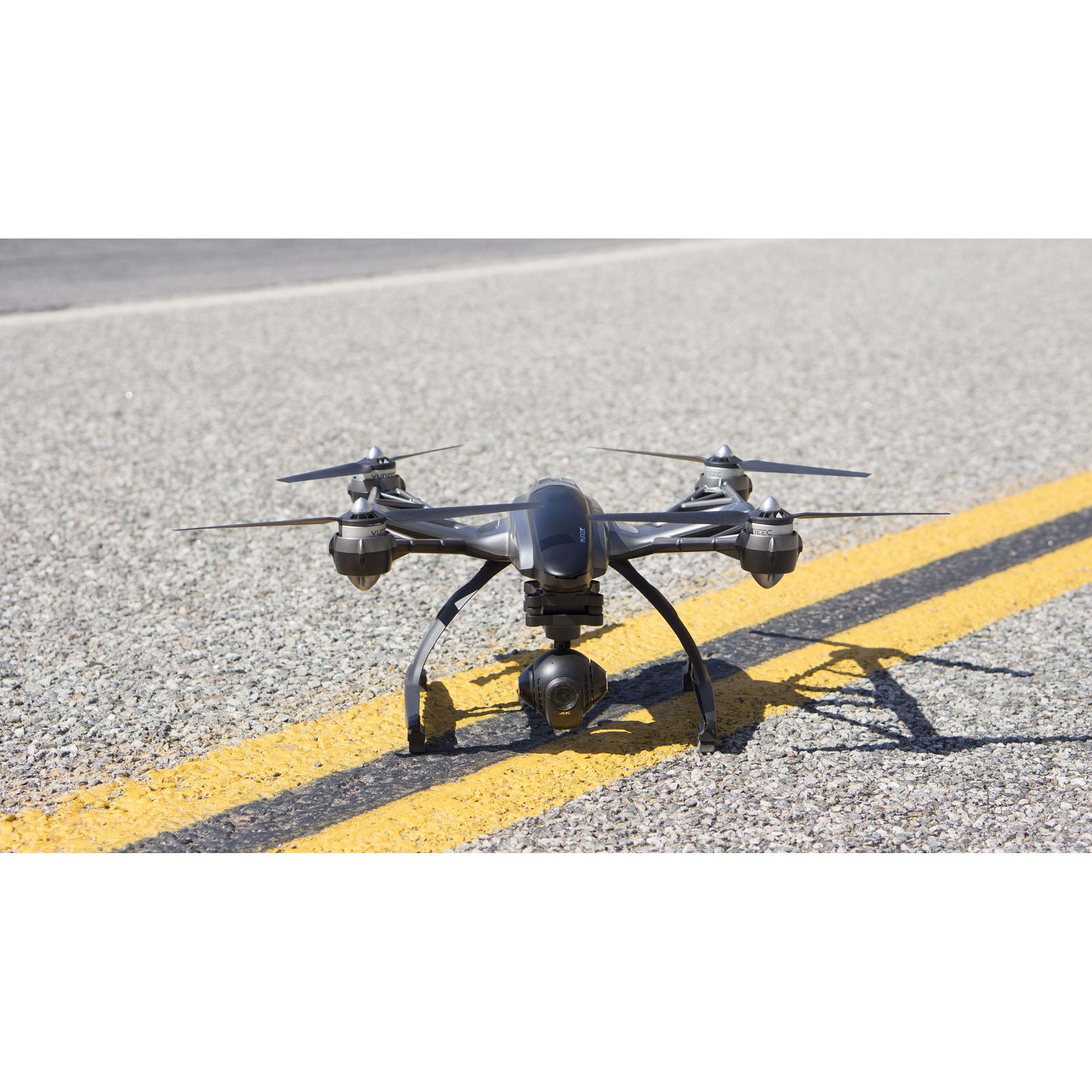

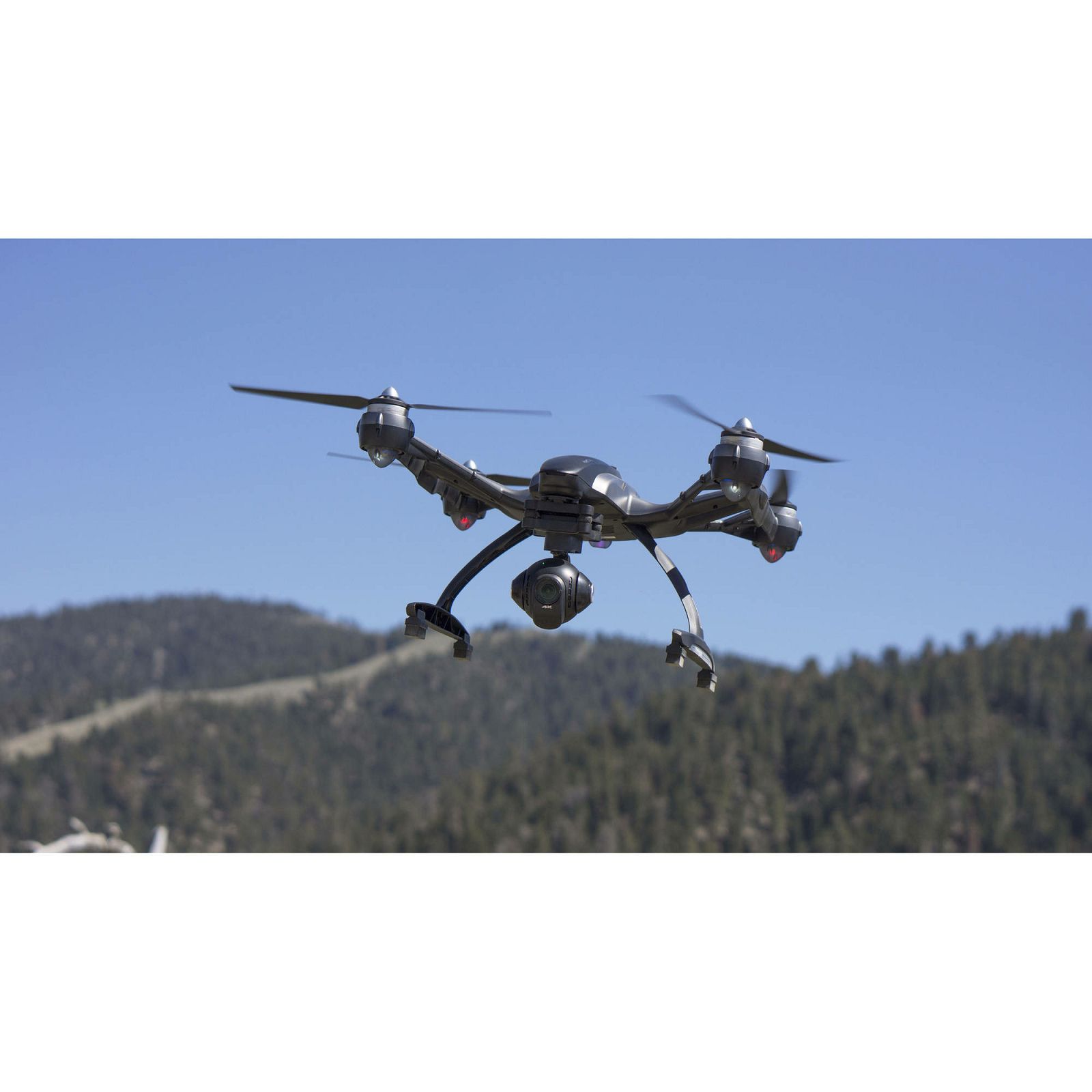

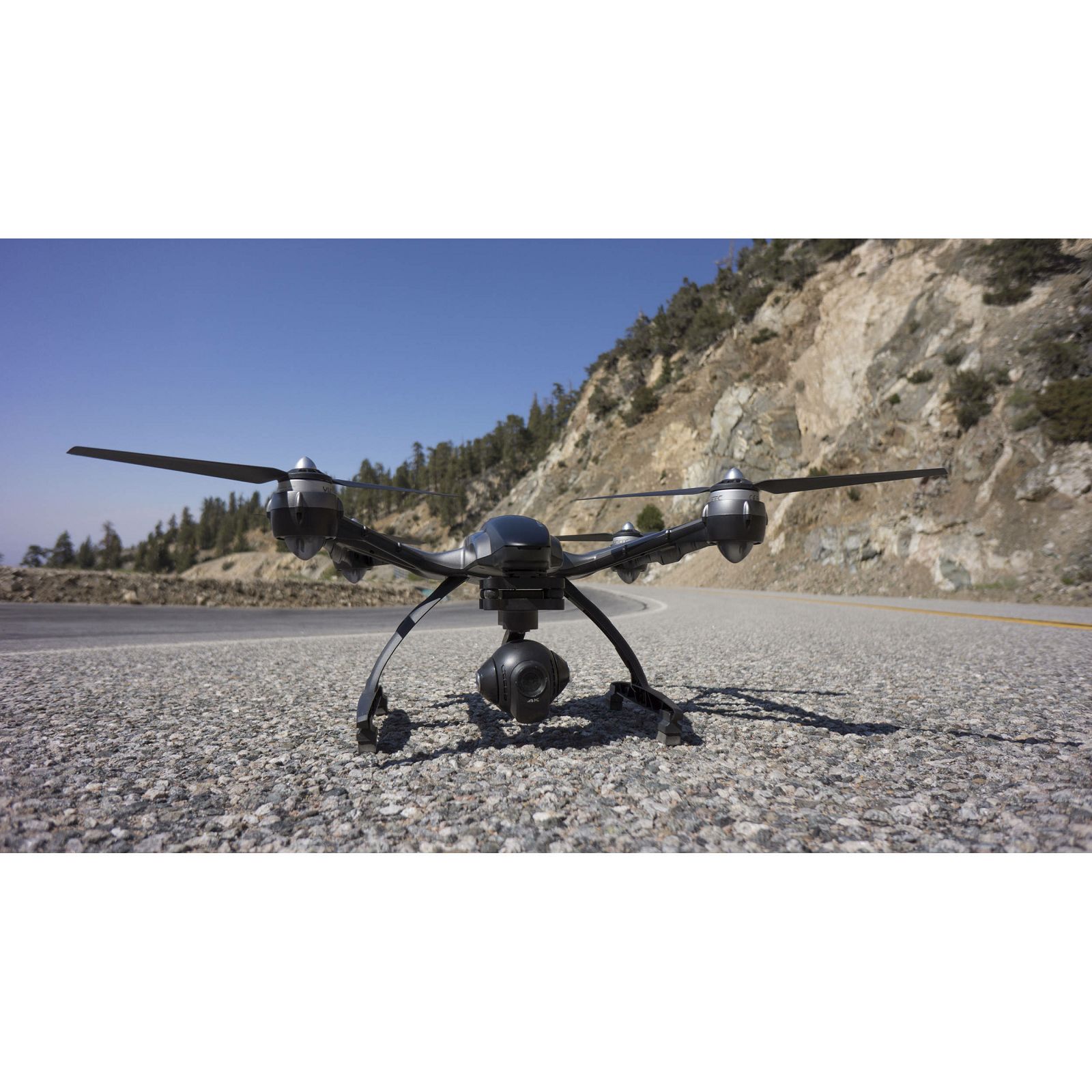

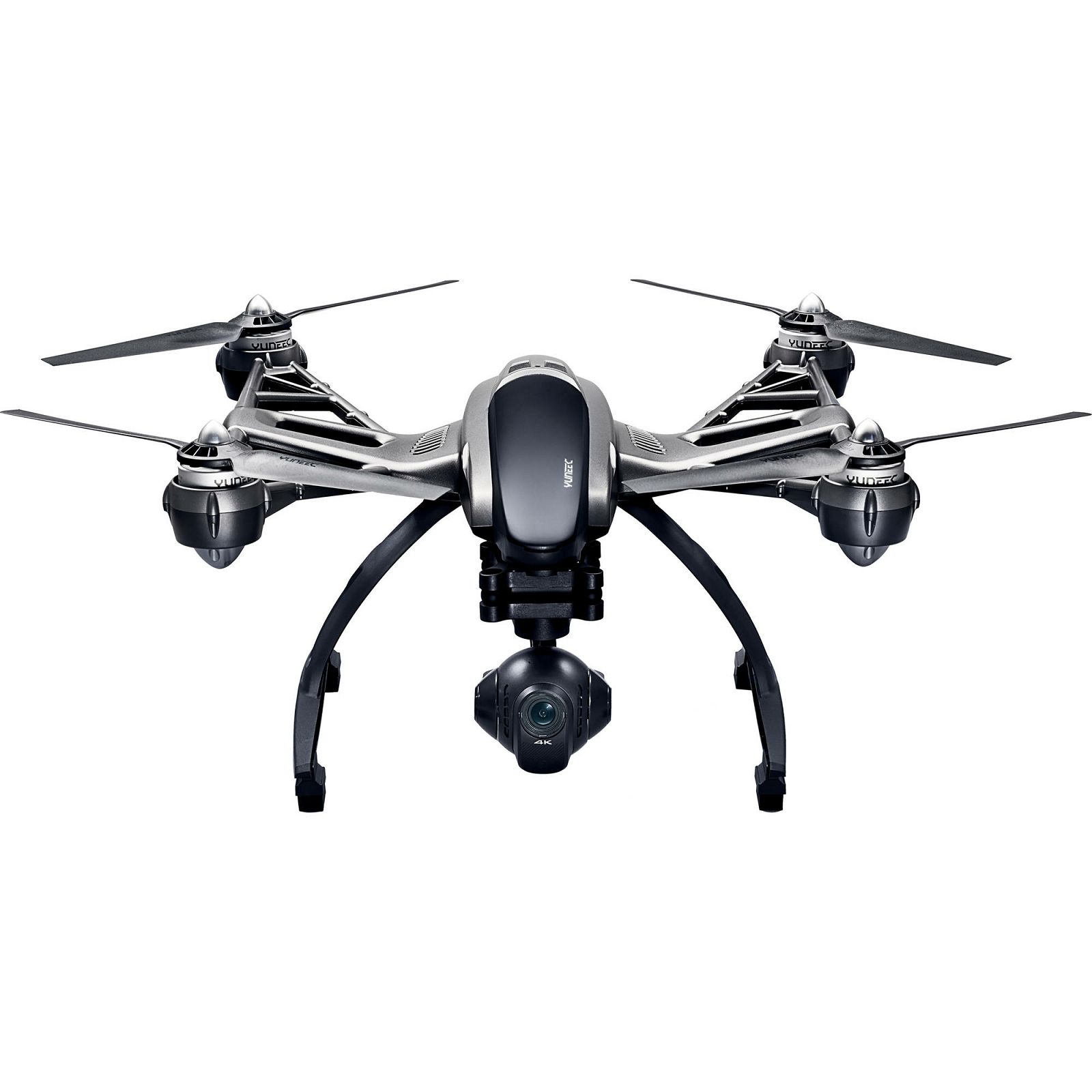

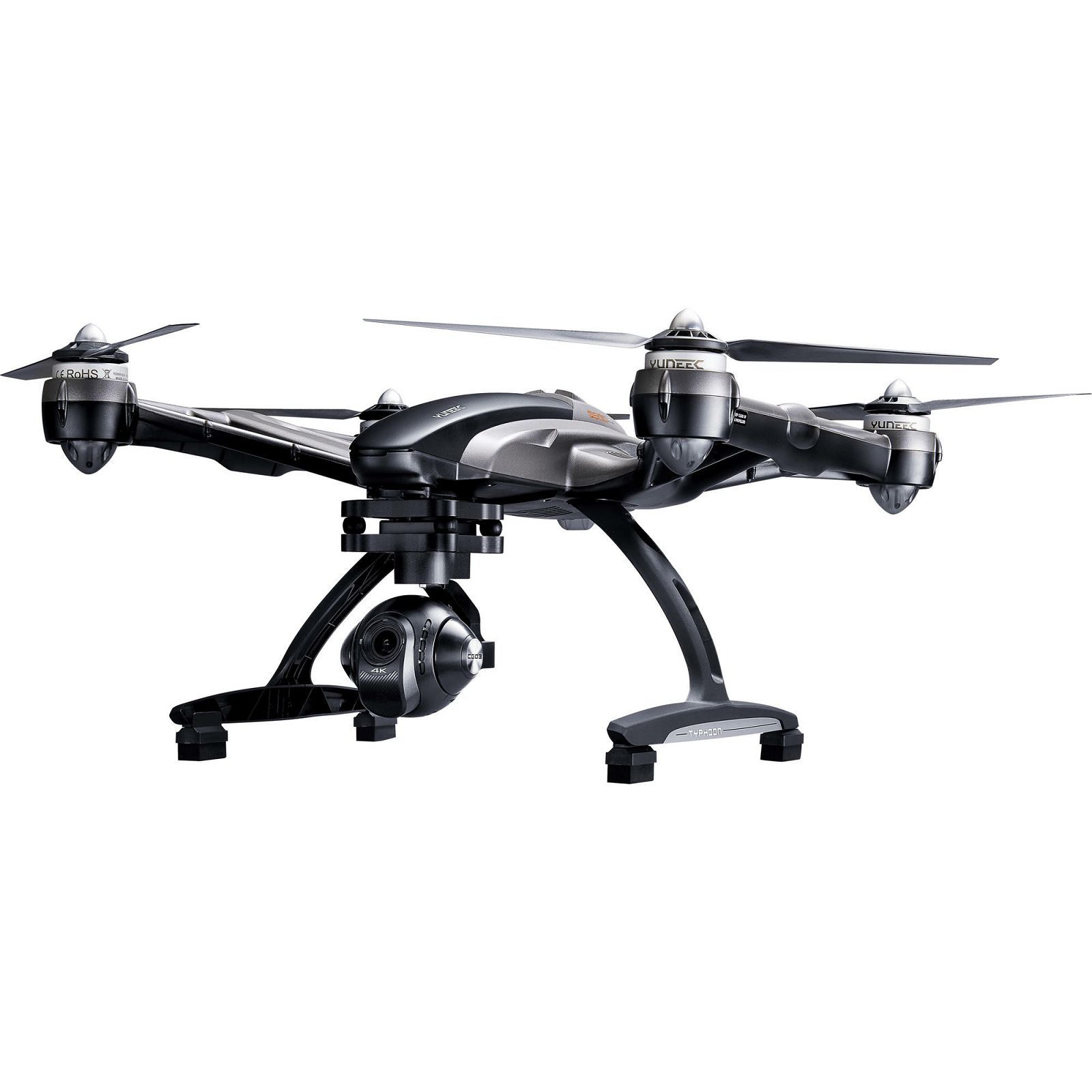

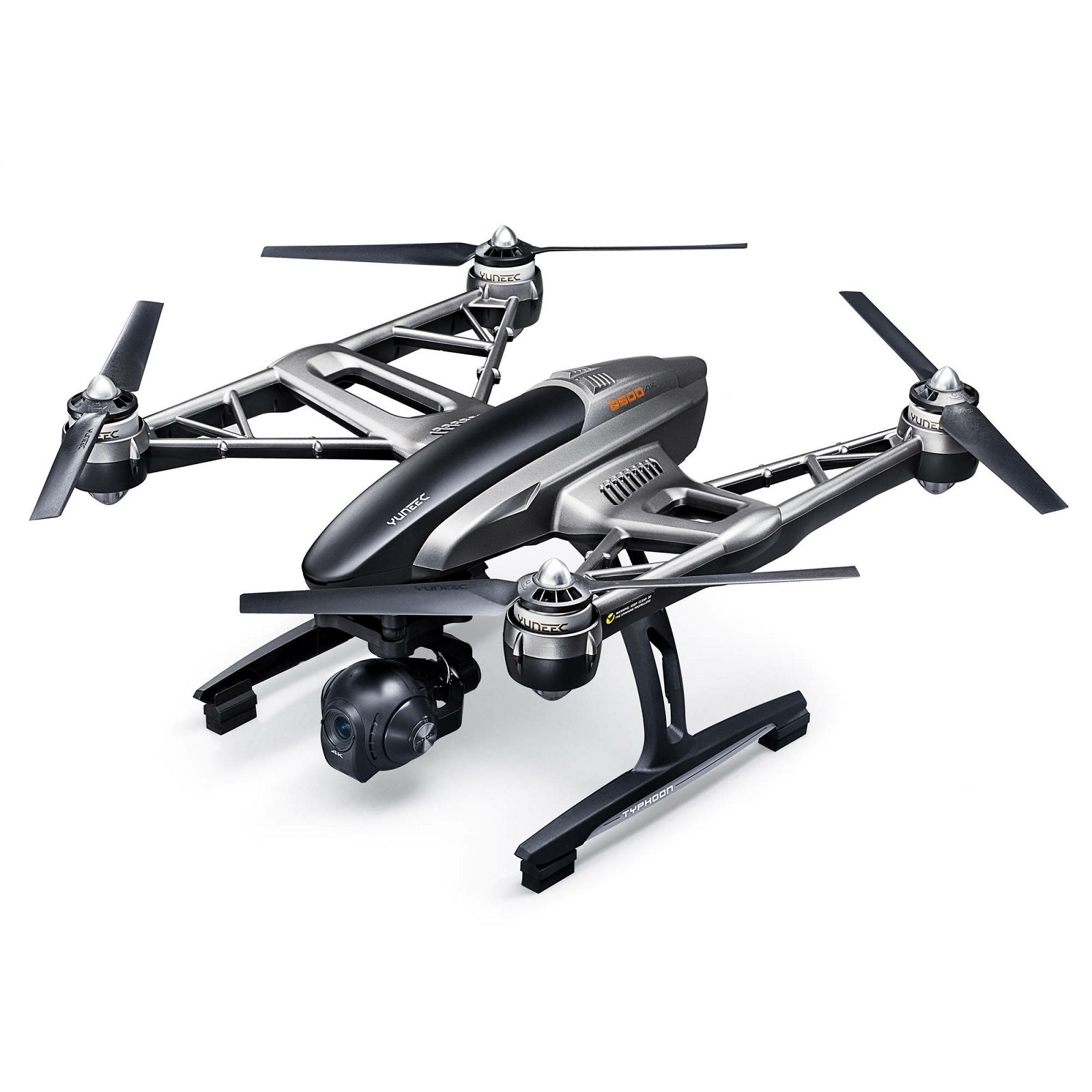

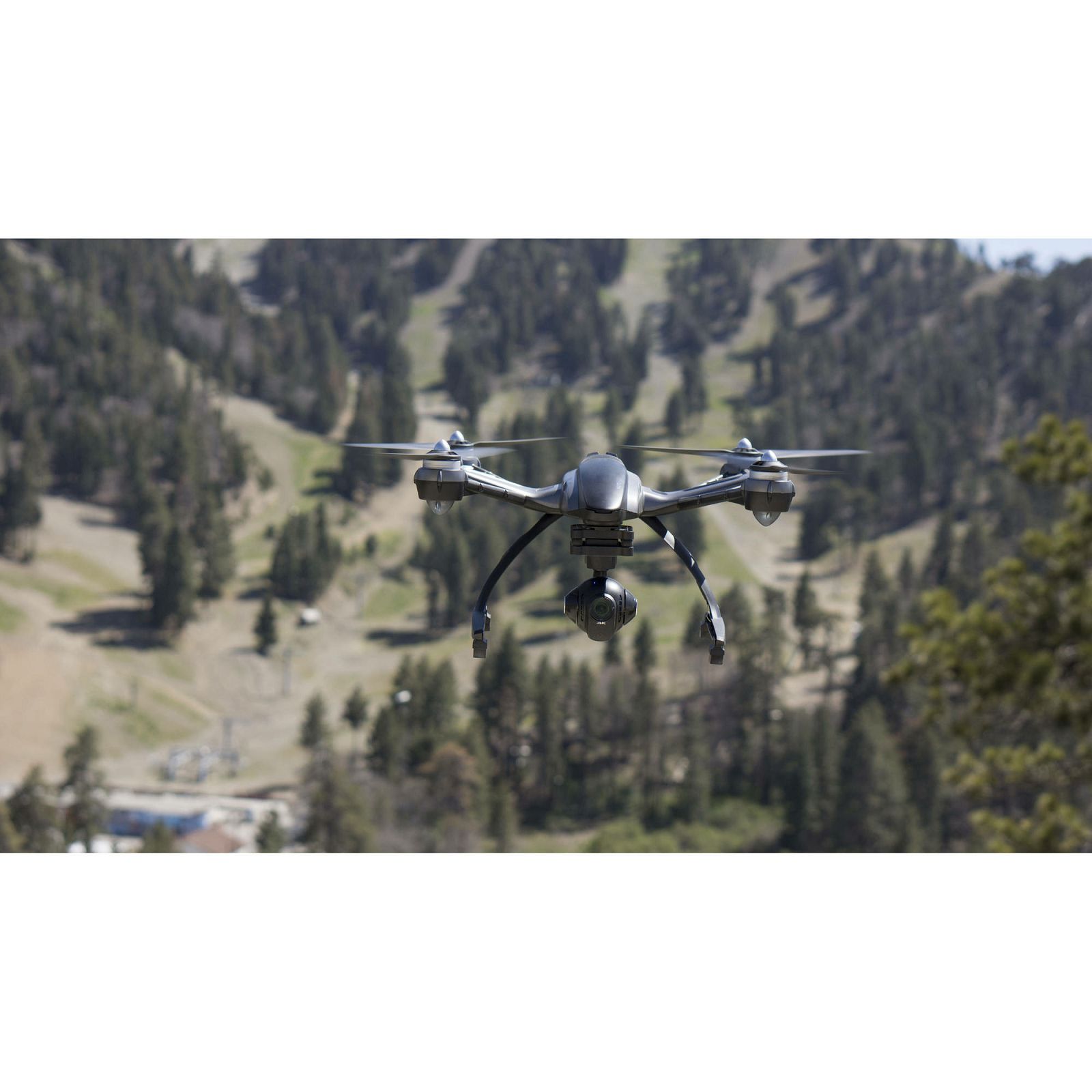

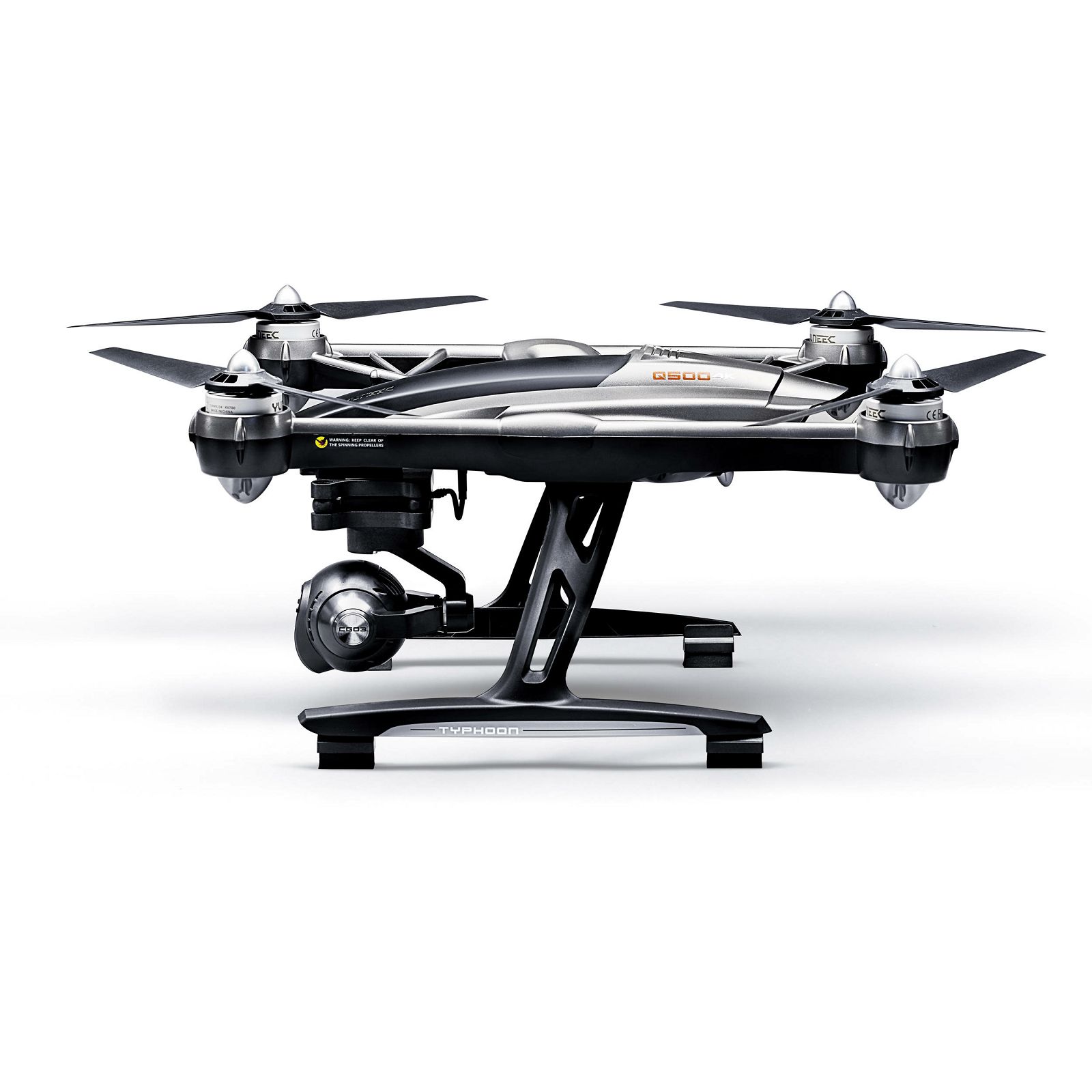

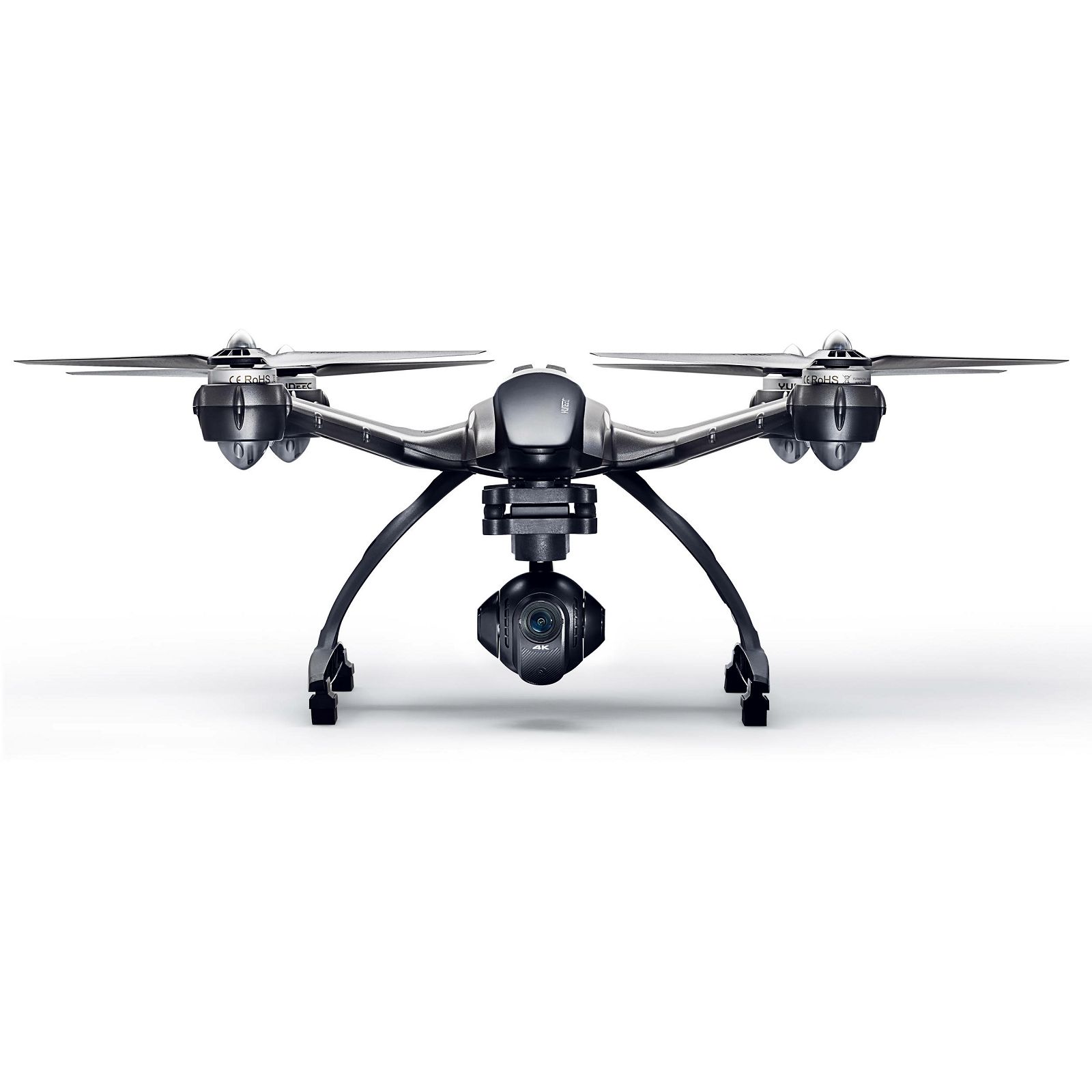

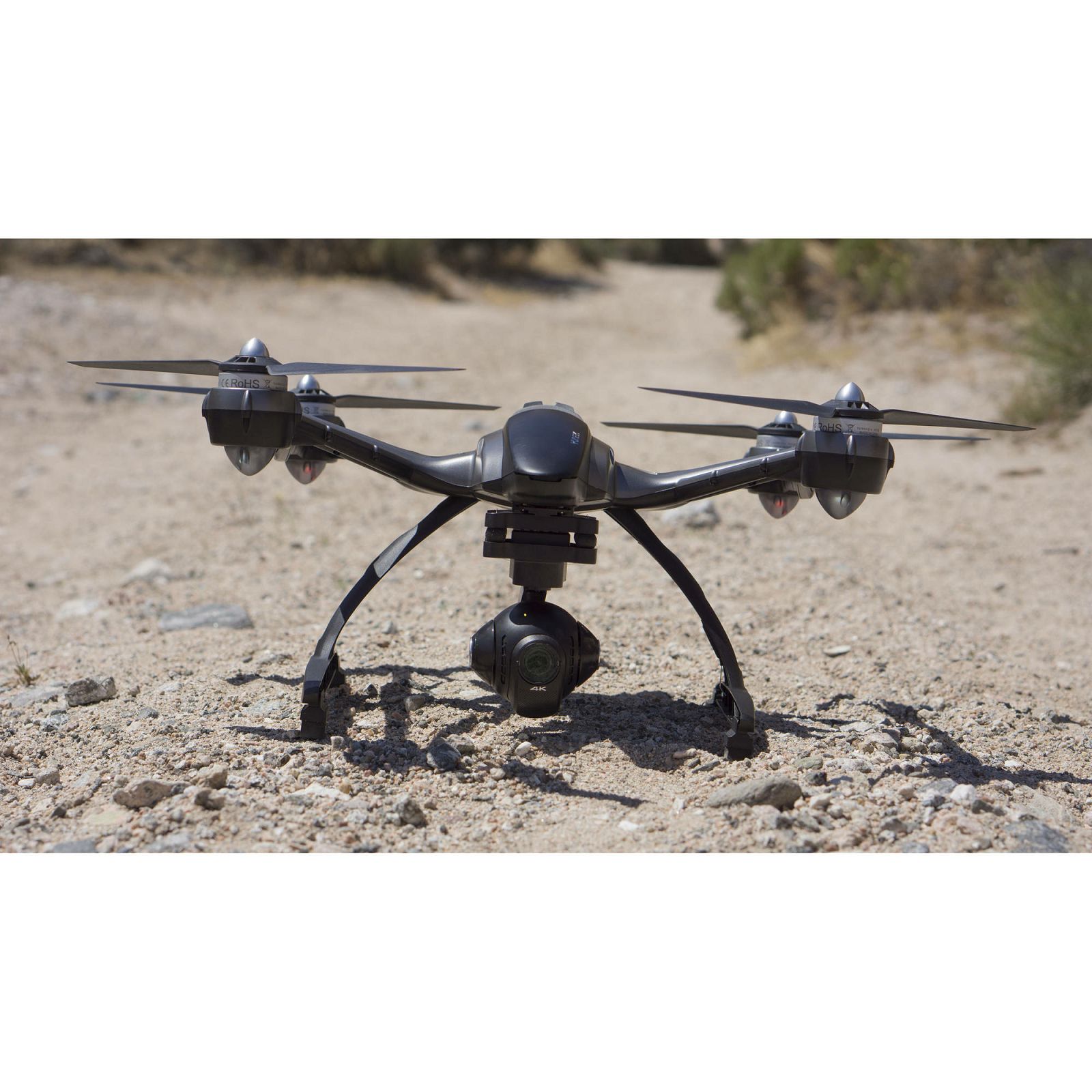

A completion level of ready-to-fly (RTF) means this version of the Q500 4K Typhoon Quadcopter with CGO3-GB Camera Camera from Yuneec comes factory-assembled and that a pre-bound transmitter/ground station unit (radio controller) is included. More than just an RC multi-rotor, the Q500 4K Typhoon is designed for APV - aerial photography and video. To this end, it incorporates the CGO3-GB, a 3-axis gimbal-stabilized camera with 4K video recording, 1080p video recording at up to 120 fps, and shoots photos at 12-megapixels.

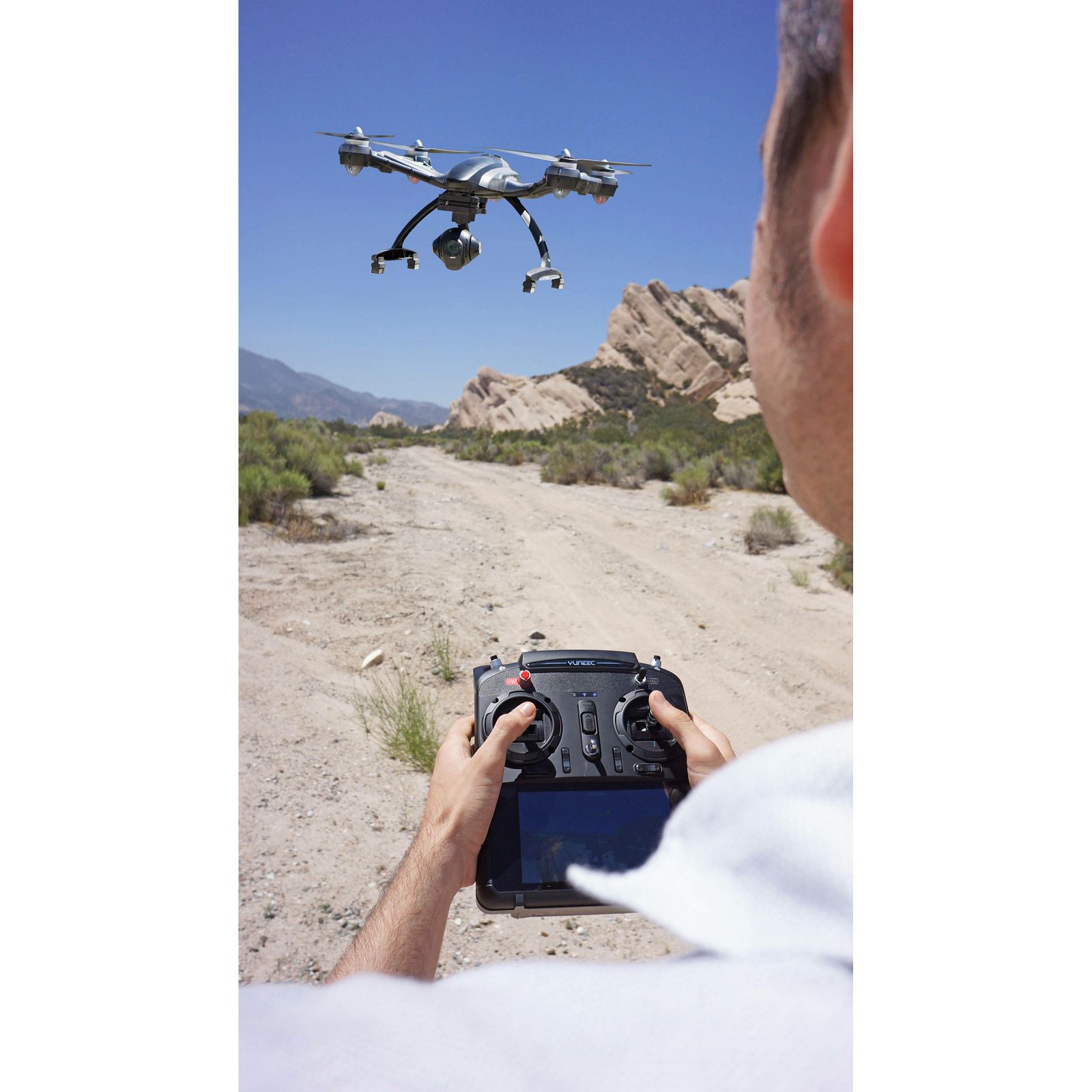

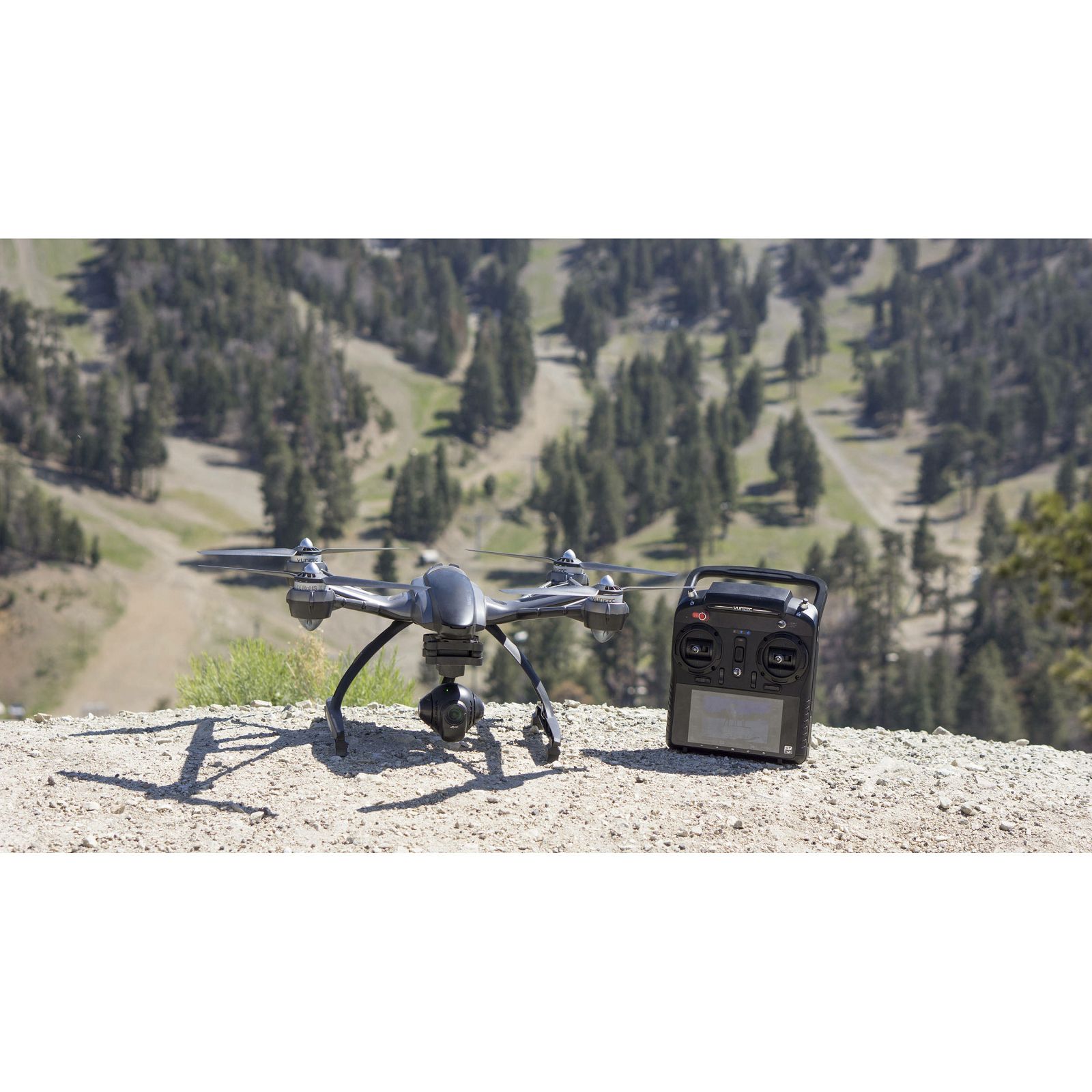

The Q500 4K Typhoon is bundled with the ST10+ Personal Ground Station, a 10-channel, 2.4 GHz transmitter and 5.8 GHz video receiver rolled into one hand-held unit. In addition to traditional RC joysticks to pilot the quadcopter, there is a built-in Android mobile device which boasts a 5.5" touchscreen - a bump from the original ST10, which has a 4.5" screen. It allows you to view an FPV (first-person view) video image from the camera along with telemetry data superimposed, as well as access settings not available through normal transmitter.
As part of the RTF bundle, if features one 5400mAh flight battery, providing up to 25 minutes flying per charge - depending on wind-resistance and other factors.
CGO3-GB 4K Camera with 3-Axis Gimbal
The included CGO3-GB combines a 12-megapixel, 4K camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. In addition to 4K, the camera can shoot 1080p at 120 fps for slow-motion as well as 60p, 50p, and 48p. A built-in microphone enables audio recording and can be turned on or off via the ST10+ or mobile app. Photos can be captured in JPEG or DNG RAW and it is possible to snap photos while recording video

For live view and remote operation, the camera features an integrated 5.8 GHz Wi-Fi downlink that enables operation and viewing from the 5.5" touchscreen on the ST10+ Personal Ground Station. You can also pair with a mobile device using the free mobile app - available at Google Play and iTunes app stores. The app or ST10+ offer control over resolution, white balance, ISO, and shutter speed. A smartphone holder that mounts on the ST10+ is included

The camera features a wide angle 130-degree FOV lens. While the gimbal that supports it features a control angle accuracy of ±0.02°. High quality video and stills are recorded to a microSD card up to 128GB in size. Low quality, upload-friendly versions can be saved onto a mobile device
ST10+ Transmitter/Personal Ground Station

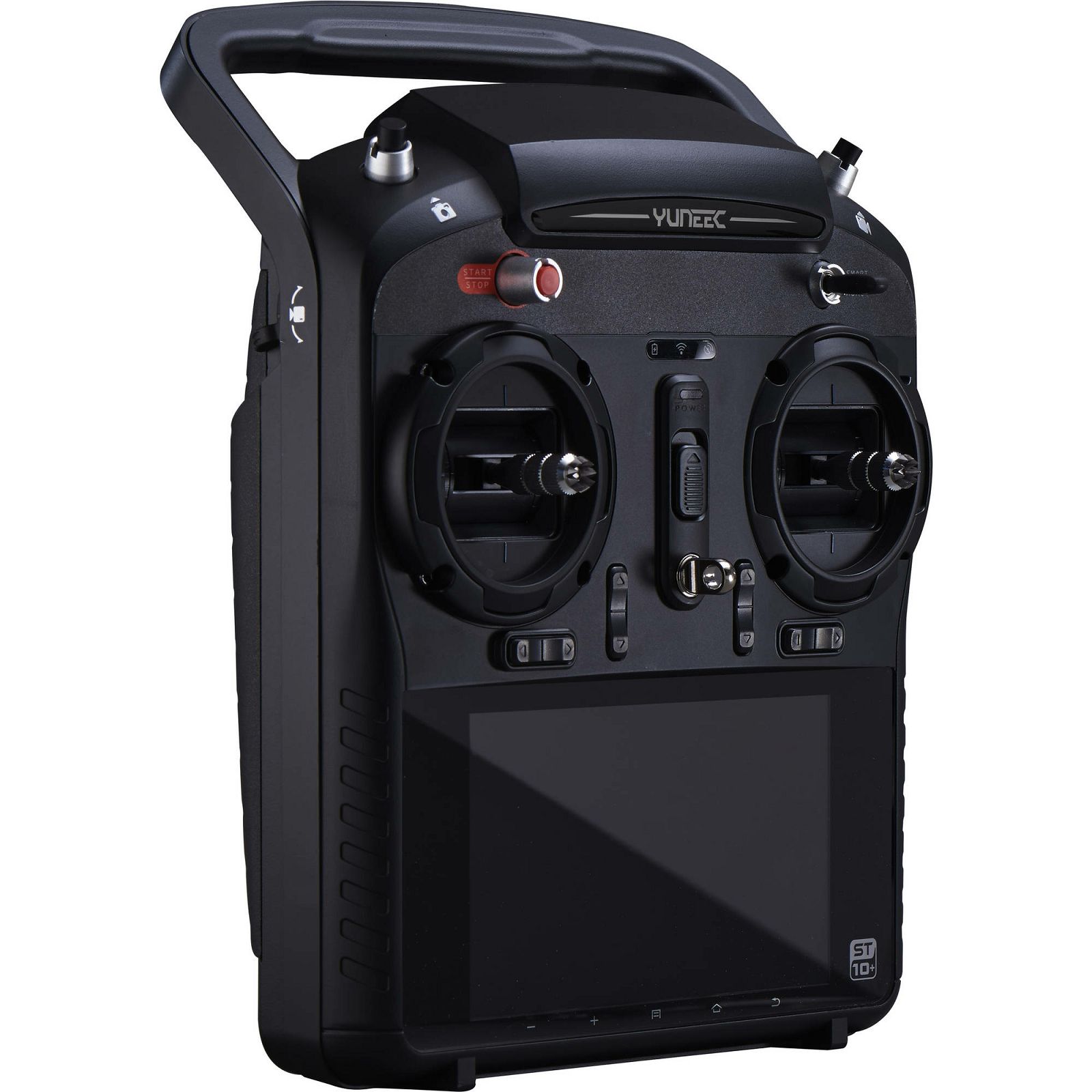

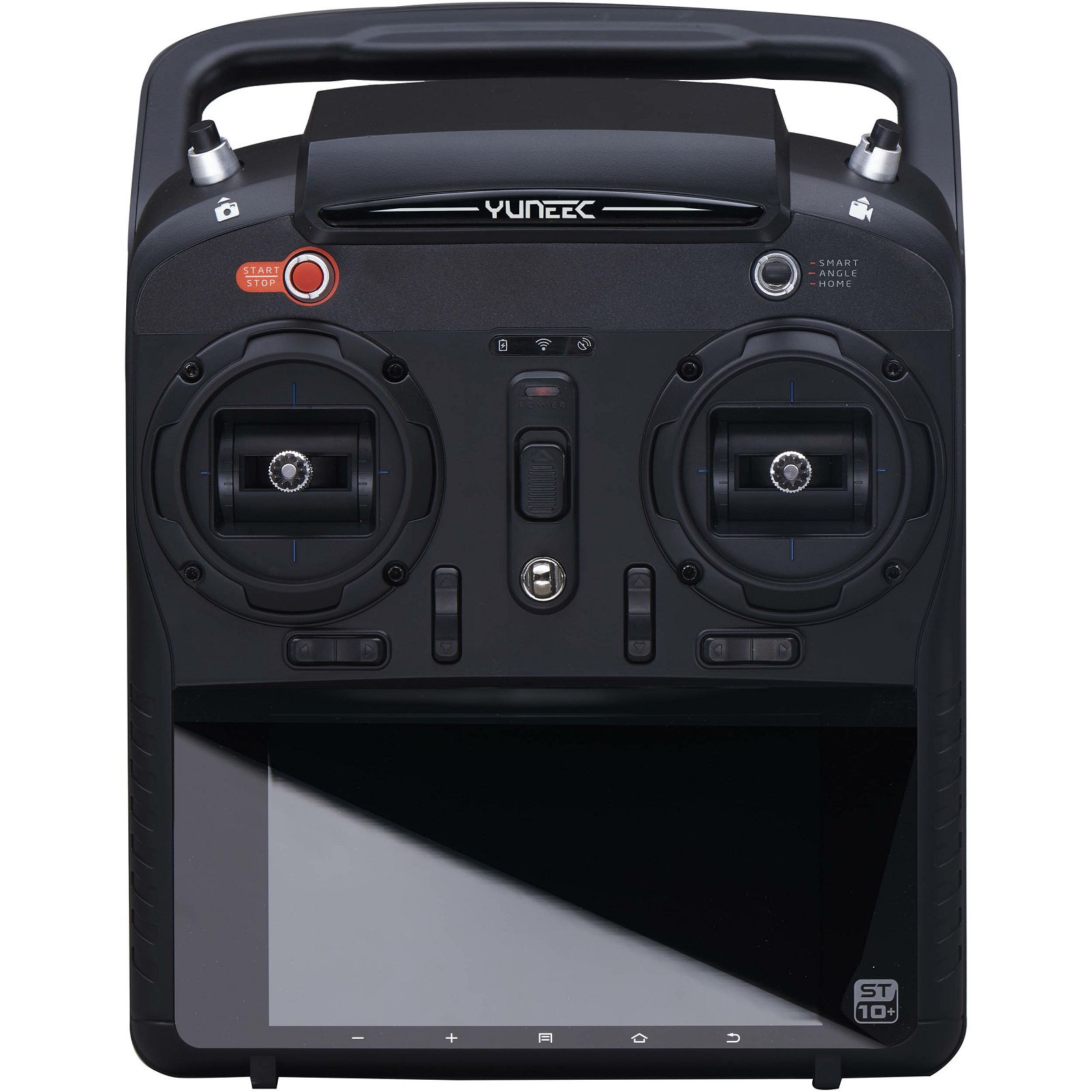

Transmitter (hand-held radio controller) and ground station system are combined into one device with the 10-channel ST10+. It features a 2.4 GHz transmitter for joystick operation of the quadcopter. In addition, there is a 5.8 GHz-range receiver for the video feed from the camera plus telemetry data. Updates over the original ST10 include a brighter touchscreen that is now 5.5" in size. The screen plus embedded Android OS enable you to control the camera as well as view a live feed from it, complete with telemetry data overlaid (OSD)
Flight Control Features
No-Fly Database
The Q500 4K Typhoon flight computer has access to a database of published FAA no-fly areas - such as zones near airports. Additionally, the maximum flight altitude can be locked to remain below 400' AGL (above ground level) for further compliance
Flight Modes
Smart Mode
Designed for beginners, this mode uses GPS to establish a 26' "SAFE Circle" around the pilot. Stick relativity is maintained, meaning the aircraft will move in the same direction the stick is pressed is relative to the pilot, regardless of which way the quadcopter's actual "nose" is pointing. A "virtual barrier" imposes maximum radius of 300', help to ensure visual with the quadcopter is always maintained
Angle Mode
This mode is optimized for experienced pilots using the Q500 4K Typhoon for aerial photography. It provides more control and steeper bank and pitch angles, helping open your work up to a greater variety of possible shots
Home Mode
This safety feature can be activated at any time with the simple flip of a switch on the ST10+. When activated, the Q500 4K Typhoon will automatically return to its "home point" and land within a 10' circle of where it took off. If for whatever reason the transmitter signal is lost, Return Home will take over and fly the Q500 4K Typhoon back to the home point until it lands or the signal is restored

Note: Proper GPS calibration is required to ensure this feature works correctly
Includes CGO3 SteadyGrip

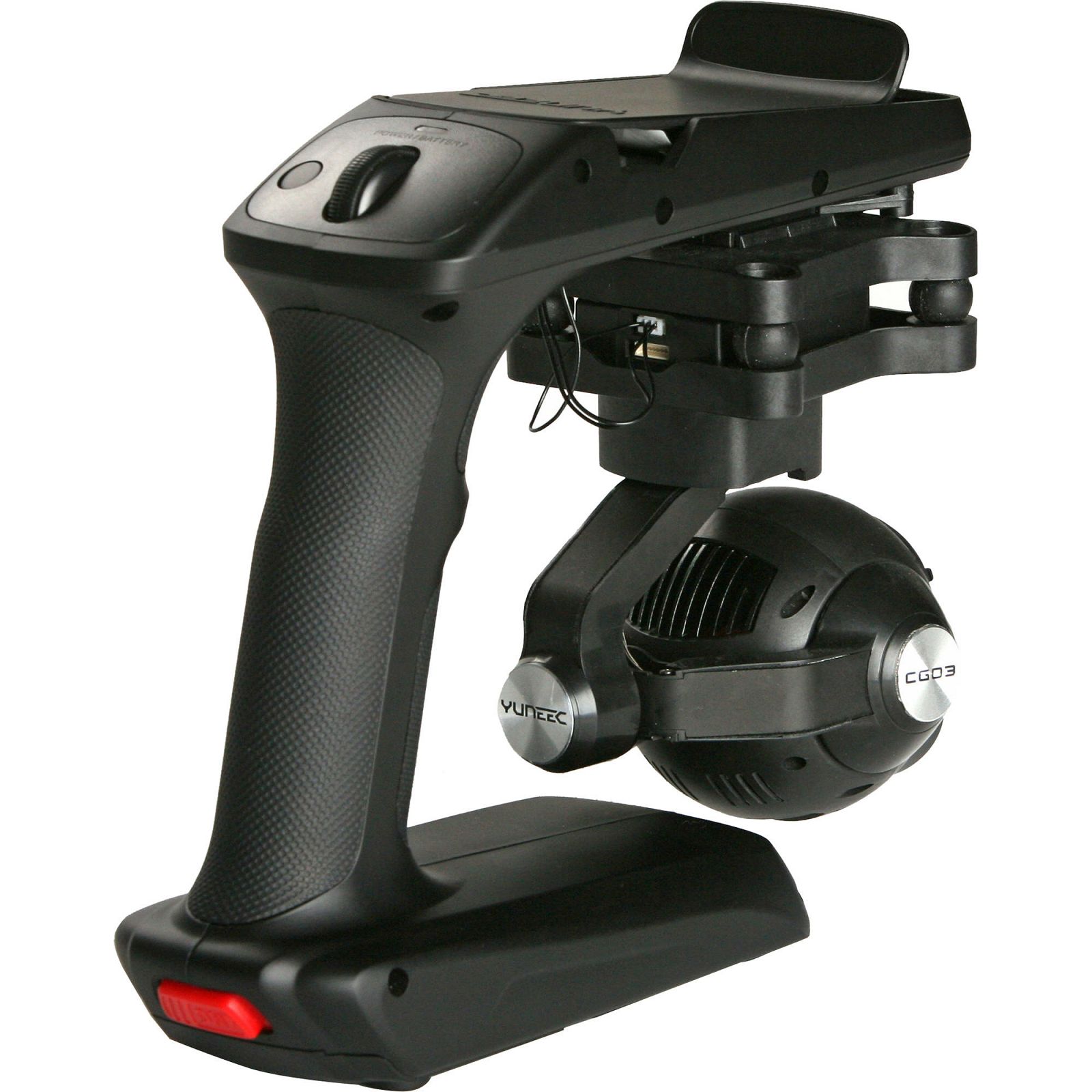

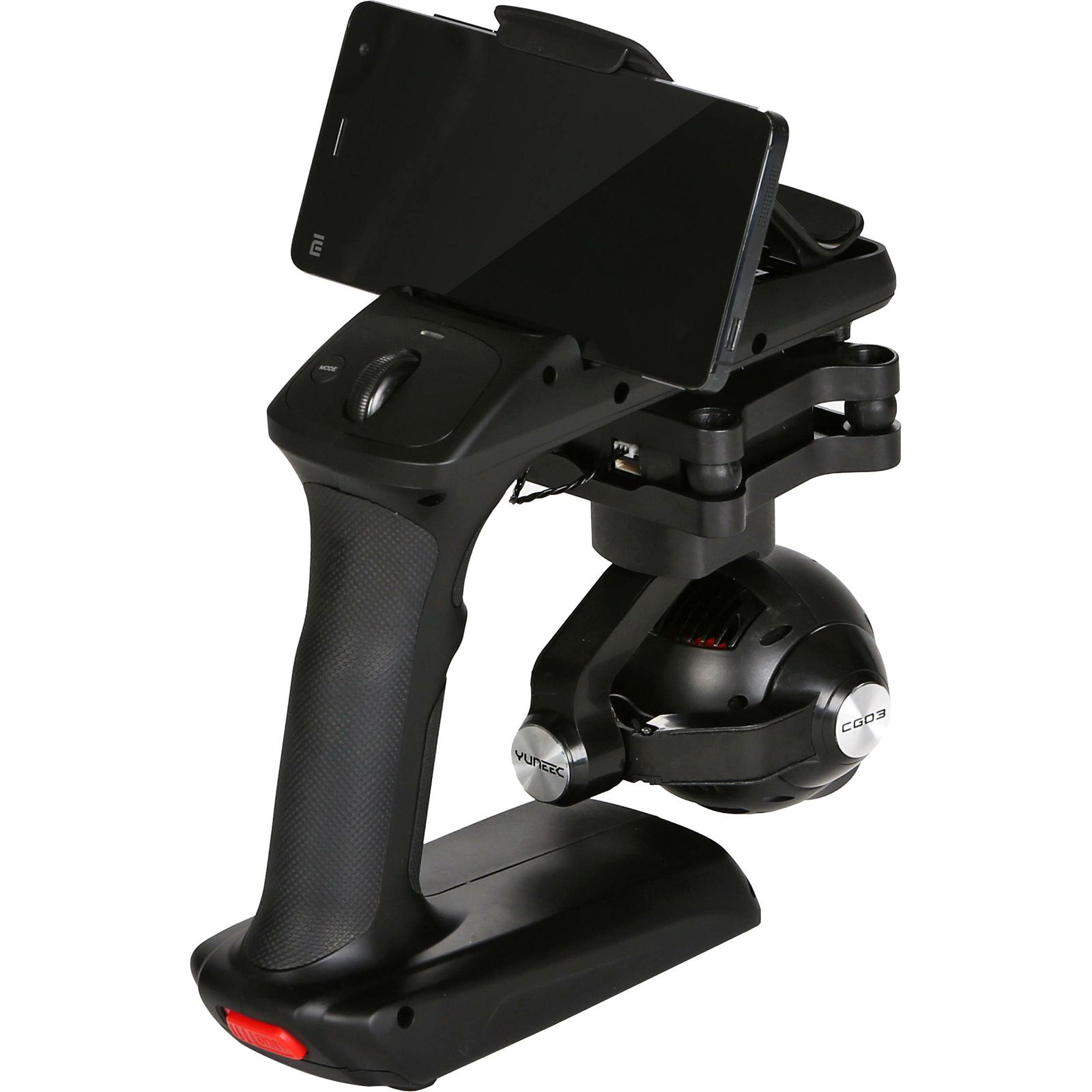

Transform the CGO3-GB camera and gimbal into a handheld, stabilized mini-rig with the included CGO3 SteadyGrip. It features a smartphone holder for iOS and Android devices that have screens up to 6.4" so that you can use the app to monitor a live feed and operate camera settings (5.8 GHz Wi-Fi support on the mobile devices is required). The gimbal slides on with rail attachment for quick setup and draws its power from six AA batteries that are housed in the base (batteries available separately). A pitch control roller on the top of the handgrip allows you to manually adjust camera tilt while shooting

Note: This version of the SteadyGrip is not the same as the version used by the CGO2-GB camera (YUNCGOSTG100)

SPECIFIKACIJE:

Performance
Flight Time Up to 25 minutes (depending on flying conditions)
Maximum Flying Height 400' / 121.9 m above ground level

Note: Adjustable via the Q500 GUI
Maximum Rotational Velocity 65°/s
Maximum Bank Angle 35°
Maximum Climb Rate Smart and Angle Mode: 9.8 fps / 3 m/s
Maximum Descent Rate Smart and Angle Mode: 6.6 fps / 2 m/s
Takeoff Weight With Battery and CGO2-GB Camera: 3.7 lb / 1.7 kg
Camera
Model CGO3-GB
Focus Fixed
Resolution Video: 4K
1080p at 120, 60, 50 or 48 fps
Photo: 12 MP
White Balance Automatic
Audio Audio recording via integrated microphone (turn on/off with app)
File Formats Photo: JPEG, DNG RAW
Recording Media microSDHC/XC Class 10: 4 to 128 GB
Power Requirements 7 to 14 VDC (powers from flight battery)
Temperature Storage Temperature: -4 to 140°F / -20 to 60°C
Operating Temperature: 32 to 122°F / 0 to 50°C
Weight 6.5 oz / 185 g
Gimbal
Control Angle Accuracy ±0.02°
Steady Grip
Dimensions 8.8 x 3 x 7.1" / 223 x 75 x 181 mm
Weight Without Camera / Gimbal: 13.9 oz / 395 g
Video Transmitter
Frequency 5.8 GHz
Range Up to 984.3' / 300 m line-of-sight
Transmit Power 500 mA (average) to 600 mA (peak) at 12 V (7.2 W maximum)
Flight Battery

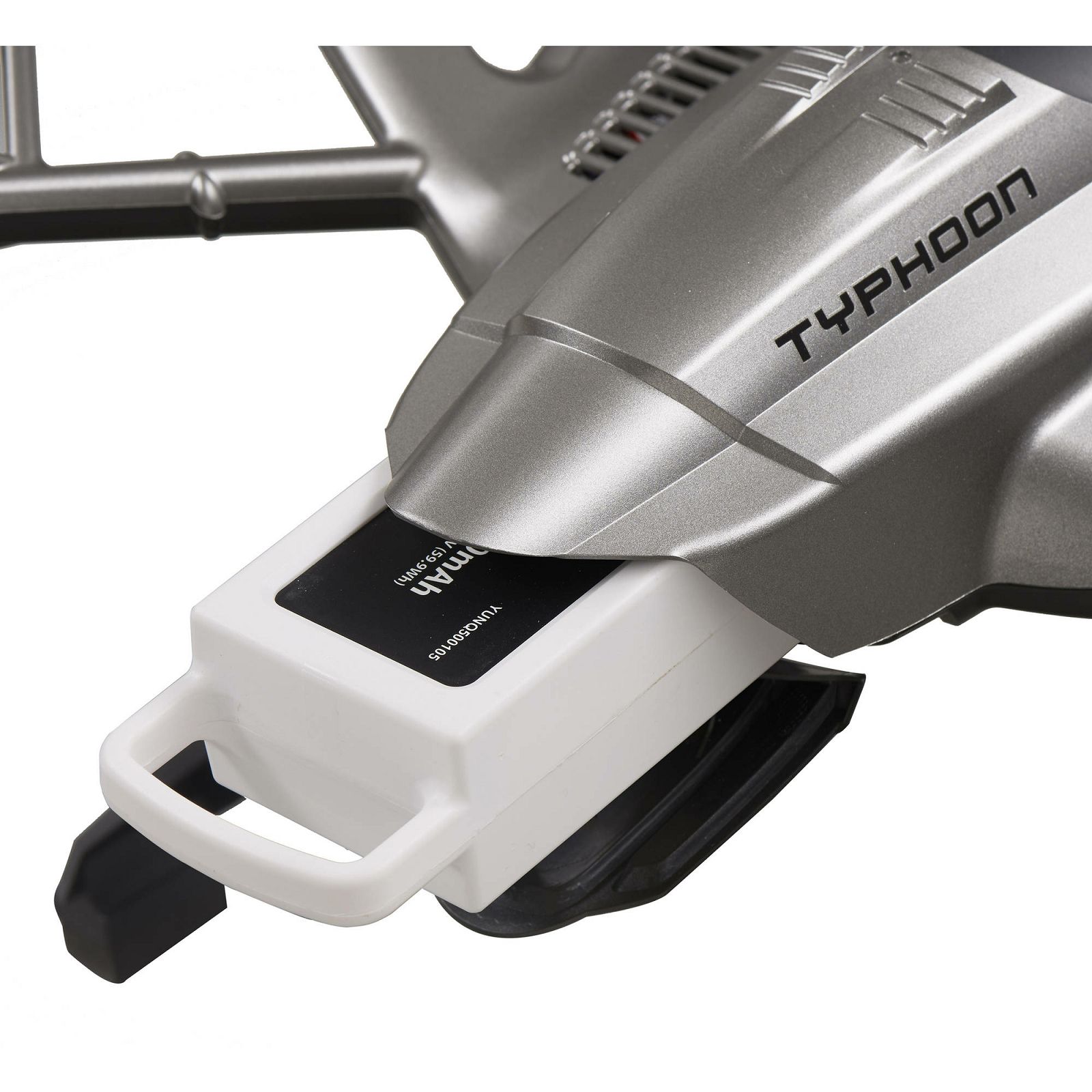

Capacity 5400 mAh
Chemistry Lithium-polymer
Voltage 3S (11.1 V)
Charger
Model SC 3500-3 Balancing Smart Charger
Supported Chemistries Lithium-polymer
Charge Voltage 12.6 VDC; 3.5 A / 45 W maximum
Fuse 7.5 A
Power Requirements 10.5 to 15 VDC; 5 A (100 to 240 VAC adapter included)
Transmitter
Model ST10+ Personal Ground Station
Frequency Control Channels: 2.4 GHz
Video Receiver: 5.8 GHz
Channels 10
Flight Modes Smart
Angle
Home Modes
Operating System Android
Number of Channels 10
Range Control Signal: Up to 2624.7' / 400 m line-of-sight under optimal conditions
Display Size: 5.5"
Interface: Capacitive multi-touch
OSD Flight systems telemetry data can be viewed on-screen
Feedback Tactile (vibrating) and audible feedback
Power Requirements Built-in Battery:
3.6 V; 5200 mAh, 18.7, Wh
Charger 5 V USB charging (AC adapter included)
General
Dimensions Height: 9.4" / 240 mm
Width: 16.5" / 420 mm
Diagonal Length without Rotor Blades: 22.2" / 565 mm

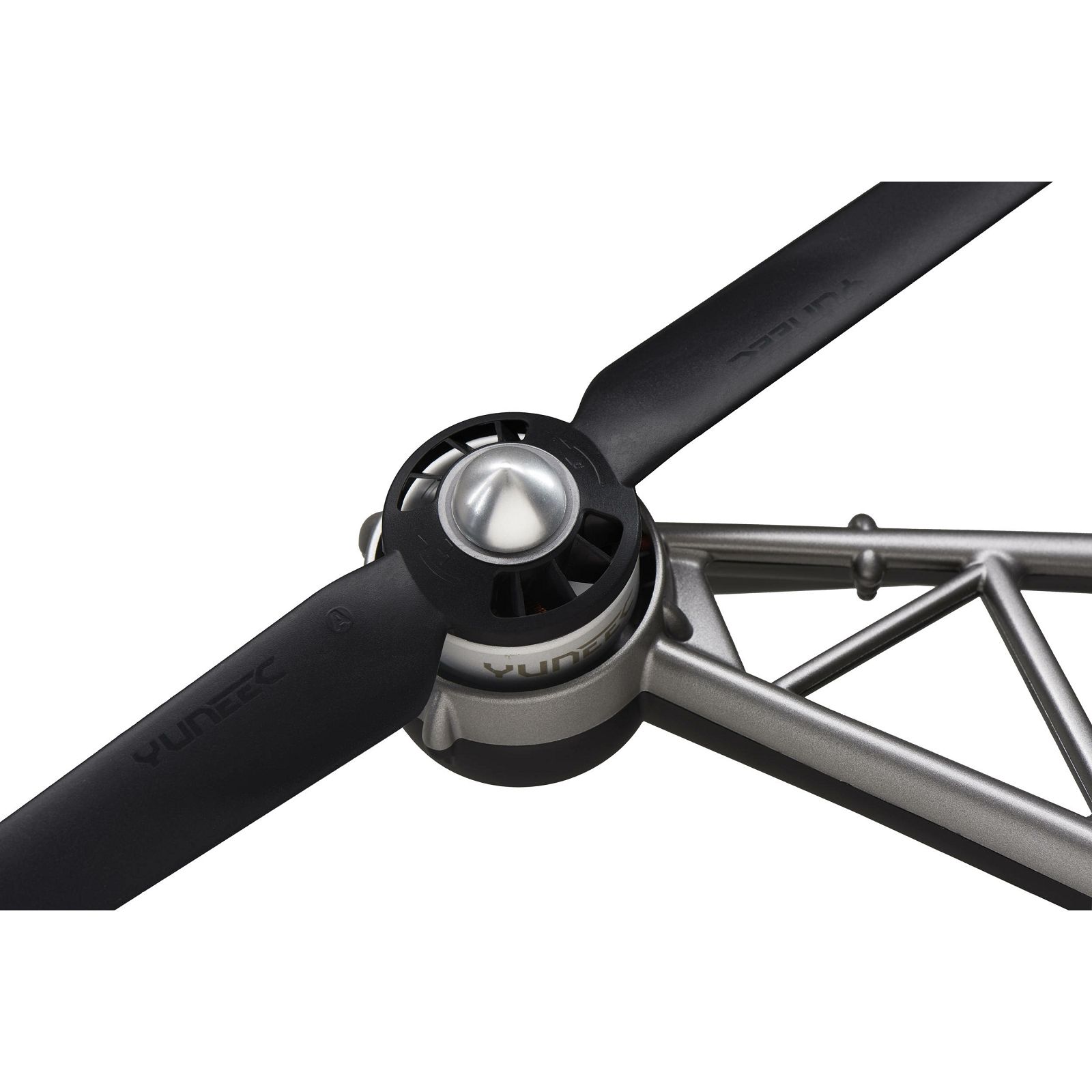

Propeller/Main Rotor Diameter: 13" / 330 mm
Weight Without Battery and Payload: 2.5 lb / 1.1 kg

UKLJUČUJE:

Typhoon aircraft
ProAction Steadygrip™
GO3 4K gimbal camera
1 LiPo Batterie
2 sets of rotor blades
AC to DC adapter
8GB micro SD card
Sun shield
Neck strap
USB Interface
