Yuneec Typhoon H PRO dron s 4K 12MP kamerom + ruksak + 2 baterije (YUNTYHBPEU)

ZNAČAJKE:

Designed for Aerial Photo and Video
Capture Up to 4K Video/12MP Still Photos
RealSense Collision Avoidance System
3-Axis Gimbal Pans Full 360°
ST16 Ground Station/Transmitter
7" Touchscreen to View/Operate Camera
Autopilot Functions
Wizard Wand for Two-Operator Control
Folds Up for Easy Transport
Includes Two Batteries / Backpack

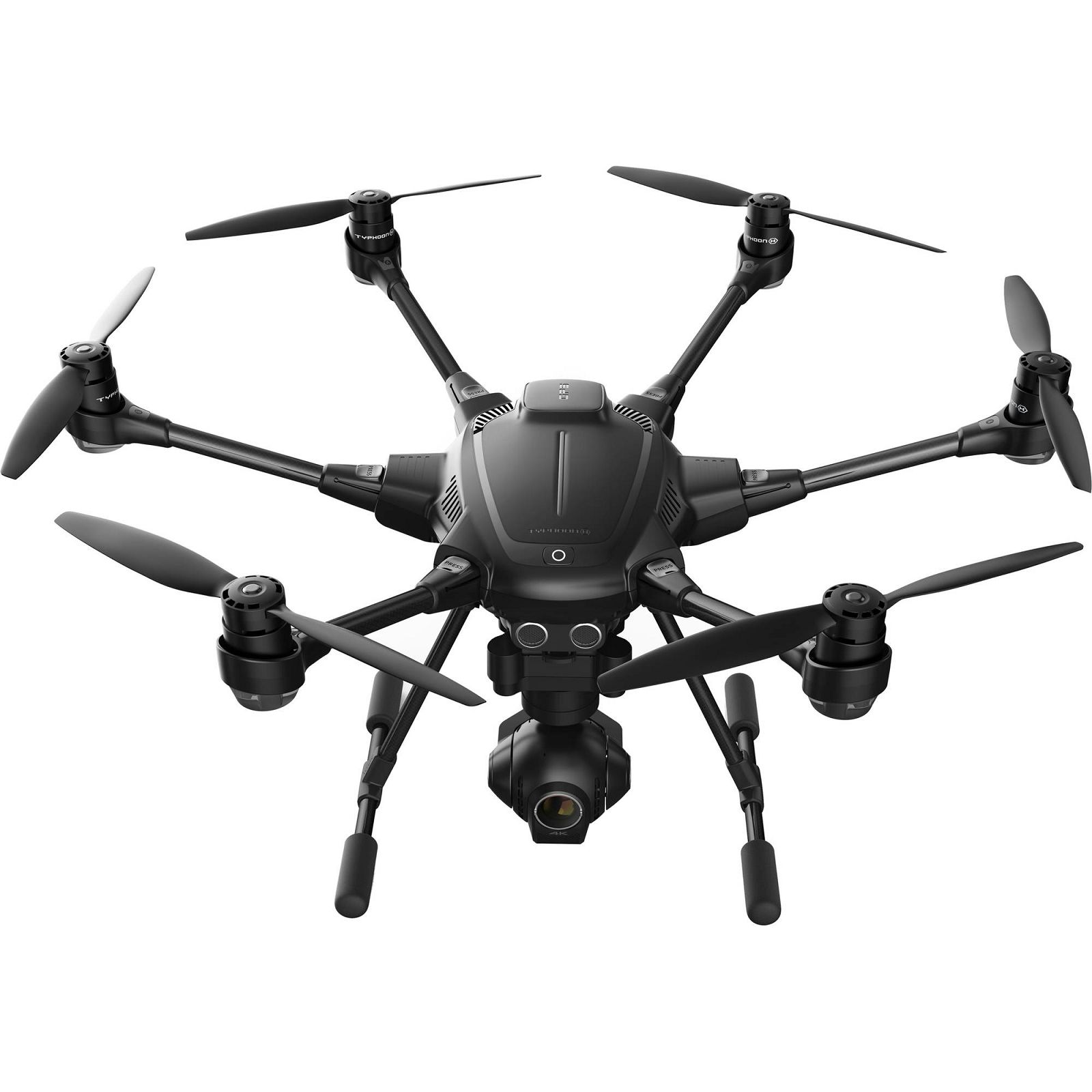

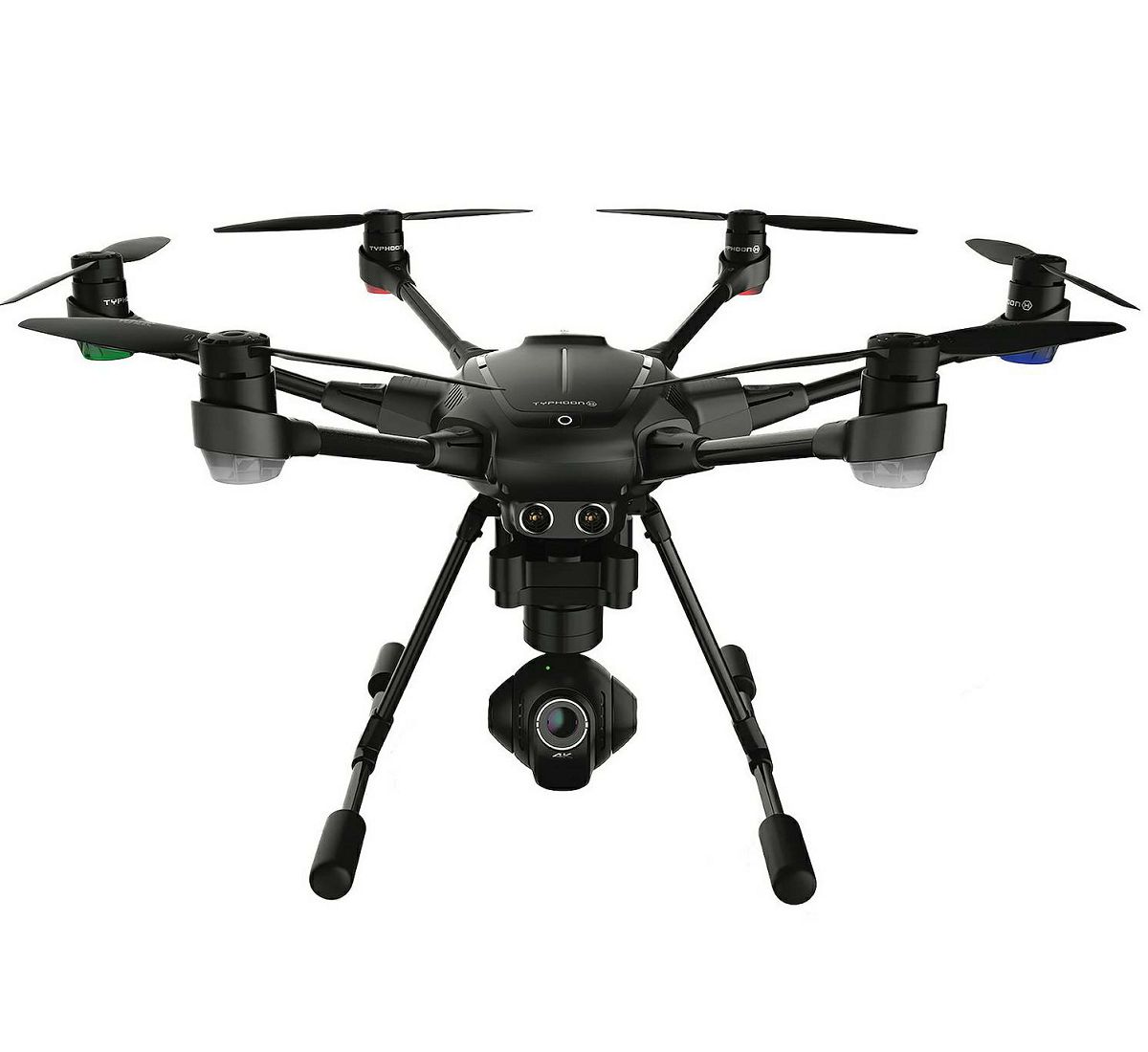

This version of the Typhoon H from YUNEEC employs Intel RealSense Technology for enhanced autonomously flying. This navigation aid maps the environment in 3D to help avoid obstacles and provide positional data when GPS is limited or unavailable. Additionally, the hexacopter hexacopter features the GCO3+ gimbal-stabilized, 4K camera with 12MP stills mode, making it a perfect choice for aerial imaging of all types. The Typhoon H's hexa-rotor design offers better flight stability and more precise control compared to four-rotor systems – plus, it means failure of a single motor will not be fatal. The landing gear retracts in-flight, offering an unobstructed 360 degrees of shooting. Carbon fiber parts and folding motor arms reduce the Typhoon H's weight and profile for easy transport – even to the remotest of locations.

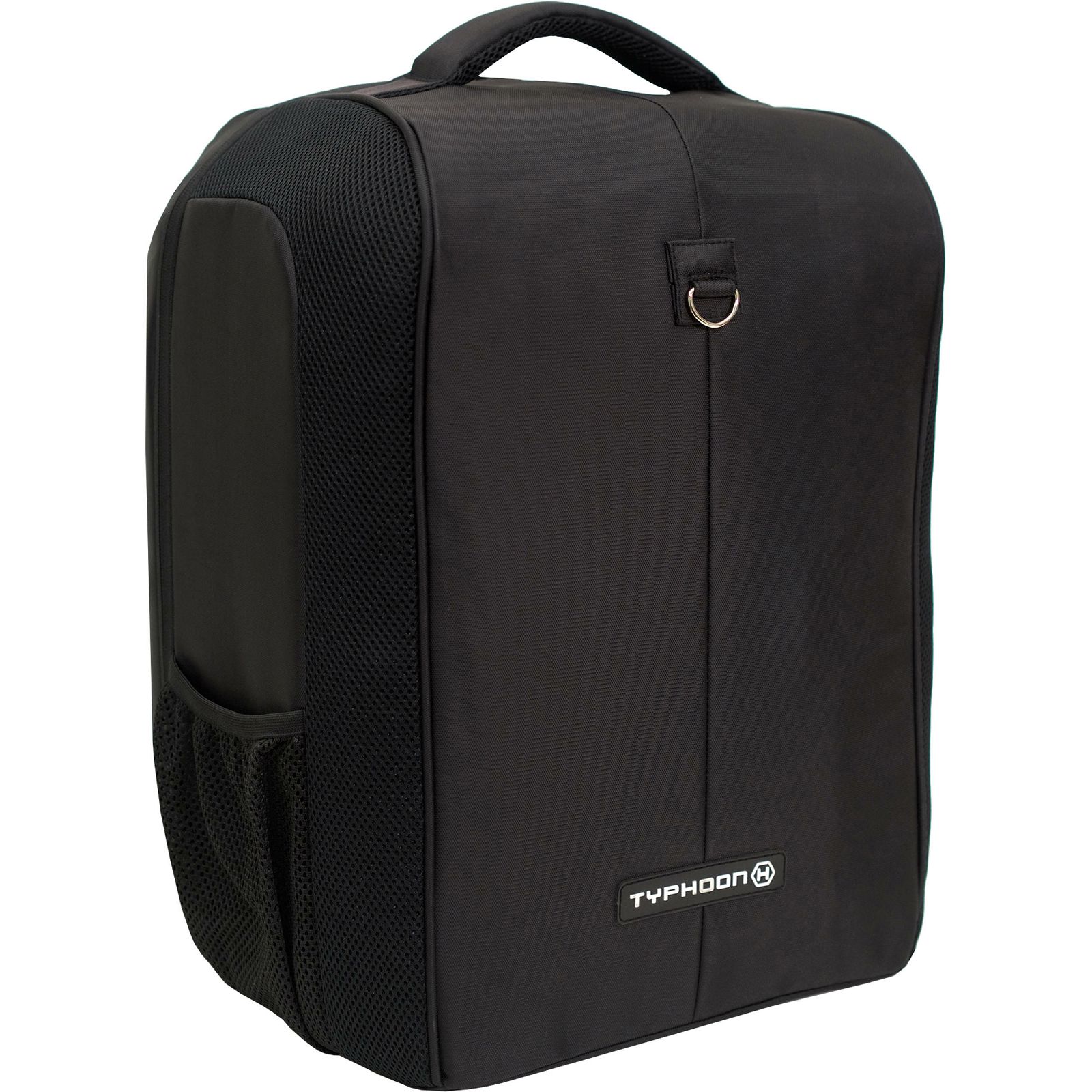

This bundle features the ST16 smart transmitter (radio controller), two flight batteries, the Wizard Wand controller, and a soft backpack.

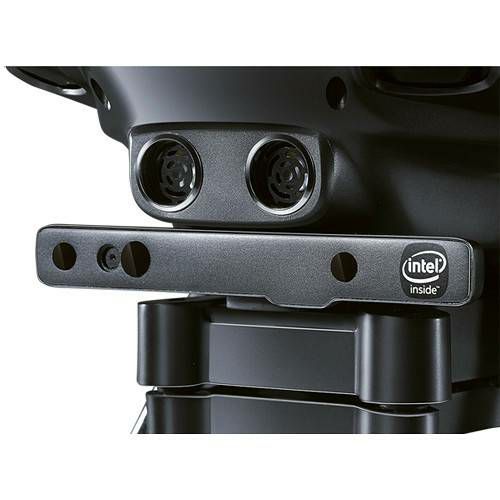

Intel RealSense Technology
Intel RealSense Technology enables the Typhoon H to fly autonomously, intelligently navigating around objects and taking both safety and your creative options to the next level
The Intel RealSense R200 Camera and the Intel Atom processor module work seamlessly with the flight control firmware to add intelligent obstacle navigation
With a combination of specialized cameras and sensors, this system maps and learns its environment in 3D, recognizing each obstacle, planning an alternative route, and navigating around it
The module adds downward facing sensors to improve stability, enabling indoor flight as well as outdoor flight when close to the ground, even with poor GPS reception
Remembers previously avoided objects for future reference
Intel Atom-powered sensor module
Dedicated RealSense R200 camera
Flight Control System
No Fly Zones
The No Fly Zone preset locks the Typhoon H's flight ceiling at 400' above ground level at the takeoff point. This feature helps ensure compliance with FAA sUAS operational guidelines. In addition, Geo-Fencing can be enabled to further restrict possible flight patterns, locking the hexacopter within a user-defined radius of the pilot
Dynamic Return to Home
Simply switch to Home Mode and Typhoon H will return and land within 26' of you
Point-of-Interest (POI)
Locks the hexacopter in a circular orbit pattern around the takeoff point. This mode is especially useful for creating a circular "tracking" shot with a bird's eye view. In this mode the camera can still be moved independently
Orbit Me
The Typhoon H flies a circular path around you, keeping the camera trained on you the whole time. This is similar to Point-of-Interest, except locking onto the pilot rather than an arbitrary object
Journey
The Typhoon H will fly up and out, as far as 150', and capture the perfect aerial selfie
Curve Cable Cam
Program an invisible route for Typhoon H to fly along. Typhoon H will fly between pre-set coordinates while independently controlling camera position
Watch Me / Follow Me
Watch Me ensures Typhoon H will stay in one place and always point the camera at you wherever you go. Follow Me tells Typhoon H to keep the camera pointed at you as it moves along with you

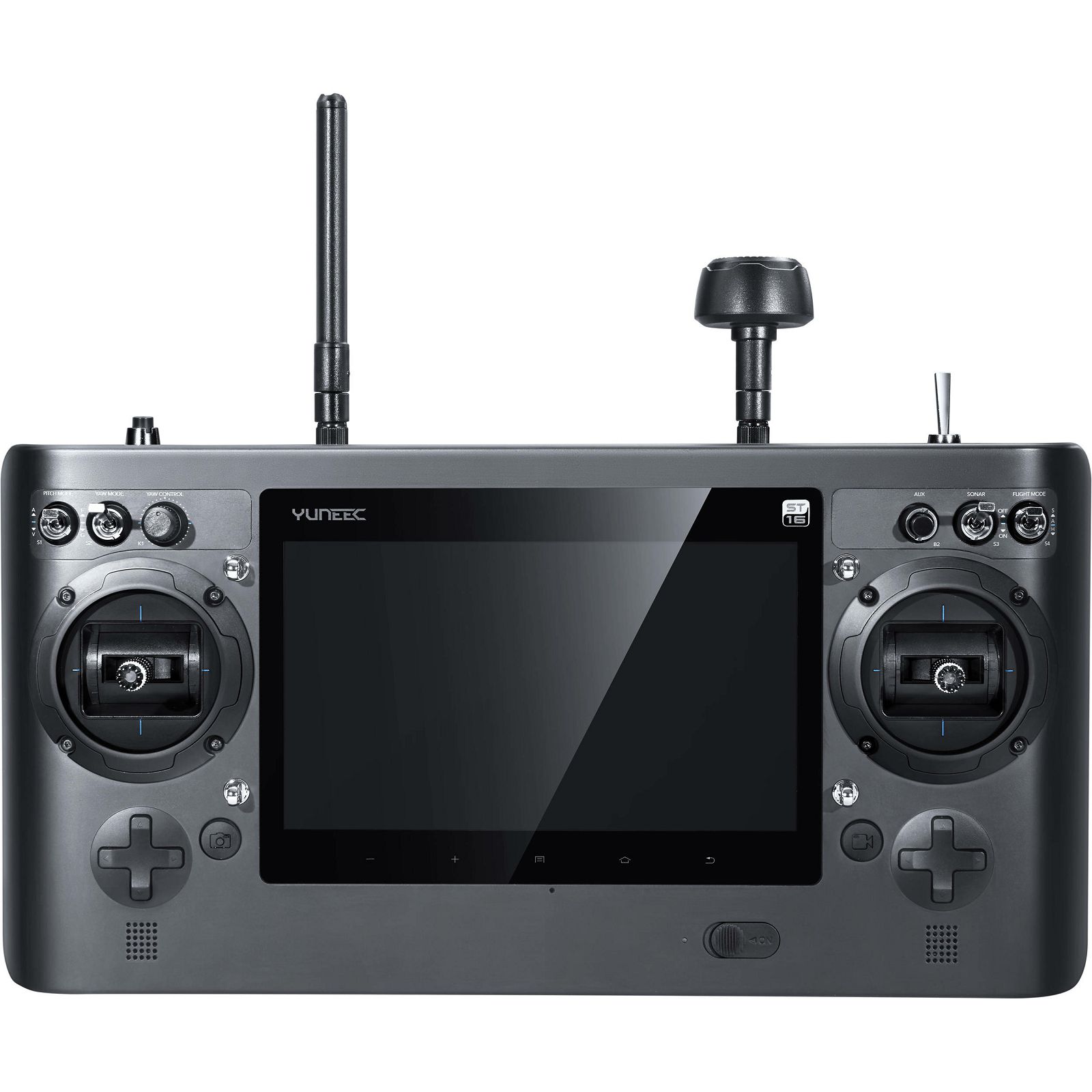

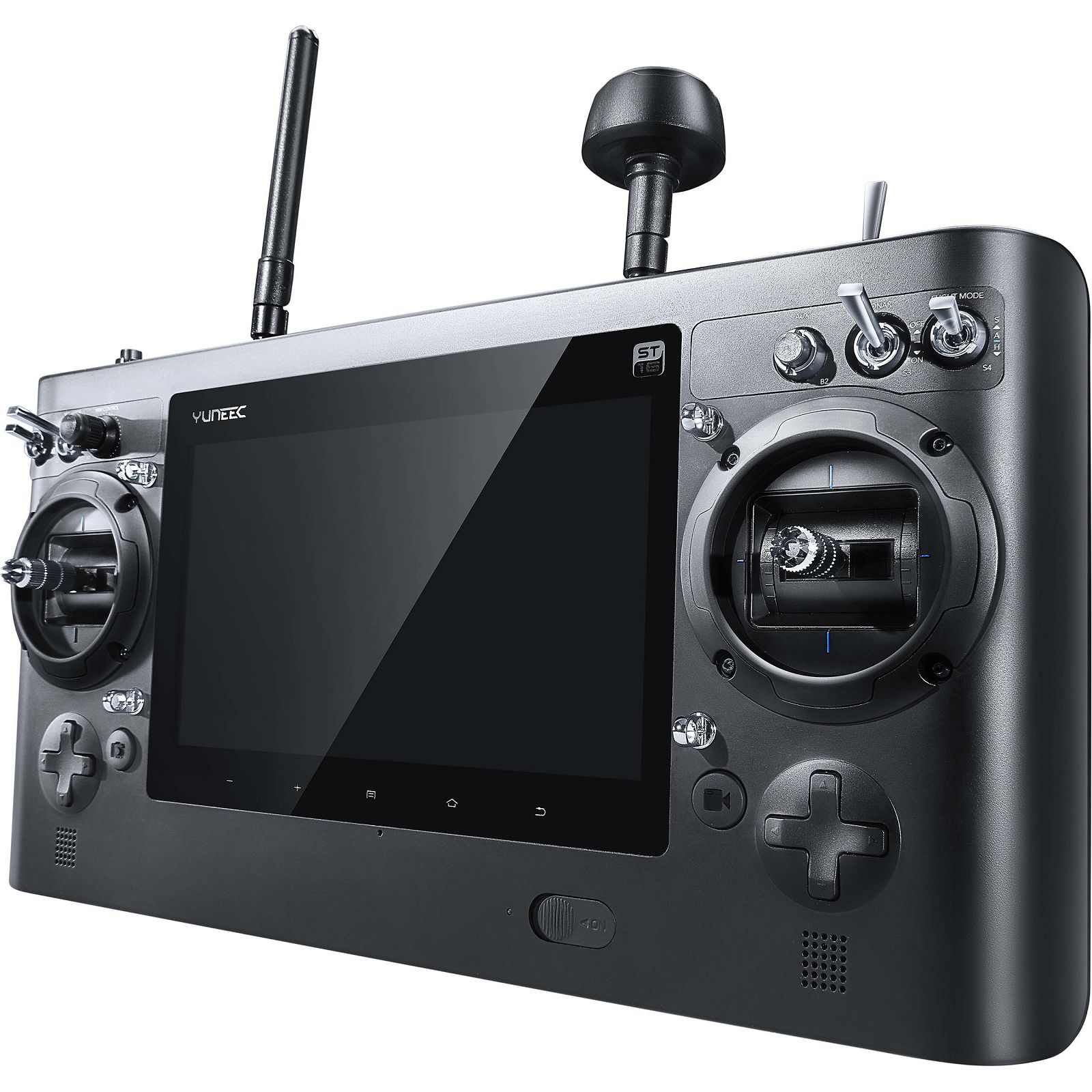

ST16 Personal Ground Station
Transmitter (handheld radio controller) and ground station system are combined into one device with the included 16-channel ST16. It features a 2.4 GHz transmitter for joystick operation of the quadcopter. In addition, there is a 5.8 GHz-range receiver for the video feed from the camera plus telemetry data. For ground station functions, it features a built-in Android device with 7" touchscreen
7" Built-In FPV Display
View a live feed on the ST16's 7", 720p resolution display. In addition, it can show telemetry data from the flight controller, such as altitude, GPS coordinates, and remaining battery life. Settings can be accessed via its touchscreen interface
CGO3+ 4K Camera with 3-Axis Gimbal
The included CGO3+ combines a 12-megapixel, 4K camera and a 3-axis brushless gimbal into a single unit designed to capture stabilized aerial video and still images. For live view and remote operation, the camera features an integrated 5.8 GHz video downlink that enables operation and viewing from the 7" touchscreen on the ST16 Personal Ground Station. You can also pair with a mobile device using the free mobile app – available at Google Play and iTunes app stores

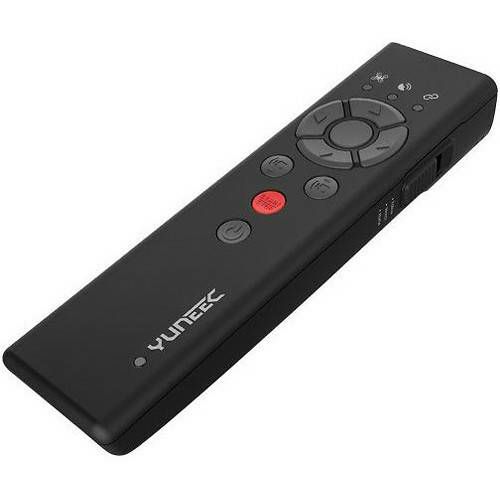

Wizard Wand for Two-Operator Control
The included Wizard Wand is a TV remote-style controller that can be used alongside the ST16. This means better videos and photos with one operator piloting the drone and one operating the camera
Airframe Design
One Motor Failure Survivability
A benefit of six rotors is that one can fail without stalling the aircraft. When the flight controller detects a motor failure, it adjusts its parameters to compensate. Maneuverability and performance will be greatly reduced; however, it gives you the chance to safely land the aircraft

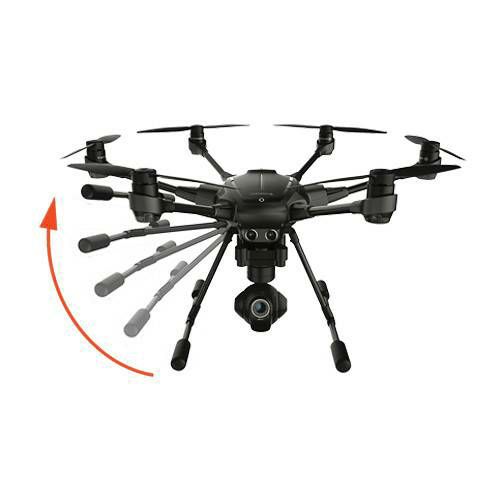

Retractable Landing Gear
The landing gear retracts during flight to provide the camera an unobstructed 360° of shooting

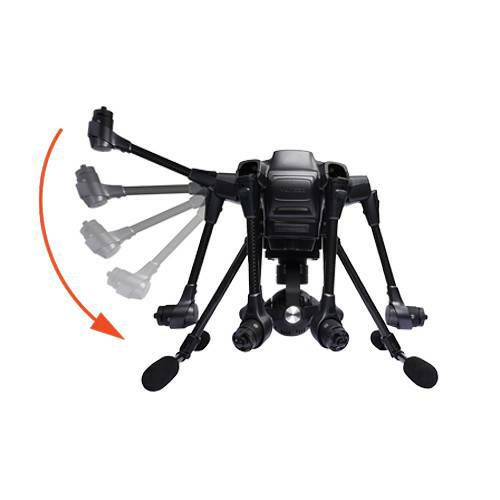

Collapsible Design
The Typhoon H features quick-disconnect propellers for speedy breakdown. Additionally, each rotor arm folds down to a resting position against the drone for a more compact profile that is easier to transport
Carbon Fiber Parts
Carbon fiber components are used extensively to decrease weight and increase durability

SPECIFIKACIJE:

Performance
Flight Time Up to 22 minutes
Maximum Flying Height 400' / 122 m above takeoff elevation (software enforced)
Maximum Rotational Velocity 85 degrees/second
Maximum Roll Angle 35°
Maximum Horizontal Speed Angle Mode: 32.8 fps / 10 m/s
Maximum Climb Rate 16.4 fps / 5 m/s
Maximum Descent Rate 8.2 fps / 2.5 m/s
Takeoff Weight 4 lb / 1.8 kg
Camera
Model CGO3+
Lens Focal Length: 14mm (35mm equivalent)
Aperture: f/2.8
FOV: 115°
Focus: Fixed
Resolution Video:
UHD 4K (3840 x 2160): 30p

Photo: 12 MP
Shutter Speed 1/30 to 1/8000 second
Power Consumption 10 W
Weight 8.8 oz / 250 g
Gimbal
Control Angle Accuracy Yaw (Pan): 360°
Video Transmitter
Frequency 5.8 GHz (5.2 to 5.8 GHz)
Range Up to 1400' / 400 m line-of-sight

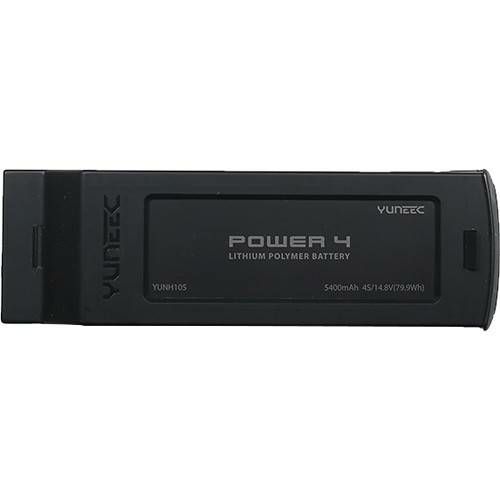

Flight Battery
Capacity 5400 mAh
79.9 Wh
Chemistry Lithium-ion polymer (LiPo)
Voltage 4S (14.8 V)
Charger
Model SC4000-4
Transmitter
Model ST16
Operating System Android
Range Control: 3000' / 1000 m
FPV Display Size: 7"
Resolution: 720p
Charger 5 V USB charging (AC adapter included)
Motors
Stator Size 22 x 13 mm
Motor Velocity Constant 850 Kv
Maximum Power 200 W
ESCs
Working Current ?15 A
Working Voltage 12 to 25 V
Signal Frequency 50 to 400 Hz
Drive PWM Frequency 16 kHz
General
Configuration Hexacopter
Packaging Info
Package Weight 17.9 lb
Box Dimensions (LxWxH) 19.5 x 16.9 x 12.6"

UKLJUČUJE:

YUNEEC Typhoon H Hexacopter with Intel RealSense, GCO3+ 4K Camera, Wizard Wand, and Backpack
CGO3 4K 3-Axis Gimbal Camera for Typhoon Q500 4K Quadcopter
ST16 Personal Ground Station / 16-Channel Transmitter
3 x Antenna for Transmitter
2 x 5400 mAh LiPo Battery for Typhoon H Hexacopter
AC / DC Flight Battery Charger with Car Adapter
USB Adapter Cord
2 x Quick Release Propeller Set
