Zhiyun Evolution 3-Axis Gimbal za GoPro

ZNAČAJKE:

Features three 32-bit MCUs running in parallel at 4000 Hz

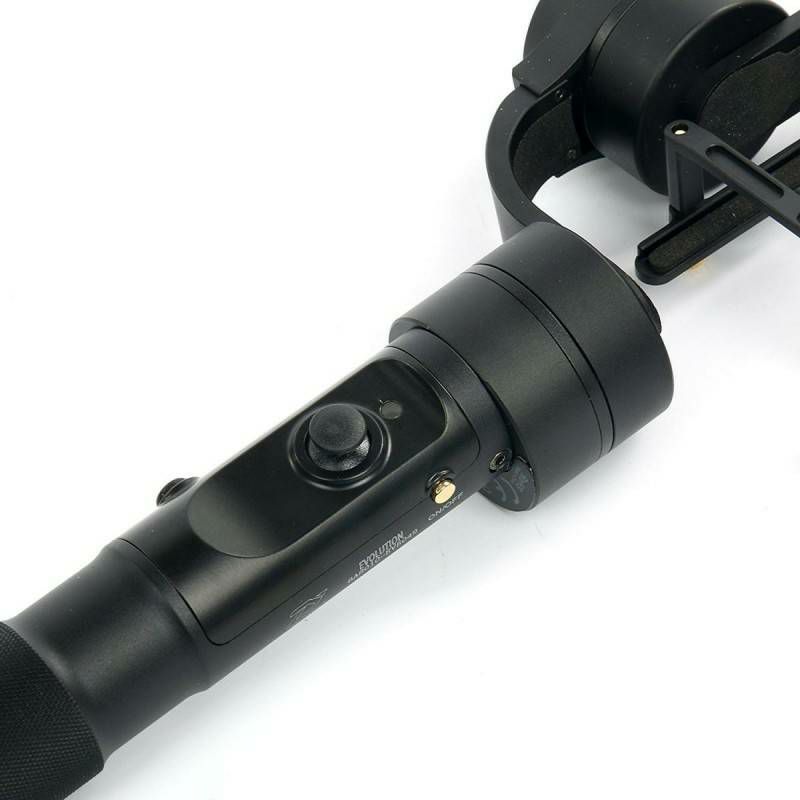

5-way stepless joystick
1/4"-20 threaded mounting hole on the bottom
Includes extension tube for extended battery power with included batteries
3.5mm video output for connecting a viewing device for real-time monitoring
Capable of powering the camera during operation
Max Camera Size Supported: 1.7 (H) x 1.2" (W)

The Zhiyun-Tech Evolution is a 3-axis handheld gimbal stabilizer supporting GoPro cameras. It comes with two batteries that can provide a total of up to 12 hours of power, and is capable of powering the camera during operation.
The Evolution features three 32-bit MCUs (motor control units) running in parallel at 4000 Hz, and has a stepless joystick at your fingertips that allows switching between different modes. The Evolution also offers a 3.5mm video output that allows you to connect a viewing device to monitor your images in real-time.
A 1/4"-20 threaded mounting hole available on the bottom also allows use with monopods and various other support equipment. The Evolution is compatible with two types of batteries, and includes an extension tube supports the extended-power type, which are included.

SPECIFIKACIJE:

Cameras Supported Max Size: 1.7 (H) x 1.2" (W) / 4.3 x 3 cm
Battery Model 18650 (two included)
3.7 V, 2000 mAh, Li-ion
Input Voltage 6.8 - 12.6 V
Operating Current Minimum: 50 mA
Standard: 80 mA
Maximum: 3000 mA
Tracking Error Angle Static
Minimum: ±0.01°
Maximum: ±0.04°

Dynamic
Minimum: ±0.05°
Standard: ±0.1°
Maximum: ±0.3°
Rotation Range Pitch Axis Mechanical Movement Range
Minimum: -185°
Maximum: +130°

Roll Axis Mechanical Movement Range
Minimum: -4°
Maximum: +40°

Pan Axis Mechanical Movement Range (Vertical)
Minimum: -160°
Maximum: +160°

Pan Axis Mechanical Movement Range (Horizontal)
Minimum: -45°
Maximum: +45°
Following Rate Pitch Axis Following Rate
Minimum: 1°/s
Maximum: 50°/s
Pan Axis Following Rate
Minimum: 1°/s
Maximum: 80°/s
Battery Life Minimum: 11 hours
Standard: 13 hours
Maximum: 15 hours
Operation Temperature -4 to 122°F (-20 to 50°C)
Dimensions 10.9 x 4.3 x 4" (28 x 11 x 10 cm)
Weight Without Battery: 0.82 lb (371 g)
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 11.6 x 5.2 x 2.0"

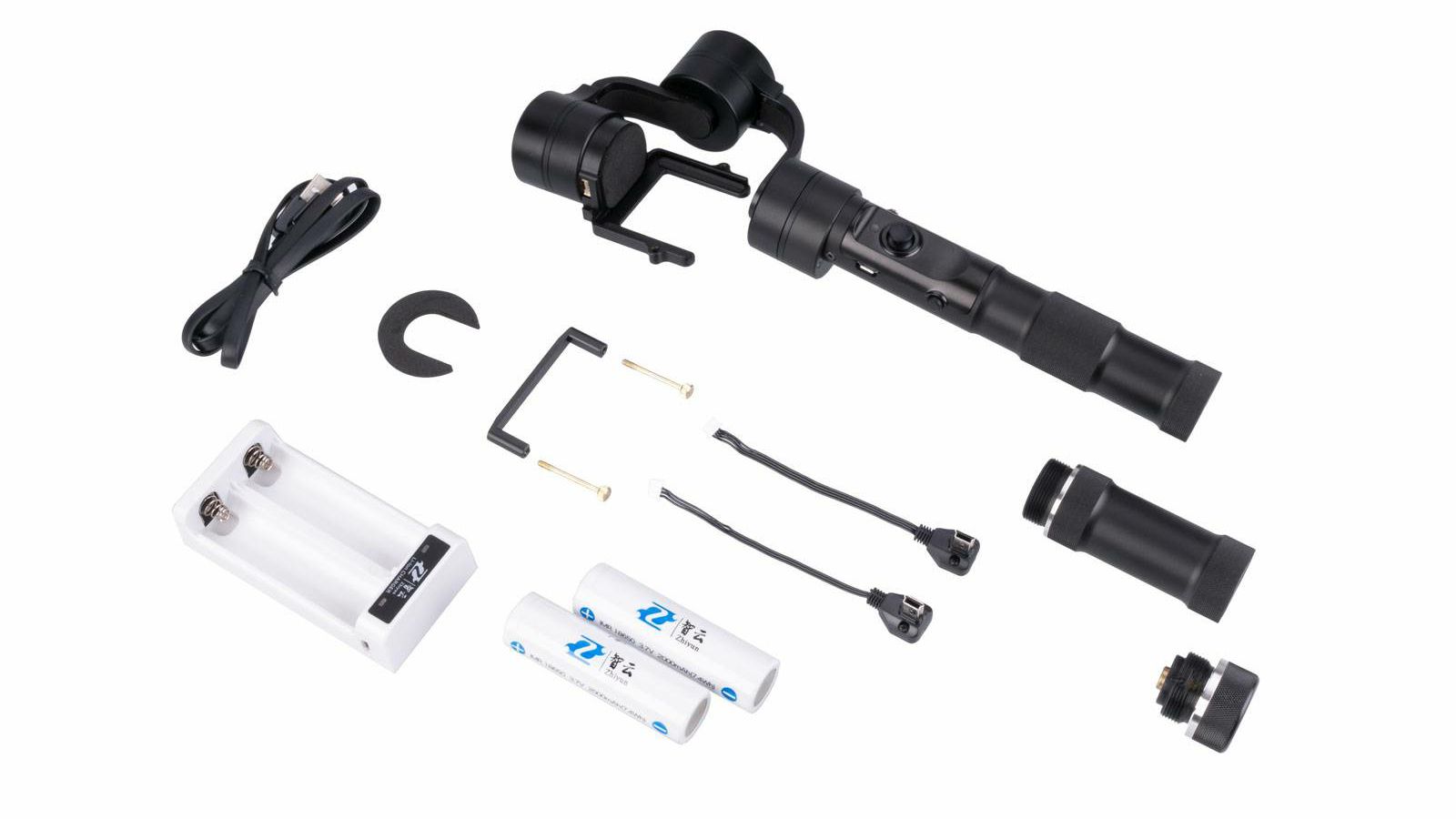

UKLJUČUJE:

Zhiyun Evolution 3-Axis Gimbal za GoPro
