Zoom H5 Handy Recorder with Interchangeable Microphone System prijenosni snimač zvuka

ZNAČAJKE:

Modular Mic and Input System
Includes XY Microphone Module
Four Simultaneous Inputs
Uses SD Memory Cards
Compatible with H6 Mic Modules
Optional Shotgun Mic and XLR/TRS Inputs
Record up to 24-bit/96kHz Audio
Doubles as USB Audio Interface
Optional Hot Shoe Mount

The H5 Handy from Zoom is a compact, portable handheld digital recorder that is capable of four-track recording and features an interchangeable, modular microphone system. The recorder ships with an XY microphone capsule and is compatible with the existing line of H6 modules including the optional shotgun mic and XLR/TRS input modules.

The included XY stereo mic module provides two matched unidirectional condenser microphones set at a 90 degree angle, and features a built-in shockmount system and a maximum SPL of 140dB. Additionally, the recorder is equipped with two inputs for external sources, allowing you to record simultaneously with the included stereo XY mic for a total of four input channels. Each input is controllable by its own analog gain knob, and also has a -20dB pad.

The recorder also has an LCD screen and a side-mounted toggle control for navigating through the menu options. It gives you fast access to transport functions, offering physical control buttons right underneath the screen, and conveniently stores its recorded audio to external SD cards.

In addition to the detachable X/Y capsule, the recorder also ships with a foam windscreen, a 2GB SD card, two AA batteries, a USB cable, WaveLab LE (download), Cubase LE (download), and a hard plastic case.

Features:
Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted microphones for reduced handling noise
Compatible with Zoom H6 input capsules and optional capsules including the SGH-6 shotgun mic capsule and the EXH-6 dual XLR/TRS combo input capsule
Four-track simultaneous recording
Large backlit LCD display
Records directly to SD and SDHC cards up to 32GB
Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
Analog-style gain controls for each input
Protective "roll-bar" type covers prevent accidental movement of gain controls
Plug-in power (2.5 volts)
Built-in effects, including low-cut filtering, compression and limiting
Chromatic tuner and metronome
Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
MS decoding
Multitrack to stereo internal mixdown
Normalize, Divide and Trim editing
Voice memo and up to 99 marks per recording
A/B loop playback
Variable playback speed and variable pitch without affecting playback speed
Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function

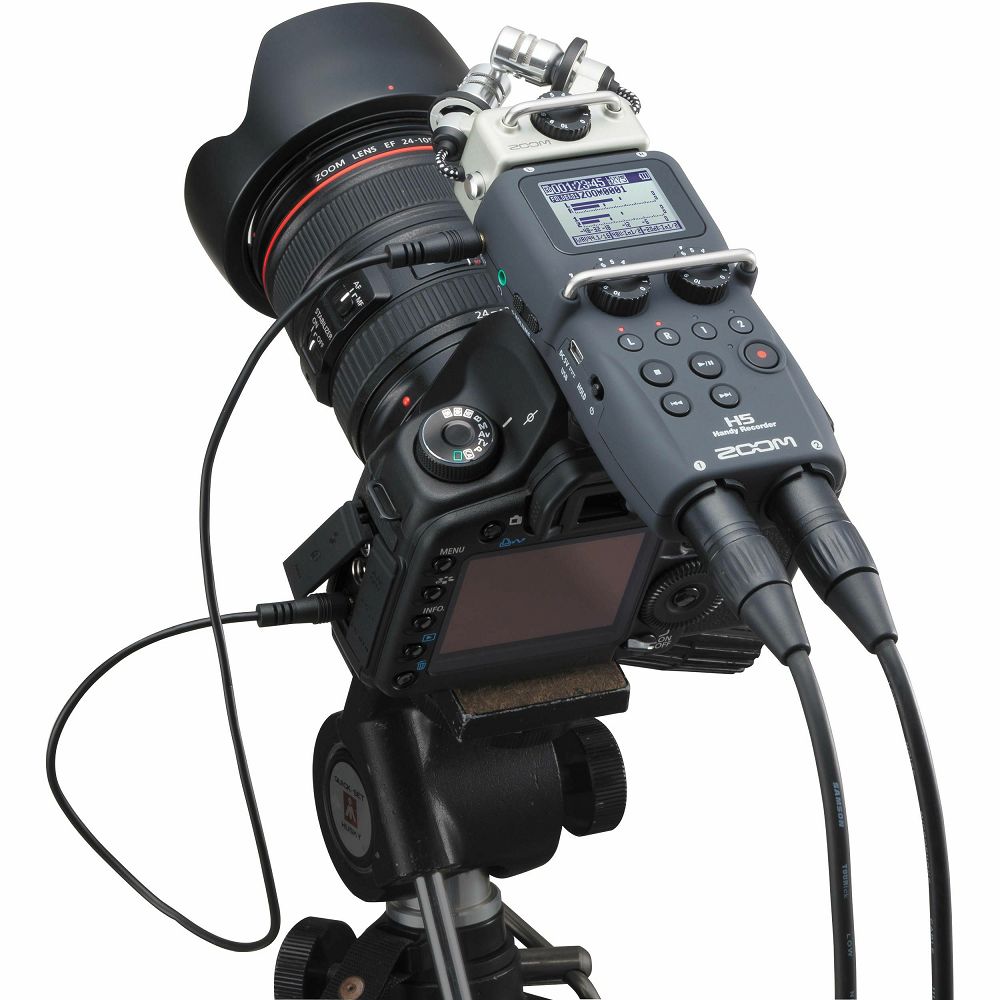

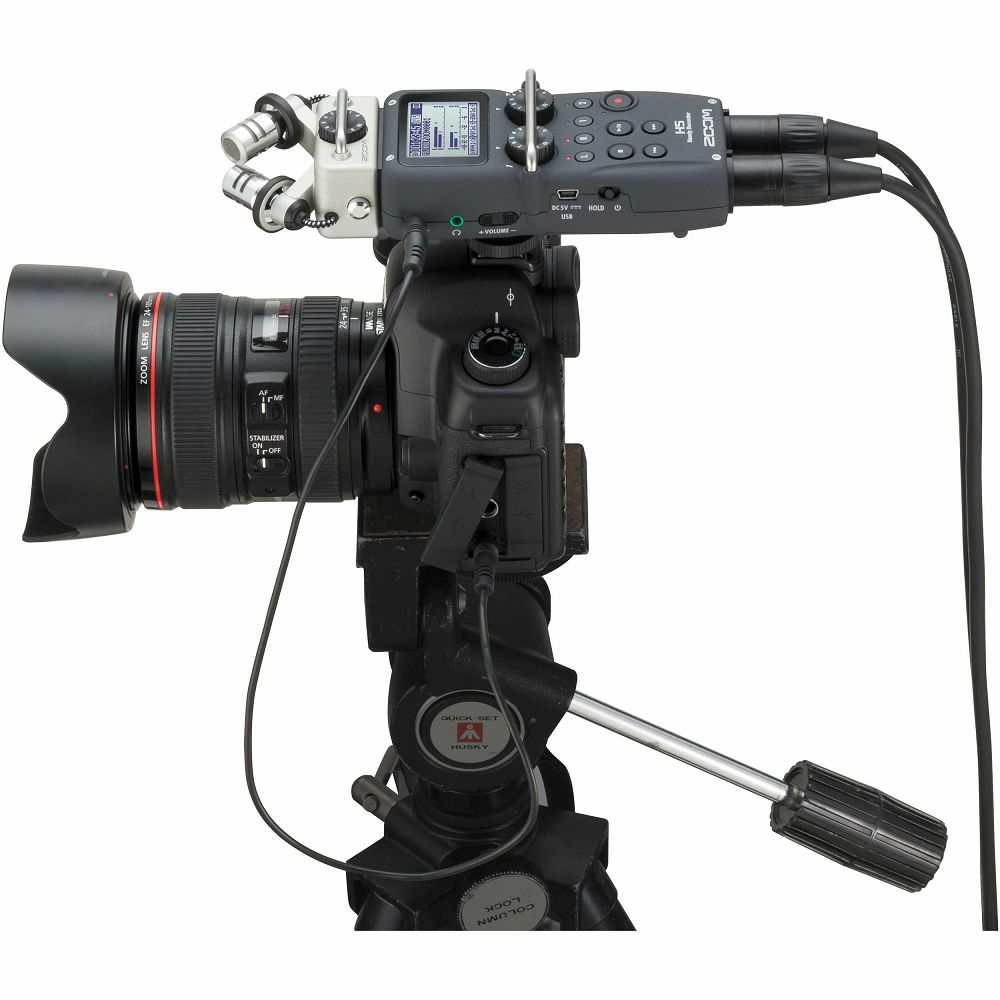

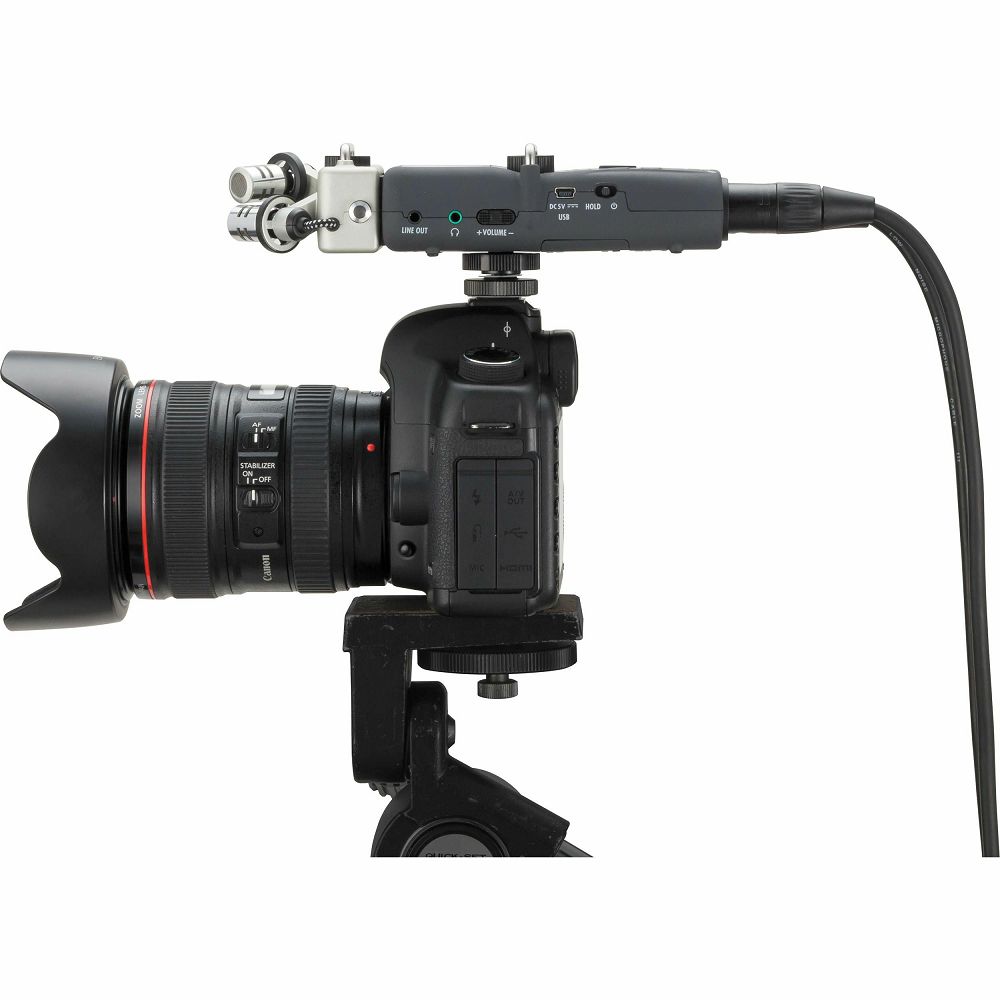

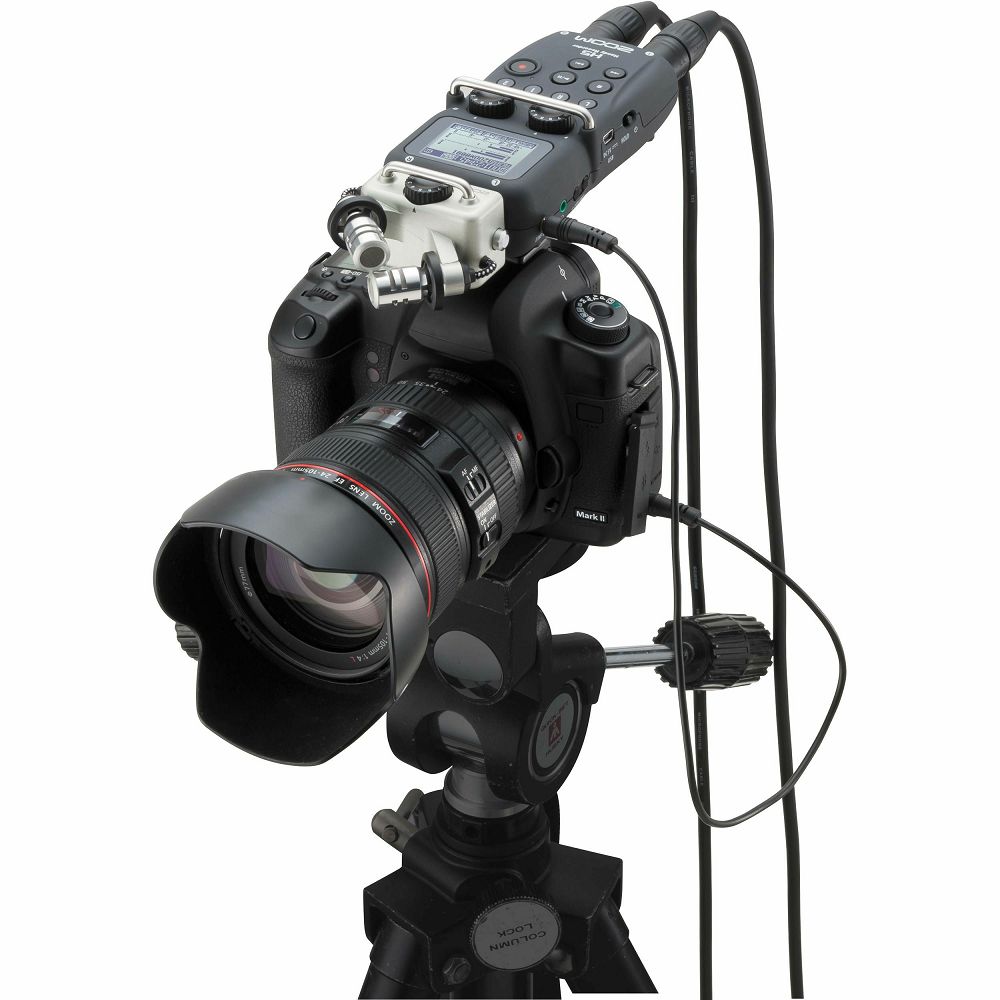

Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
Uses two standard AA alkaline or NiMH rechargeable batteries
Over 15 hours of operation with alkaline batteries

SPECIFIKACIJE:

General
Recording Media SD card: 16MB to 2GB
SDHC card: 4GB to 32GB
Display Backlit LCD (128 x 64 pixels)
Power Requirements AA size (LR6) battery x 2
AC adapter (AD-17 (DC5V/1A/USB-type, optional)
USB bus power
I/O
Inputs L/R [XYH-5 X/Y mic]:
Mic Type: Unidirectional
Sensitivity: -45 dB, 1 kHz at 1 Pa
Input Gain: -? to 52 dB
Max Sound Pressure Input: 140 dB SPL

Mic/Line In:
Connector: 1/8" stereo mini jack
Input Gain: -? to 52 dB
Input Impedance: 2 k? or more
Plug-In Power: 2.5V supported
Backup Recording: -12 dB lower than set L/R input gain

Inputs 1/2:
Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot)
Input Gain (PAD OFF): -? to 55.0 dB
Input Gain (PAD ON): -? to 35.0 dB
Input Impedance: 1.8 k? or more
Max Input Level: +22 dBu (PAD ON)
Phantom Power: +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less
Outputs Line Out:
Connector: 1/8" stereo mini jack
Rated Output Level: -10 dBm
Output Load Impedance: 10 k? or more

Phone Out:
Connector: 1/8" stereo mini jack
Output Level: 20 W + 20 W into 32 ? load

Built-in speaker:
400 mw 8 ? mono
USB Mass Storage Class Operation:
Class: USB 2.0 high speed

Audio Interface Operation:

Multitrack Mode:
Class: USB 2.0 high speed
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-/24-bit
Inputs / Outputs: 4 / 2

Stereo Mode:
Class: USB 2.0 full speed
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-bit
Inputs / Outputs: 2 / 2
USB Bus Powered Operation: Yes
iPad Operation: Supported in stereo mode only
Recording
Recording Formats Stereo Mode:
WAV (BWF-compliant)
Sampling Frequency: 44.1/48/96 kHz
Bit Rate: 16-/24-bit (Stereo)
Maximum Simultaneous Recording Tracks: 2
MP3
Sampling Frequency: 44.1 kHz
Bit Rate: 48/56/64/80/96/112/32/160/192/224/256/320 kbps

Multi-Track Mode:
WAV (BWF-compliant)
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-/24-bit (mono/stereo)
Maximum Simultaneous Recording Tracks: 6 (L/R + INPUT 1/2 + L/R backup)

Physical Specifications
Dimensions H5: 2.3 x 5.3 x 1.7" (66.8 x 135.2 x 42.1 mm)
XYH-5 X/Y mic:2.6 x 2.4 x 1.6" (65.5 x 62.2 x 41 mm)
Weight H5: 6.2 oz (176.0 g)
XYH-5 X/Y mic: 3.3 oz (94.0 g)

EAN: 4515260013210
