Broncolor RFS 2 transmitter kit Special Accessories

Our company, founded in 1958, with its three product brands, broncolor, VISATEC and kobold, has developed over the past halfcentury into a “global player” in
the international market for professional lighting systems. Today we serve three business sectors: professional photography, broadcasting/TV, and events. We chose
“50 Light-Years Ahead” as the slogan for our jubilee year in 2008. This statement also reflects our commitment for the future.



The challenge of consistently meeting your needs and repeatedly surprising you with innovations is our motivation – and light our passion. Essentially, we have much in common.
Every day and with every new assignment you are challenged to create different, surprising, more refined images. In this we want to offer you our full support. We take
advantage of every personal contact with your colleagues all over the world to ask which solutions would help them meet their daily challenges. The latest innovations
from broncolor, which regularly achieve worldwide recognition, grow from these valuable inputs and the untiring efforts of our engineers in pursuit of technological
development.

But in parallel with this spirit of innovation, the quality and reliability, that you expect in your daily work in the studio or on location, has lost none of its traditional high importance. Every unit that leaves our production facilities undergoes exhaustive functional testing.



Wherever possible, new developments are made compatible with earlier models. Systematically implemented over the years, this philosophy has enriched the broncolor
product line to such an extent that it leaves almost nothing to be desired in terms of operating convenience, long-term value and reliability. On our website, www.broncolor.
com, you will find detailed information about the entire broncolor product line. Judge for yourself! On the following pages we present the current broncolor product line.
We look forward to counting you among our satisfied customers for many years to come. And we stand by that.

40 Channels
Indoor Range: 164' (50 m)
Outdoor Range: 656' (200 m)
Full Stop and 1/10 Stop Power Control
Includes Case and Sync Cable

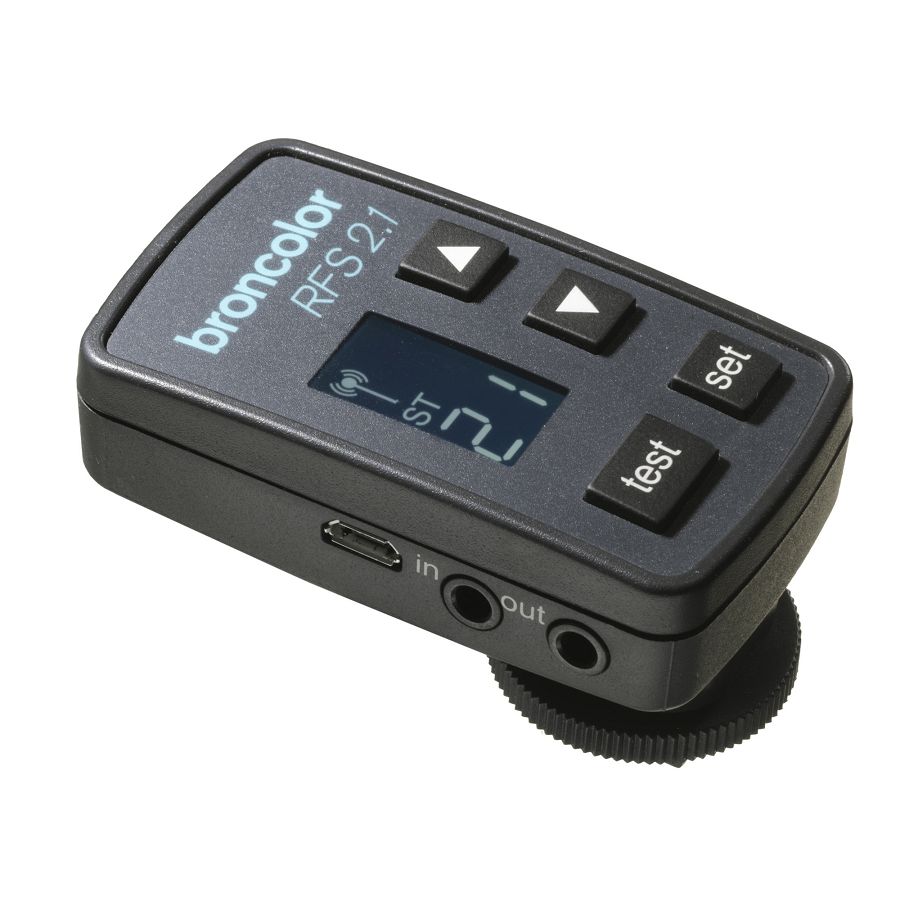

Minimal power consumption and independent operability at 99 workstations with up to 99 studio addresses, thanks to digitally coded channels. For wireless triggering of broncolor Senso and Move as well as Scoro equipped with RFS 2. Outdoors or in large halls, the operating distance of the broncolor RFS 2.1 is up to 200 m (656 ft), in closed rooms up to 50 m (164 ft). The delay time is less than 400 0.425 ms. The operating status of the transceiver and the selected studio address are indicated on a large LCD display. Two additional buttons allow the remote regulation of the power of all controlled flash units directly from the transceiver. With the RFS 2.1 Transceiver you can also define and adjust the individual lamp outlets on the flash units and allows you to switch the modelling light on or off.

The Broncolor RFS 2.1 Transceiver is an ideal way to eliminate PC cords while adding wireless functionality to your studio or work in the field.

The transmitter slides onto your camera hotshoe or connects to shoeless cameras via the included sync cord. The RFS 2.1 has 40 discrete channels to choose from; more than enough to eliminate interference or overlap in multi-photographer events. 99 studio addresses are available. Besides a test button, the transmitter provides power up / down buttons to regulate the output in full stop or 1/10 stop increments on flash units controlled by it. The easy-to-read LCD display shows channel, studio address and power status of the system.

Operating range is an impressive 656' (200 m) outdoors and 164' (50 m) indoors. It weighs a mere 1.5 oz (43g) and is powered by a single 3V CR2450 battery. The RFS 2.1 is compatible with RFS series monolights with built-in receivers or Broncolor or other brand packs or heads employing the optional RFS 2.1 receiver.

Convenient, lightweight, and compatible with RFS-equipped heads and all pack and monolight units used in conjunction with an RFS 2.1 receiver.
Minimal power consumption and independent operability at up to 99 workstations, 40 coded frequency channels.
Optional USB power supply input for battery-less operation.

Range Outdoors: 656' (200 m)
Closed rooms: 164' (50 m)
Channels 40 channels
99 studio addresses / workstations
Frequency Not specified by manufacturer
Delay 400µs
Trigger Sequence Per Second 100
Power Source 3V CR 2450 lithium battery
Dimensions 2.7 x 1.5 x 1.0" (68 x 38.5 x 25 mm)
Weight 1.5 oz (43g)
Compatibility Broncolor RFS equipped flash units
Broncolor or other brand packs or heads used with an RFS 2.1 receiver
