DJI 2.4Ghz datalink with Blue tooth + iOS ground station for DJI iPad Ground Station
Data Link for DJI iPad Ground Station Air and Ground Transceiver Units Up to 1148' Range Relays Control from Ground Station App For Beyond Visual Range (BVR) Flights

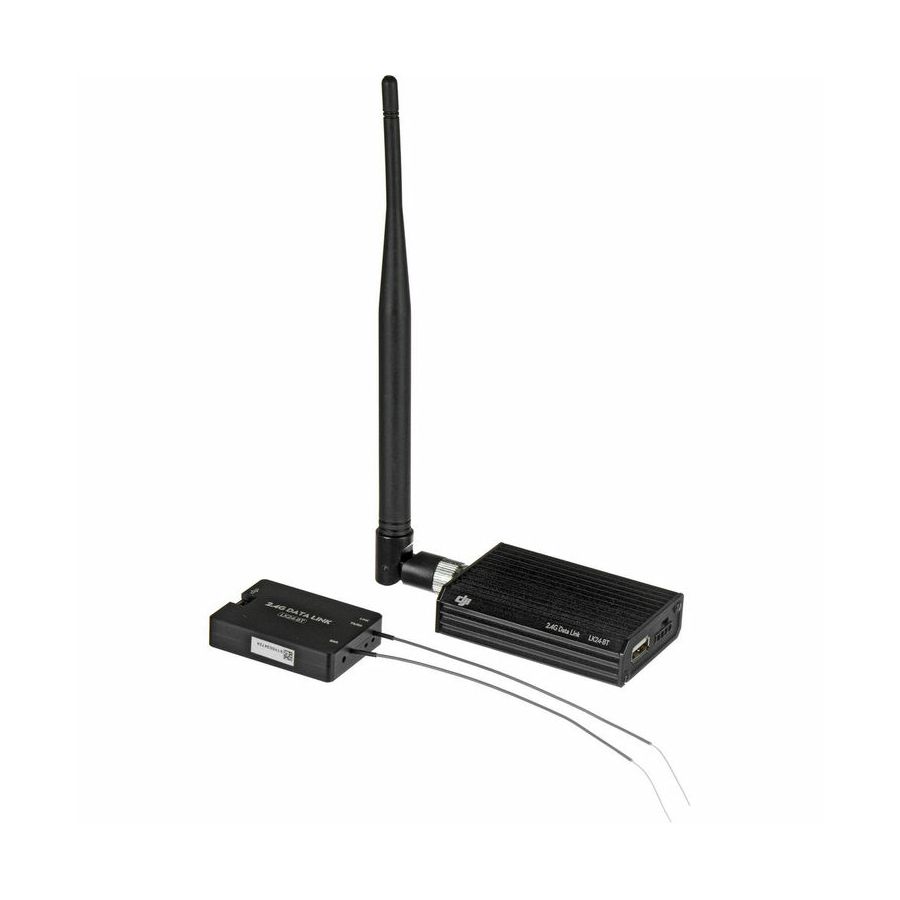

The DJI 2.4G Bluetooth Data Link is a component for the DJI iPad Ground Station. It features two transceivers to facilitate wireless communication between aircraft and iPad with a range of up to 1148' line-of-sight. One transceiver is installed in or on the aircraft and integrates with the flight control system via the CAM bus, the other remains at the ground-end to pick the Bluetooth signal from the iPad.
The 2.4G Bluetooth Data Link provides the wireless link required for data and control transmission by the DJI iPad Ground Station system. The Ground Station is a portable beyond visual range (BVR) solution for multi-rotor RC aircraft using A2, WKM, Naza-M, or NAZA-M V2 flight controllers. Via the Ground Station iOS app you are able to practice in a flight simulator, map an autopilot course using "waypoint" navigation, fly the aircraft manually using virtual joysticks, monitor flight attitude in real-time, and more.
Relays Bluetooth signal from iPad to aircraft and features a range of up to 1148' line-of-sight
Use in conjunction with Ground Station app for iOS to create a portable control platform for beyond visual range (BVR) flying
Supported flight control systems include: A2, WKM, Naza-M and NAZA-M V2
Ground Station iOS App Capabilities
Customizable touchscreen interface designed to recreate feel of traditional dual joystick RC radio controllers Map out flight plan for autopilot system using "waypoint" navigation and update in real-time Edit home point and trigger Go Home function Supports one key takeoff and landing Flight simulator to practice before you fly Telemetry provides real-time flight attitude feedback
SPECIFIKACIJA:
Flight Control Systems Supported iPad Ground Station
A2 WKM NAZA-M NAZA-M V2 Phantom 2
iOS Devices Supported iPad Ground Station iPad 3, iPad 4, iPad mini, iPad mini with Retina display, iPad Air (iOS 6.1 or above) 2.4G Bluetooth Data-link Specifications 2.4G Bluetooth Datalink Flight Control Systems Supported
A2 ACE ONE ACE WAYPOINT WKM NAZA-M NAZA-M V2
FCC Version(USA) Performance
RF Data Rate 1536kbps Indoor/Urban Range ?350m Outdoor/RF Line-of-Sight Range ?2km Transmit Power ?125mW Receiver Sensitivity (1%PER) -94dBm Power Consumption The Ground end: ?2.3W
he Air end: ?1.8W Equivalent Isotropic Radiated Power ?100mW Features
Frequency Band 2.4G(2400MHz ~2483MHz) Serial Data Rate 115200 bps Antenna Options SMA Operating Temperature -10°C ~+60°C Size (No Antenna) The Ground end: 73mmx47.8mmx17.1mm
The Air end: 49.8mmx36.4mmx11.4mm Weight (with Antenna) The Ground end: 93g
The Air end: 32g Power supply
Supply Voltage The Ground end: 9.9V-25.2V
The Air end: 6V Current (Transmitting signal) 0.18A@12.5V Current (Receiving signal) 0.30A@6V CE Version (Europe) Performance
RF Data Rate 1536kbps Indoor/Urban Range ?200m Outdoor/RF Line-of-Sight Range ?1.1km Equivalent Isotropic Radiated Power ?100mW Receiver Sensitivity (1%PER) -94dBm Power Consumption The Ground end: ?1.3W
he Air end: ?0.9W Features
Frequency Band 2.4G(2400MHz ~2483MHz) Serial Data Rate 115200 bps Antenna Options SMA Operating Temperature -10°C ~+60°C Size (No Antenna) The Ground end: 73mmx47.8mmx17.1mm
The Air end: 49.8mmx36.4mmx11.4mm Weight (with Antenna) The Ground end: 93g
The Air end: 32g Power supply
Supply Voltage The Ground end: 9.9V-25.2V
The Air end: 6V Current (Transmitting signal) 0.10A@12.5V Current (Receiving signal) 0.15A@6V
General Compatibility Supported Flight Controllers: A2, WKM, Naza-M, Naza-M V2 Supported Mobile Devices: Apple iPad with Bluetooth 4.0 (such as iPad3, iPad4, iPad Mini) Mobile App Requirements: iOS 6 or later Included Software Requirements: Windows Frequency Band 2.4 GHz (2400MHz - 2483MHz) Wireless Range Indoor / Urban Environment: ? 1148' (350 m) Outdoor Line-of-sight: ? 1.2 miles (2 km) RF Data Rate 1536 kbps Serial Data Rate 115200 bps Transmit Power ? 125 mW Receiver Sensitivity (1% PER) -94 dBmW Current Transmitting Signal: 0.18 A @ 12.5 V Receiving Signal: 0.30 A @ 6V Operating Temperature 14 - 140°F (-10 - 60°C) Ground End Connectors 1x USB Type A Female (for PC connection) 1x BMU Module Port 1x DC Power Connector Antenna Type SMA Power Consumption ? 2.3 W Voltage 9.9 - 25.2 V Dimensions 2.9 x 1.9 x 0.7" (73 x 47.8 x 17.1 mm) - without antenna Weight 3.3 oz (93 g) Air End Connectors CAN-Bus Port Antenna Type Integrated Power Consumption ? 2.3 W Voltage 6 V Dimensions 2 x 1.4 x 0.4" (49.8 x 36.4 x 11.4 mm) - without antenna Weight 1.1 oz (32 g)
KOMPLET SADRŽI:

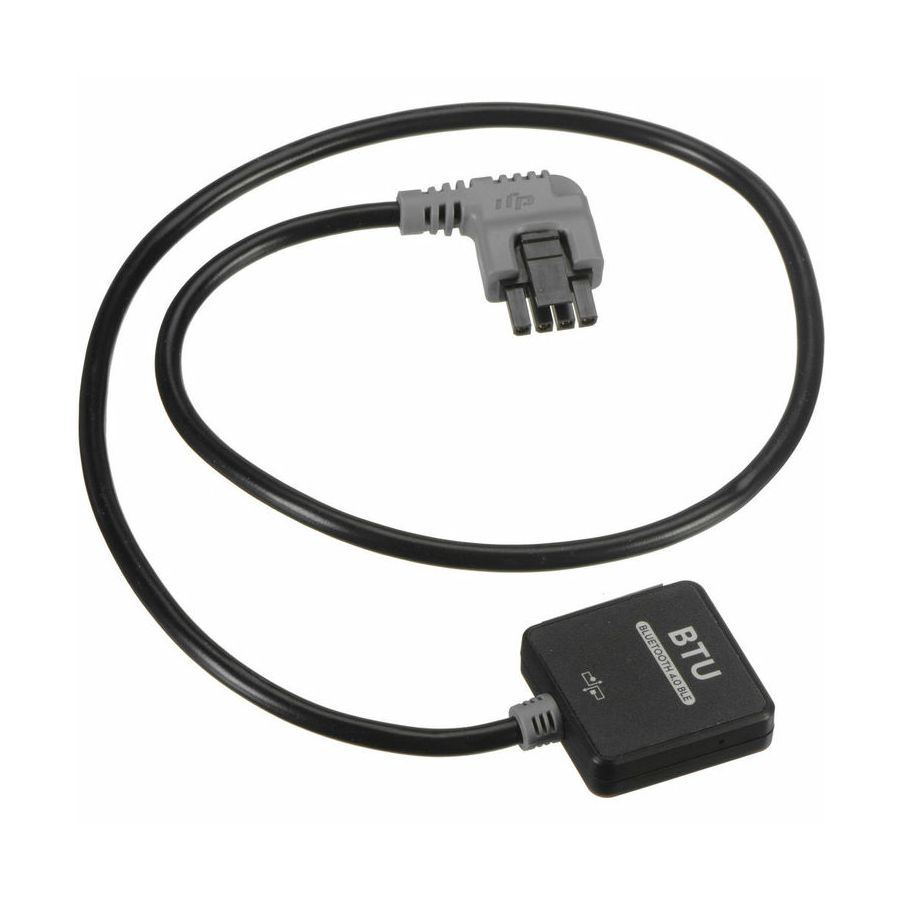

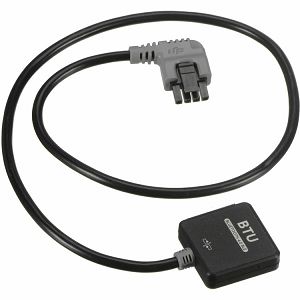

Ground Station Software CD for Windows Data-link Air End Data-link Ground End BTU Module SMA Antenna USB Cable DC Power Cable CAN-Bus Cable
iPad Ground Station Functions
1. Friendly interface design; 2. Joystick control on touch screen; 3. Single waypoint function, click desired point and go; 4. Waypoints function, edit a routine and go; 5. Flight route template; 6. Editable Home point & auto Go Home supported; 7. One key takeoff & landing; 8. Flight simulator supported; 9. Customized joystick mode supported; 10. Accurate flight time monitoring; 11. Three map orientations setting; 12. Voice guidance function; 13. Real-time alarming function; 14. Routes saving and reloading supported; 15. Chinese and English UI supported; 16. Cloud Storage supported;
Note:
All the firmware of the flight control systems should be upgraded to the latest version. The firmware of NAZA-M and NAZA-M V2 should be upgraded to version 4.00, which is coming soon.
