DJI Matrice 600 dron + M600 Battery Case + M600 DJI Hex Charger

ZNAČAJKE:

Designed for filmmakers and industrial applications
Multiple gimbals supported including the Ronin-MX
A3 and Lightbridge 2 built-in
Extended flight time and long range transmission
Professional HD transmission
Powerful app control
SDK supported
Upgradeable with A3 PRO and D-RTK GNSS

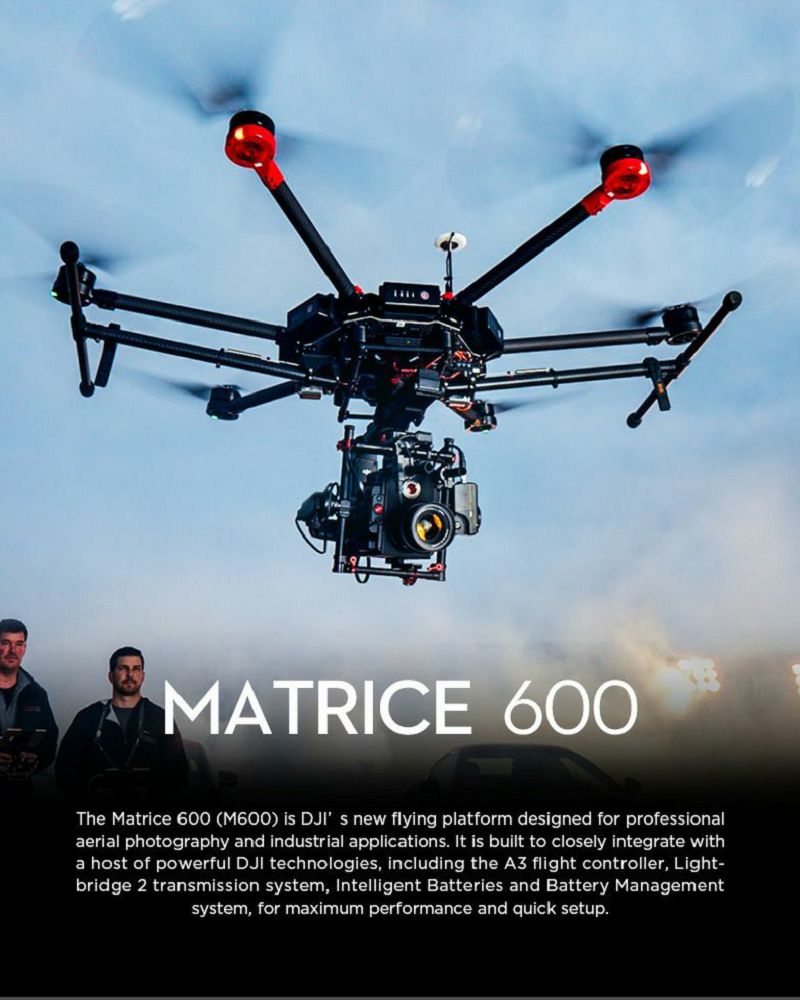

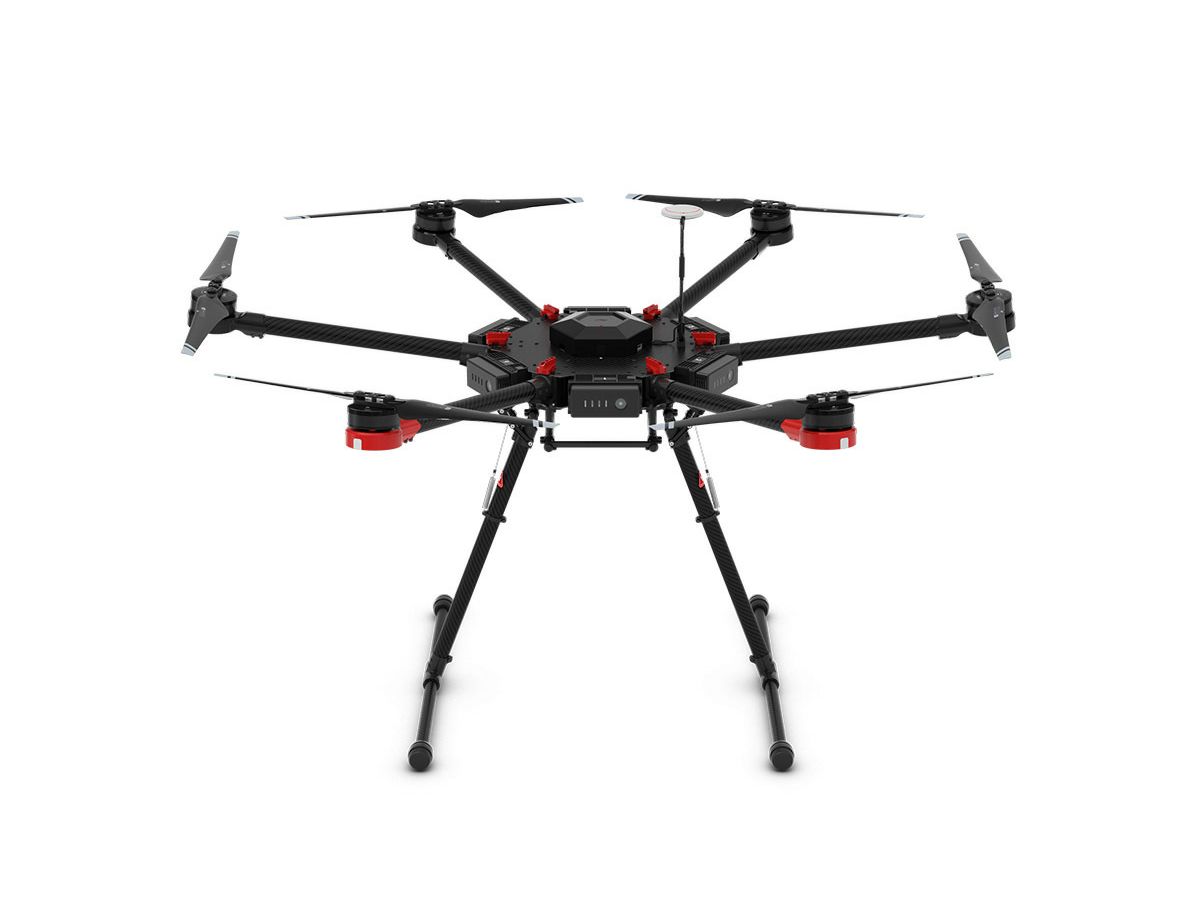

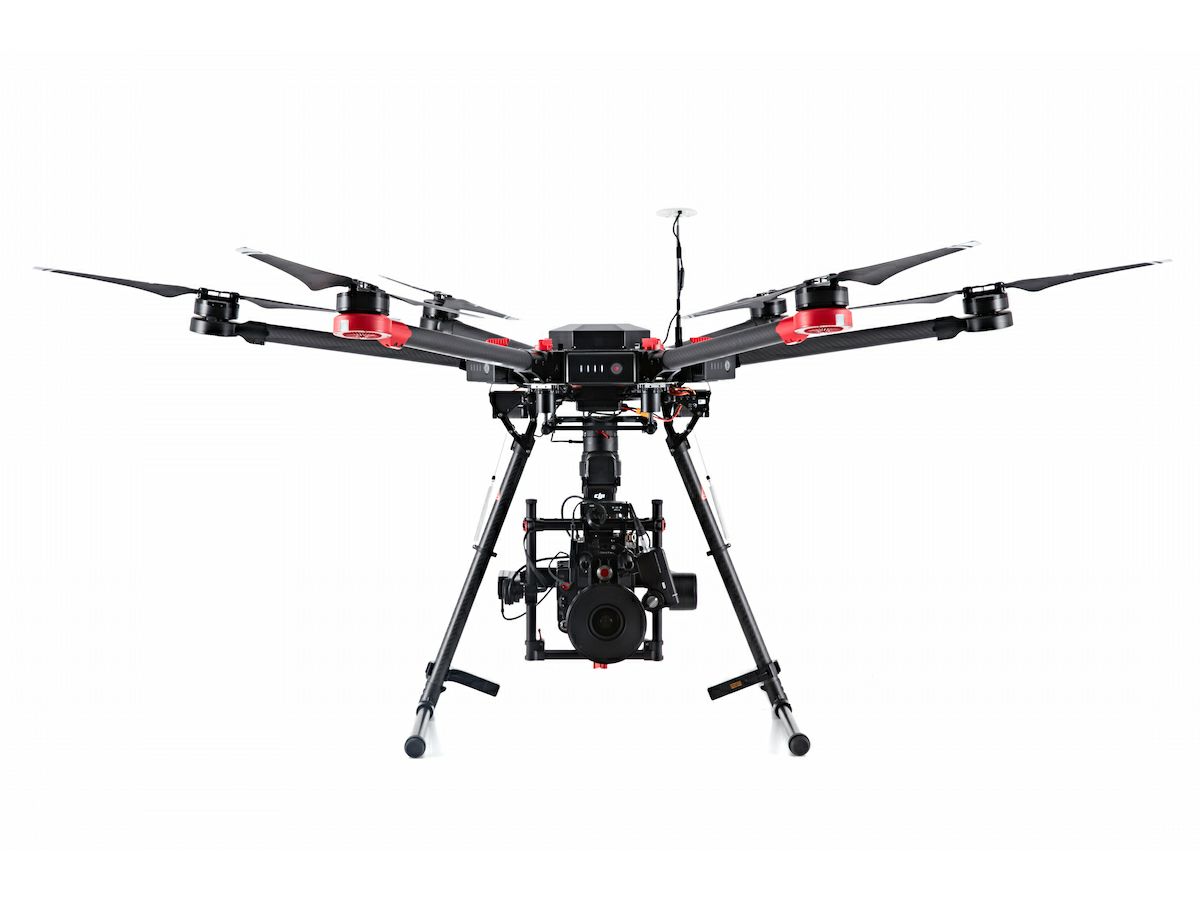

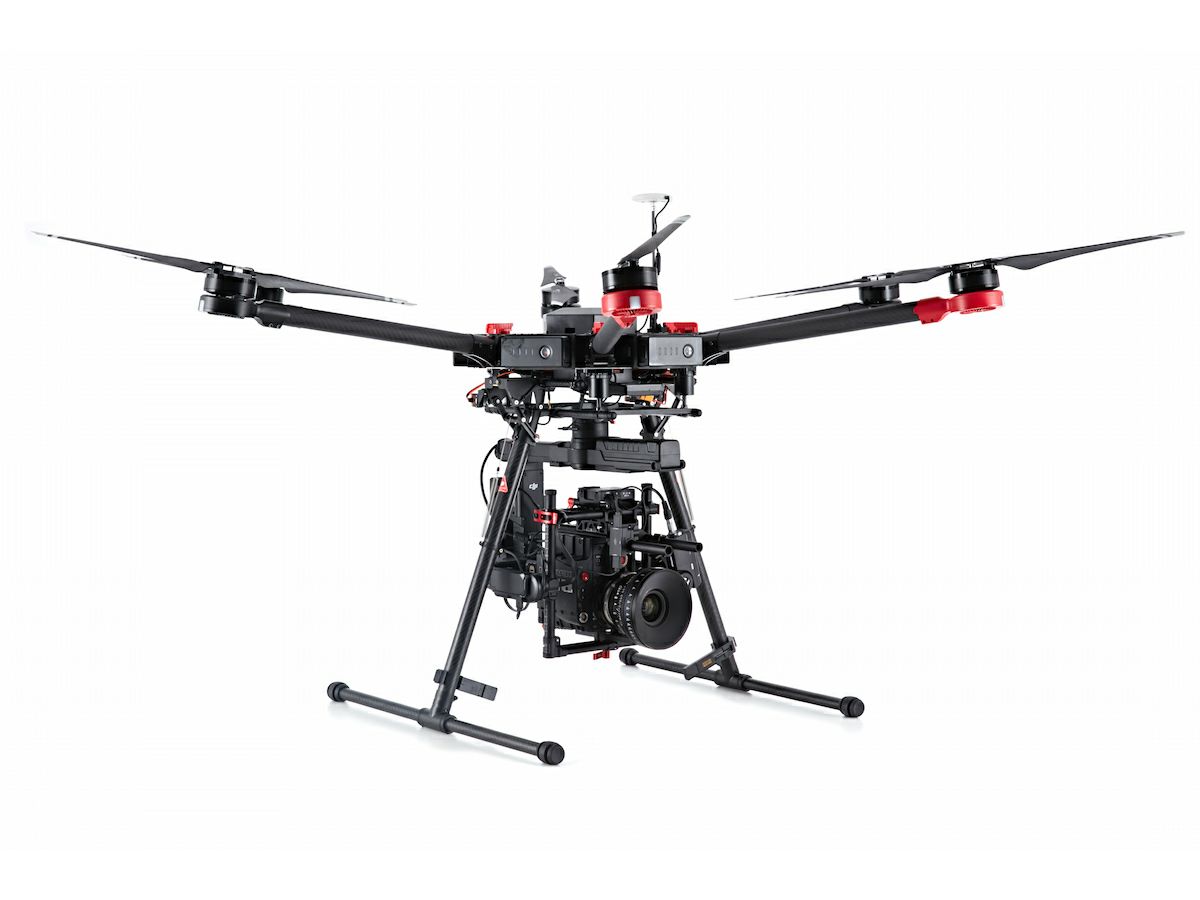

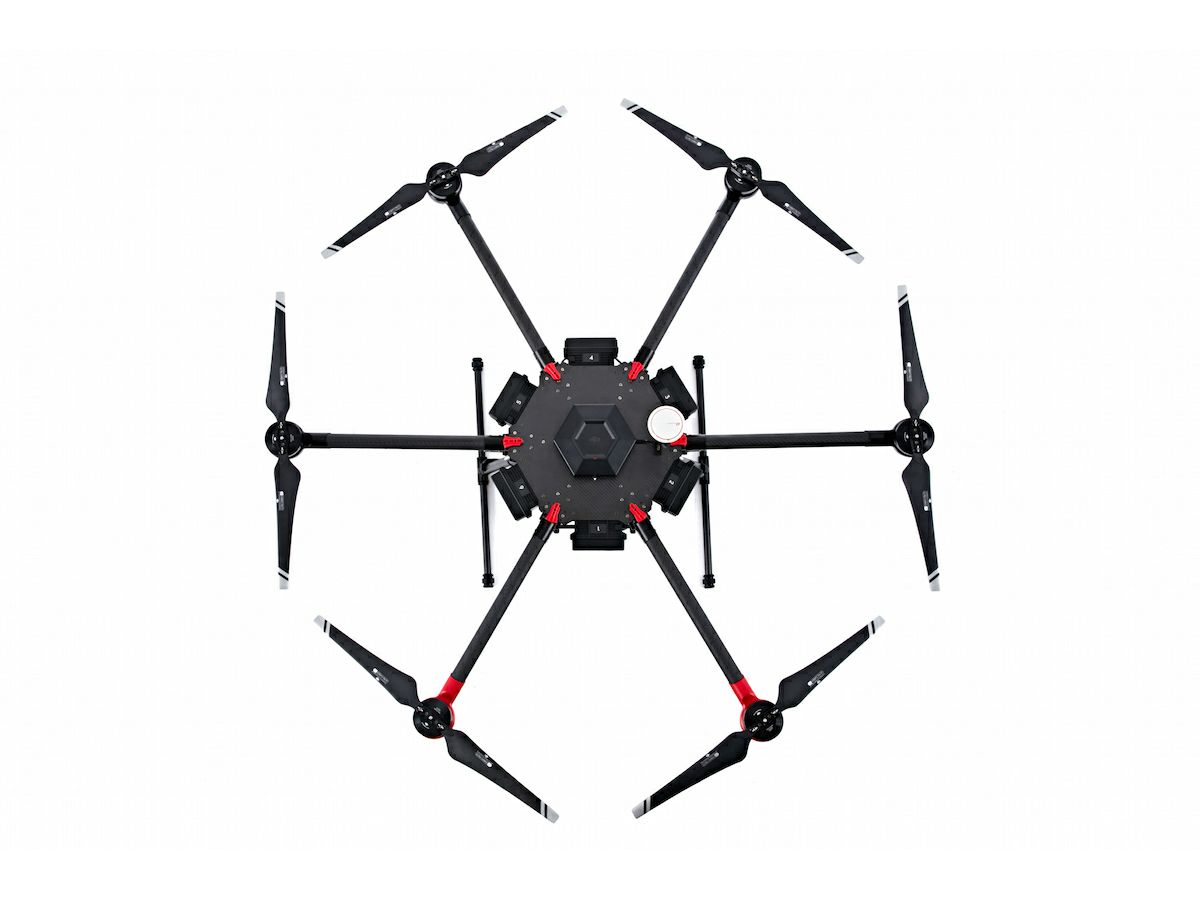

Supporting a total takeoff weight of 33.2 pounds, the Matrice 600 (M600) is a hexacopter from DJI designed for professional video and industrial imaging applications. It is centered around DJI's advanced A3 flight control system and incorporates the Lightbridge 2 system for HD resolution, low-latency monitoring via SDI, HDMI, and USB outputs on the controller. For camera support, the M600 works with Zenmuse Z15 series gimbals, the Ronin-MX gimbal, and Zenmuse X Series gimbal/camera hybrids.
The M600 comes almost-ready-to-fly (ATF), including controller (transmitter), flight batteries, charger, flight controller, and sundries. Additional hardware needed may include a gimbal, camera, as well as any flight controller add-ons. Some assembly is required.
Performance
Intelligent Drive System
The M600 uses sine-wave driven, intelligent ESCs to ensure it performs accurately, safely, and efficiently, while the A3 flight controller's self-adaptive systems adjust flight parameters automatically based on different payloads
Air System Design

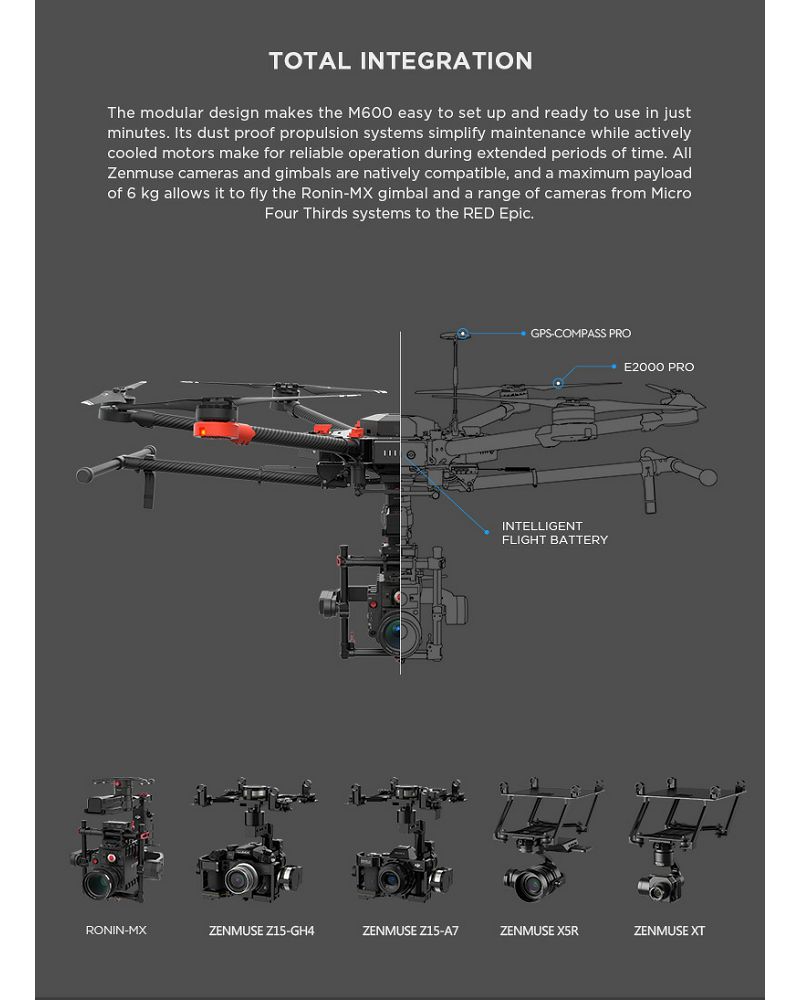

Modular Design
The modular design makes the Matrice 600 easy to set up and ready to use
Gimbal Compatibility
All Zenmuse cameras and gimbals are natively compatible, and a maximum payload of 13.2 lb allows it to fly the Ronin-MX gimbal and a range of cameras, from Micro Four Thirds systems to the RED EPIC
Built to Last
A dust-proof propulsion system simplifies maintenance, while actively cooled motors make for reliable operation for extended periods of time
A3 Flight Controller
GNSS-based A3 acts as the brains of the aircraft. Using data from the GPS, compass, and various sensors, it provides navigation a stabilization with varying degrees of autopilot redundancy, depending on user settings. An array of expansion ports allows you to connect optional DJI and third-party equipment

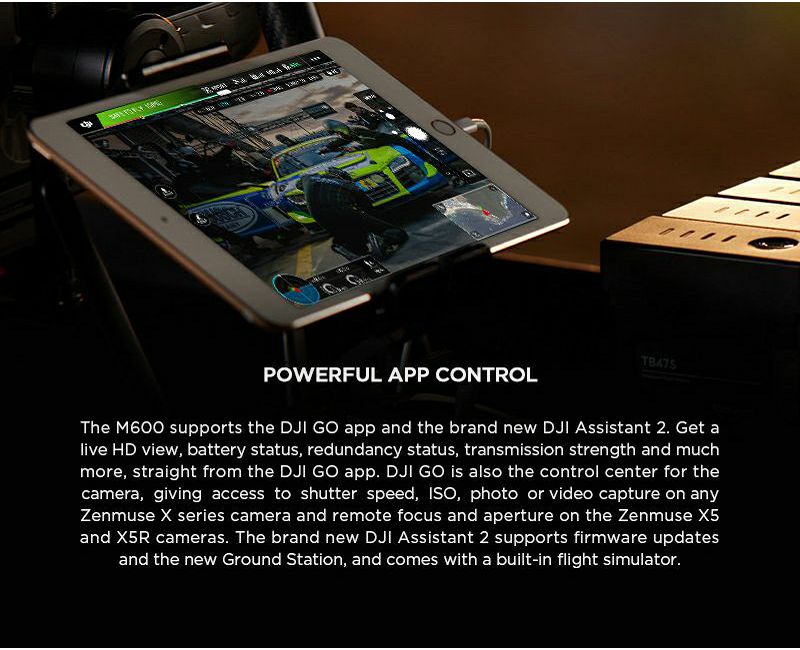

DJI GO App for iOS and Android
The M600 supports the DJI GO app as well as the DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture on any Zenmuse X series camera and remote focus and aperture on the Zenmuse X5 and X5R cameras. The DJI Assistant 2 supports firmware updates and the new Ground Station, and comes with a built-in flight simulator
Extended Range
The Matrice 600's radio range extents to 3.1 miles with a clean signal
A3 Pro Upgrade
The separately available A3 Pro upgrade brings triple redundancy to the Matrice 600's flight controller. It features diagnostic algorithms that compare sensor data from the three sets of units in real-time, helping ensure the aircraft flies as expected, especially important in professional filmmaking and industrial environments
D-RTK GNSS Upgrade
The A3 GNSS system can be upgraded with separately available Real-Time Kinematic technology (RTK) for even greater navigational accuracy. Using dual antennas, RTK provides greater precision than a compass and is not susceptible to magnetic interference from metal structures
Lightbridge 2
Professional HD Transmission
DJI Lightbridge 2 has been designed from the ground up to meet the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI, and 3G-SDI ports on the controller support video output at up to 1080p/60 fps or a broadcast standard output of 720p/59.94 fps and 1080i/50 fps
DJI SDK
The M600 is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for industrial applications. It has a dual parallel CAN and API ports for connecting DJI devices, including the Guidance sensor system, the RTK GNSS units, or third party components of your choice

SPECIFIKACIJE:

Performance
Maximum Speed Horizontal (No Wind): 59.1 ft/s / (18 m/s)
Ascent: 16.4 ft/s (5 m/s)
Descent: 9.8 ft/s (3 m/s)
Maximum Wind Resistance 26.2 ft/s (8 m/s)
Maximum Altitude Above Sea Level: 8202.1' / 2500 m
Hovering Accuracy P-Mode with GPS:
Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Angular Velocity Pitch: 300°/s
Yaw: 150°/s
Maximum Pitch Angle 25°
Hovering Time Six TB47S Batteries:
No payload: 35 minutes
13.2 lb / 6 kg Payload: 16 minutes

Six TB48S Batteries:
No payload: 40 minutes
12.1 lb / 5.5 kg payload: 18 minutes

Note: Hovering time is based on flying at 32.8' / 10 m above sea level in a no-wind environment and landing with 10% battery level.
Takeoff Weight Up to 33.2 lb / 15.1 kg
Flight Control System
Model A3
Transmitter
Frequency 5.725 to 5.825 GHz
2.400 to 2.483 GHz
Communication Distance 3.1 miles / 5 km
Transmitter Power 13 dBm at 5.8 G
20 dBm at 2.4 G
Connectivity 1 x HDMI
1 x SDI
1 x USB
Dual User Capability Master-and-slave control
Output Power 9 W
Operating Temperature 14 to 104°F / -10 to 40°C
Battery Type: Built-in
Chemistry: Lithium-ion polymer (LiPo)
Capacity: 6000 mAh
Configuration: 2S
Storage Temperature < 3 Months: -4 to 113°F / -20 to 45°C
> 3 Months: 72 to 82°F / 22 to 28°C
Charging Temperature 32 to 104°F / 0 to 40°C
Mobile Device Holder Supports smartphones and tablets
Maximum Tablet Width: 6.7" / 170 mm
Gimbal
Supported Gimbals Zenmuse X Series: X3, X5 & X5R, XT
Ronin Series: Ronin-MX
Z15 HD Series: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Flight Battery
Model TB47S
Chemistry Lithium-ion polymer (LiPo)
Capacity 4500 mAh
99.9 Wh
Configuration 6S
Weight 1.3 lb / 595 g
Maximum Charging Power 180 W
Operating Temperature 14 to 104°F / -10 to 40°C
Charging Temperature 41 to 104°F / 5 to 40°C
Storage Temperature < 3 Months: -4 to 113°F / -20 to 45°C
> 3 Months: 72 to 82°F / 22 to 28°C
Charger Model:A14-100P1A
Voltage Output: 26.3 V
Power Rating: 100 W
Motor
Model DJI 6010
Propeller
Model DJI 2170
General
Operating Temperature 14 to 104°F / -10 to 40°C
Diagonal Wheelbase 44.6" / 1133 mm
Dimensions Propellers, Frame Arms, and GPS Mount Unfolded: 65.7 x 59.8 x 29.9" / 1668 x 1518 x 759 mm
Frame Arms and GPS Mount Folded: 25.2 x 22.9 x 24.5" / 640 x 582 x 623 mm
Weight Six TB47S Batteries: 20 lb / 9.1 kg
Six TB48S Batteries: 21.1 lb / 9.6 kg
Packaging Info
Package Weight 38.0 lb
Box Dimensions (LxWxH) 25.0 x 21.0 x 13.0"

*Note: When mounting the Ronin-MX to the M600, SRW-60G is needed for video transmission. Please purchase individually. (notice:SRW-60G is not permitted for use on aerial platforms in North America.)

**The DJI Hex Charger requires the Inspire1 180W Power Adapter AC Cable for charging batteries (power adapter cable sold separately).

FAQ:

1. What are the new features of the M600 when compared to the S1000+?

The S1000+ is merely an aerial platform and has no integrated electronic devices on board. The M600 is a fully integrated aerial platform designed for professional film making and industrial application. The on-board A3 flight controller ensures reliable flight performance while the E2000 Pro propulsion system effectively increases payload. Also, multiple expansion ports guarantee maximized compatibility with add-on devices. The M600 also integrates the Lightbridge 2 transmission system, bringing live HD view and the ability to communicate directly gimbals such as the Ronin-MX.

2. What is the maximum payload of the M600?

When 6 TB47S batteries are installed, the maximum payload is 6kg.
When 6 TB48S batteries are installed, the maximum payload is 5.5kg.

3. What is the maximum flight time of the M600?

With TB47S batteries, the M600 can fly for 35 minutes with no extra payload or 16 minutes with 6kg of payload.
With TB48S batteries, the M600 can fly for 40 minutes with no extra payload or 18 minutes with 5.5kg of payload.

4. How can I retract the landing gear on the M600? Is the M600 able to retract the landing gear automatically?

You can control the position of the landing gear when the M600 is in the air with a flick of the switch on your remote controller. There is also a toggle in the DJI GO app that enables the M600 to intelligently retract its landing gear when it’s 1.2m above the take-off point. However, the landing gear will not lower itself. To land, you will need to manually toggle the landing gear using the switch.

FLIGHT CONTROLLER

1. Can I use other flight controllers than the A3 with the M600?

The M600 comes with the A3 flight controller seamlessly integrated and there is no need to install other flight controllers.

2. Does the M600 come with the A3 or the A3 Pro flight controller as standard?

The standard flight controller is the A3. However, you may upgrade to the A3 Pro by adding two additional A3 GNSS and IMU modules. You can also upgrade to D-RTK for greater positioning accuracy.

3. Can the A3 flight controller be used on other aerial platforms?

The A3 flight controller on M600 has been customized specifically for the M600 and can only be used with the M600. Please do not remove the A3 from M600 and do not install it on other platforms.

4. Will the flight performance and accuracy be increase if I upgrade to A3 Pro?

The A3 Pro enhances the reliability and stability of M600 by providing redundancy when any of the GNSS or IMU modules is interfered with or otherwise fails. However, only one set of GNSS and IMU modules can be in effect at any time during the flight, so flight accuracy remains the same as with the A3.

5. How is the M600’s accuracy enhanced by adding the D-RTK module?

Hovering accuracy increases to within 2cm horizontally and 3cm vertically with D-RTK.

TRANSMISSION SYSTEM

1. Can I link third party remote controllers to the Lightbridge 2 on the M600?

The M600 is a fully integrated aerial platform designed for professional filmmaking and industrial applications. The built-in Lightbridge 2 system is only compatible with DJI remote controllers. Please do not use third party remote controllers with the M600.

2. Does the M600 support dual video input?

Yes. The integrated Lightbridge 2 supports dual video input.

3. Can the M600 be connected to multiple remote controllers? How many slave controllers can be connected at one time?

The Lightbridge 2 on the M600 supports up to one Master and three Slave devices at the same time.

PROPULSION SYSTEM

1. What propulsion system does the M600 use? Can I use the E2000 Standard instead?

The M600 has a customized E2000 propulsion system built-in and does not support the E2000 Standard.

2. How do I best prevent propellers from coming loose on the M600?

Screw position indicators on the propellers and adapters enable you to see if a screw has come loose. Check that the marks align before each flight to ensure safety.

3. Can I swap the motors on the M600 and MG-1?

The motors on M600 and MG-1 share the same performance specification but have a different exterior design so they are not interchangeable.

BATTERIES

1. Can I use a mix of TB47S and TB48S batteries with the M600?

No, all six batteries installed on the M600 must be of the same model.

2. What are the differences between the TB47D (for the M100) and the TB47S (for the M600)? Can I use TB47D or TB48D batteries with the M600?

Though the battery capacity and structural design of the TB47D (TB48D) are identical to that of the TB47S (TB48S), the program setting of the ‘D’ series and the ‘S’ series differ. The M600 can only be set up with DJI TB47S/TB48S Intelligent Flight Batteries.

3. Can I charge the TB47S/TB48S batteries with the Inspire 1 Charging Hub?

Yes, the Charging Hubs for the M600 and Inspire 1 are compatible with all TB47/TB48 batteries.

4. Do I need to turn on each battery individually in order to turn on the aircraft?

To turn on the aircraft, you only need to turn on one of the six batteries installed on the M600. The other batteries will turn on and synchronize their boot-up sequence. However, if the voltage discrepancy across the batteries exceeds 1.5v, the boot-up sequence will not be synchronized and you will receive an error message in the APP and through the Battery Management System.

5. Is it true that the aircraft will only take off when all six batteries are installed?

Yes, and we strongly recommend you to fully charge all batteries before flight.

6. How does the battery redundancy system on the M600 work?

In the case that one of the six batteries fails during flight, the M600 will re-calculate the remaining battery capacity, then hover in its current position or begin auto-landing. When the M600 hovers, you can manually land the M600 and then examine the batteries.

EXPANSION AND CUSTOMIZATION

1. Which gimbals are supported by the M600?

The M600 supports the Zenmuse Z15 series, Zenmuse X3, Zenmuse X5, Zenmuse X5R, Zenmuse XT and the Ronin-MX.

2. Does the M600 support DJI’s SDKs?

The M600 is compatible with the Mobile SDK and the Onboard SDK. M600 also supports hardware Expansion.

3. How do I update the firmware on the M600?

For the M600 aircraft, use the DJI Assistant 2 software to update the firmware. For the remote controller, you can only update the firmware through the DJI GO app.

TROUBLE SHOOTING

1. What can I do when the aircraft is unable to take off and the flight controller LED signals red?

Connect the M600 to the DJI GO app and see the status bar at the top of the display for error messages notifying you of the problem.

2. The Battery Management Board gives an error message when I turn on the M600. How do I resolve this problem?

First of all, ensure that all batteries are firmly installed, especially the batteries that are not turned on. If all batteries are firmly installed, please check the remaining capacity of all batteries. If the ones that cannot be turned on are low on charge, please recharge the batteries to full.

3. What is the cause of the problem when the six batteries cannot be turned on simultaneously, making the aircraft unable to take off?

If the voltage discrepancy across the six batteries exceeds 1.5v, the aircraft will not take-off to ensure maximum flight safety. Please charge all six batteries before your flight.

4. How can I tell if any module in the redundant system has malfunctioned?

The GNSS and IMU modules have built-in LED status indicators. If the indicators are green or blue, the respective module is functioning properly. If the indicator signals red, the module has malfunctioned. Please connect your aircraft to the DJI GO app or Assistant software for further information.

4. How can I tell if any module in the redundant system has malfunctioned?

The GNSS and IMU modules have built-in LED status indicators. If the indicators are green or blue, the respective module is functioning properly. If the indicator signals red, the module has malfunctioned. Please connect your aircraft to the DJI GO app or Assistant software for further information.

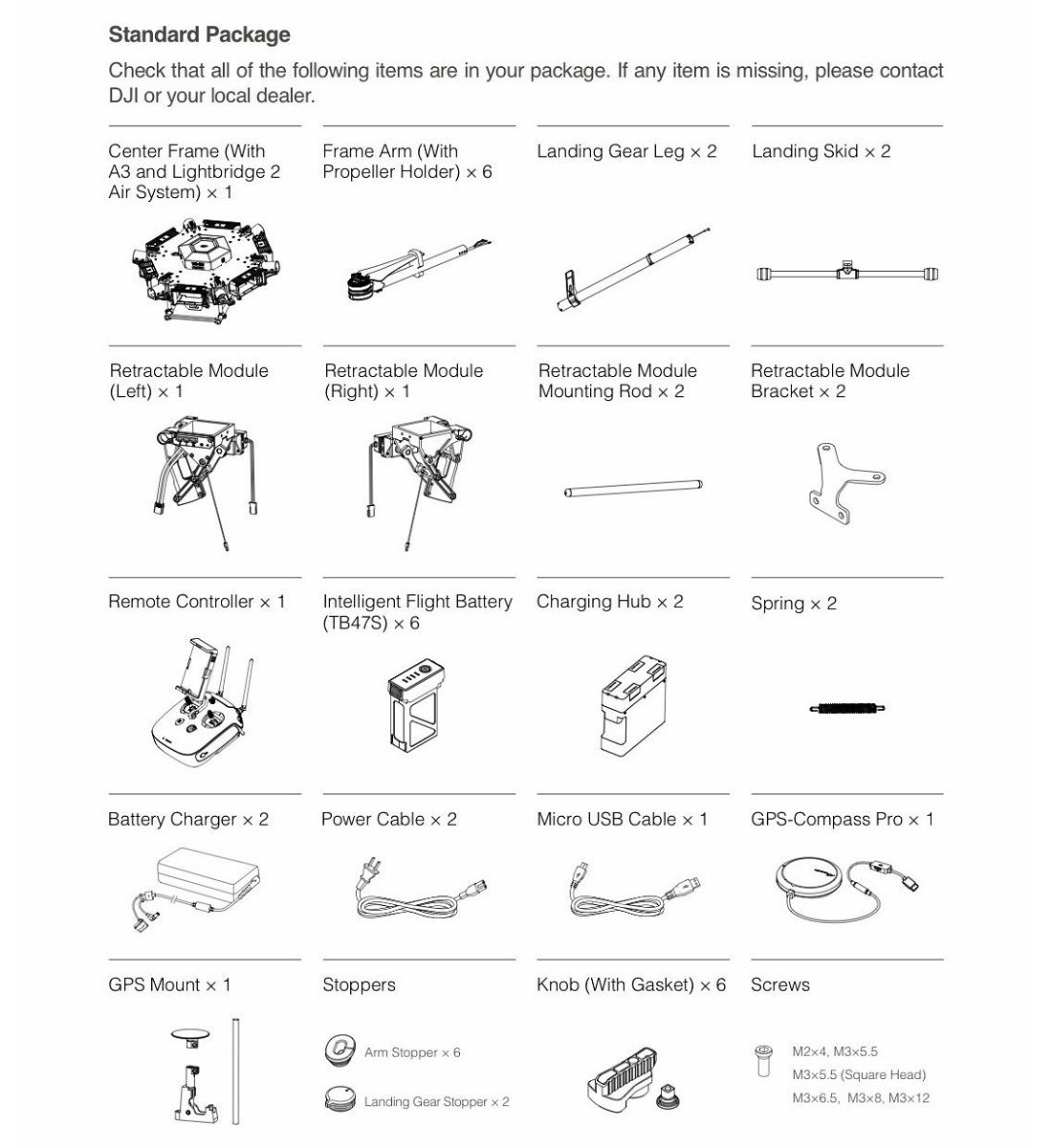

UKLJUČUJE:

DJI Matrice 600 Hexacopter
Center Frame (Includes A3 and Lightbridge 2)
6 x Frame Arm with Propeller Holder
2 x Landing Gear Leg
Landing Skid
Left Retractable Module
Right Retractable Module
2 x Retractable Module Mounting Rod
2 x Retractable Module Bracket
Radio Controller (Transmitter)
6 x TB47S Flight Battery
2 x Charging Hub
2 x Spring
2 x Battery Charger
AC Power Cable for Charger
Micro-USB Cable
GPS-Compass Pro
GSP Mount
6 x Arm Stopper
Landing Gear Stopper
6 x Knob with Gasket
Screws Set

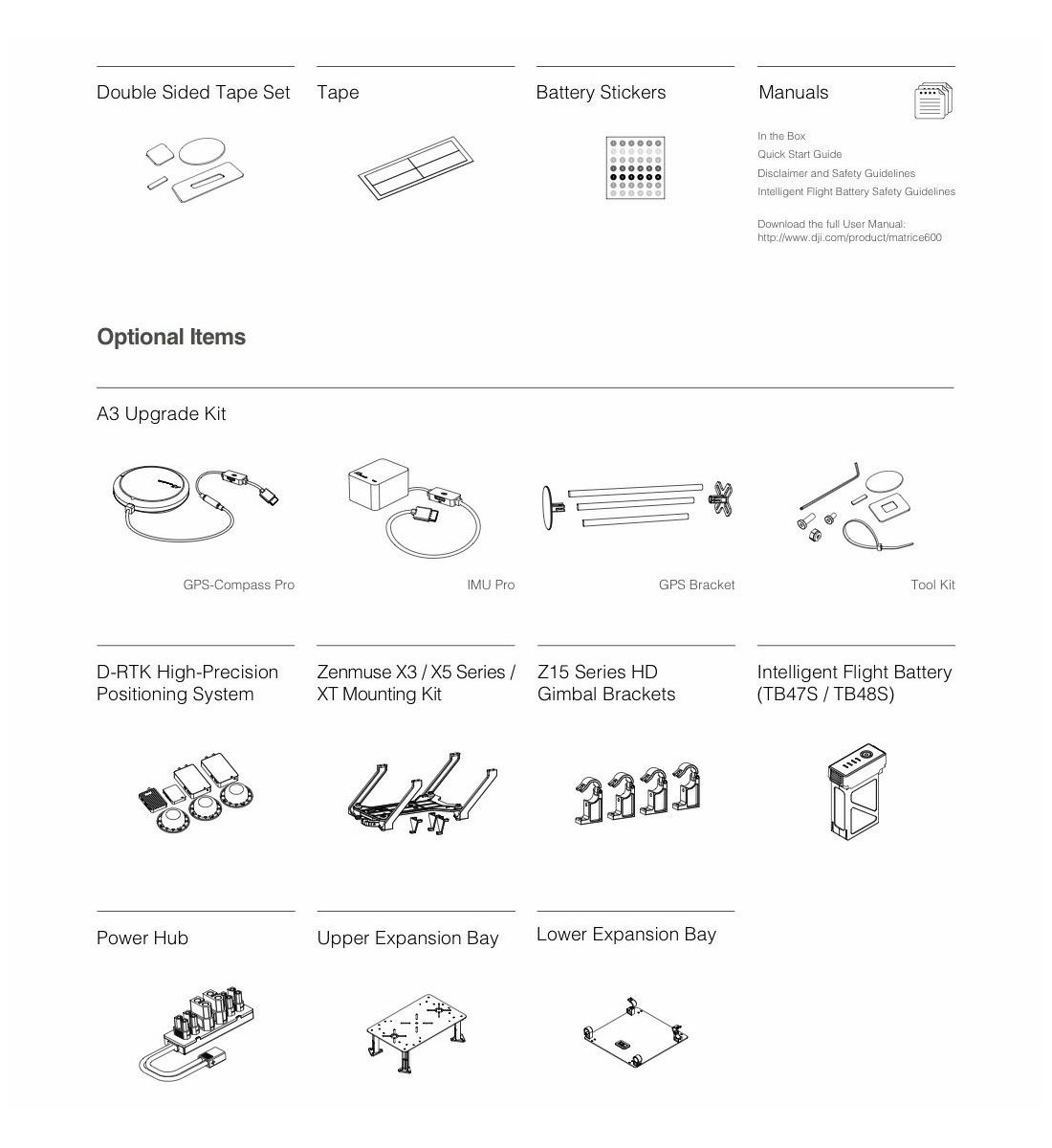

Double Sided Tape Set
Tape
Battery Stickers
