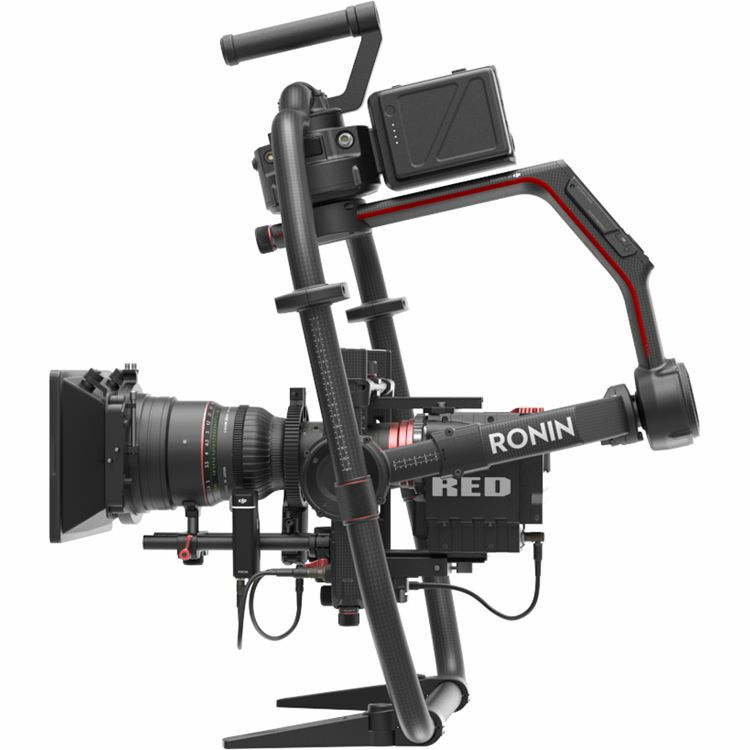

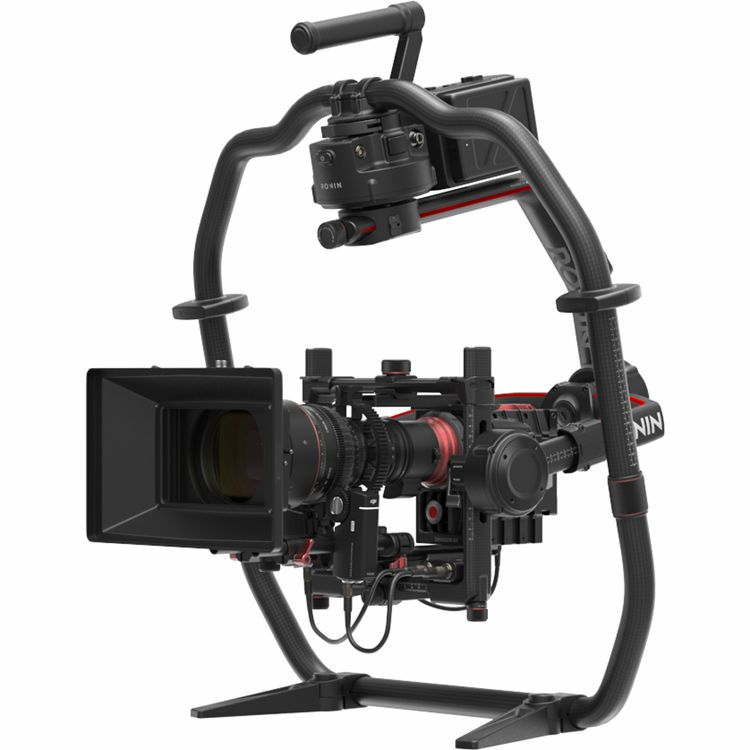

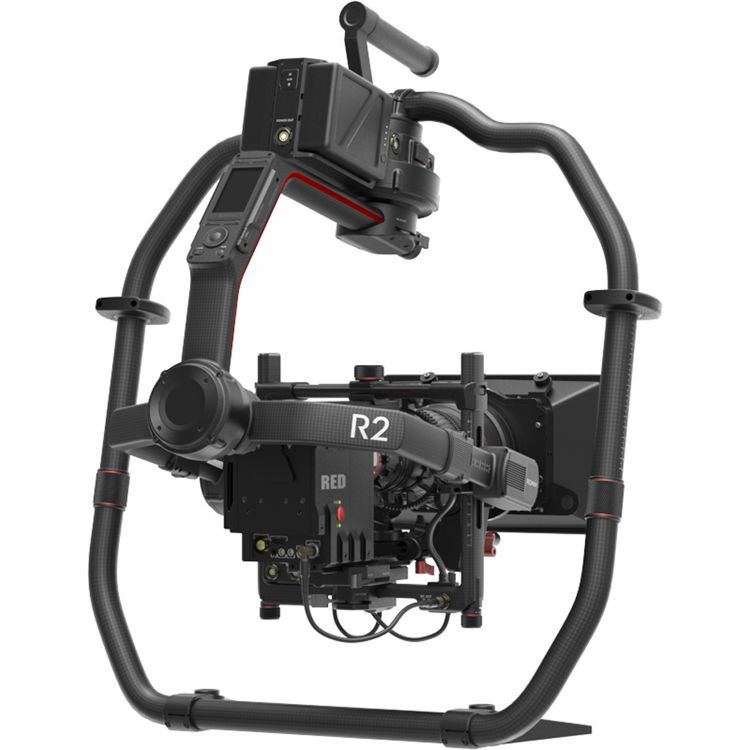

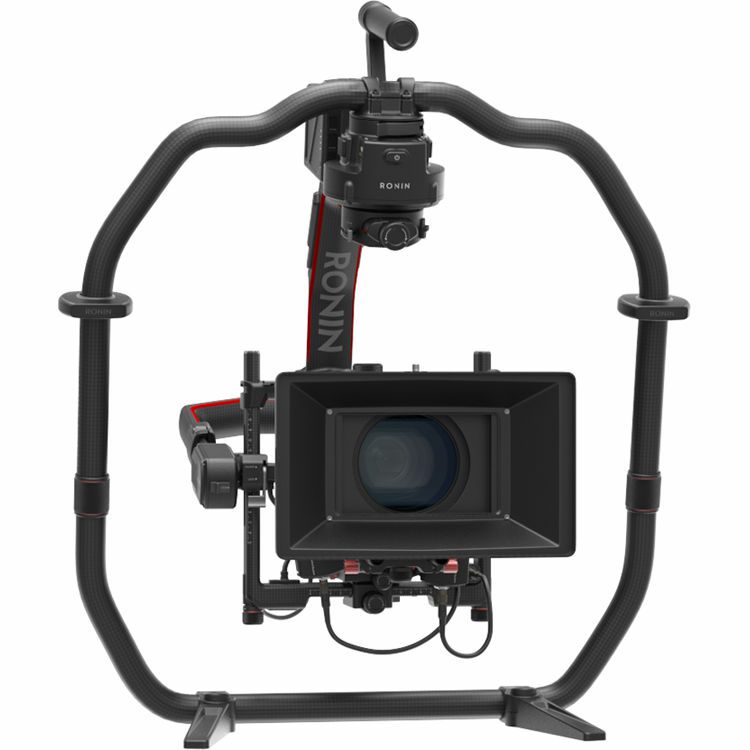

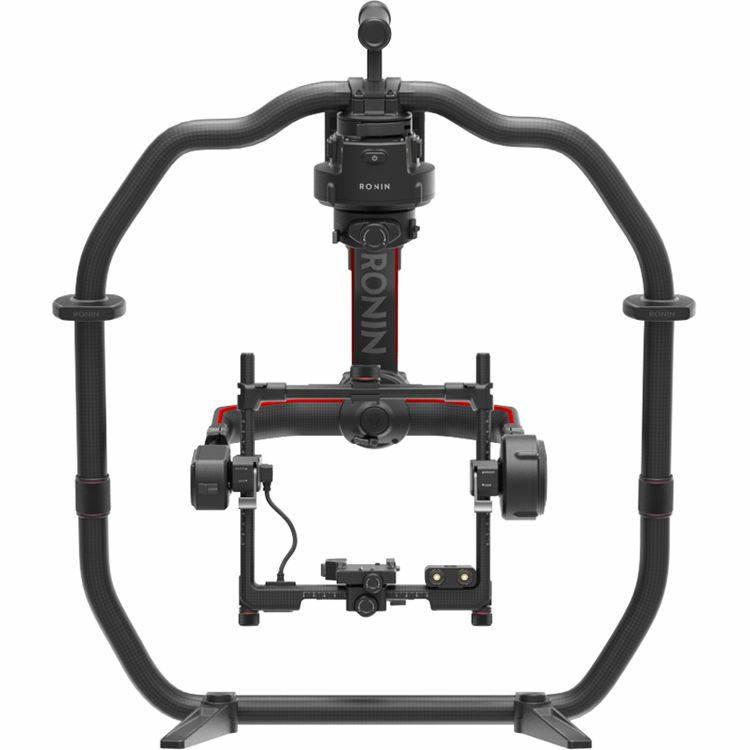

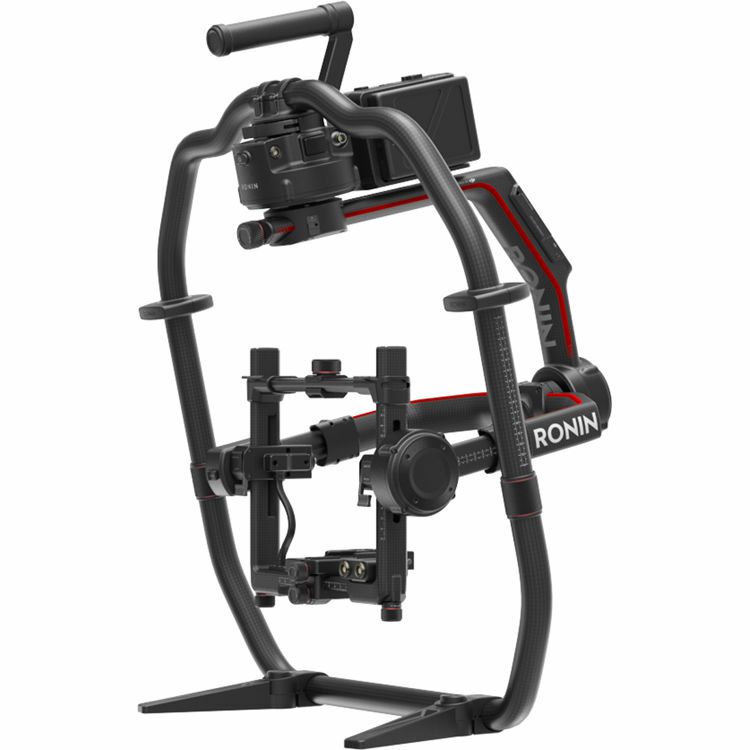

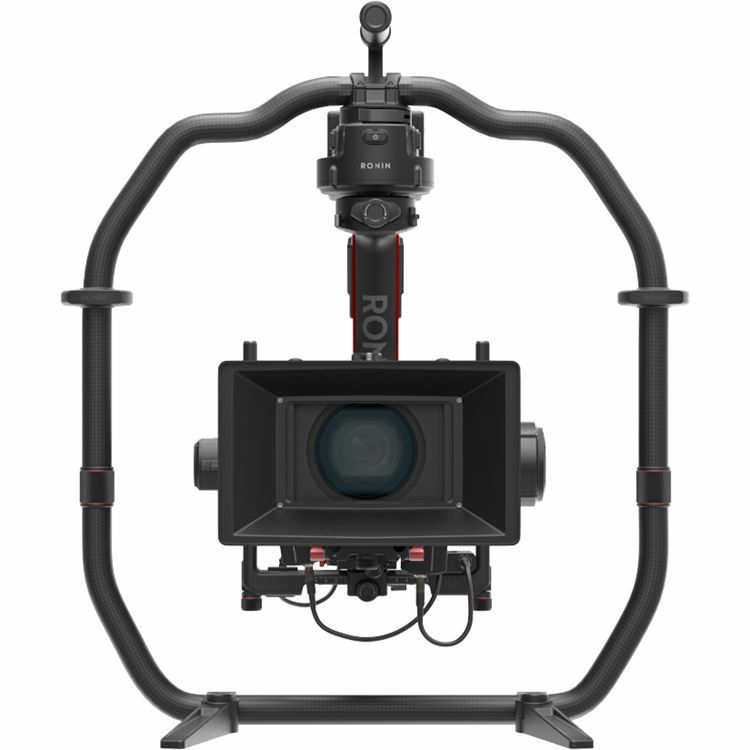

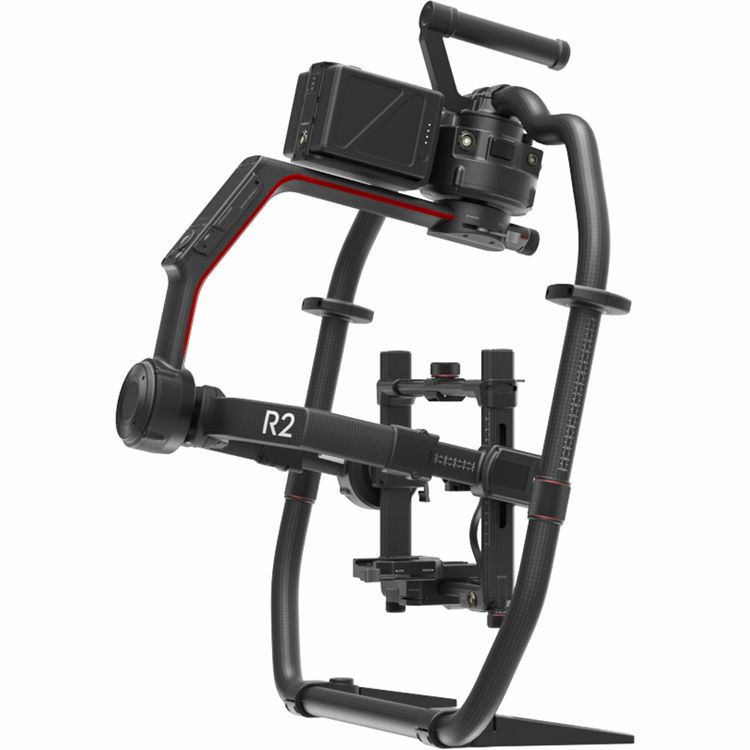

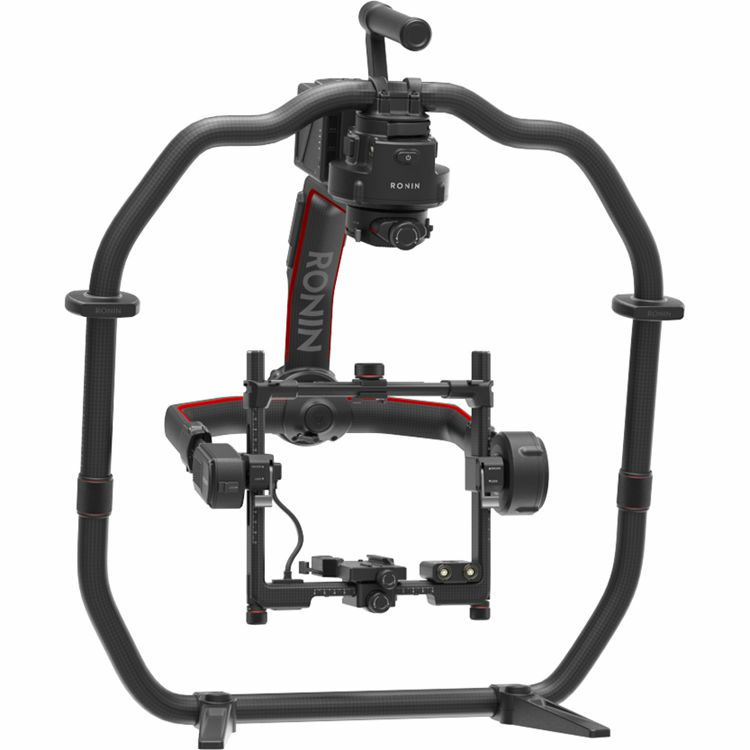

DJI Ronin 2 Professional Combo motorizirani stabilizator za video snimanje 3D Gimbal 3-Axis Handheld Aerial Stabilizer

ZNAČAJKE:

For DSLRs / Cinema Cameras
30-Pound Payload Capacity
Enhanced SmoothTrack Algorithm and GPS
Upright, Underslung, and Briefcase Modes
Easy Underslung/Upright Transitions
2-Axis Mode for Use with Steadicam
Retractable Feet/Self-Supporting Design
Camera Control for Select Cameras
2.4 / 5.8 GHz Switchable Remote
Up to 0.6-Mile Control Range

The versatile Ronin 2 gimbal from DJI is suitable for use handheld, or mounted in a variety of ways, including to a drone, Steadicam, vehicle mount, and more. An update from the original Ronin, this motorized stabilization system is suitable for a range of camera and lens configurations, boasting a payload capacity of 30 pounds. This means it can be used for everything from DSLRs up to cinema cameras such as the Arri Alexa Mini and Sony FS7.

Like its predecessor, the Ronin 2 features support for Underslung, Upright, and Briefcase operation modes to help you achieve the best angle. However, it has been redesigned to enable easy transition between Upright and Underslung modes without changing the position of the camera. It also offers several other improvements, such as enhancements to the control software and physical design to simplify taking complex shots without sacrificing performance, all while making important functions more readily accessible.


Performance
Upgraded high torque motors allow the gimbal to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car, and keep it moving smoothly in flight.
Boosted Torque
With up to eight times more powerful motors than previous iterations, Ronin 2 can withstand sustained speeds of over 75 mph with camera builds as heavy as 30 pounds. Thanks to encoded motors and enhanced precision, the Ronin maintains the same 0.02° of accuracy of its predecessors.
Versatility
Detachable Grip

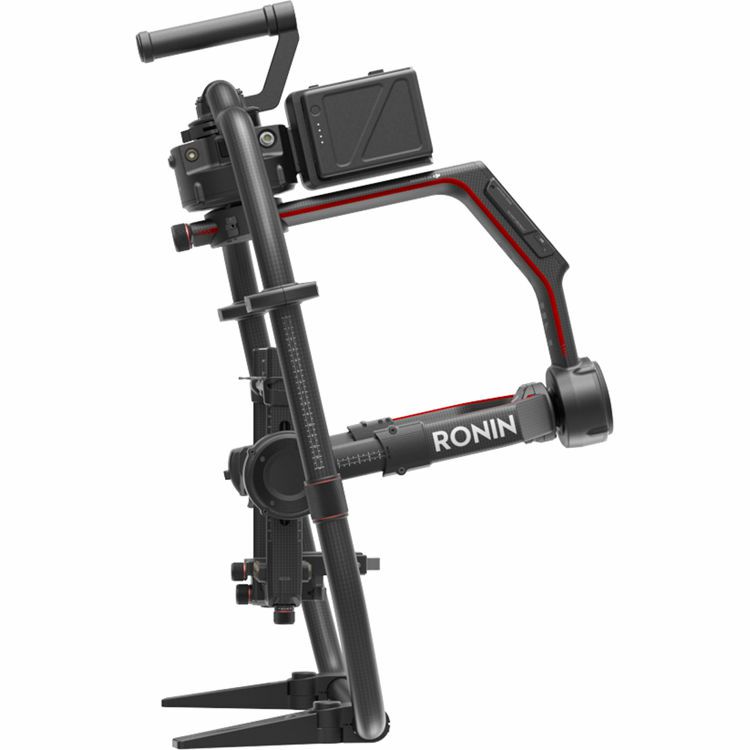

A detachable grip allows Ronin 2 to stand up on its own and is easily separated when the lower part of the handgrip is not needed. In addition to handheld work, the Ronin 2 supports mounting on cable cams, drones, Steadicams, vehicle mounts, and more.
Simplified Operation
Easier Setup
Making fine adjustments, which is essential for proper camera balancing, is now simplified with integrated adjustment knobs and a re-designed camera mounting base.
Integrated Screen
A dedicated high-brightness touchscreen for settings and adjustments has been integrated into Ronin 2, streamlining and accelerating gimbal setup. Tactile buttons including motor pause are placed easily within reach.
Assistant App
The extensively refined, redesigned, and expanded Gimbal Assistant app, helps to create content with minimum effort via new features such as CamAnchor, Time-Lapse, and Panorama, providing a more intuitive and easier to use full control system for Ronin 2.
Intelligent
Enhanced intelligence means filmmakers can get shots with Ronin 2 that would once have needed specialist expertise or additional equipment, from total smoothness control to studio-oriented smart features. Intelligent features include Panorama, Time-Lapse, and CamAnchor modes.
Powering
Hot-Swap Batteries
Two batteries on Ronin 2, and the ability to run with only one, allows batteries to be charged and swapped without interrupting a shoot.
Accessory Support
The Ronin power hub enables essential accessories, such as DJI Focus and wireless video transmission systems, to be powered by the Ronin 2 battery as well as communicate with the gimbal controller.
Design
Integrated GPS
The built-in GPS provides Ronin 2 with essential information for gimbal acceleration and speed, which is crucial for maintaining the camera's position and the horizon level when moving at high speeds while mounted to a vehicle or drone.
Robust Batteries
Robust and resilient in extreme weather conditions, Ronin 2's self-heating batteries ensure stable power output for high-performance in temperatures as low as -4°F and high heat environments. Dual batteries capable of operating simultaneously and independently provide complete redundancy, keeping the shoot going.
Compatible Cameras

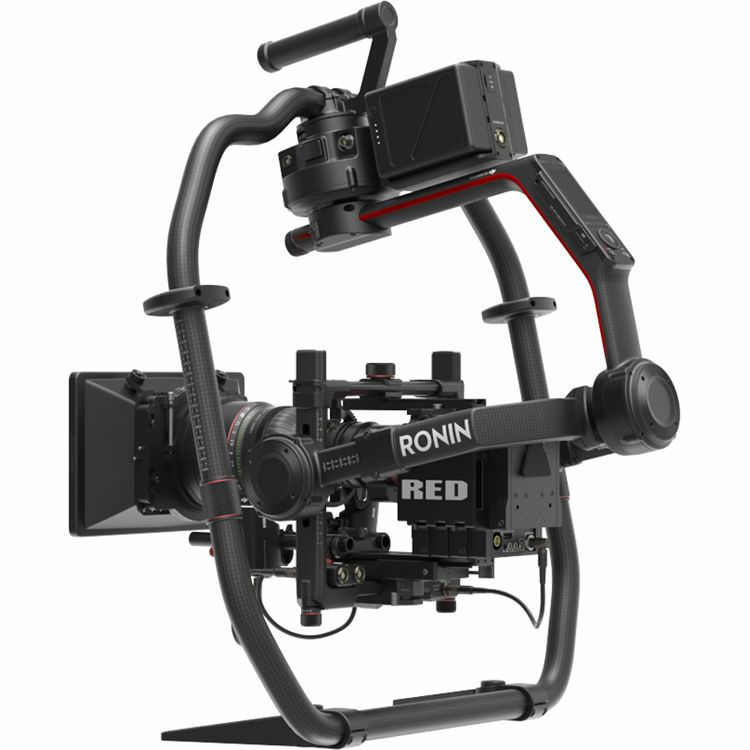

The Ronin 2 supports a range of cameras from DSLRs to cinema cameras, even with high-grade lenses and other accessories mounted. Compatible camera/lens configurations include:
RED DRAGON
Angenieux Optimo Anamorphic 6-152 A-2S
ARRI Master Prime lenses up to 150mm
ARRI Master Anamorphic lens
Canon CN7x17 KAS S 17-120mm T2.95
ARRI ALEXA Mini
Angenieux Optimo Anamorphic 56-152 A-2S
ARRI Master Prime lenses up to 150mm
ARRI Master Anamorphic lens
Canon CN7x17 KAS S 17-120mm T2.95
Blackmagic URSA Mini
Angenieux Optimo Anamorphic 56-152 A-2S
ARRI Master Prime lenses up to 150mm
Fujinon ZK19-90mm T2.9
Canon CN7x17 KAS S 17-120mm T2.95
Canon C300
Canon CN7x17 KAS S 17-120mm T2.95
Canon CN-E Prime lenses
Canon EF lenses up to 400mm
Zeiss Compact Zoom lenses
Sony FS7
Sony CineAlta 4K lens series
E-Mount lenses
ARRI Ultra Prime lenses
A-Mount lenses up to 300mm F/2.8G II

SPECIFIKACIJE:

Electrical and Mechanical
Working Current Static: 300 mA (at 22.8 V)
Dynamic: 500 mA (at 22.8 V)
Locked Motor: Up to 15 A (at 22.8 V)
Performance
Payload Capacity 30 lb / 13.6 kg
Precision of Control ± 0.02°
Maximum Controlled Rotation Speed Pan Axis: 400°/s
Tilt Axis: 360°/s
Roll Axis: 360°/s
Controlled Rotation Range Pan Axis Control: 360° continuous rotation
Tilt Axis Control: +45° to -135°
Roll Axis Control: ±45°
Battery Life Maximum: 8 hours
Typical when Powering Camera/Accessories: 2.5 hours
Gimbal Controller
CPU 32-bit ARM processor
Sensors Independent IMU module
Temperature sensors
Positioning GPS
Operation Modes Underslung
Upright
Briefcase
Interface Built-in touch panel
Receiver
Frequency 2.4 GHz / 5.8 GHz switchable
Connectivity
Wireless Bluetooth 4.0
Wired 1 x D-Bus
1 x USB Type-C
Accessory Power Ports 4 x 14.4 V Camera cage (combined 8 A)
2 x 12.6 V Pan motor (combined 4 A)
1 x 12.6 V D-Tap (8 A)
System Requirements
Assistant Software Windows 7 or above
macOS 10.11 or above
iOS 9 or above
Android 4.4 or above
Battery
Chemistry Lithium-ion polymer
Capacity 4280 mAh / 97.58 Wh
Voltage 22.8 V
Note Compatible with Inspire 2 flight battery. Not compatible with batteries for prior Ronin models.
General
Camera Tray Dimensions Maximum Depth from the Center of Gravity on Camera Baseplate: 9.6" / 245 mm
Maximum Height Measured from Top of the Camera Baseplate: 6.5" / 165 mm
Maximum Width: 7.1" / 180 mm
Mounting Compatibility Handheld
Car mount
Aerial
Tripod
Steadicam

Note: Separately available mounting hardware may be required.
Operating Temperature -4 to 122°F / -20 to 50°C
Dimensions (W x D x H) Including Handle Bar: 24.8 x 16.4 x 28.3" / 630 x 416 x 720 mm
Excluding Handle Bar: 13.8 x 16.4 x 20.9" / 350 x 416 x 530 mm
Weight Including Handle Bar: 12 lb / 5.5 kg
Excluding Handle Bar: 9 lb / 4.2 kg
Packaging Info
Package Weight 65.7 lb
Box Dimensions (LxWxH) 33.0 x 24.0 x 13.0"

UKLJUČUJE:

DJI Ronin 2 3-Axis Handheld / Aerial Stabilizer
Gimbal
Grip
Remote Controller
2 x TB50 Intelligent Batteries
Dual TB50 Battery Mount
Battery Charger
Quad Charging Hub
Battery Charger Power Cable
Ronin 2 Power Hub
Protective Case
Hex Tool
Assembly Hardware & Cables
Limited 6-Month Warranty for Gimbal Motors, Battery, and Battery Charger
