DJI Zenmuse X7 6K Camera and 3-Axis Gimbal (Lens Excluded) 3D stabilizator i kamera za dronove (bez objektiva)

ZNAČAJKE:

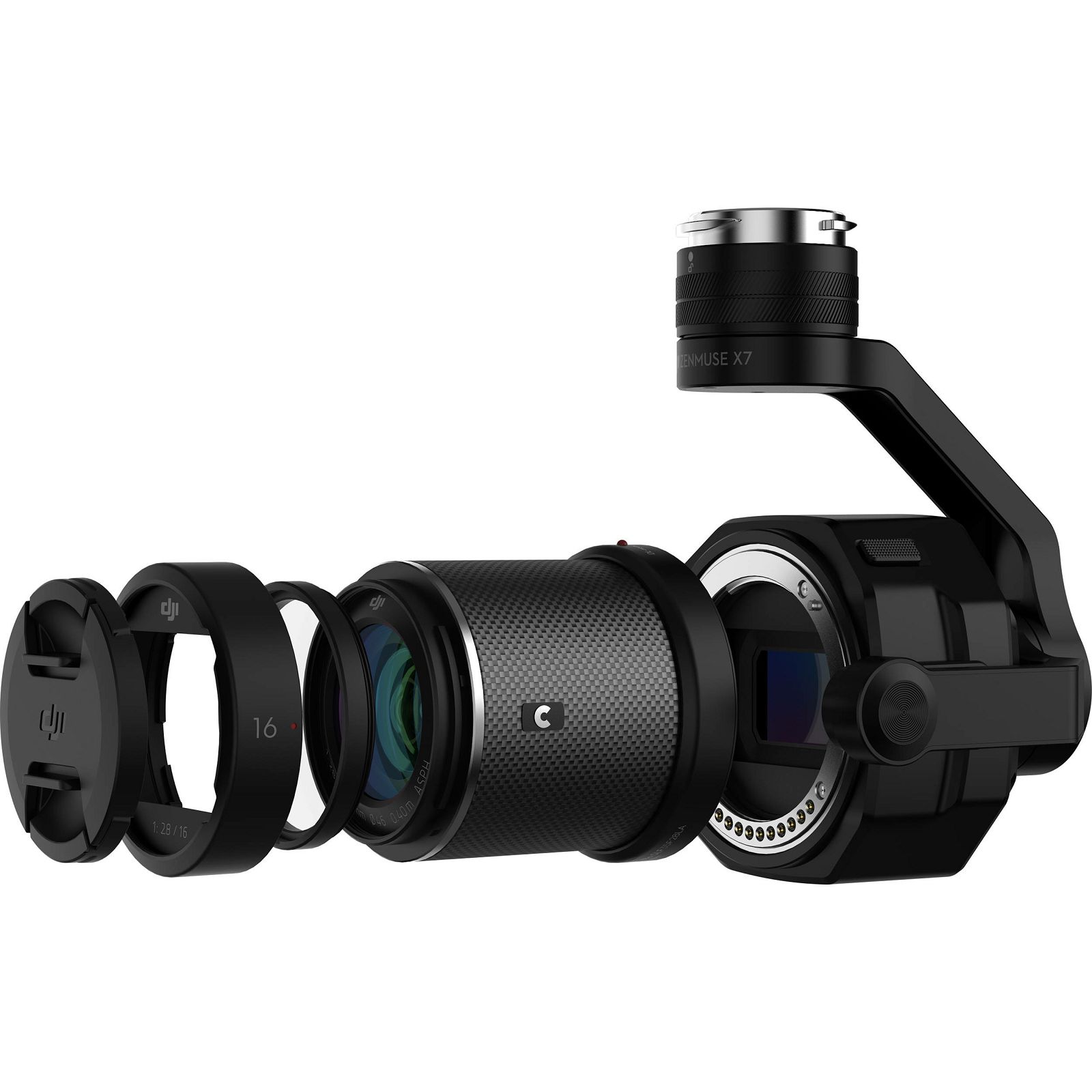

Detachable Gimbal Mount
6K (6016 x 3200) Video Capture
24MP Still Photos
Single, Burst, Auto, & Interval Photos
microSD and CINESSD Support

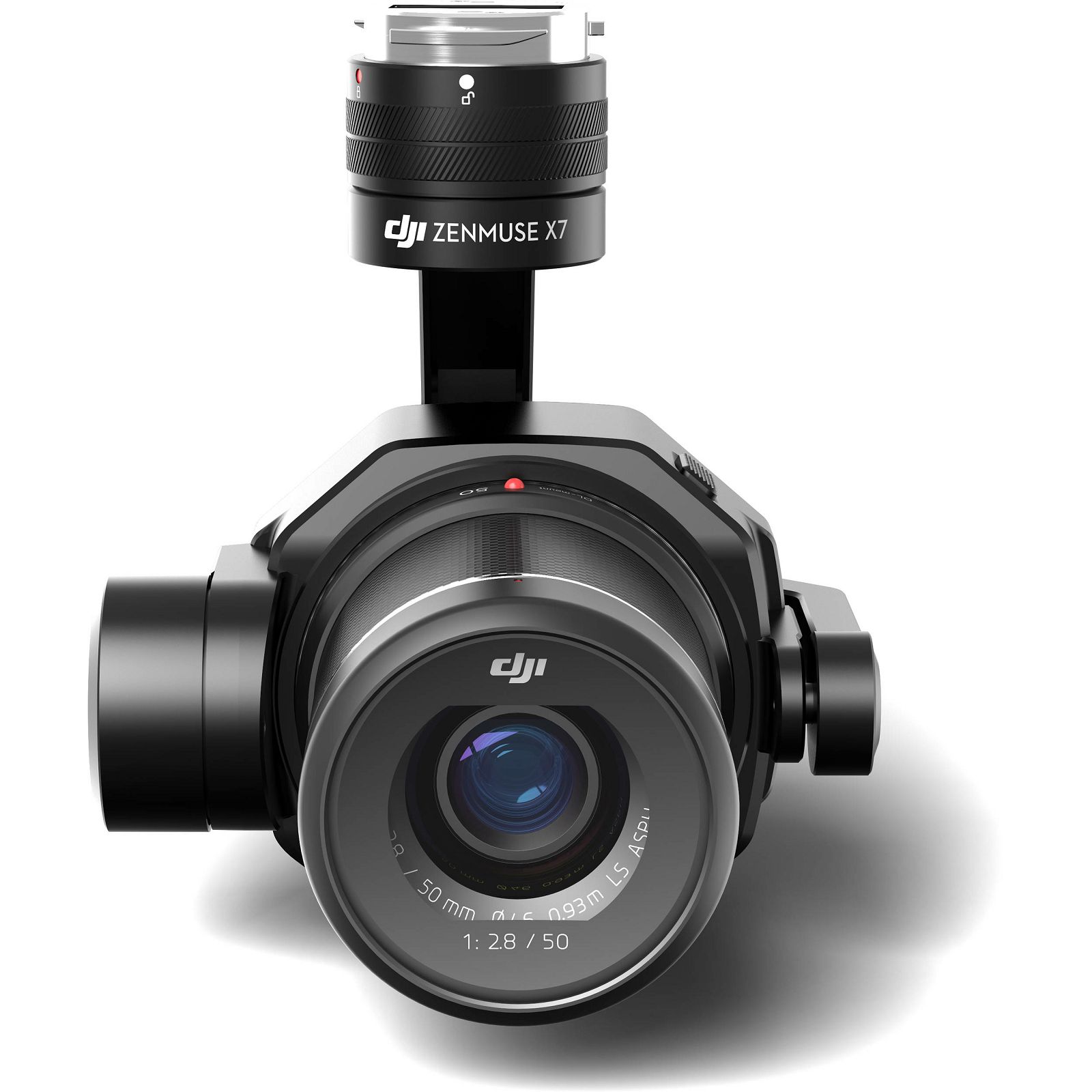

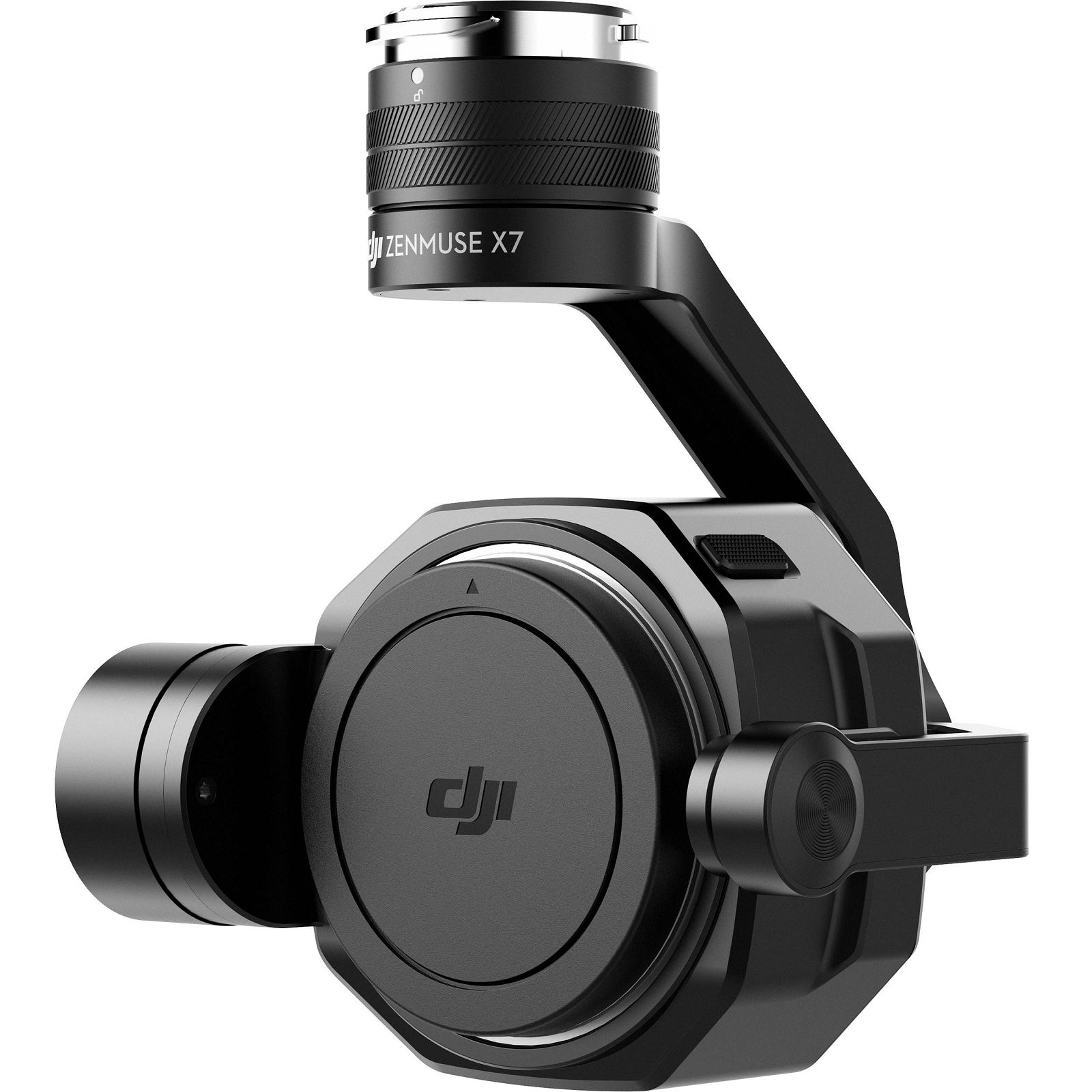

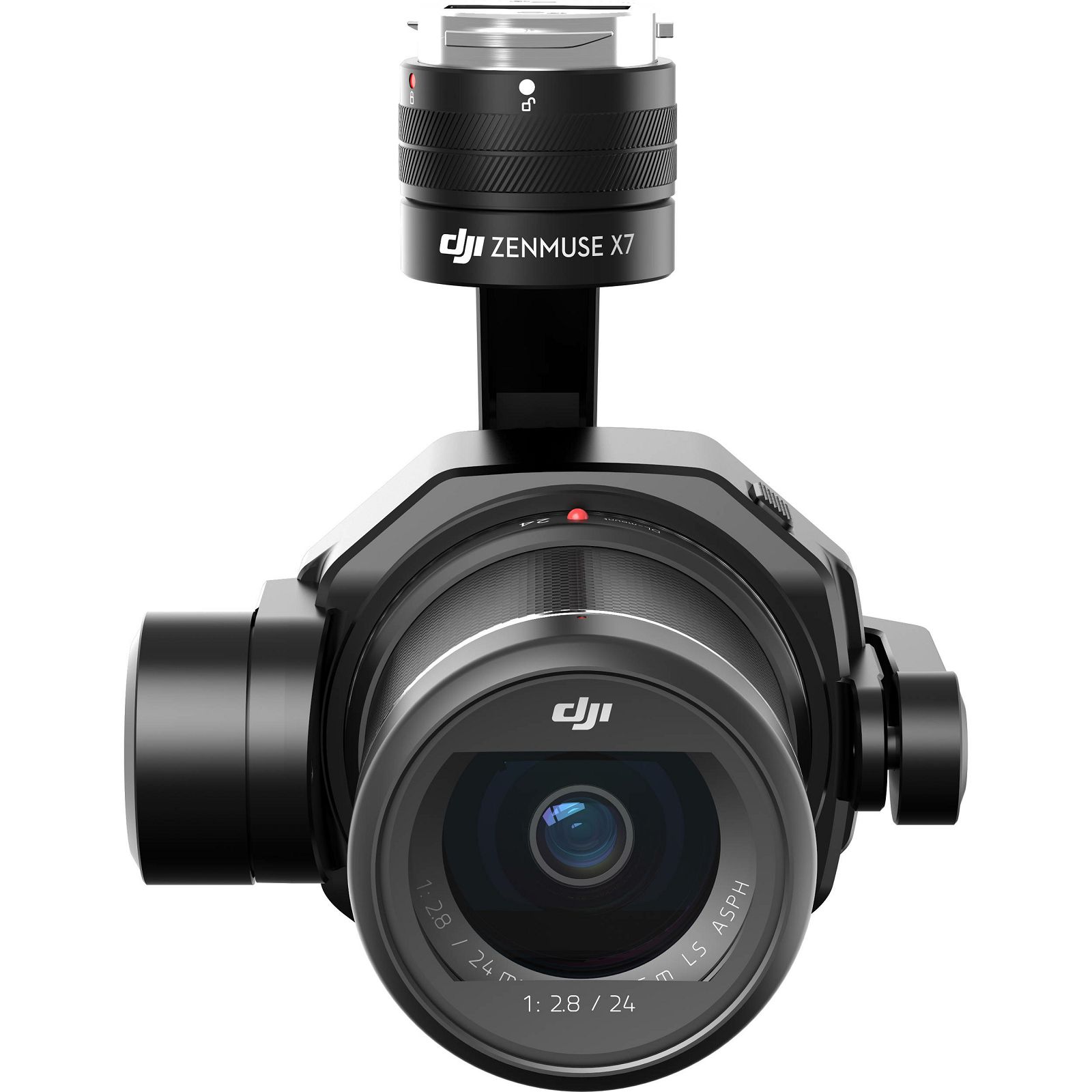

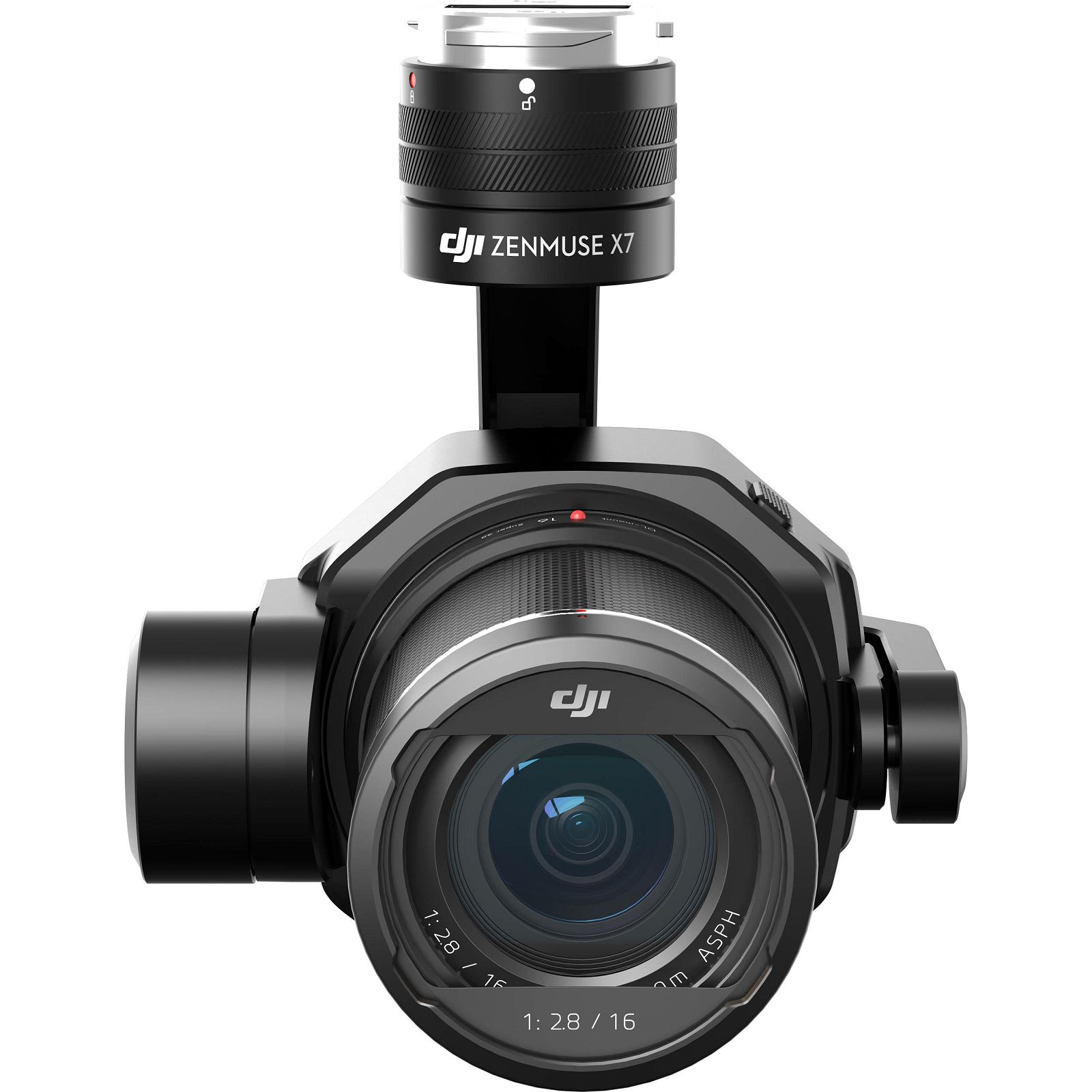

The DJI Zenmuse X7 Camera features a detachable 3-axis gimbal that provides stabilization and enables the camera to move independently of the aircraft. This camera system offers multiple recording options, including 6K video at 17:9 and 16:9 aspect ratios, DCI 4K at 30 fps, and UHD 4K at 60 fps in Cinema-DNG format; it also supports DCI and UHD 4K in ProRes and H.265/H.264. In addition to video, the Zenmuse X7 shoots 24MP still images, which can be captured in various photo modes, including individual or bursts. The Zenmuse X7 supports both microSD and DJI CINESSD cards.

SPECIFIKACIJE:

Camera
Sensor Size Still: 0.9 x 0.6" (23.5 x 15.7 mm)
Video: 0.9 x 0.5" (23.5 x 12.5 mm), max recording area
Lens Mount DL
Photo Resolution 24 MP
Video Resolution Aspect Ratio 17:9
Cinema-DNG:
6K: 6016×3200, 23.976/24/25/29.97/30p, 12-bit, full FOV
C4K: 4096×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K: 3944×2088, 47.95/50/59.94, 12-bit, narrow FOV
ProRes:
4K: 4096×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV
2K: 2048×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV
H.264:
C4K: 4096×2160, 24/25/30/48/50/59.94p
H.265:
C4K: 4096×2160, 24/25/30p

Aspect Ratio 16:9
Cinema-DNG:
6K: 5760×3240, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K: 3840×2160, 23.976/24/25/29.97/30p, 12-bit, full FOV
4K: 3712×2088, 47.95/50/59.94, 12-bit, narrow FOV
ProRes:
4K: 3840×2160, 23.976/24/25/29.97p, 10-bit, HQ/XQ, full FOV
2.7K: 2704×1520, 47.95/50/59.94p, 10-bit, HQ, narrow FOV
FHD:1920×1080, 47.95/50/59.94p, 10-bit, HQ/XQ, narrow FOV
H.264:
4K: 3840×2160, 24/25/30/48/50/59.94p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p
H.265:
4K: 3840×2160, 24/25/30p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p

Aspect Ratio 2.44:1
ProRes:
5.2K: 5280×2160, 23.976/24/25/29.97/30p, 10-bit, HQ, full FOV
H.264/H.265:
4K: 3840×1572, 30p, full FOV
Photo Modes Single shot
Burst: 3, 5, 7, or 10 frames
Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias
Interval: 5, 7, 10, or 14 fps (up to 20 fps when using RAW burst)
ISO Range Photo: 100 to 25600
Video: 100 to 1600 (EI mode on); 100 to 6400 (EI mode off)
Shutter Speed Electronic Shutter Speed: 1/8000 to 8 seconds
Mechanical Shutter Speed: 1/1000 to 8 seconds (DJI DL-S 16mm F2.8 ND ASPH not supported)
Supported File Types Photo:
DJI CINESSD: DNG
microSD: DNG, JPEG, DNG+JPEG
Video:
CINESSD: Cinema-DNG, ProRes
microSD: MOV, MP4
Recording Media microSD: Class 10 or UHS-1 rating with a writing speed of 15 MB/s required (up to 64 GB)
SSD: DJI CINESSD
Gimbal
Mount Detachable
Number of Axes 3-axis
Angular Vibration Range ± 0.005°
Control Range Tilt: 40 to -125°
Pan: ± 300°
Roll: ± 20°
Manual Control Speed Tilt: 180°/s
Roll: 180°/s
Pan: 360°/s
General
Operating Temperature -4 to 104°F (-20 to 40°C)
Storage Temperature -4 to 104°F (-20 to 40°C)
Dimensions 5.9 x 4.3 x 5.2" (151 × 108 × 132 mm)
Weight 449 g (15.8 oz)
Packaging Info
Package Weight 2.6 lb
Box Dimensions (LxWxH) 7.3 x 5.7 x 5.6"
