DJI A3 PRO Flight Controller

PRODUCT HIGHLIGHTS

Provides Triple Redundancy
Ideal for Industrial/Cinema Applications
For Quad-, Hexa- and Octo-Rotor aircraft
Ground Station Software
Motor Fail Survivability for 6/8-Rotors
Mobile and Onboard SDKs
Compatible with DATALINK PRO
Compatible with Zenmuse Z15 and Ronin-MX
Compatible with D-RTK Positioning System

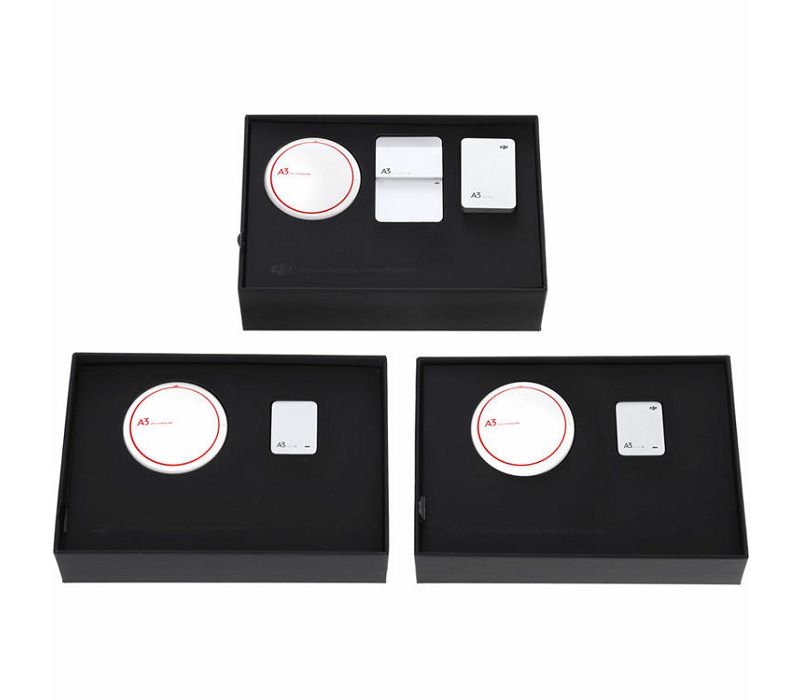

This bundle from DJI features the A3 plus two upgrade kits that, combined, yield a complete A3 Pro Flight Control System. With three IMU/GNSS systems, the A3 Pro provides triple redundancy, ideal for mission critical applications where failure is not an option.
The A3 Pro system is optimized for professional and cinematography applications, providing navigation and stabilization to quad-, hexa-, and octo-rotor aircraft. The system features GNSS, which means it can use satellite systems, such as GPS or GLONASS, in combination with a compass to provide precise positional data. The A3 Pro can be used in combination with DJI's Lightbridge 2 system to provide a high quality video downlink from a gimbal-mounted camera. Ground station software enables features, such as telemetry monitoring and route planning, and provides a flight simulator (additional ground station hardware required). It features support for DJI gimbals, including the Zenmuse Z15 line and the Ronin-MX. Mobile and Onboard SDKs allows developers to program custom solutions tailored to industry-specific use cases.
A3 Pro Features
Note: To complete the A3 Pro system one standard A3 is required
Triple Modular Redundancy
The A3 Pro gives the system three IMUs and three GNSS units, with additional analytical redundancies for a total of six redundancies. Working together with advanced diagnostic algorithms, if the A3 Pro detects GNSS or IMU unit failure during flight, it seamlessly switches to another unit to maintain reliability and precision
Performance
Fault-Tolerant Control
The new attitude determination and multi-sensor fusion algorithms improve the A3 Pro's control accuracy. The robust control algorithm enables the A3 Pro to be adapted to a wide range of aircraft without the need for manual tuning. With a fault-tolerant control system, a hexacopter or octocopter can land safely even in the event of propulsion system failure
Optional D-RTK GNSS
The A3 Pro supports separately available D-RTK GNSS for centimeter-level positioning accuracy compared to a normal GPS and barometer solution. Using dual antennas, its heading reference is more accurate than a compass sensor, and it is able to withstand magnetic interference from metal structures
Ground Station
Ground Station Software
Supporting both touchscreen and mouse and keyboard, the redesigned Ground Station can support mission design, for use in a range of industry applications. Users can simultaneously manage and monitor the mission implementation of multiple aircraft and plan formation flights. Ground Station is compatible with the Matrice 100 and Matrice 600, Phantom 4, and DATALINK hardware (all available separately)
Optional DATALINK PRO
The separately available DATALINK PRO operates at a frequency below 1 GHz, and works over a range of up to 1.2 miles. It integrates seamlessly with the A3 Pro and D-RTK as well as the Ground Station, which allows up to five aircraft to be controlled from one base station. A broadcast mode lets the base station broadcast data to 32 mobile devices and a duplex mode keeps data locked to one device
Assistant Software
DJI Assistant 2 allows you to set up a variety of DJI aerial systems. A new, built-in flight simulator ensures that complex moves can be practiced in advance without risking the aircraft, and a completely overhauled Ground Station supports touch screen interaction, offline mission design, route planning, and even formation flight for multiple aircraft
SDK Support
With Onboard and Mobile SDKs, custom-built applications can access flight data, and control the aircraft, gimbal, and camera. Dedicated hardware interfaces including CAN and API ports allow industry experts to craft their ideal aerial system by adding actuators and sensors

SPECIFIKACIJE:

Performance
Hovering Accuracy In P-Mode:
Vertical: ±1.6' / 0.5 m
Horizontal: ±4.9' / 1.5 m
Maximum Wind Resistance 32.8 ft/s (10 m/s)
Maximum Yaw Angular Velocity 150°/s
Maximum Pitch Angle 35°
Maximum Speed Ascent 16.4 ft/s / 5 m/s
Descent: 13.1 ft/s / 4 m/s
Flight Controller
Flight Modes P-Mode (Positioning)
Atti Mode / A-Mode (Attitude)
F-Mode (Function)
Manual

Return to Home (RTH) Modes:
Smart RTH
Low battery RTH (requires DJI Intelligent Flight Battery)
Low voltage RTH (for other LiPo batteries)
Failsafe RTH
Safety Features Failsafe mode
Low battery level warning (requires DJI Intelligent Flight Battery)
Low battery voltage warning (for other LiPo batteries)
Custom flight altitude and radius limits
No Fly Zones
Motor redundancy (for 6 and 8 rotor platforms)
Motor overload detection
Triple modular redundancy (requires A3 Pro upgrade)
App-Enabled Modes Beginner mode
Auto takeoff and landing
Wireless flight controller configuration
Flight data OSD (built-in data recorder)
Intelligent Flight Modes: Course Lock / Home Lock / Point of Interest (POI) / Waypoints

Note: Lightbridge 2 Required for all except Course Lock and Home Lock
System Requirements
Supported Equipment DJI Aerial Platforms: S900, S1000, S1000+
DJI Gimbal Systems: Ronin-MX; Zenmuse X3 / X5 / X5R/ XT /Z15 A7 / GH4 / 5D III / BMPCC
DJI Intelligent Landing Gear
DJI Intelligent Flight Battery
Supported Airframes 4-Rotor: I4, X4
6-Rotor: I6, V6, Y6, IY6
8-Rotor: X8, I8, V8
Supported ESC Output 400 Hz refresh frequency
Supported Receivers DJI Lightbridge2
DJI DR16
S-BUS
Recommended Batteries DJI Intelligent Flight Battery
3S to 12S lithium-ion polymer (LiPo) battery
Operating System Assistant Software:
Windows 7, 8 or 10 (32 or 64 bit)
Mac OS X 10.9 or later
Peripheral
SDK Mobile SDK
Onboard SDK
Onboard SDK Ports API
Expansion Ports F1 to F4 ports for output
Electrical and Mechanical
Rated Power A3: 5 W
With A3 Pro Upgrade: 10 W
Rated Peak Power 16 W
Input Voltage Range 10.5 to 52 V
Static Electricity AD: ±8 KV
CD: ±4 KV
General
Operating Temperature 14 to 113°F / -10 to 45°C
Dimensions Flight Controller: 2.5 x 0.9 x 0.8" / 64 x 24 x 19.5 mm
GPS-Compass Pro: 2.4" / 61 mm (diameter) x 0.5" / 13 mm
LED Module: 1.1 x 1.1 x 0.3" / 27 x 27 x 8 mm
IMU Pro: 1.3 x 1 x 0.8" / 34 x 26.5 x 20 mm
PMU: 2 x 1.3 x 0.5" / 51 x 34 x 13.5 mm
Weight Complete A3 Pro System: 13.6 oz / 386 g
Packaging Info
Package Weight 3.5 lb
Box Dimensions (LxWxH) 7.6 x 5.8 x 5.3"

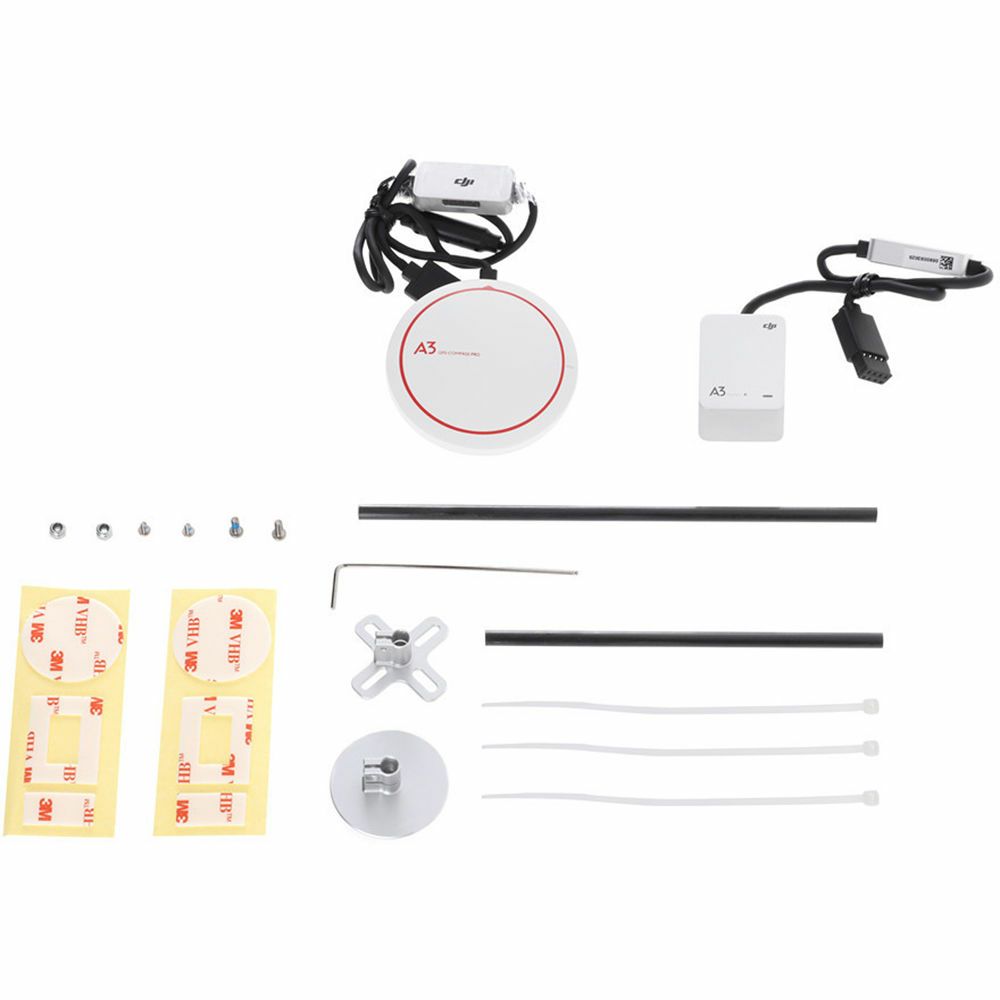

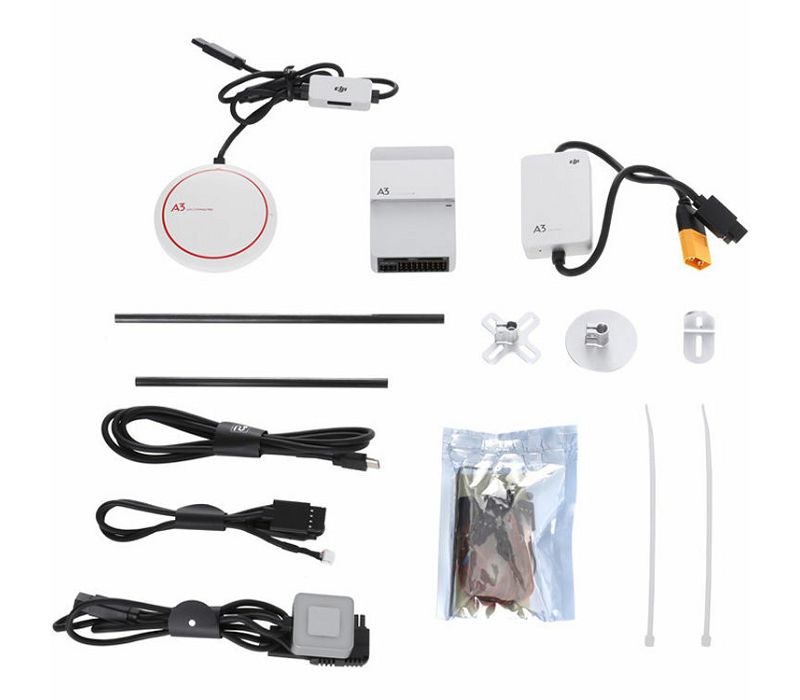

UKJLUČUJE:

DJI A3 Pro Flight Control System
Flight Controller
2 x IMU Pro
3 x GPS-Compass Pro
LED Module
PMU
3 x GPS Mounting Bracket
LED Mounting Bracket
CAN-Bus to Gimbal Cable
Micro-USB Cable
5 x Servo Cable
D-BUS Cable
Screw Pack
9 x Cable Tie
10 x Double-Sided Adhesive
