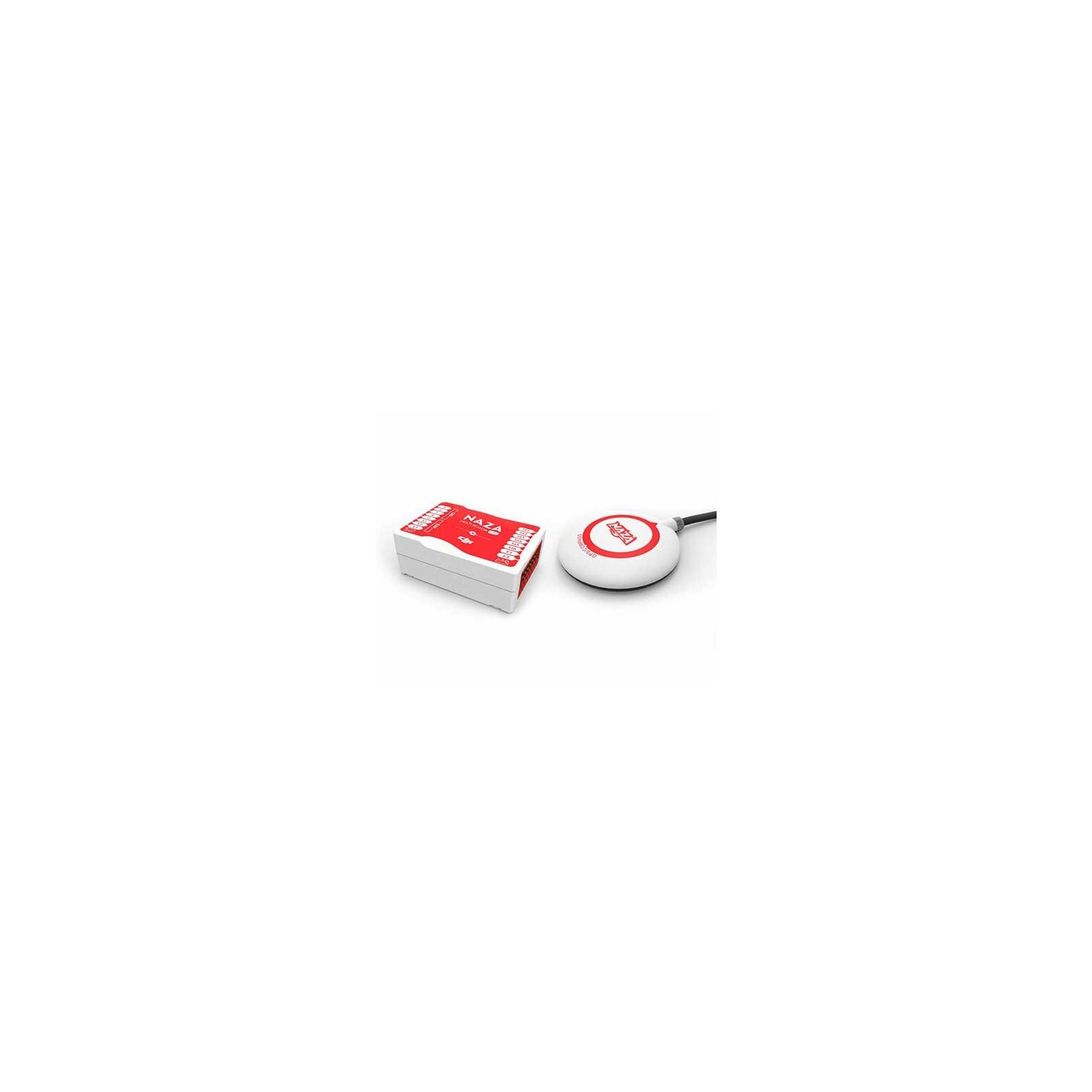

DJI NAZA-M V2 Lite & GPS Combo
Naza-M Lite Features
All-in-One Design
Advanced attitude stabilize Algorithm
Multiple flight control mode/intelligent switching
GPS Module Available/Accurate Position hold
Intelligent Orientation Control (IOC)
Failsafe mode
Low voltage protection
Motor Arm and Motor Dis-arm
Support Futaba S-Bus and PPM receiver
Supported multi-rotor types
Built-in Gimbal stabilization function
Remote adjustment
All-in-One Design;Advanced attitude stabilize Algorithm; Multiple flight control mode/intelligent switching; GPS Module Available/Accurate Position hold; Intelligent Orientation Control (IOC); Failsafe mode; Low voltage protection; Motor Arm and Motor Dis-arm; Support Futaba S-Bus and PPM receiver; Supported six multi-rotor types; Built-in Gimbal stabilization function; Remote adjustment
For entry-level enthusiasts, DJI now brings out the most cost-effective solution, the NAZA-M Lite flight control system.

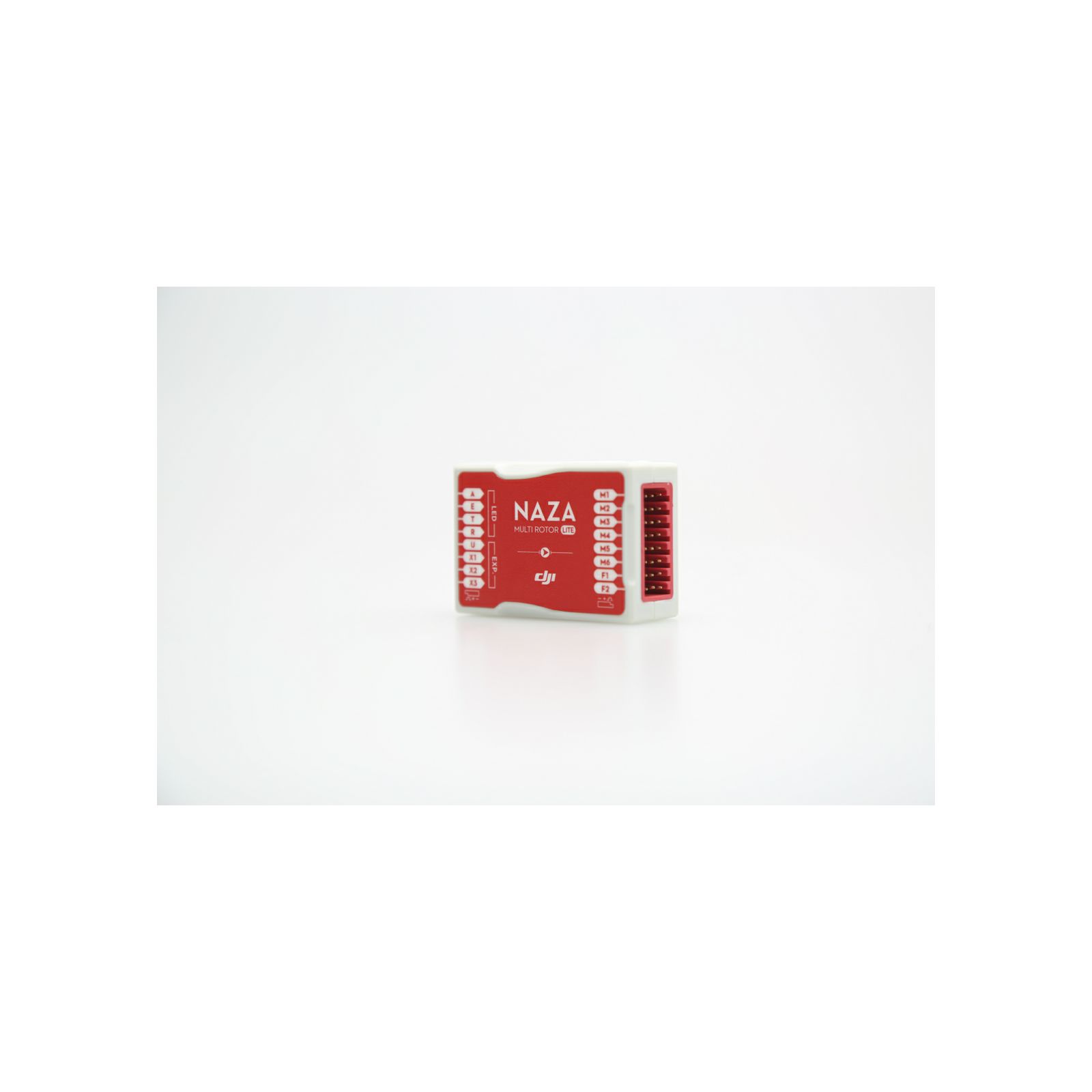

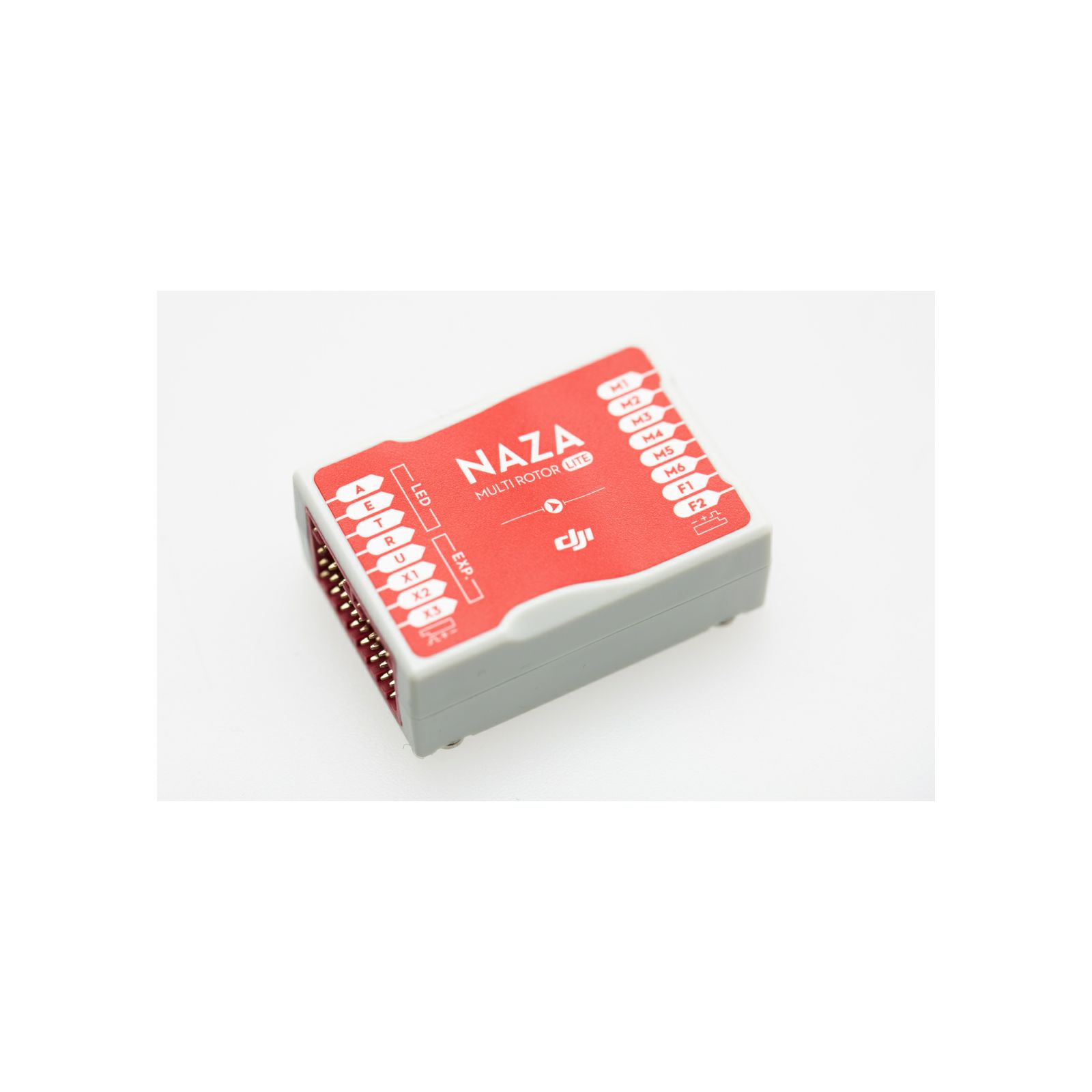

As the simplified version of NAZA-M, it inherits the high reliability and stability of NAZA-M. The innovative All-in-one design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude, attitude and therefore can be used for autopilot/automatic control.
Please note: Naza-M Lite is not compatible with Naza-M V2 PMU or BEC/LED.
SPECIFIKACIJE:
Basic Performance
Supported Multi-Rotor
Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6
Supported ESC Output
400Hz refresh frequency
Recommended Transmitter
PCM or 2.4GHz with minimum 4 channels
Working Voltage Range
MC:4.8V~5.5V
VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
Power Consumption
MAX1. 5W (0.3A@5V)
Normal:0.6W (0.12A@5V)
Operating Temperature
-10°C ~ 50°C
Assistant Software System Requirement
Windows XP sp3 / Windows 7 / Windows 8
Flight Performance
Hovering Accuracy(GPS Mode)
Vertical:±0.8m
Horizontal:±2.5m
Max Yaw Angular Velocity
200°/s
Max Tilt Angle
45°
Ascent / Descent
±6m/s
Hardware
Weight
MC:25g
VU:20g
GPS:21.3g
Dimensions
MC: 45.5mm x 31.5mm x 18.5mm
VU: 32.2mm x 21.1mm x 7.7mm
GPS & Compass 46mm(diameter)x9mm
Built-In Functions
Three Modes Autopilot
Enhanced Fail-safe
Low Voltage Protection
S-Bus Receiver Support
2-axle Gimbal Support
Notice: Flight Performance can be effected by mechanical performance and payloads
EAN: 6958265103070

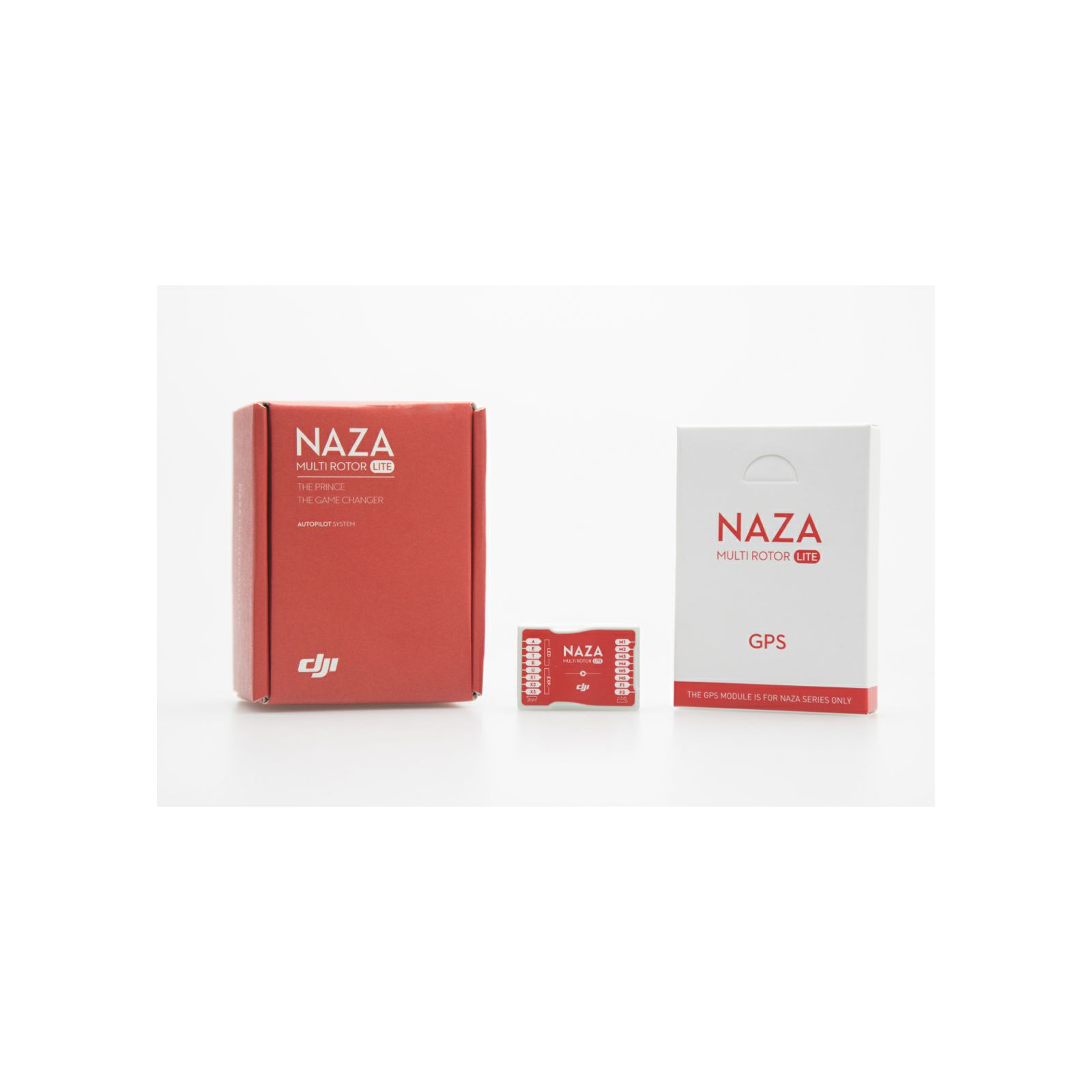

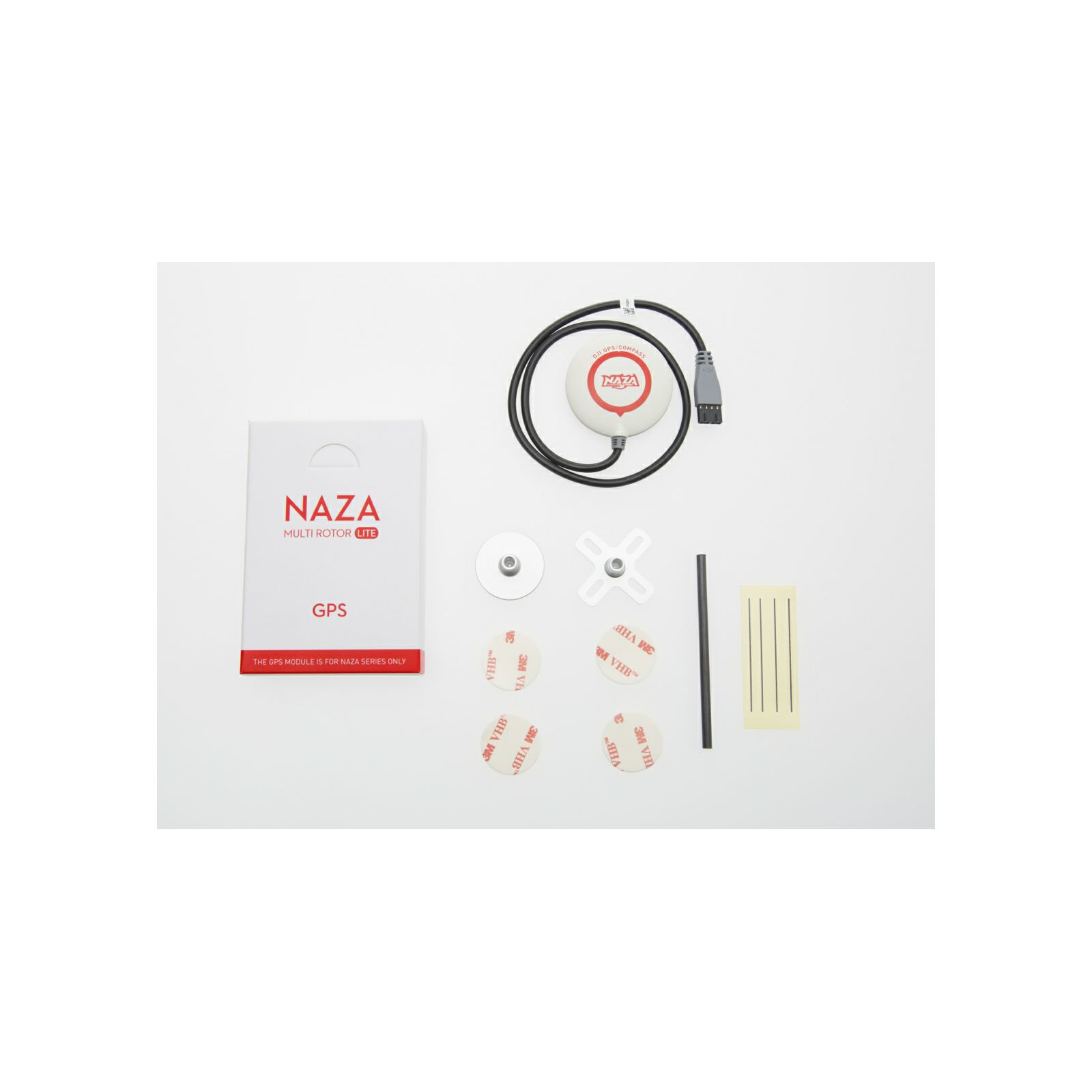

UKLJUČUJE:
1x DJI NAZA-M Lite kontroler
1x GPS
